Alpine

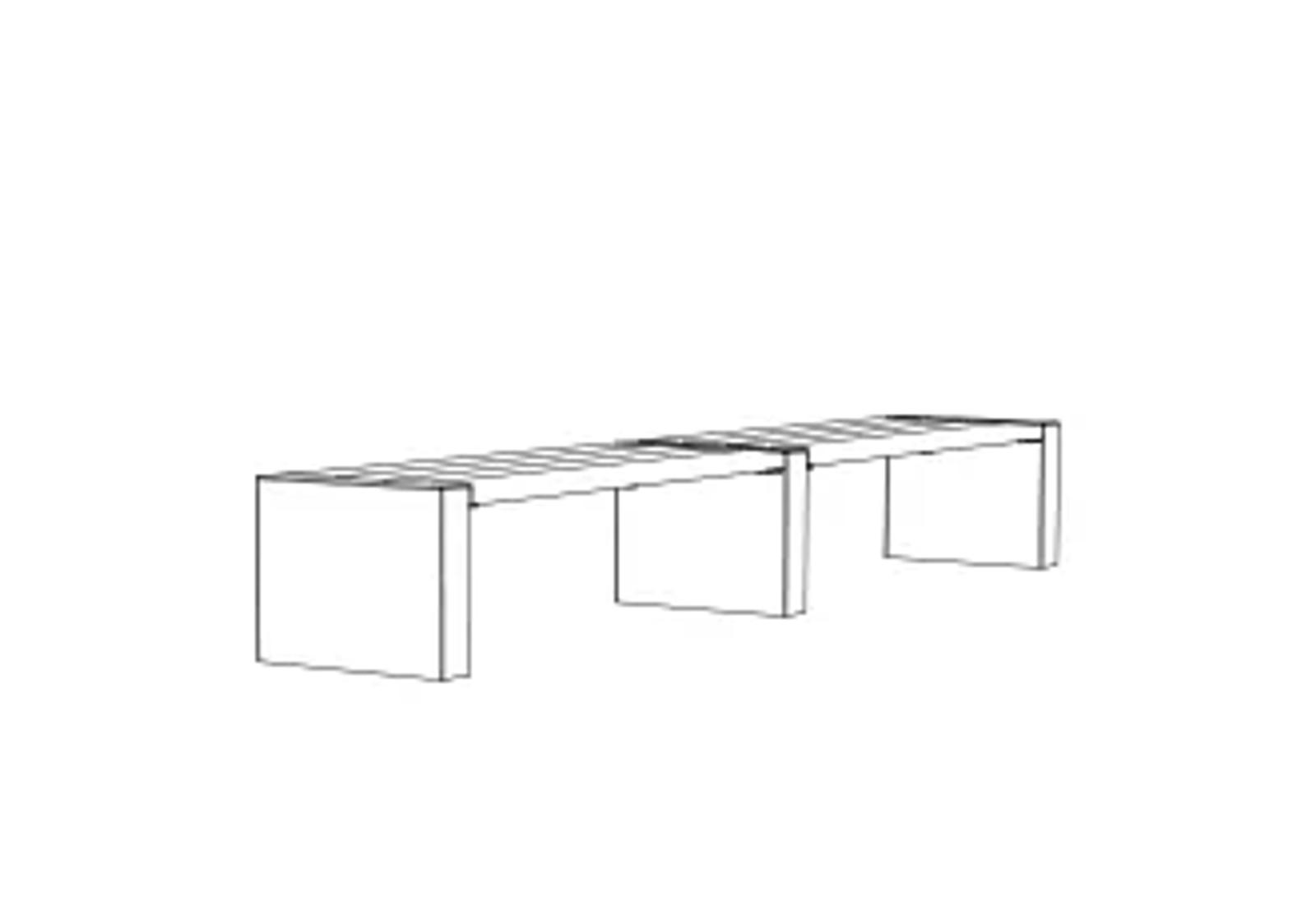

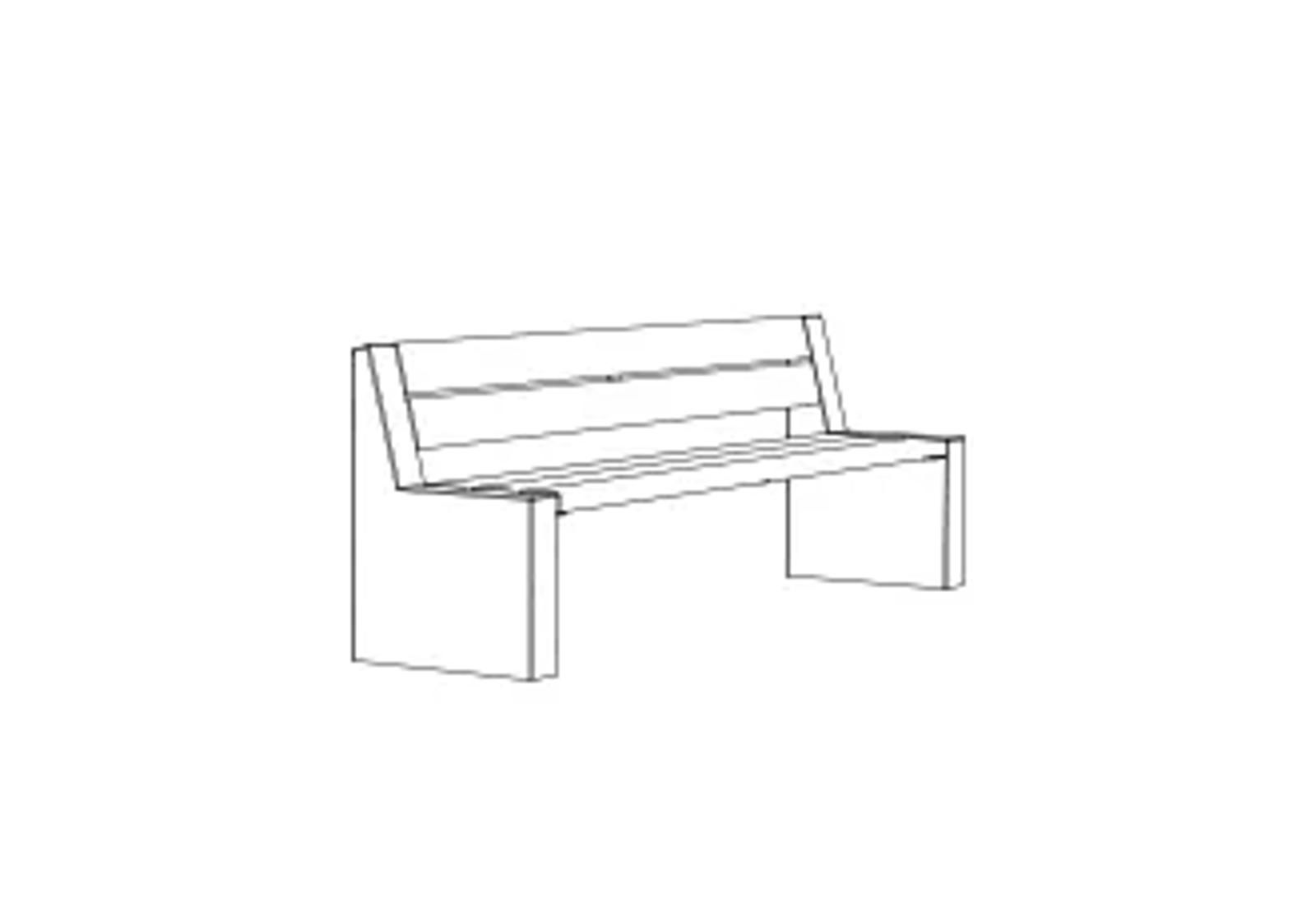

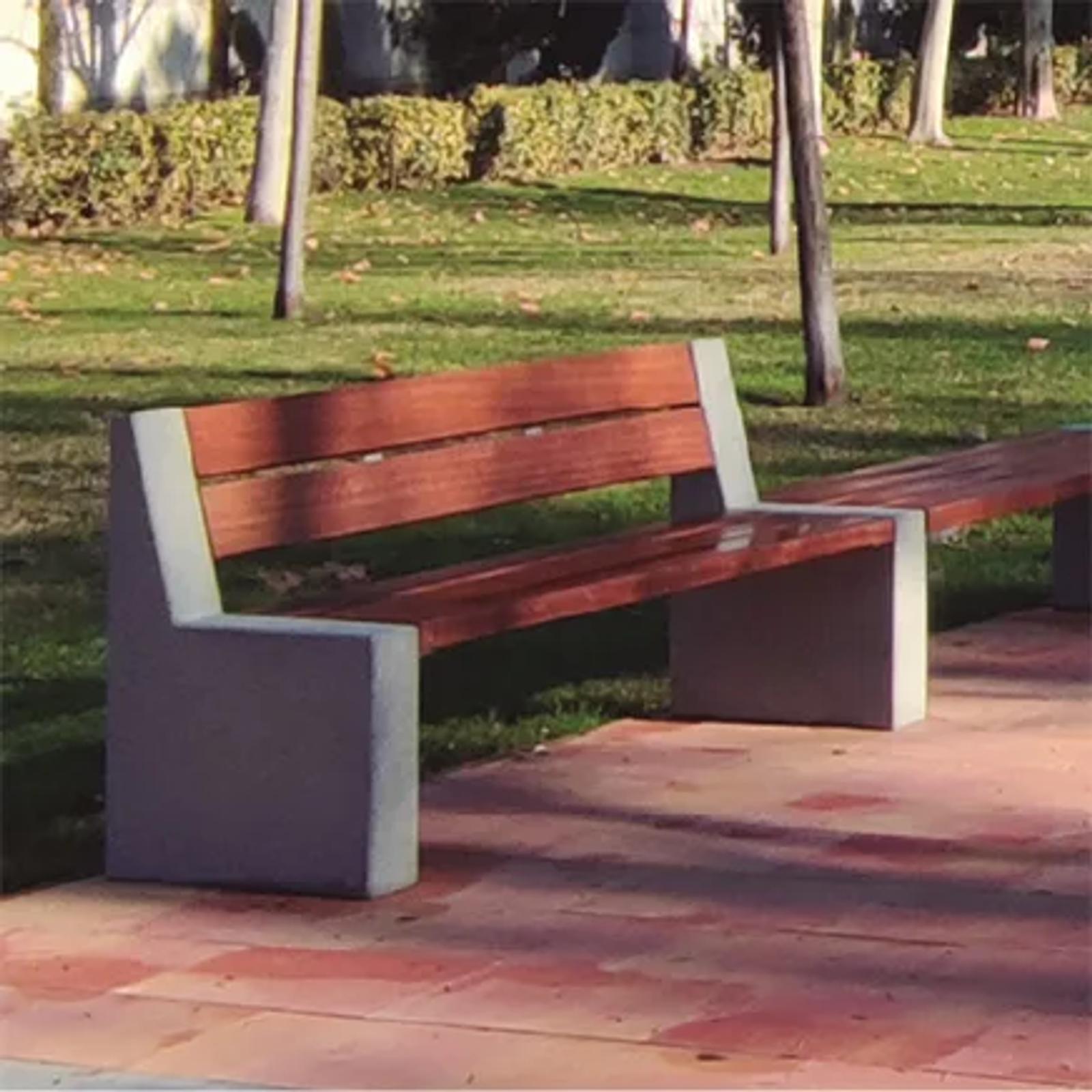

The collection features a straightforward and versatile system with a bench and a backless bench that can be combined for straight configurations, available in two lengths: 1.75 m and 2.40 m.

The concrete supports, complemented by the wooden seat and back, make it adaptable to any setting, enriching personal interaction and enabling diverse usage scenarios. The harmonious combination of robust stone supports, and the inviting warmth of wooden planks evokes an unspecified location in the Alps, from which its name originates, imparting a feeling of well-being, tranquillity, and relaxation.

Alpine is designed for easy and intuitive on-site assembly. The seat and backrest surfaces come pre-assembled with machined plates for screwing onto the concrete supports. Conceived to create meeting spaces, Alpine is 100% configurable in both linear compositions and standalone elements. The bench accommodates two module lengths: 1.75 m for urban settings and 2.40 m for a more landscape-oriented character.

Supports made from reinforced, etched and waterproof concrete in the Escofet standard chart colour. Optionally they are also made in recycled Eco-Grey® concrete. Seat and back formed by FSC®-certified solid pine or tropical wood with a cross-section of 135 x 50 mm. The structural elements, optional armrest and fastening elements are made from stainless steel.

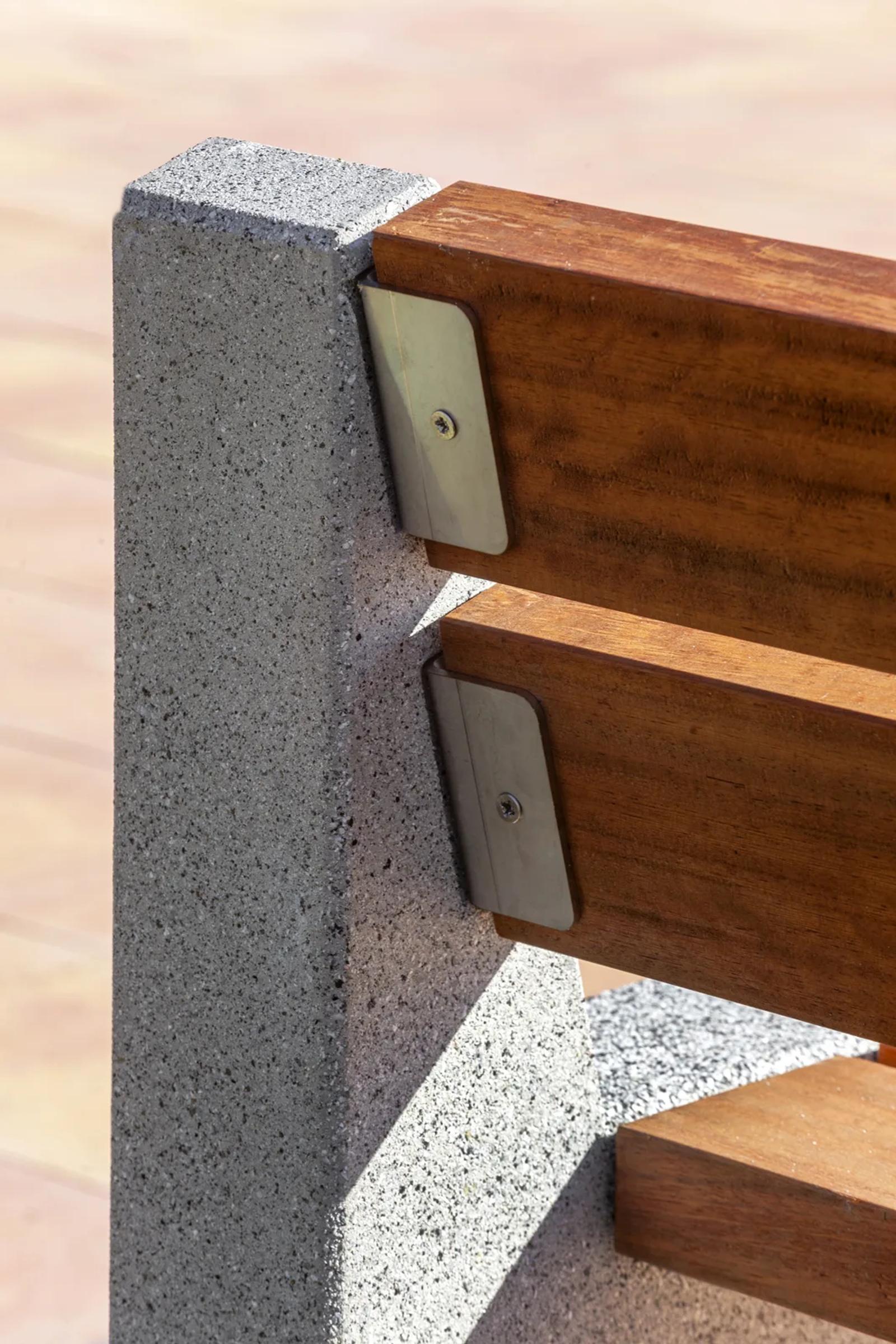

It is supplied dismantled and duly protected, with assembly instructions. Each support has two ground anchoring points with stainless steel threaded sleeves recessed in the concrete. The timbers of the back and seat are fastened to the supports with tamper-proof screws.

Design year
2019
Designer
ESCOFET LAB

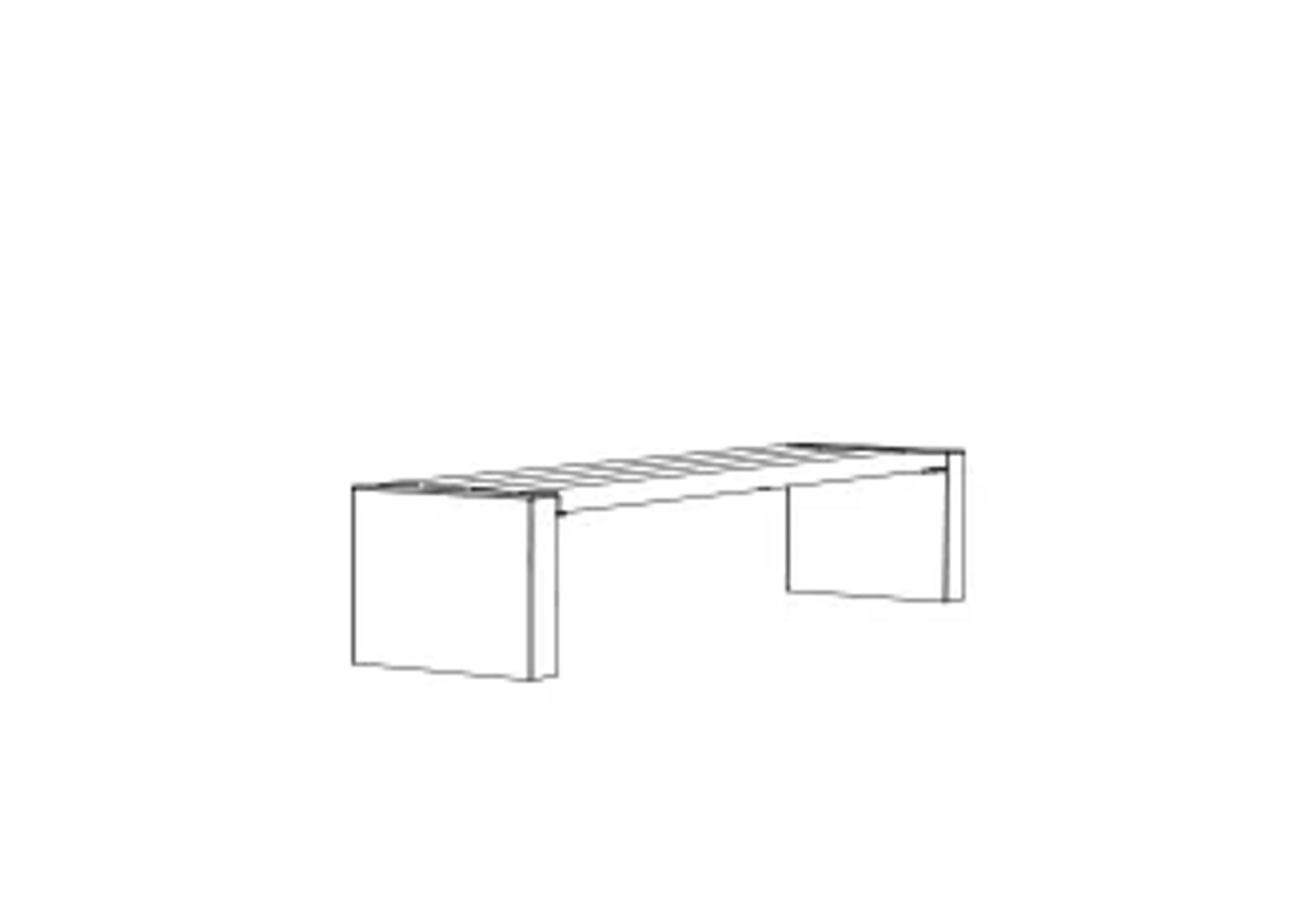

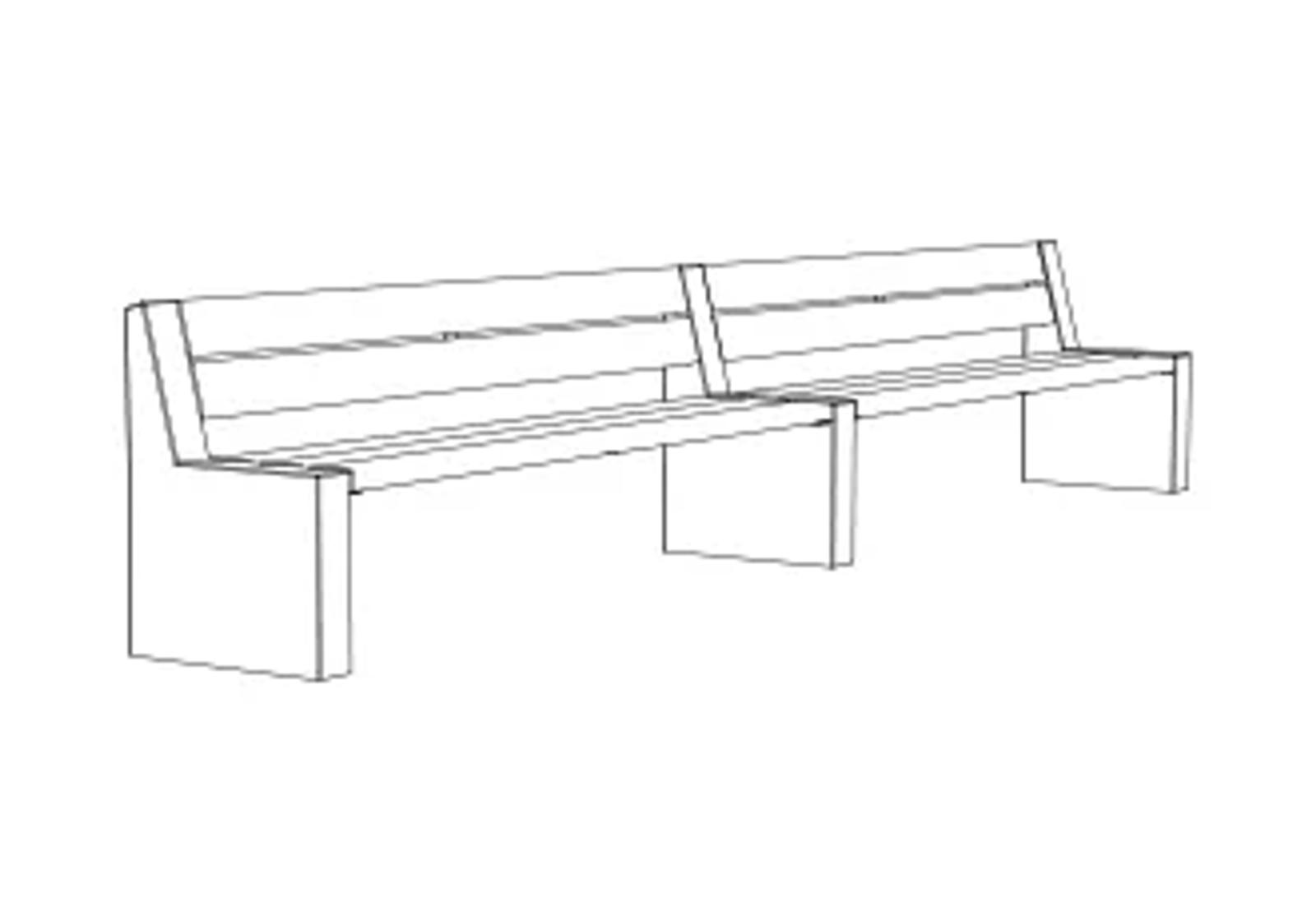

Dimensions / specification
240 x 60 x 48 cm
Weight
218 kg

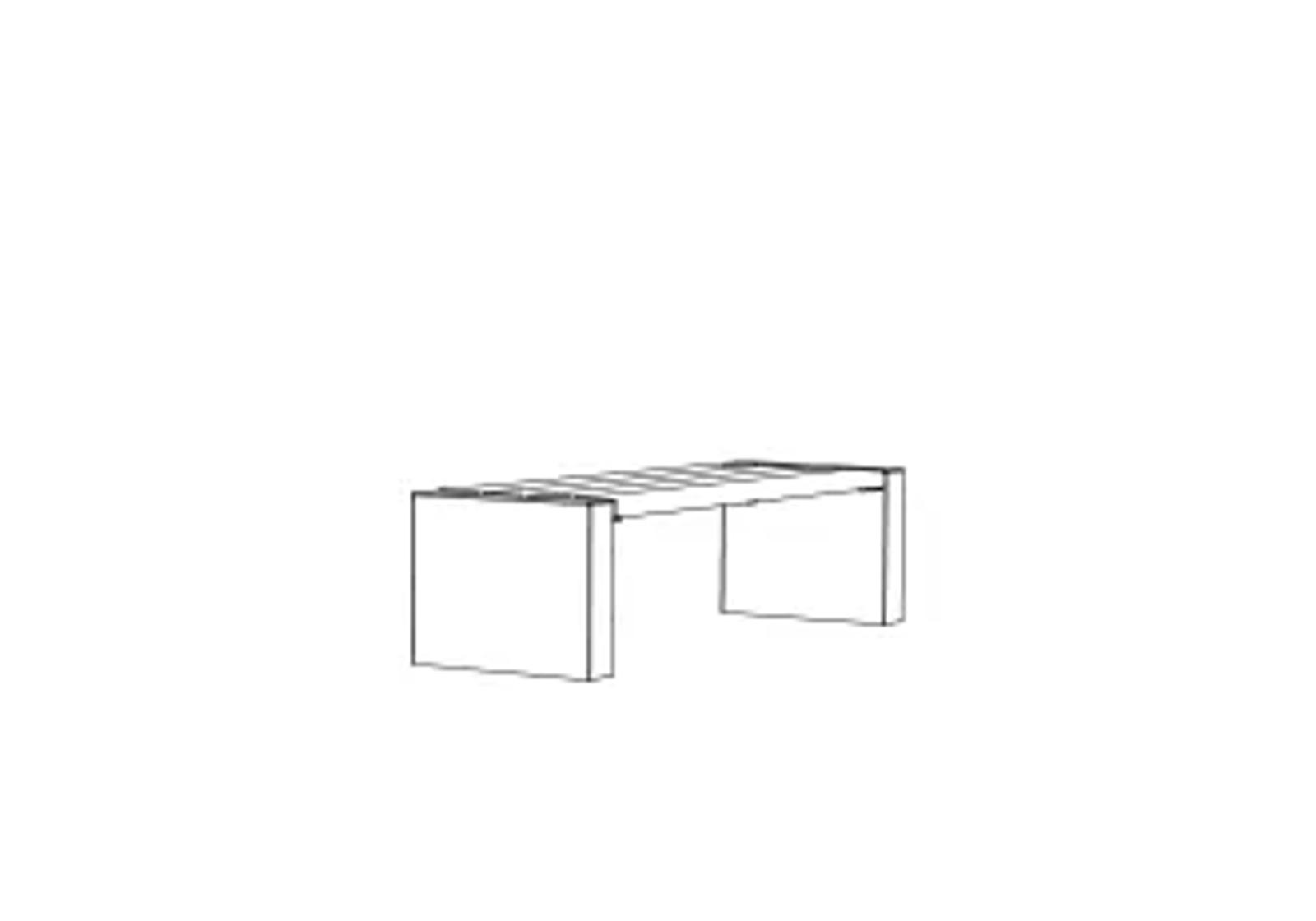

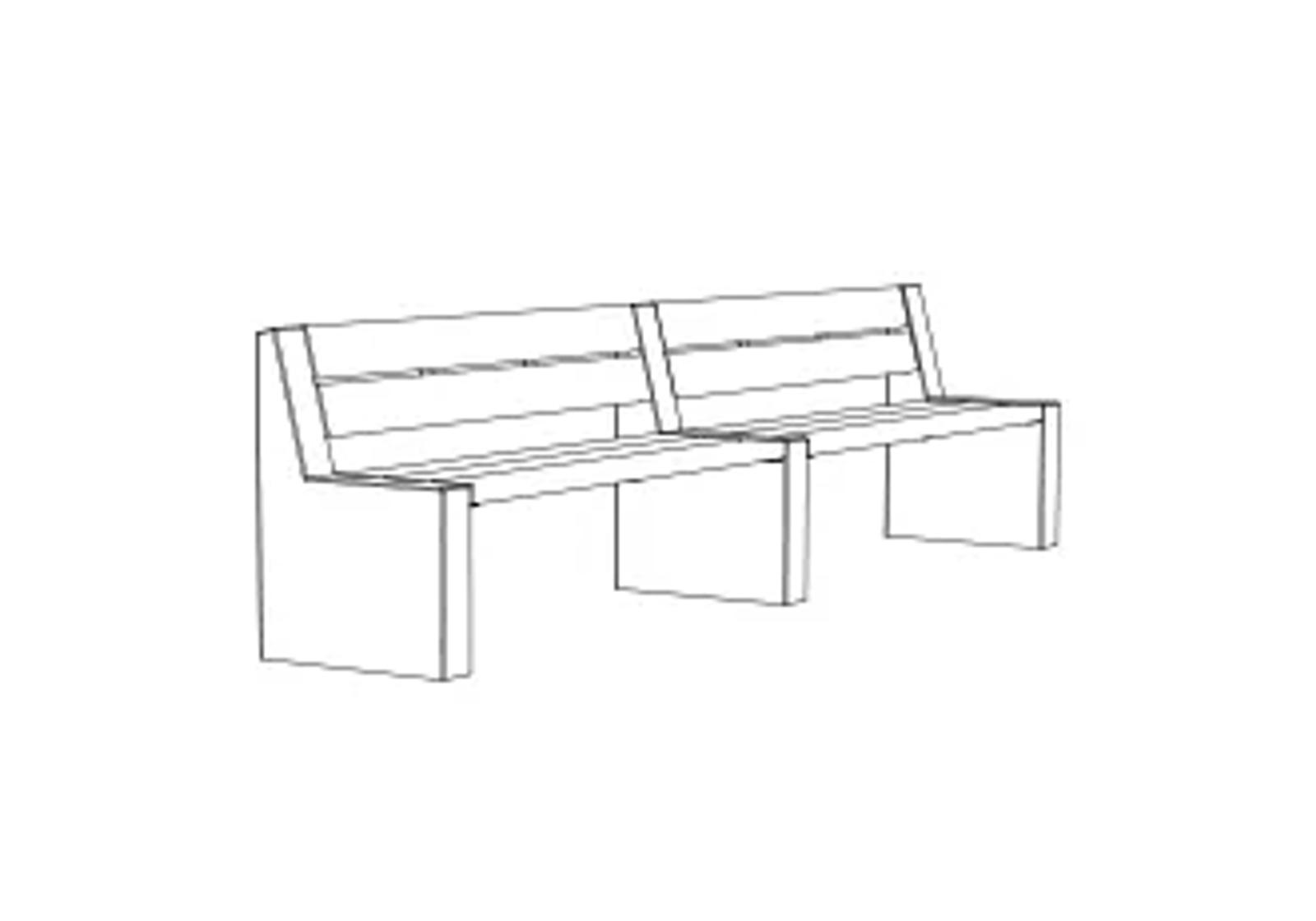

Dimensions / specification
175 x 60 x 48 cm
Weight
192 kg

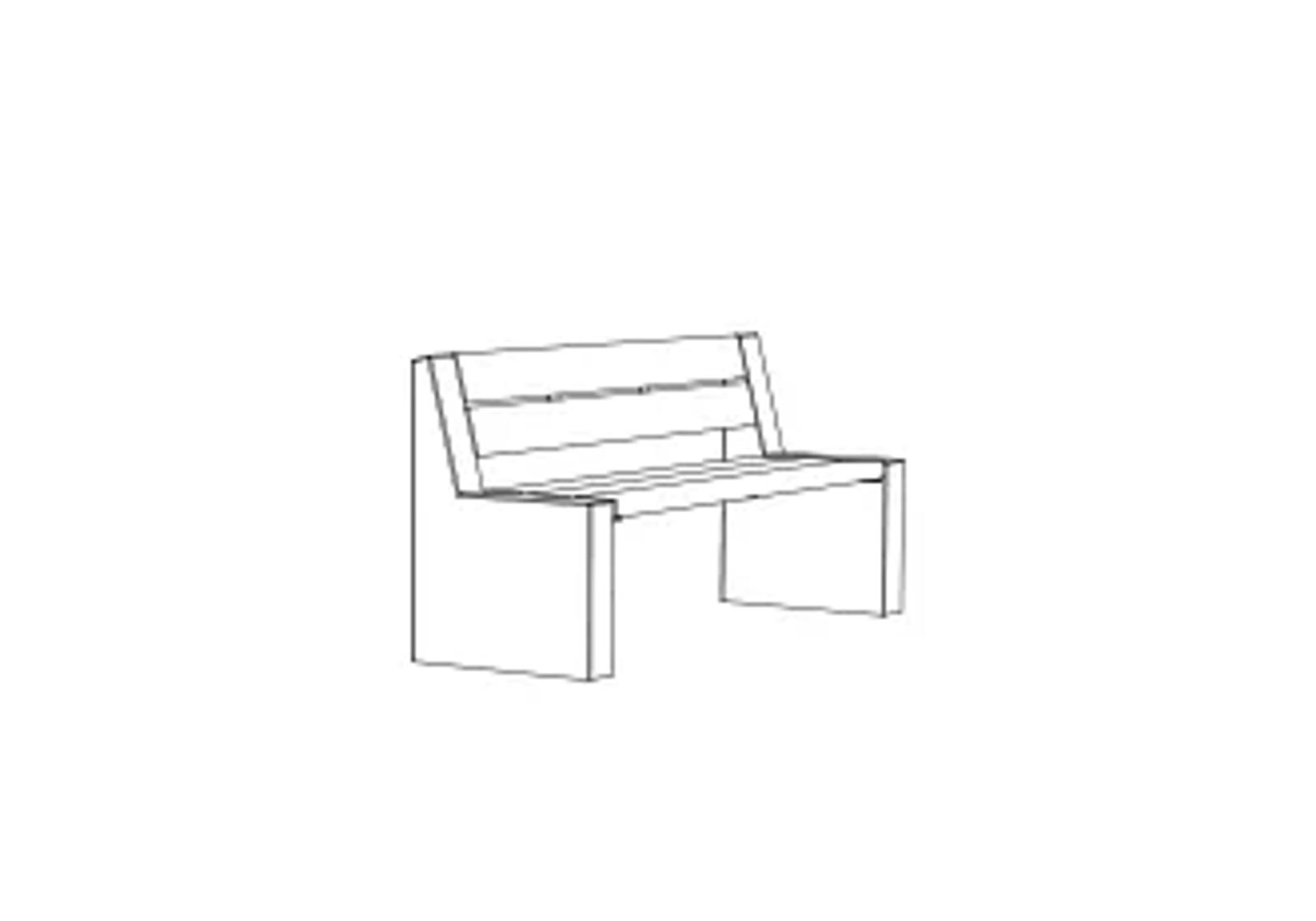

Dimensions / specification
175 x 60 x 48 (86) cm
Weight
222 kg
Dimensions / specification
240 x 60 x 86 cm
Weight
250 kg
Dimensions / specification
338 x 60 x 48 (86) cm
Weight
349 kg
Dimensions / specification
468 x 60 x 86 cm
Weight
405 kg
Dimensions / specification
338 x 60 x 48 cm
Weight
299 kg

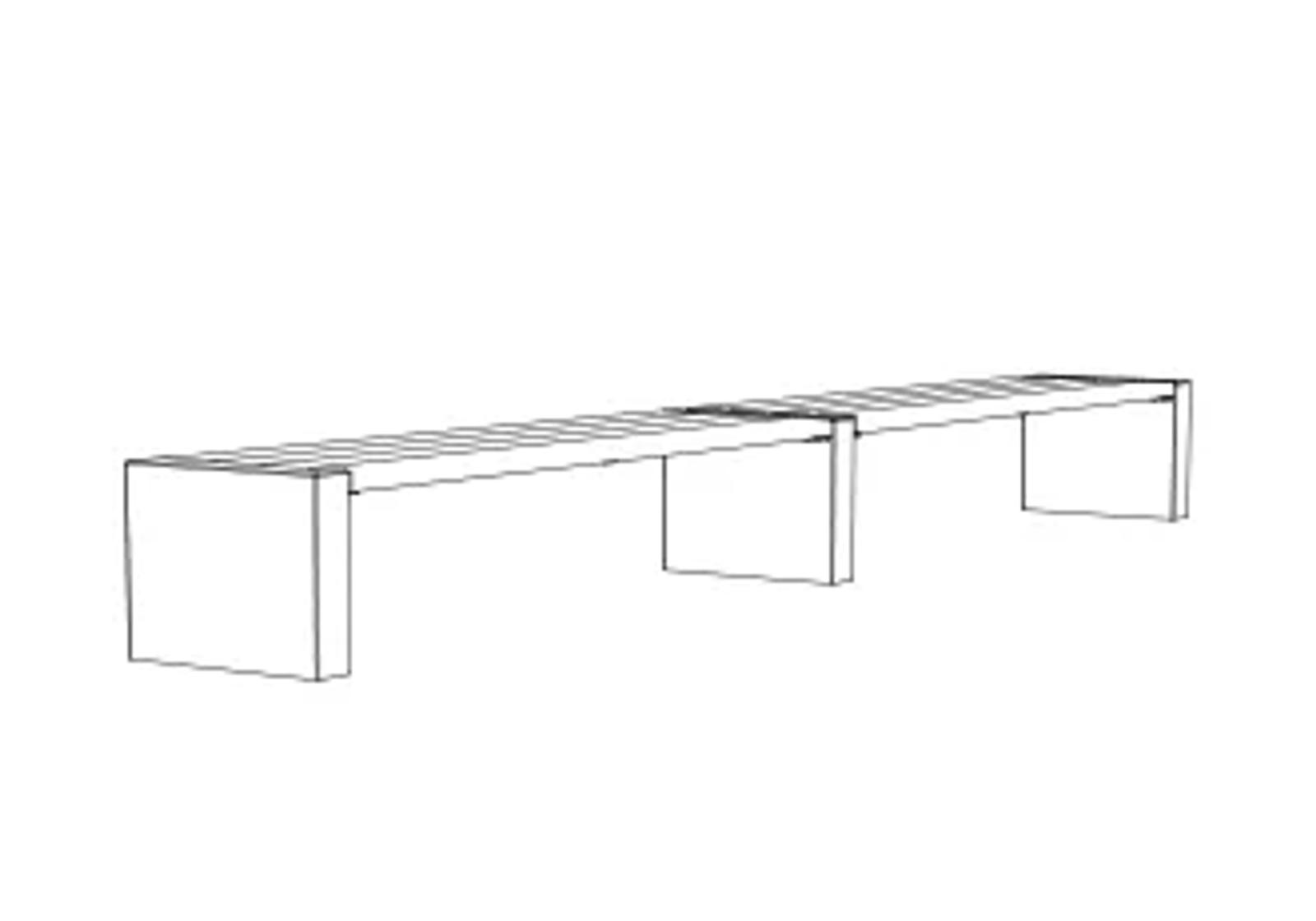

Dimensions / specification
468 x 60 x 48 cm
Weight
350 kg

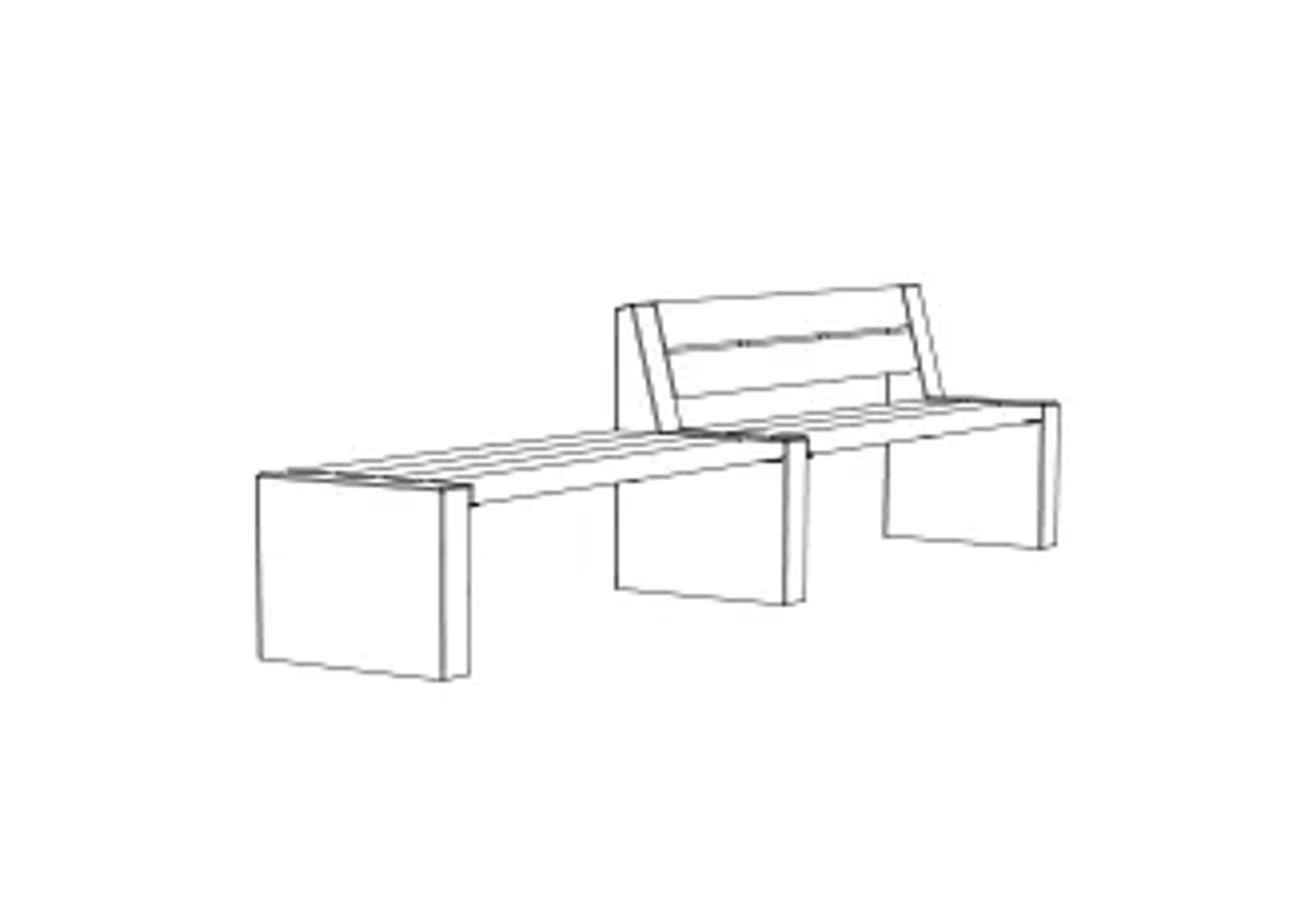

Dimensions / specification
338 x 60 x 48 (86) cm
Weight
330 kg

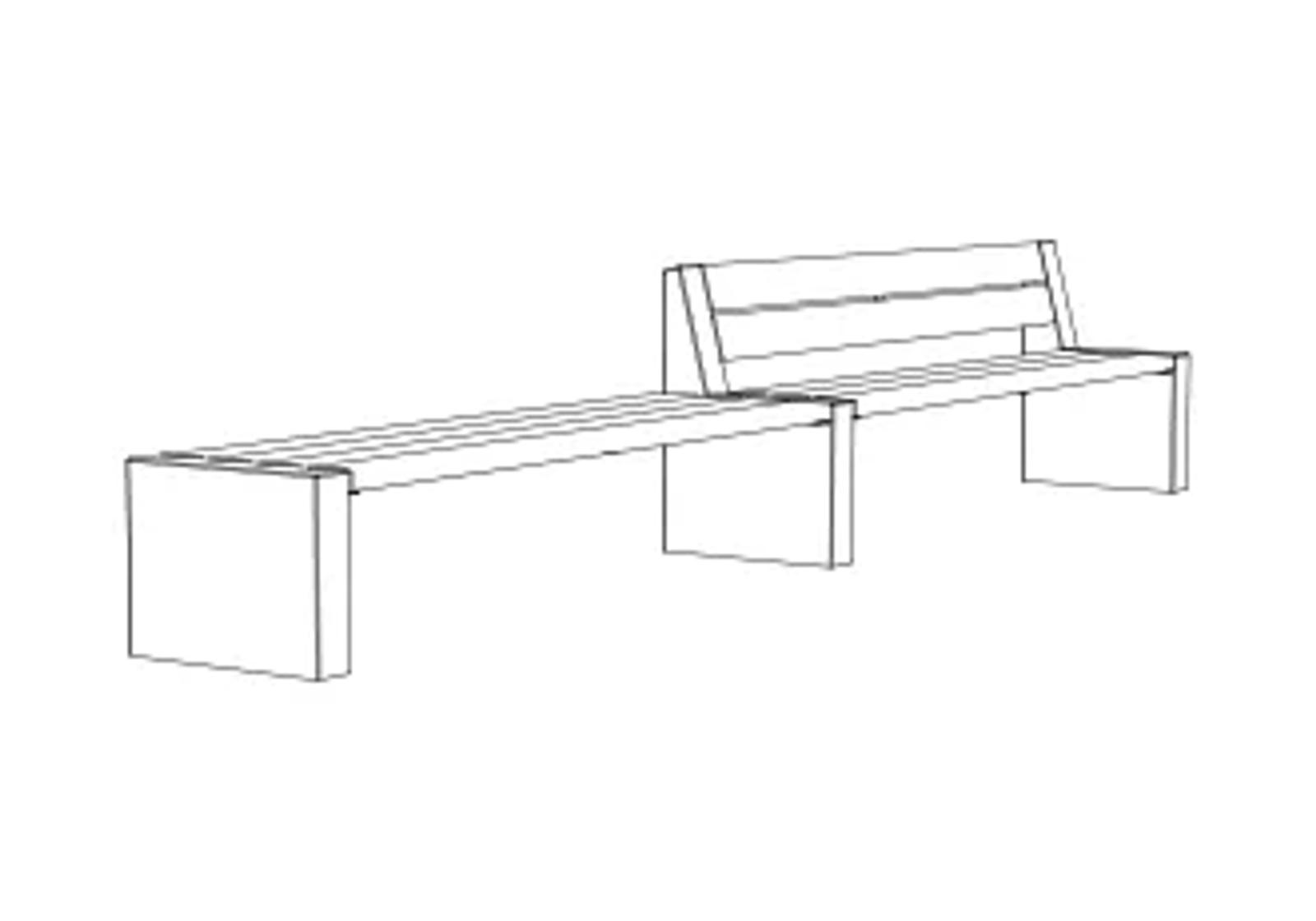

Dimensions / specification
468 x 60 x 86 cm
Weight
382 kg
Installation
FIXED WITH SCREEWS
Properties
ARMREST
Certificates
Environmental Product Declaration (EPD) FSC Susterra
Materials
ETCHED AND WATERPROOFED CONCRETE / RECYCLED CONCRETE ECO-GREY® / FSC® CERTIFICATED NORDIC PINE WOOD, HIGH-PRESSURE PROTECTED / FSC® CERTIFICATED TROPICAL WOOD, LASUR FINISHED / STAINLESS STEEL AISI 316L STRUCTURE / A2-A4 STAINLESS STEEL SCREWS
