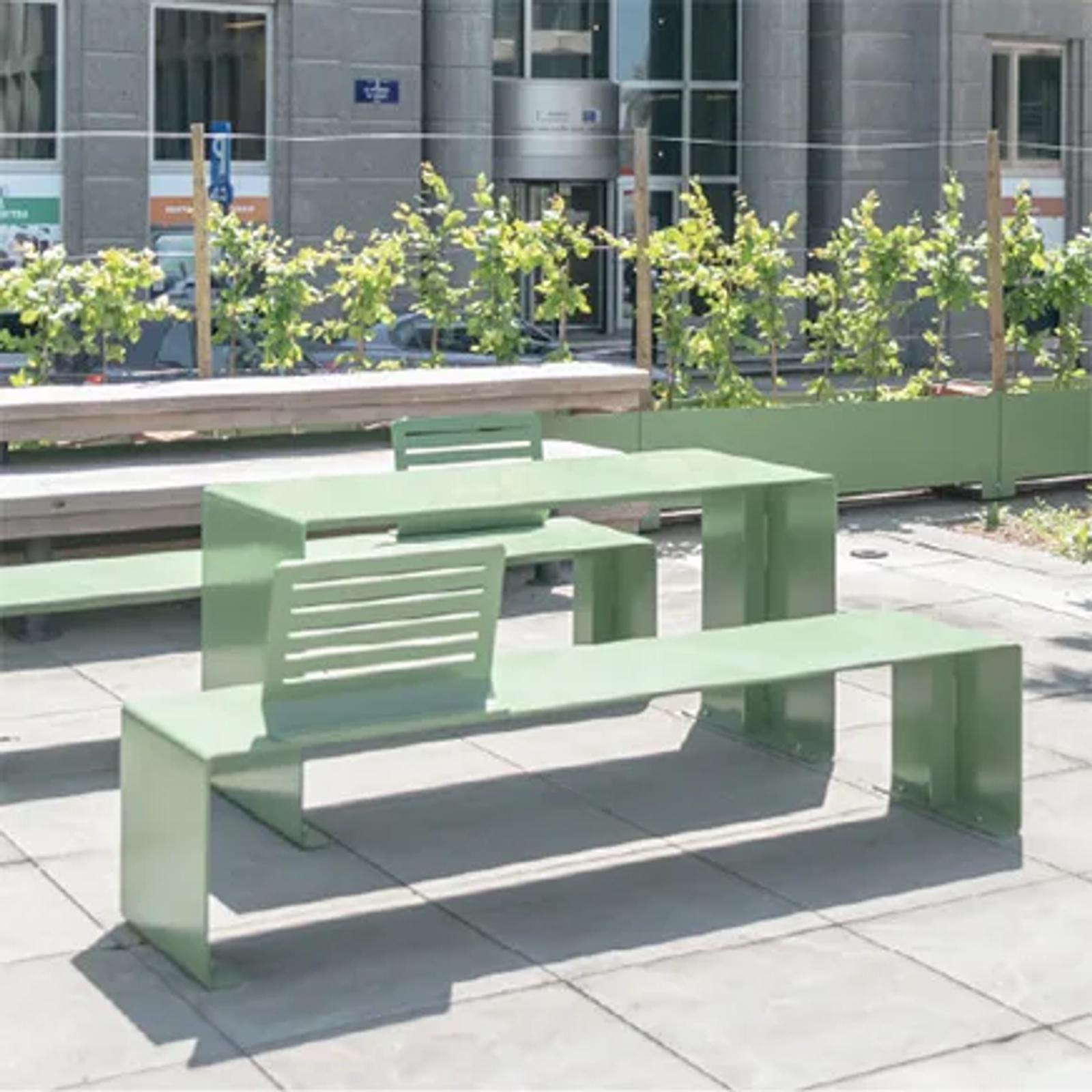

Band Table

The series is born with the intention of a quest for what is essential and abstract to give it permanence.

Band owes its name to the fact that it was designed as a musical band in which the instruments create a harmony with each other.

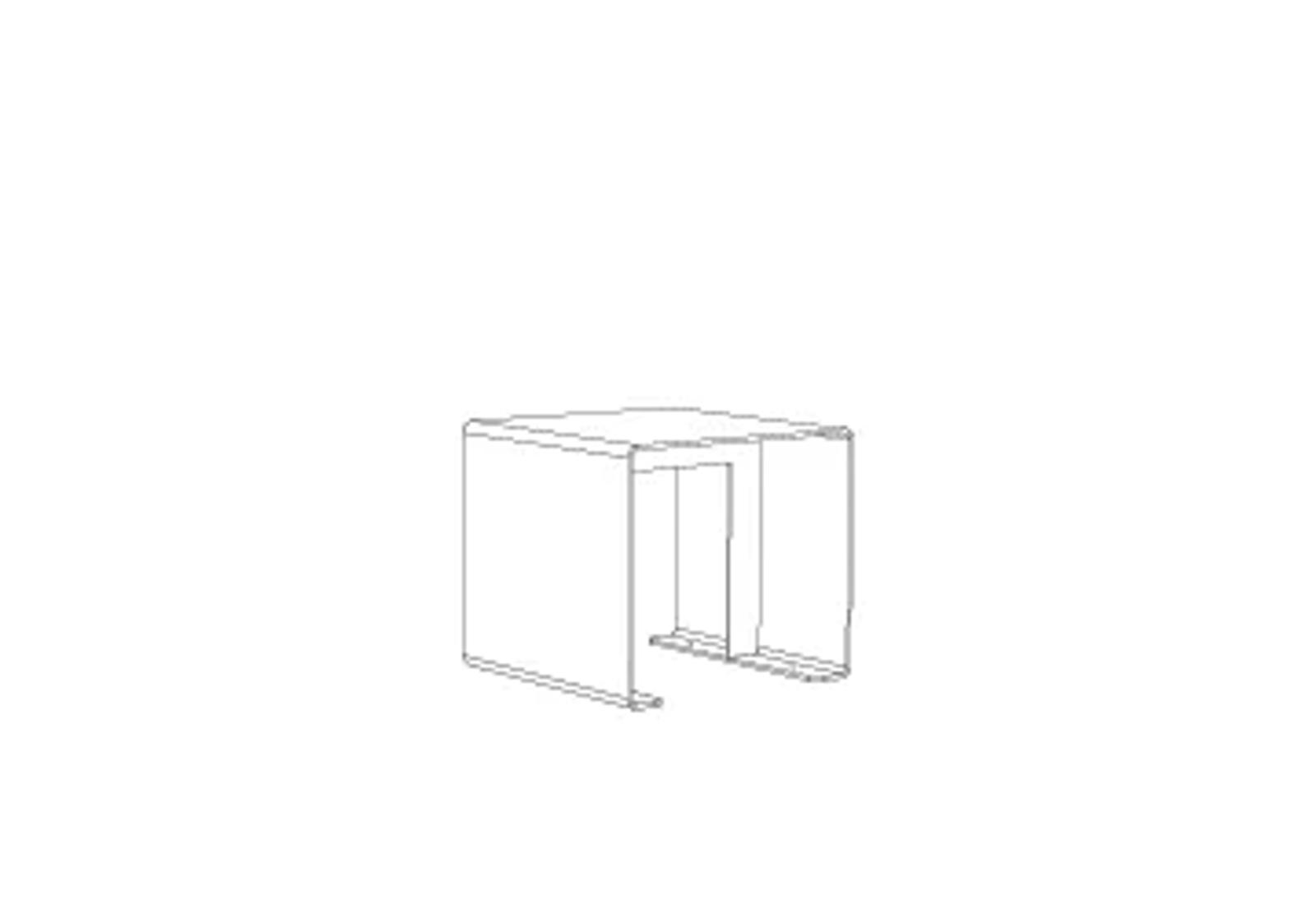

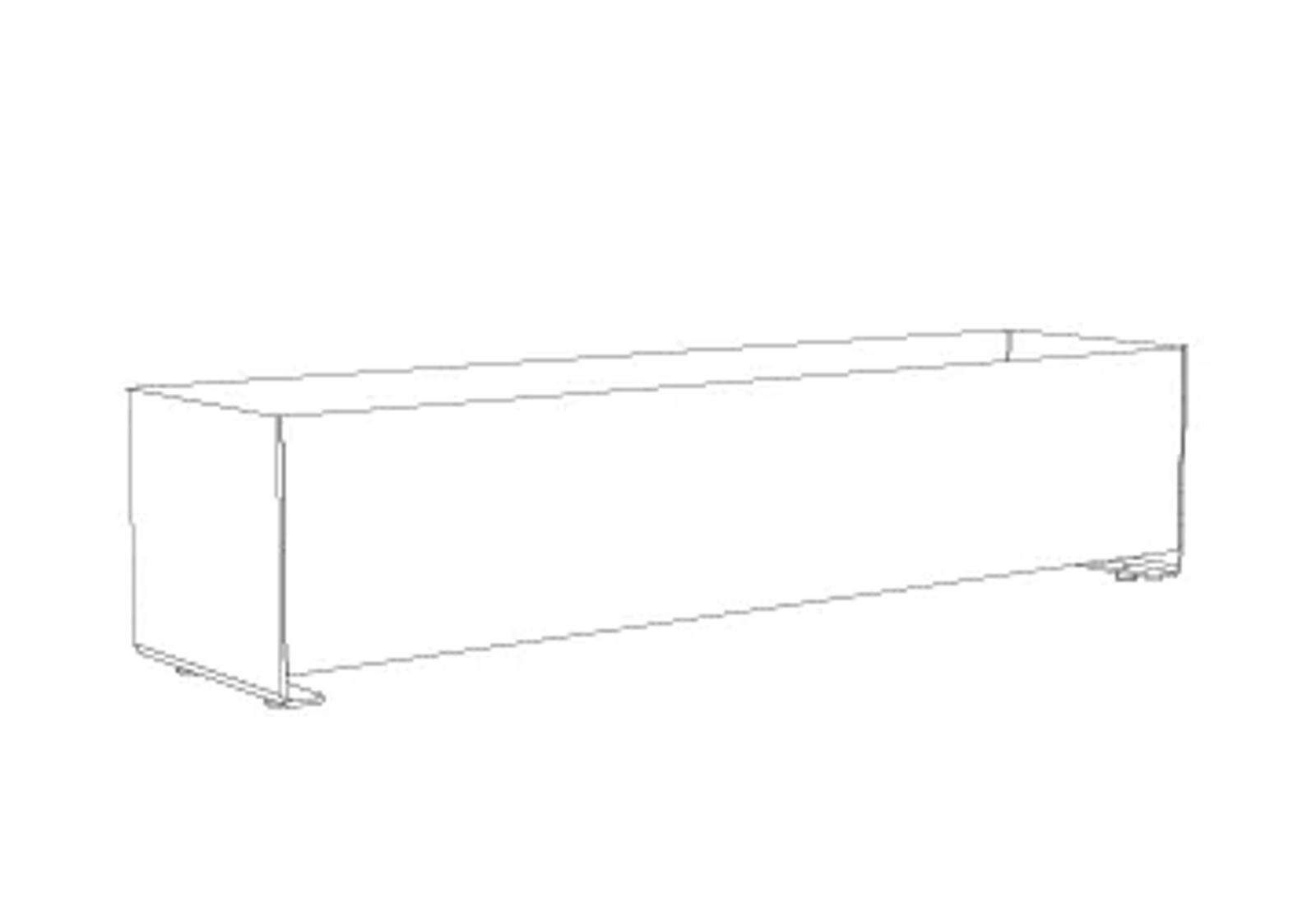

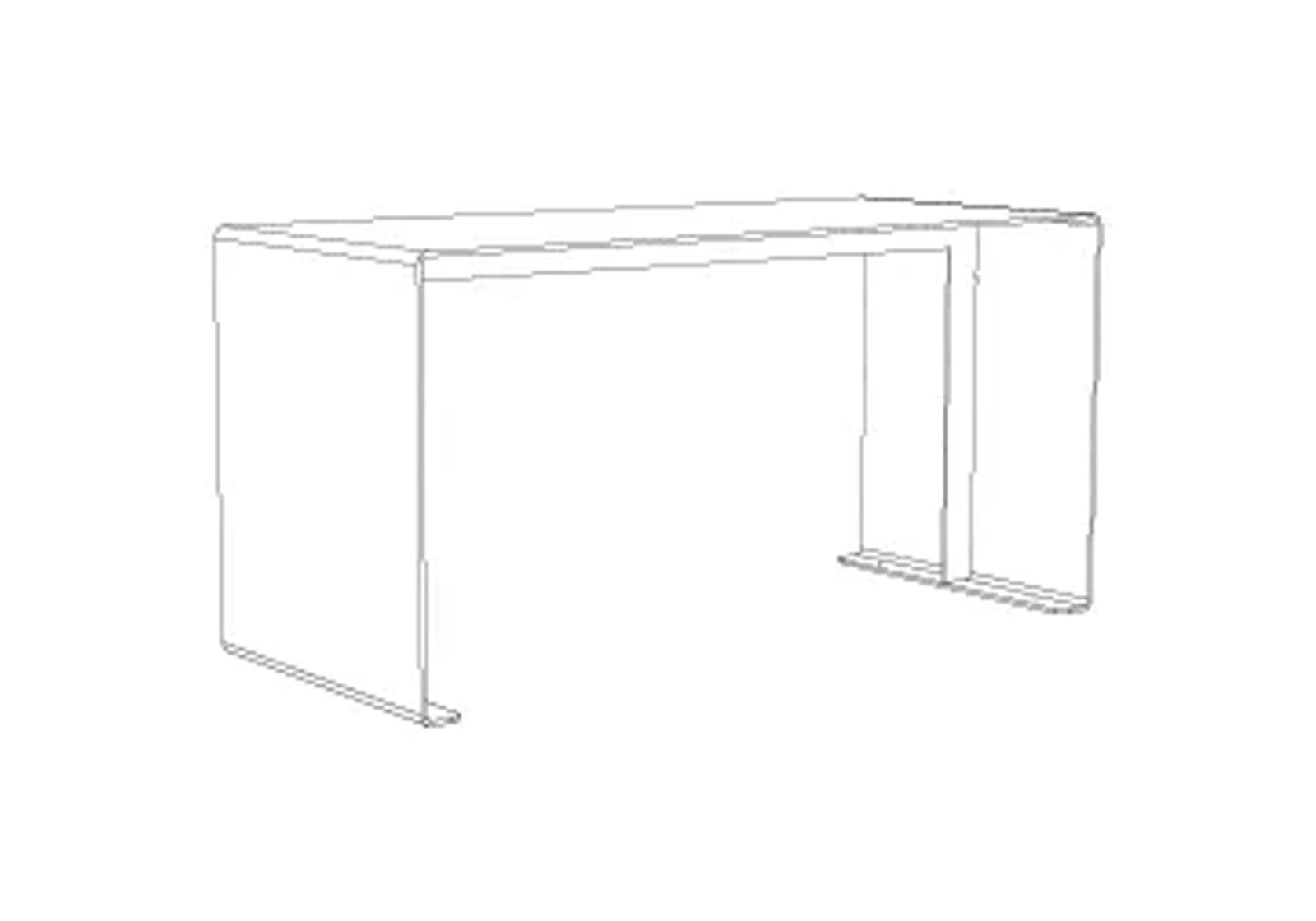

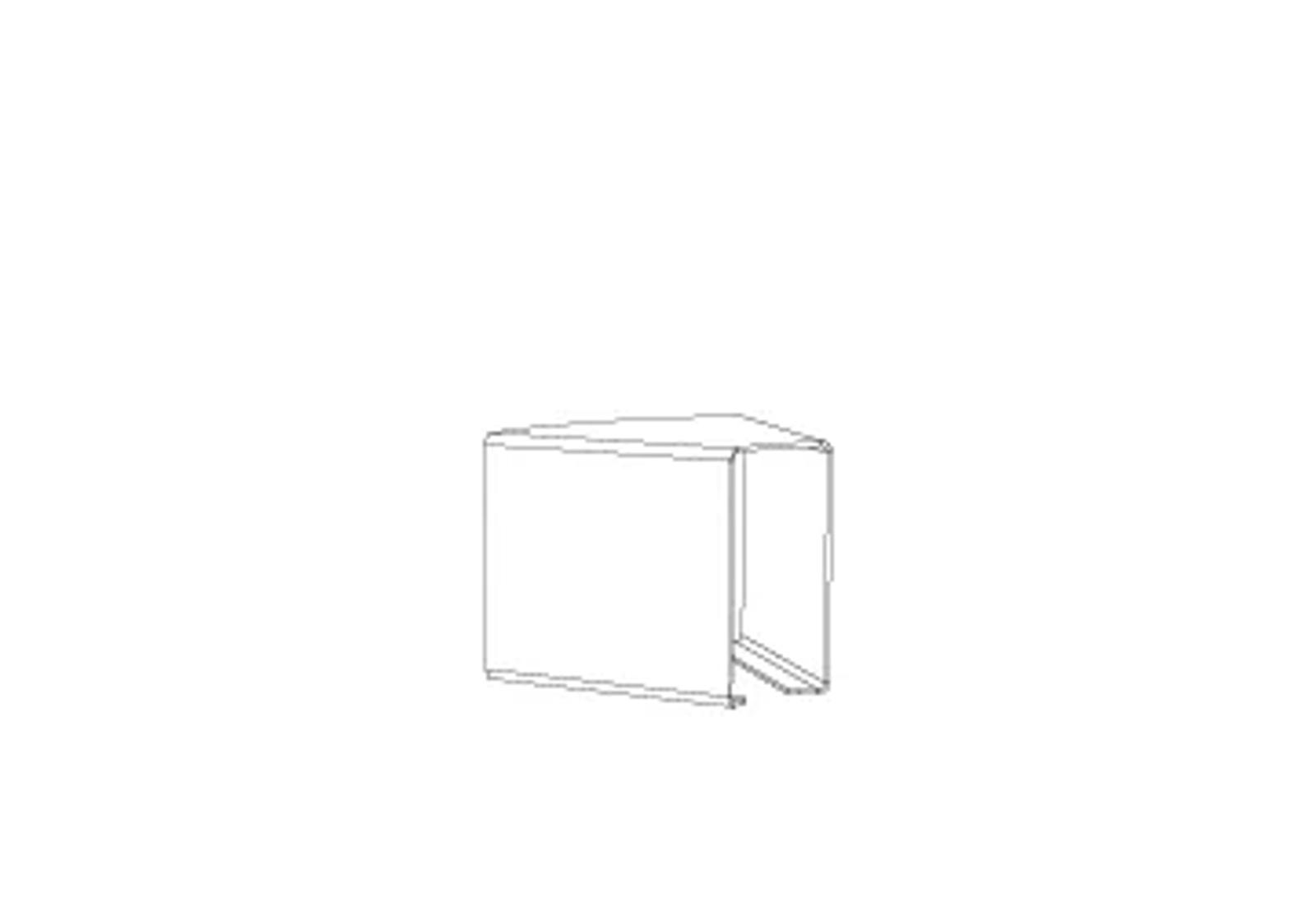

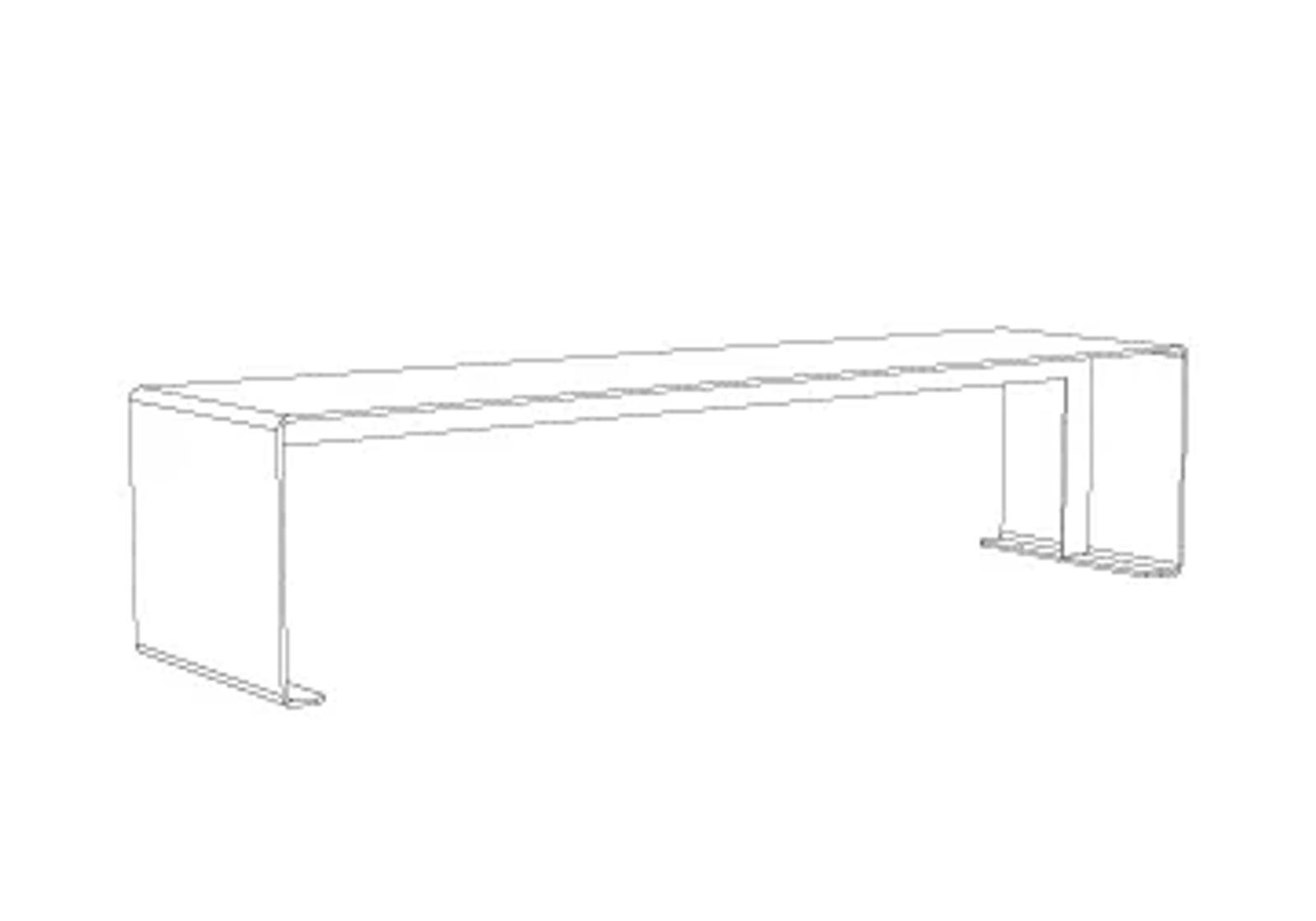

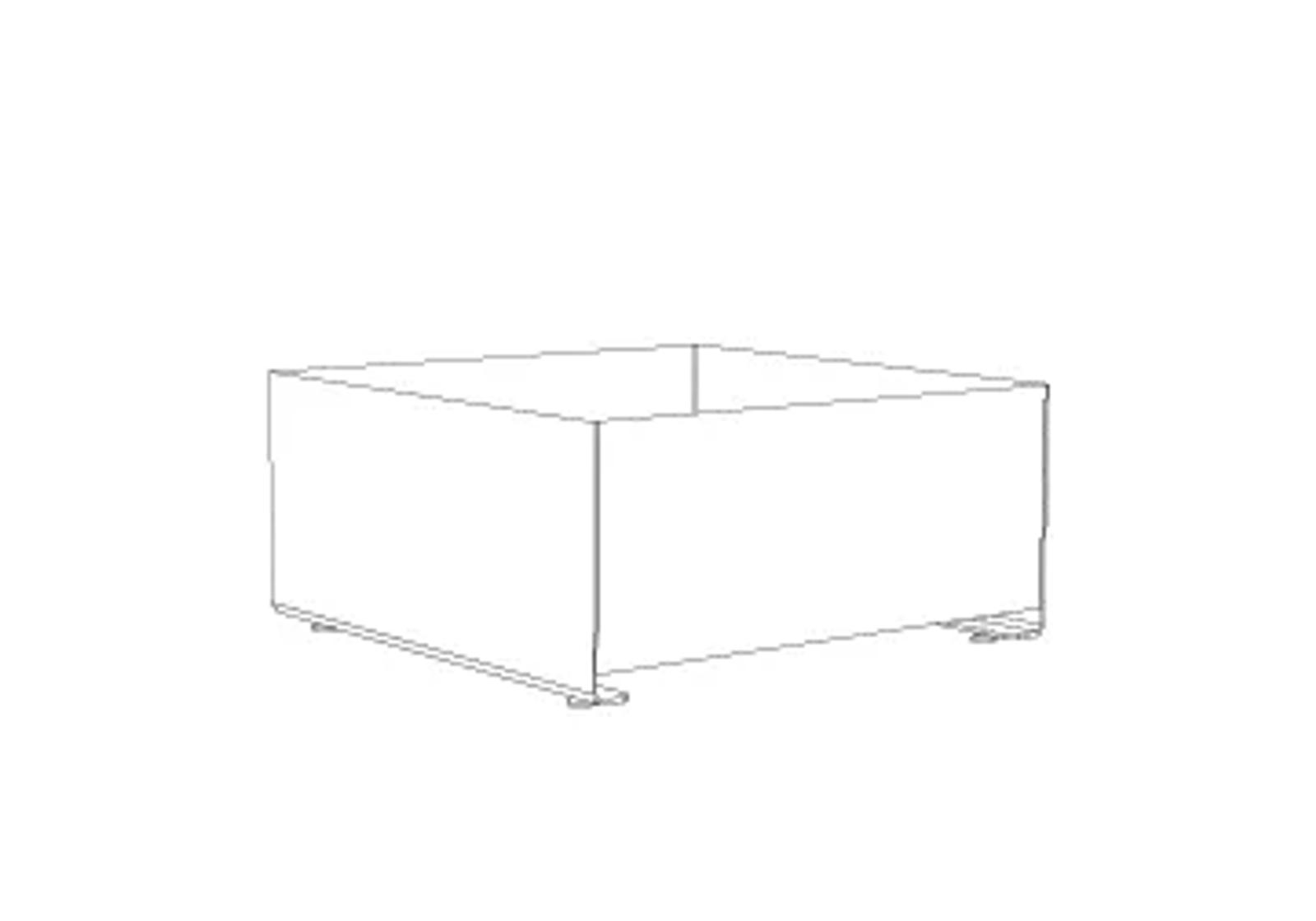

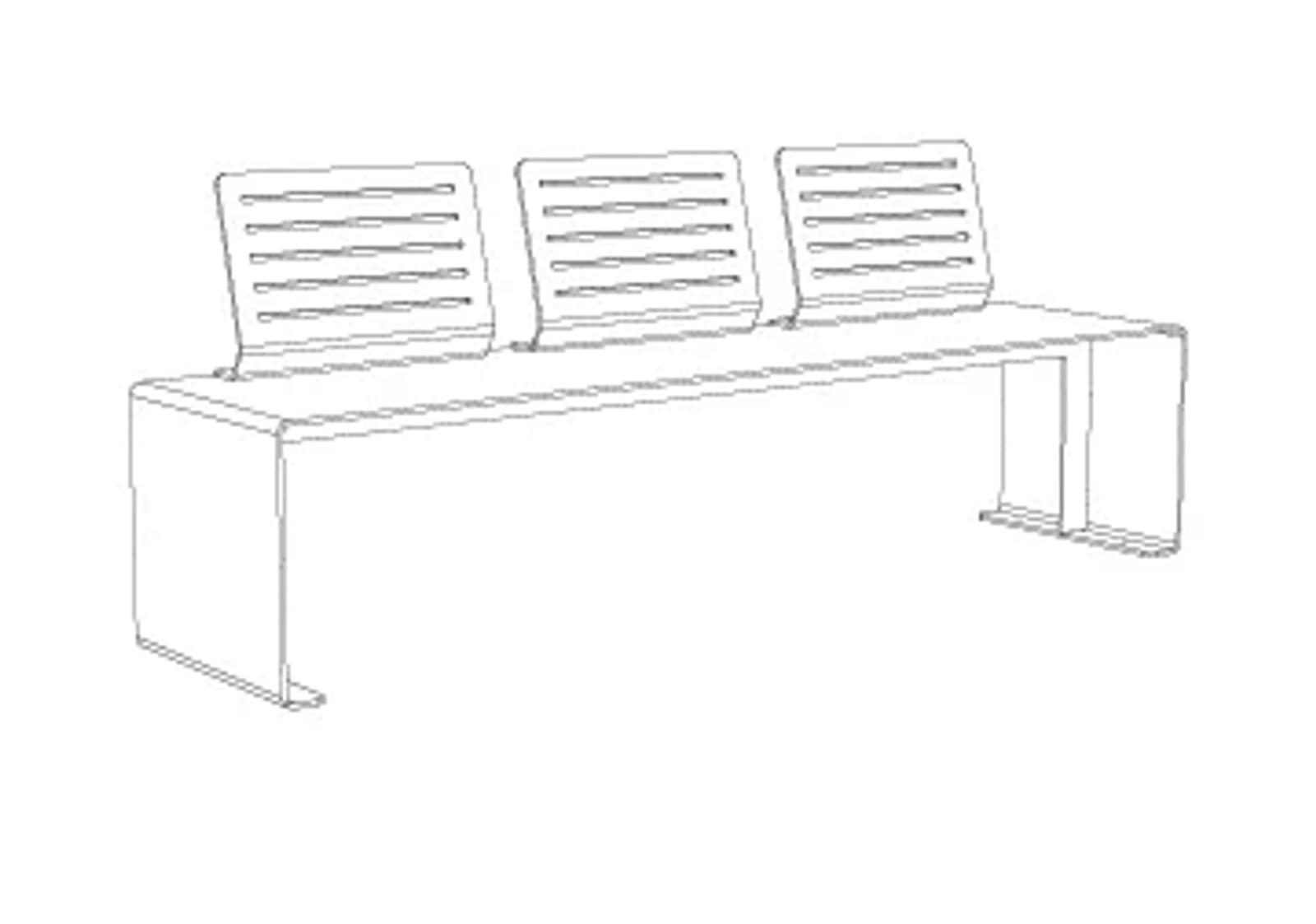

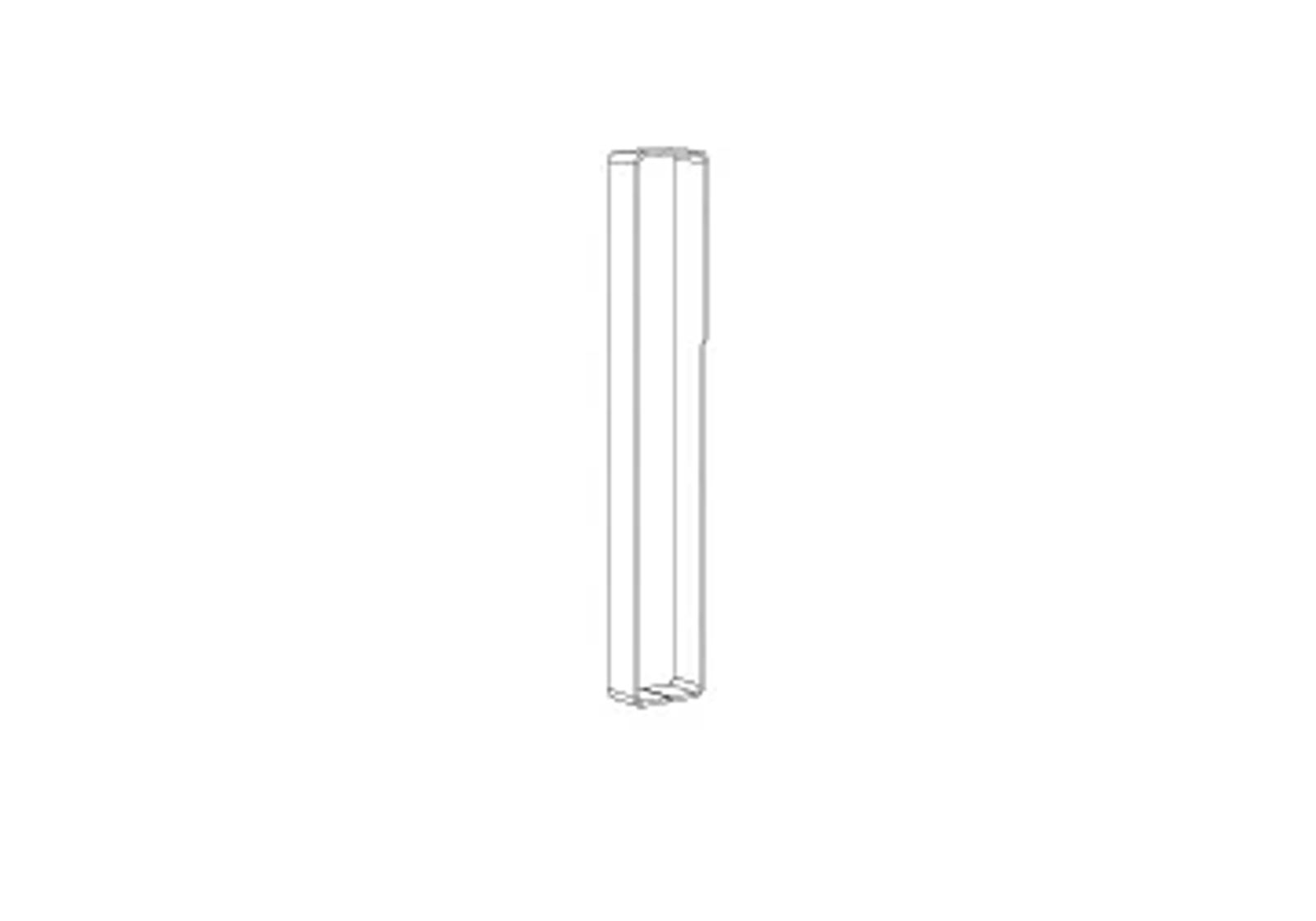

The Band series constitutes a broad range of galvanised laminated steel products with a RAL colour chart painted finish, composed of a bench, a back accessory, a stool and three planters with different geometries and volumes. They can all be combined with the Boxland concrete collection and Tropical wood Piano. A connector element permits 45-degree aggregations. A table and bollard are included, which occasionally fulfils the function of a bicycle stand. The end result is a collection with simple lines that share the same support system and relationship with the paving.

Designed from a machined, bent, and welded metal band, the elemental character of this series and its aggregation capacity predisposes it to relate to its environment, provoking complex spatial relationships. This quality allows its use to be extended to historical spaces, where the environments generated by the superposition of cultures and times do not accept the irruption of any material or the emergence of any form.

All components of the collection are made with 8 mm thick galvanized steel sheet, machined and welded. Painted finish in RAL color chart.

Supported on the pavement, its installation requires anchoring with M8 threaded rods in holes previously made in the pavement and filled with epoxy resin or fat mortar. The bollard is embedded in the pavement with an 80 mm diameter metal tube welded at its base.

Design year
2020
Designer
ESCOFET LAB
Dimensions / specification
150 x 65 x 75 cm
Weight
136 kg
Dimensions / specification
200 x 50 x 45 cm
Weight
102 kg
Dimensions / specification
50 x 50 x 45 cm
Weight
50 kg
Dimensions / specification
200 x 50 x 45 cm
Weight
192 kg
Dimensions / specification
380 L
Dimensions / specification
100 x 100 x 45 cm
Weight
175 kg
Dimensions / specification
380 L
Dimensions / specification
61 x 53 x 45 cm
Weight
45 kg
Dimensions / specification
200 x 50 x 80 cm
Weight
145 kg
Dimensions / specification
14 x 10 x 100 (125) cm
Weight
17 kg
Installation
FIXED WITH SCREEWS / FREE-STANDING WITH AJUSTABLE LEGS
Properties
KIT AJUSTABLE LEGS
Materials
ZINC-COATED STEEL STRUCTURE PAINTED ACCORDING TO THE STANDARD RAL COLOR CHART WITH C5 ANTICORROSIVE PROTECTION / A2-A4 STAINLESS STEEL SCREWS
