Bollard

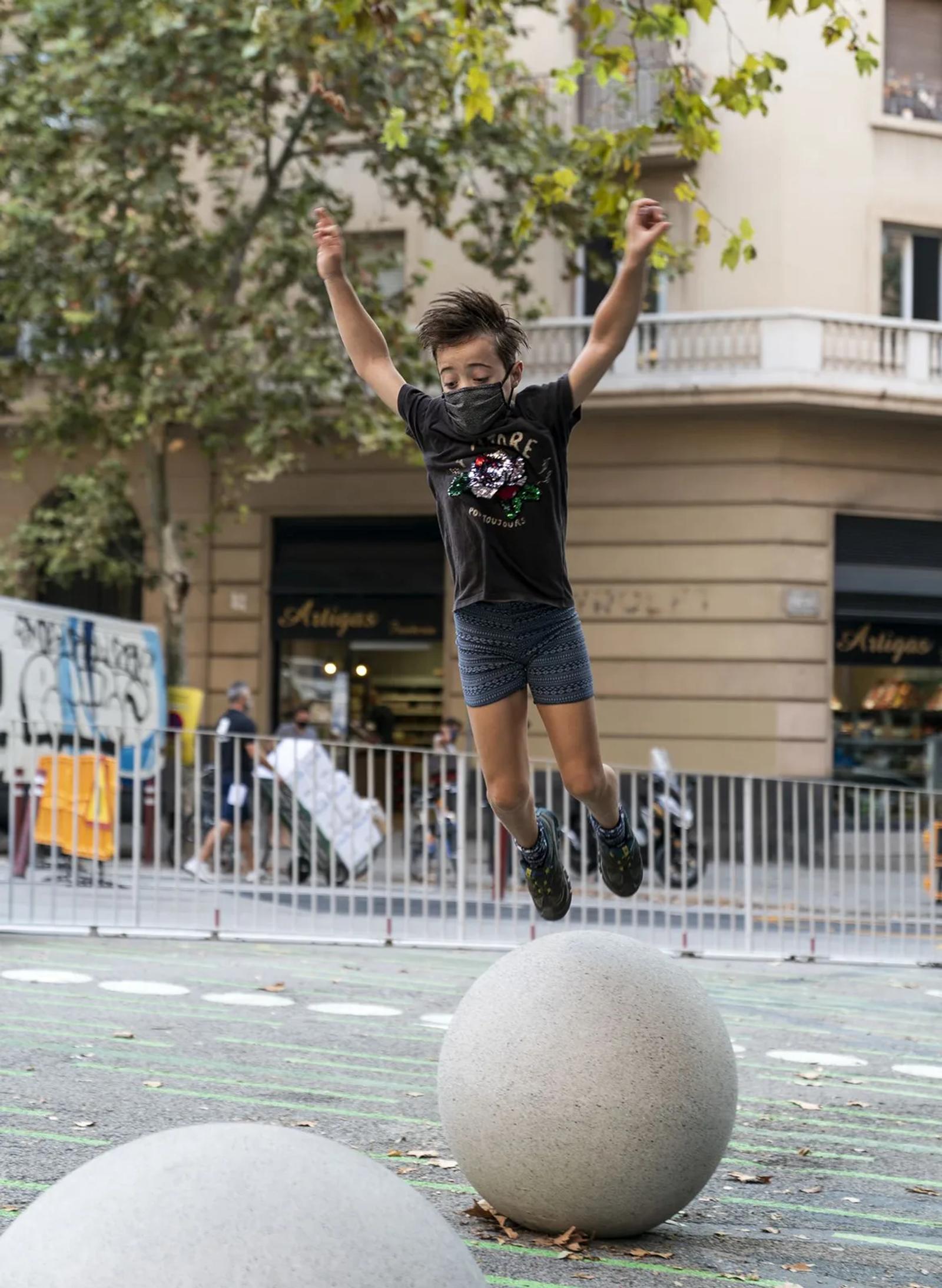

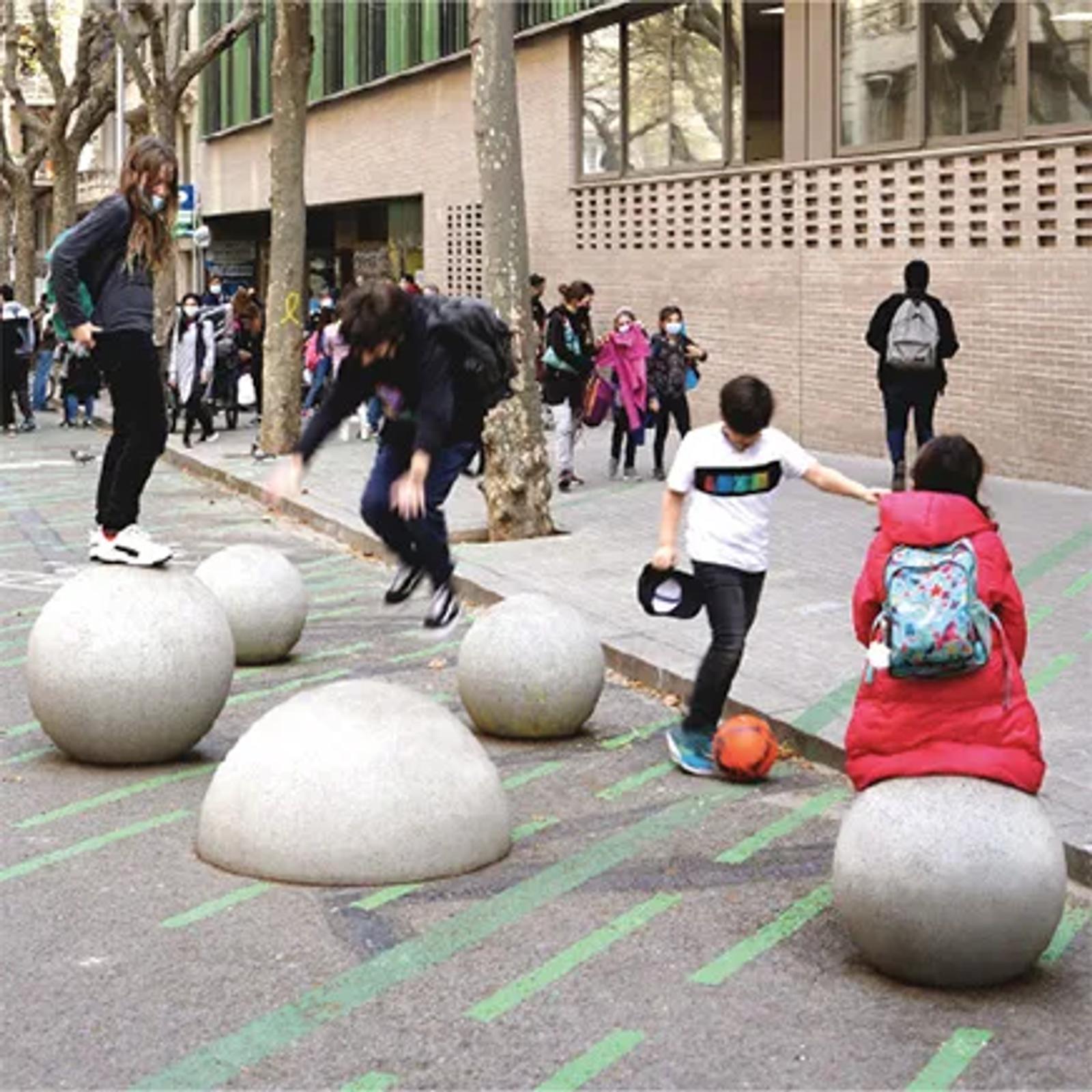

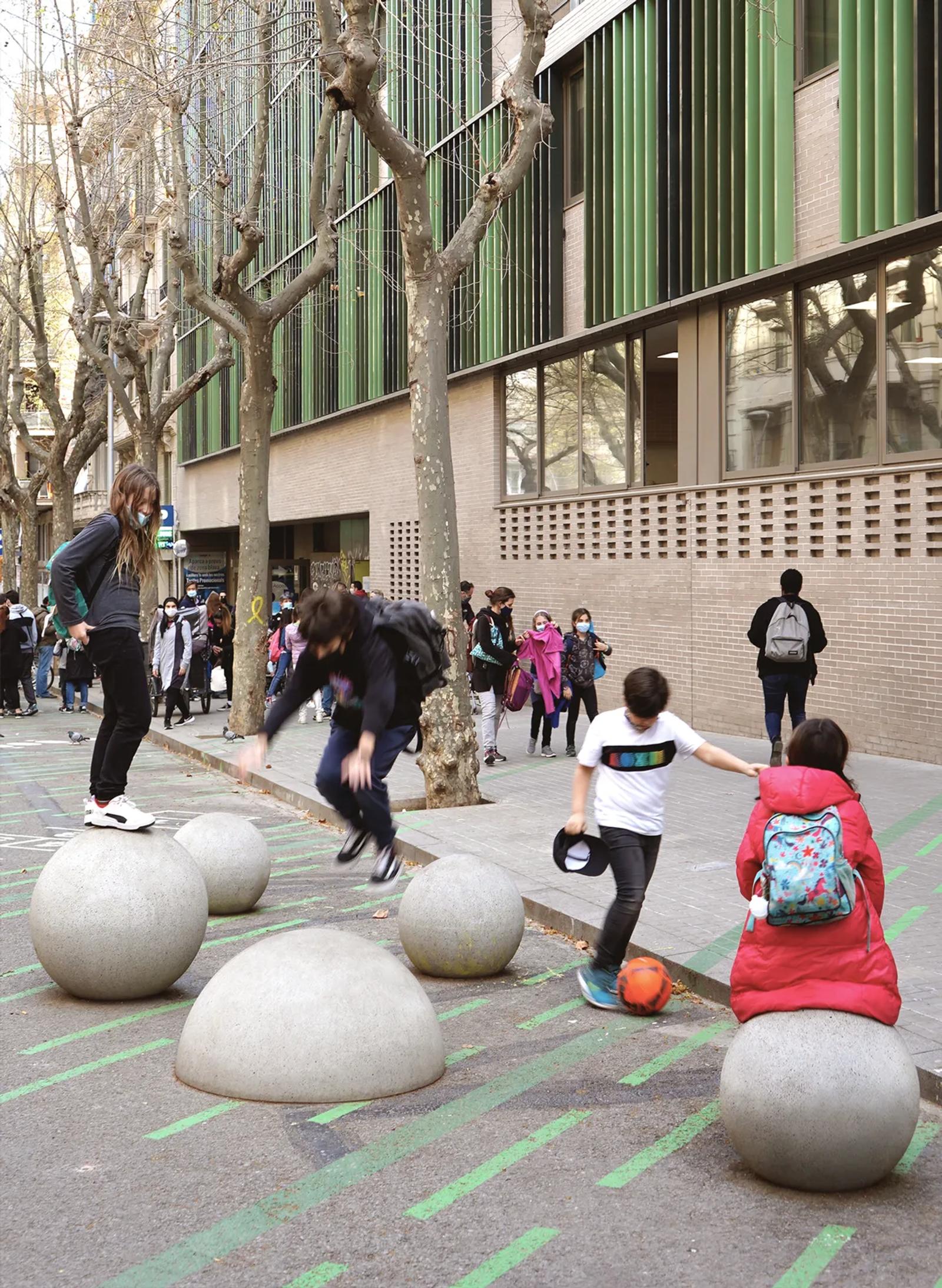

A collection of concrete spheres and half-spheres that organize and define public space. Furthermore, they also serve as a play element for the youngest.

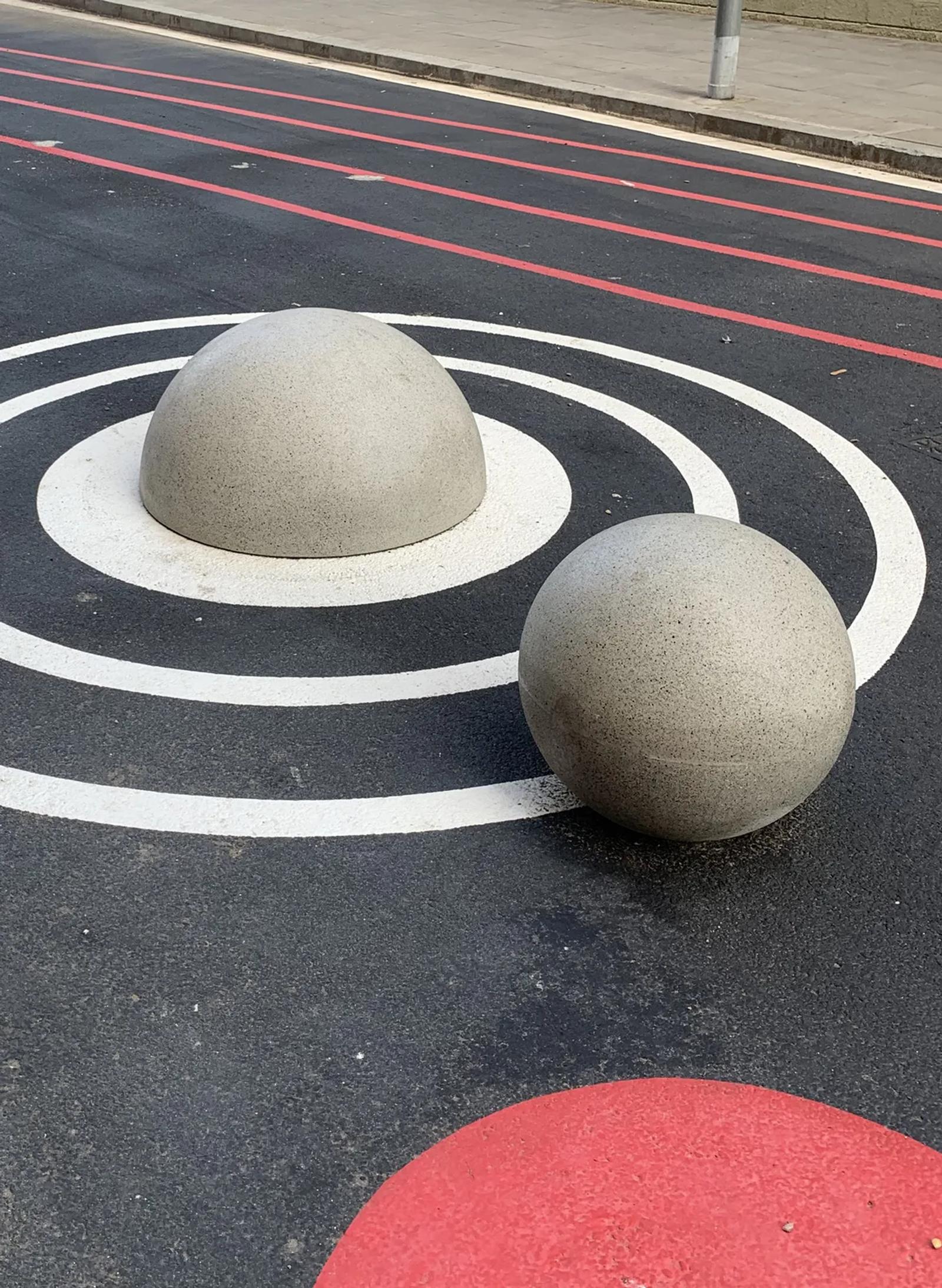

The collection Bollard is available in four diameters: 400, 550, 700, and 900 mm. Additionally, it includes a half-sphere option with diameters of 700 and 900 mm.

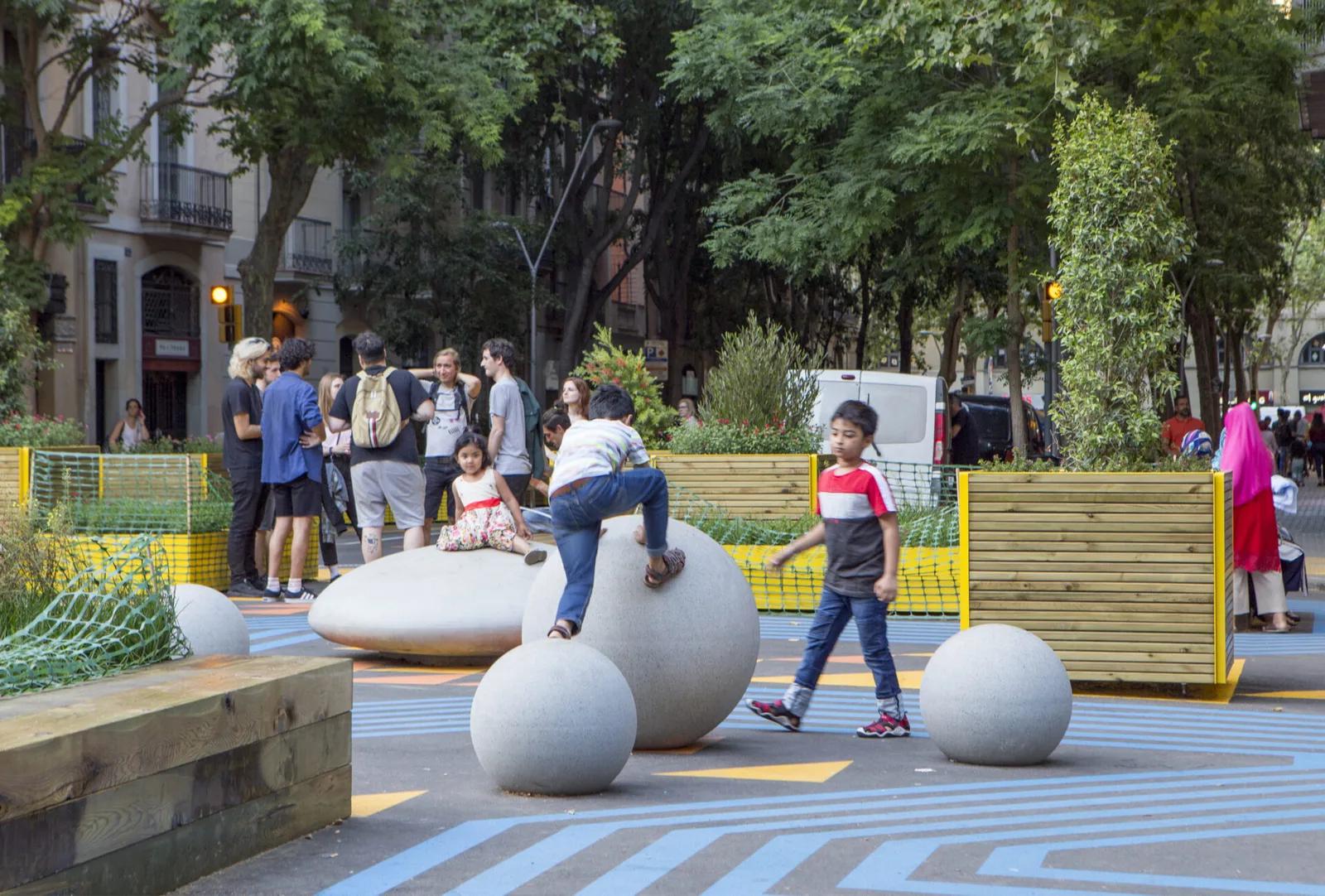

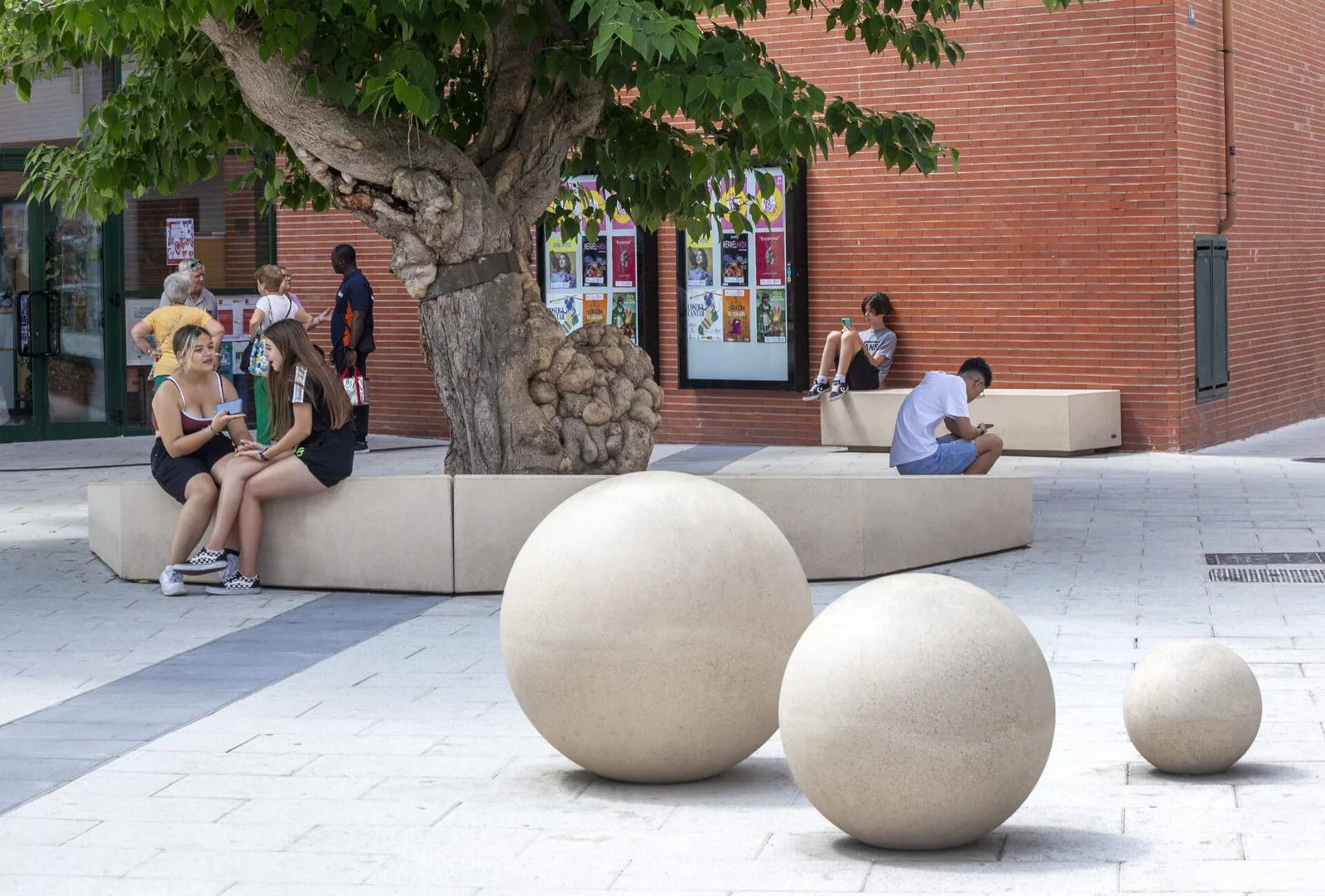

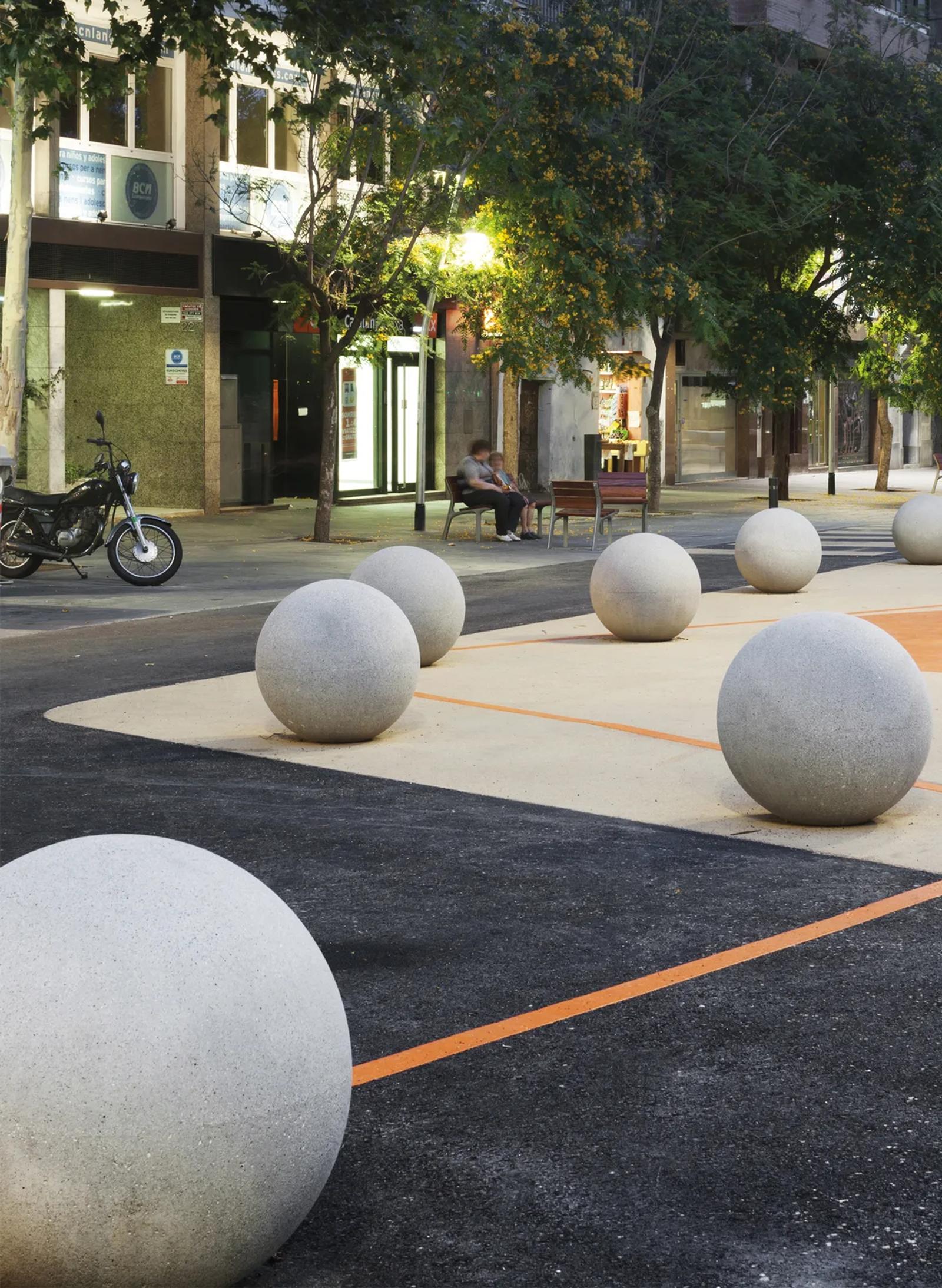

The Bollards act as physical barriers that protect pedestrians from vehicles, delineating pedestrian zones and preventing unauthorized access. They can be used in a variety of contexts, from the delimitation of green areas to the protection of buildings or public squares, harmoniously integrating into the design of the space and offering new, more playful uses through the combination of different diameters.

Manufactured in molded concrete, with an etched and waterproof finish and standard Escofet color chart. Bollards 400 and 550 are anchored to the paving with one M16. Bollards 700 and 900 are anchored with one M20 and fixed with resin in a hole.

Design year
2009
Designer
ESCOFET LAB
Dimensions / specification

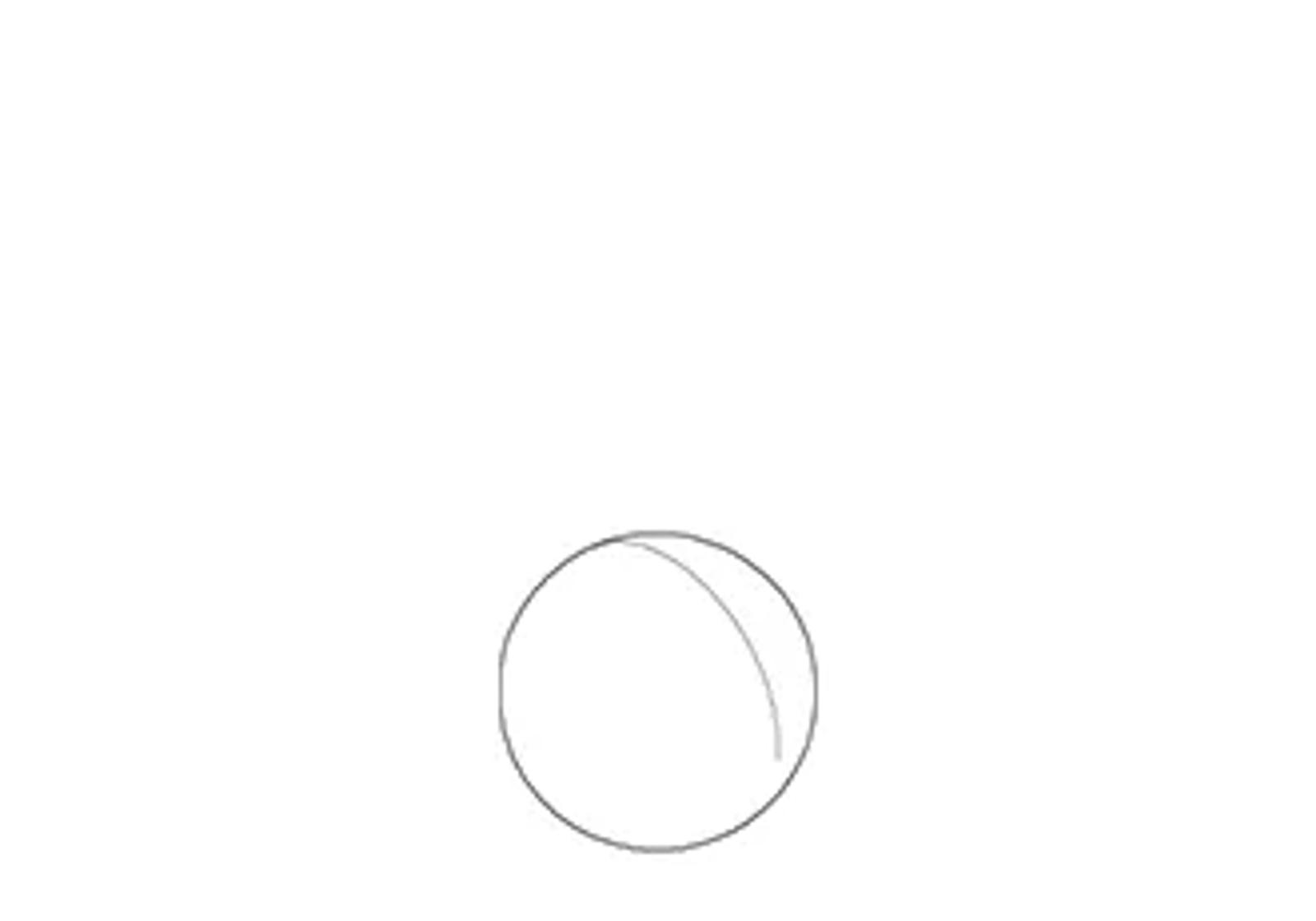

Ø40 cm
Weight
85 kg
Dimensions / specification

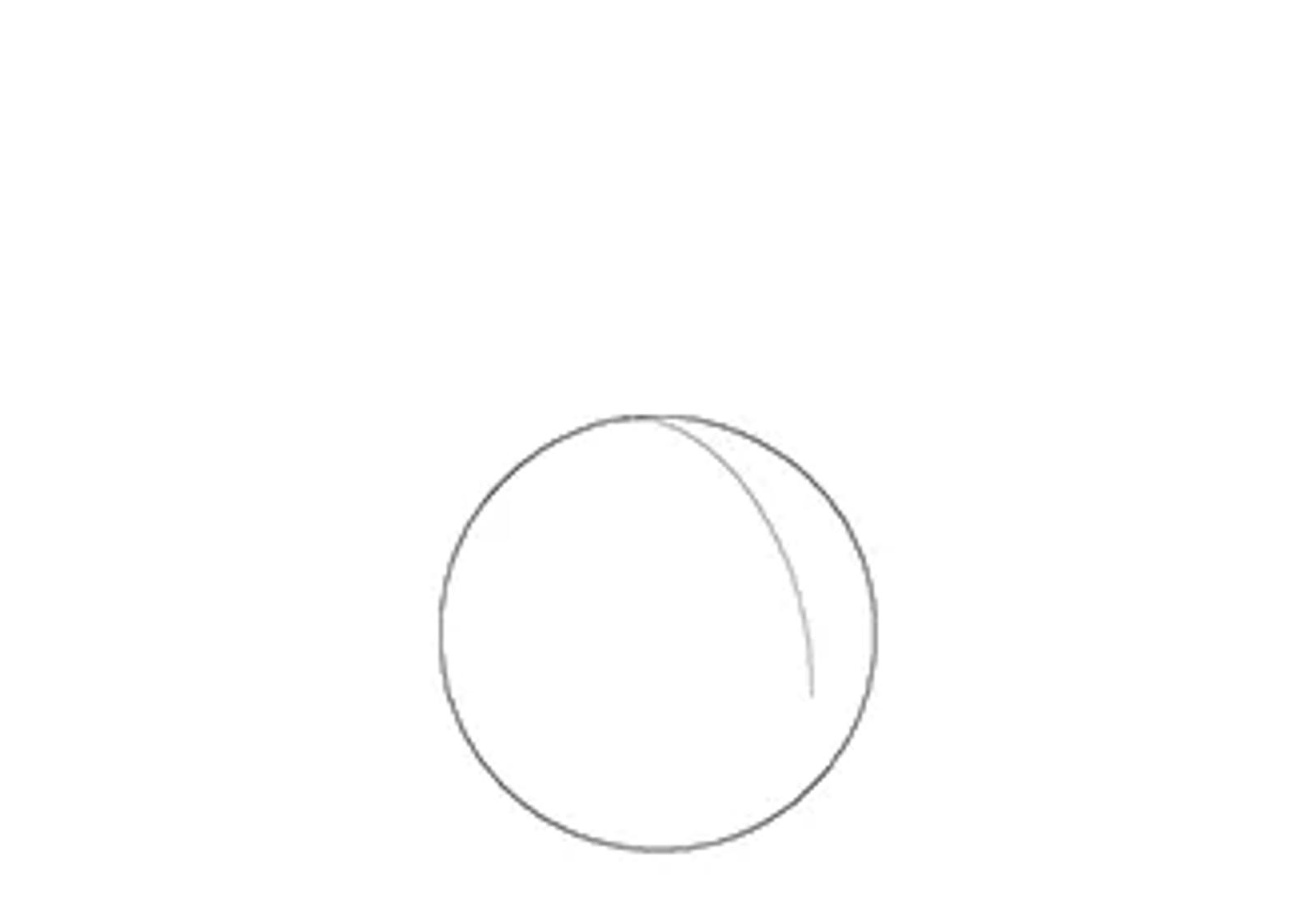

Ø55 cm
Weight
115 kg
Dimensions / specification

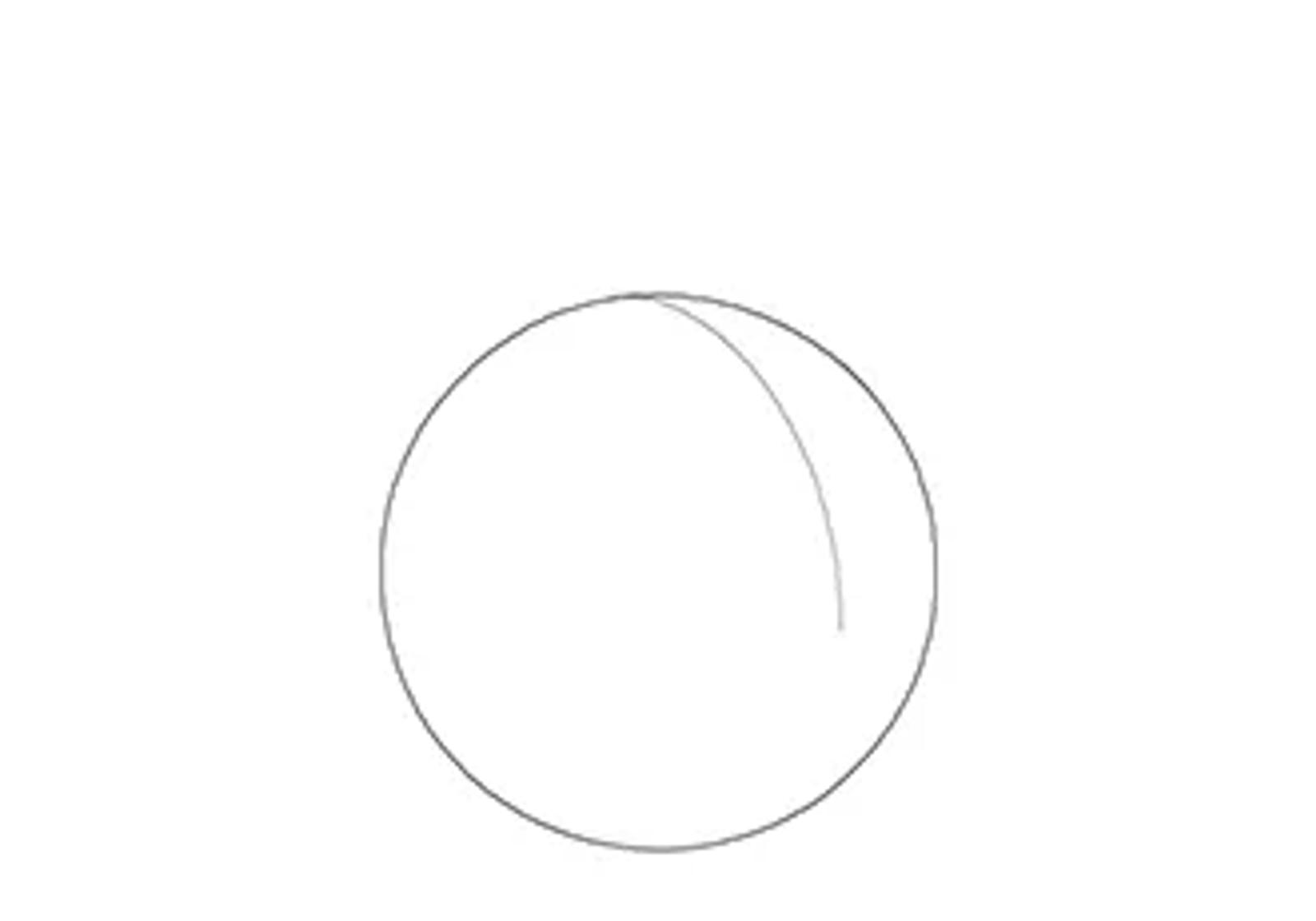

Ø70 cm
Weight
440 kg
Dimensions / specification

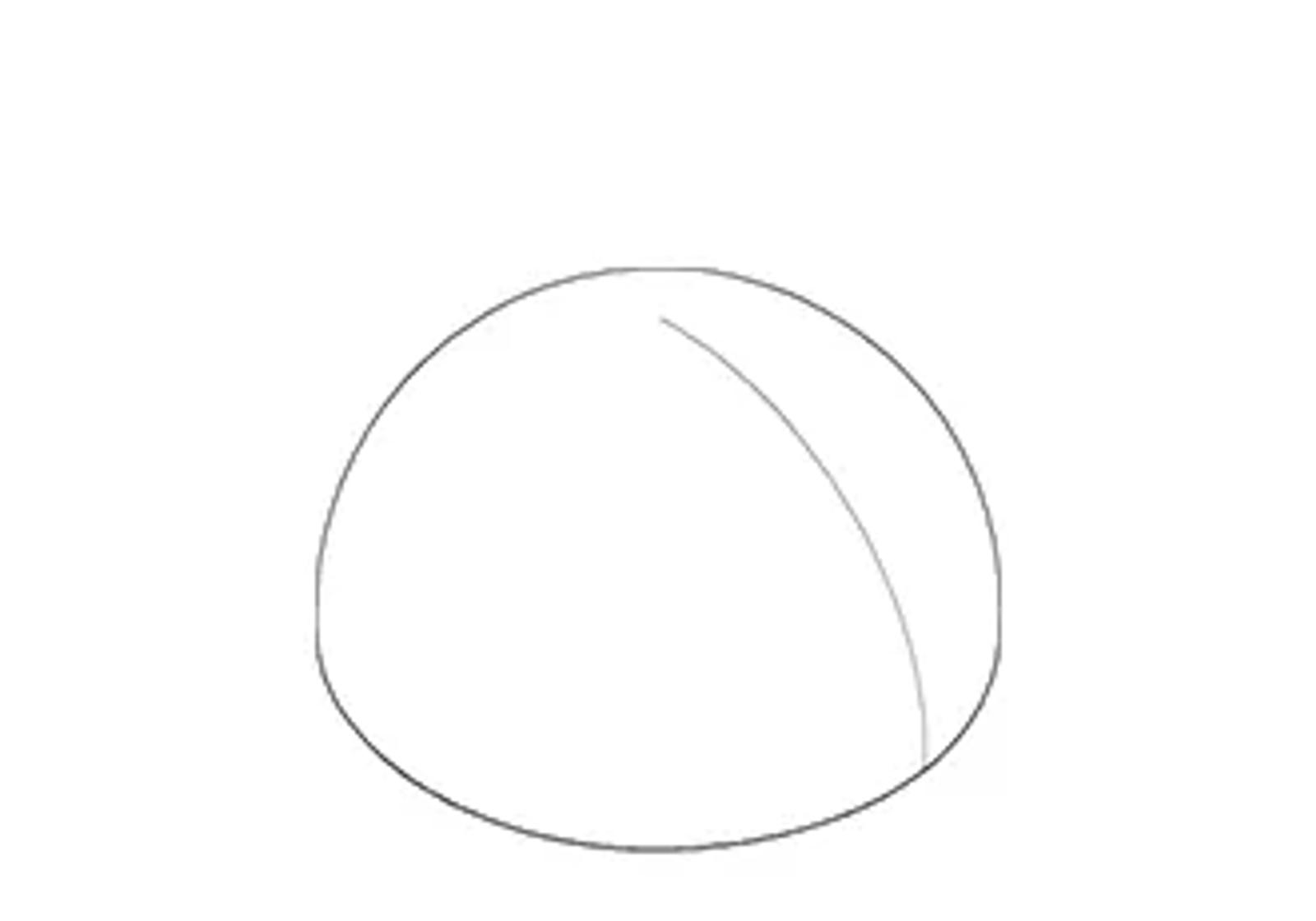

Ø70 cm
Weight
220 kg
Dimensions / specification

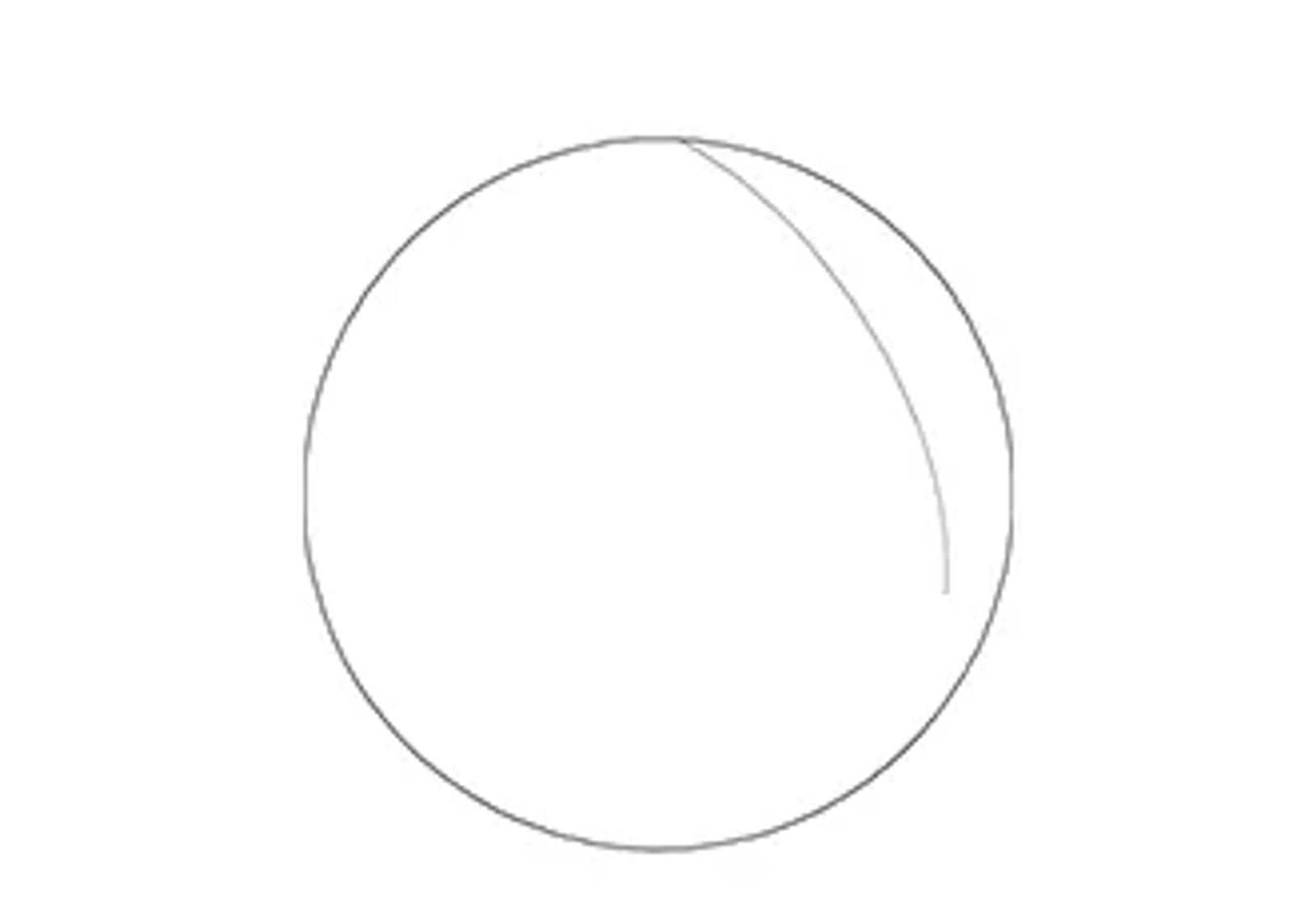

Ø90 cm
Weight
910 kg
Dimensions / specification

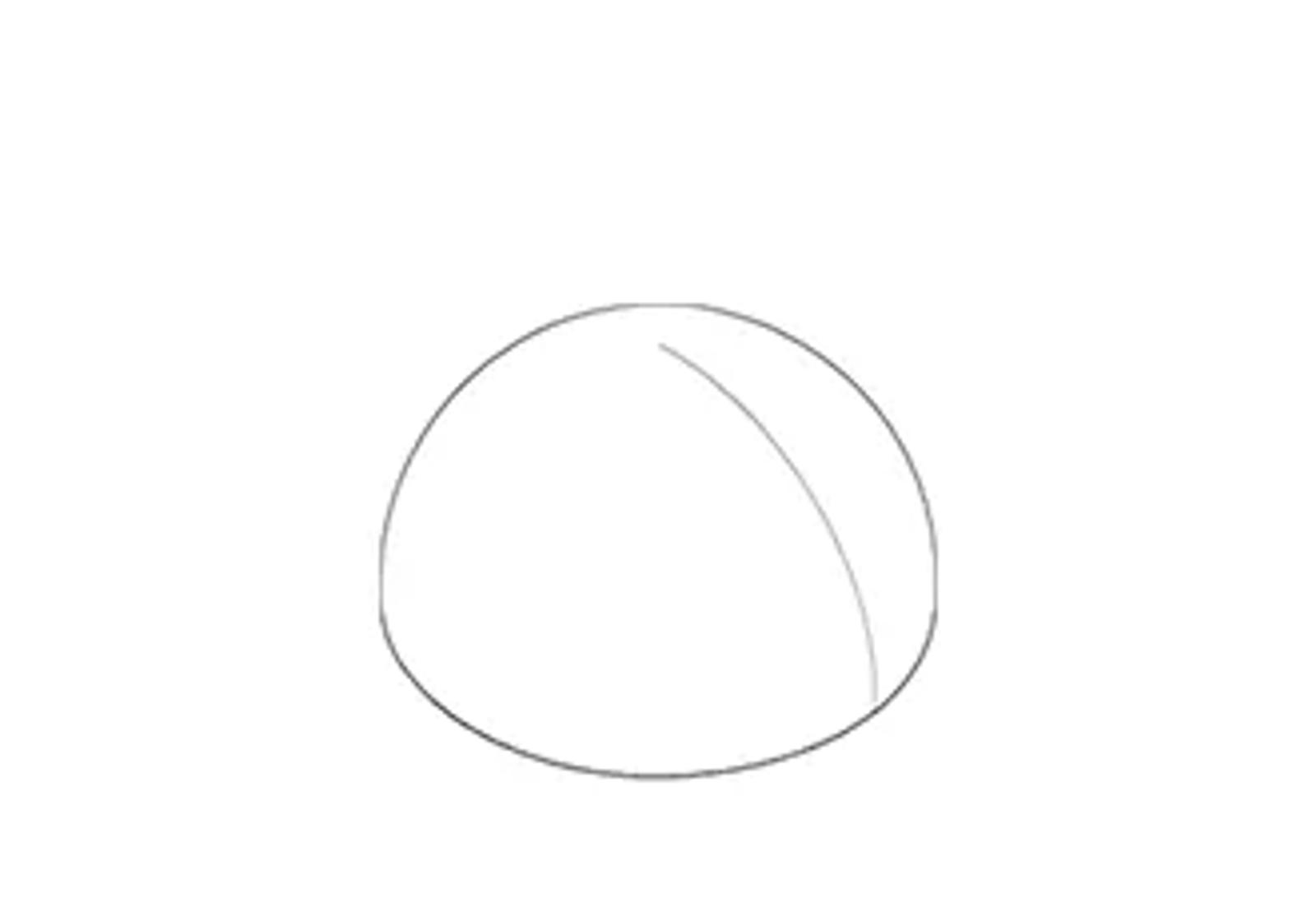

Ø90 x 45 cm
Weight
455 kg
Installation
FIXED WITH SCREEWS
Certificates
Susterra
Materials
ETCHED AND WATERPROOFED CONCRETE

data sheet

product brochure
