Cilíndrico

street & water

Cilíndrico

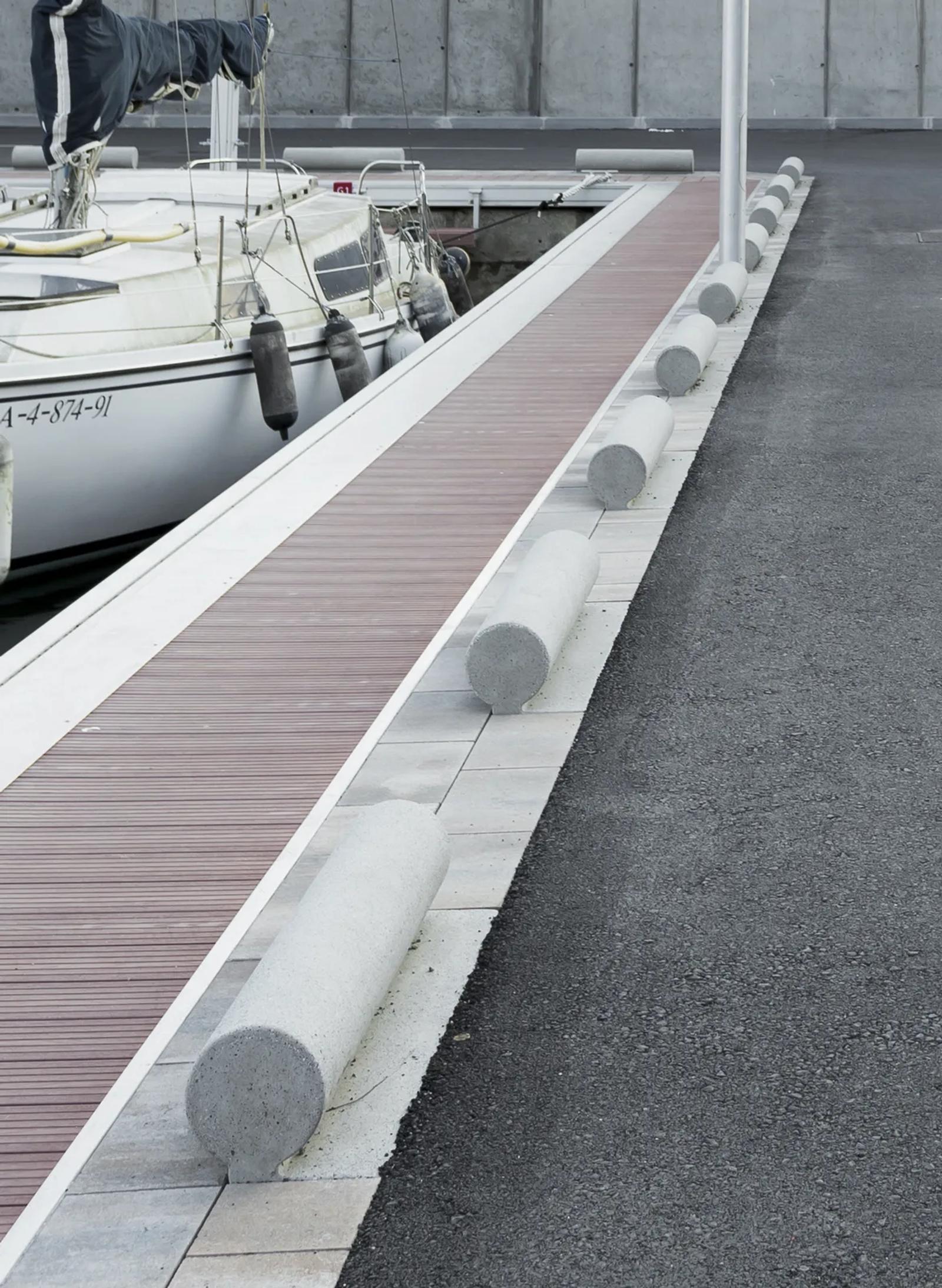

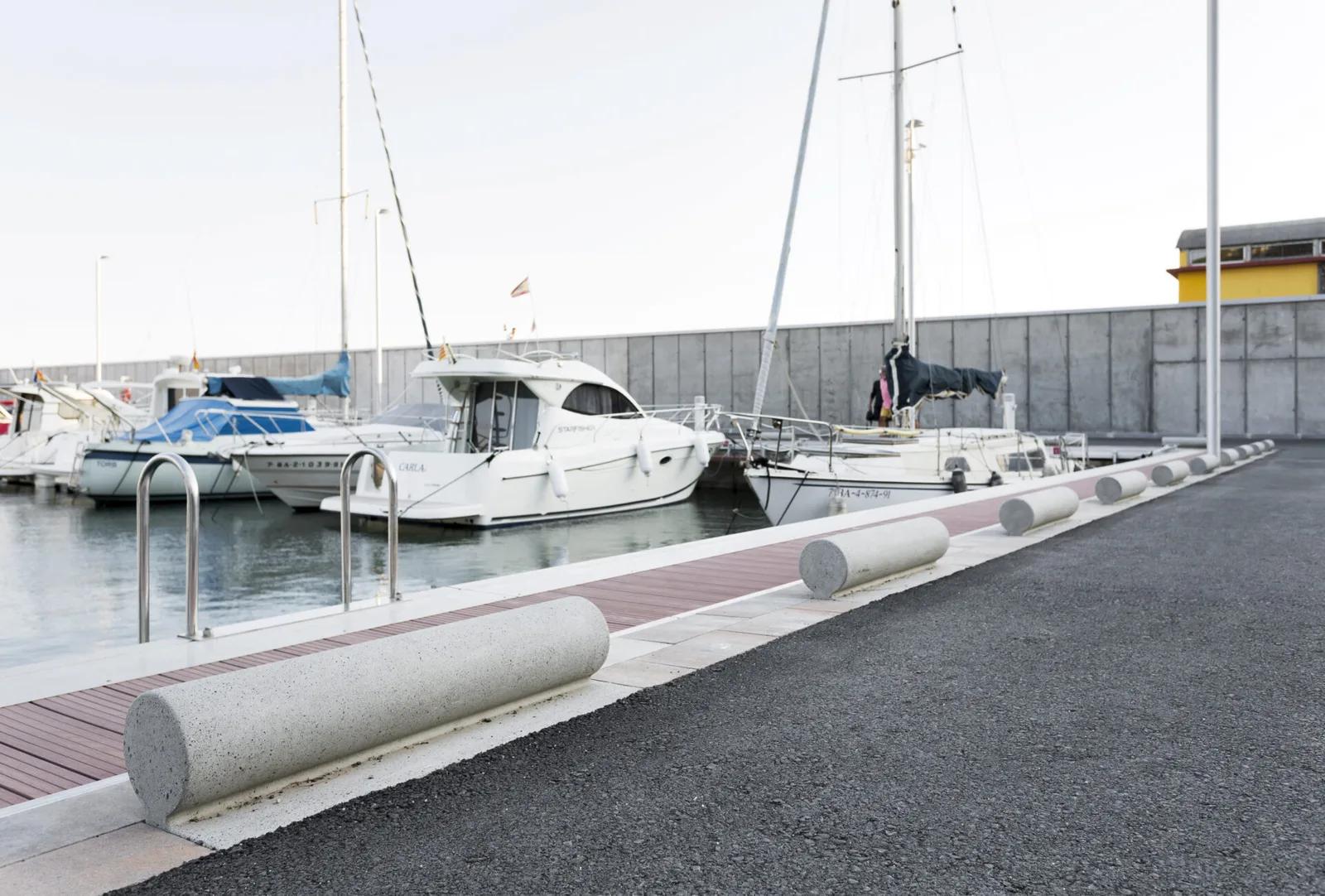

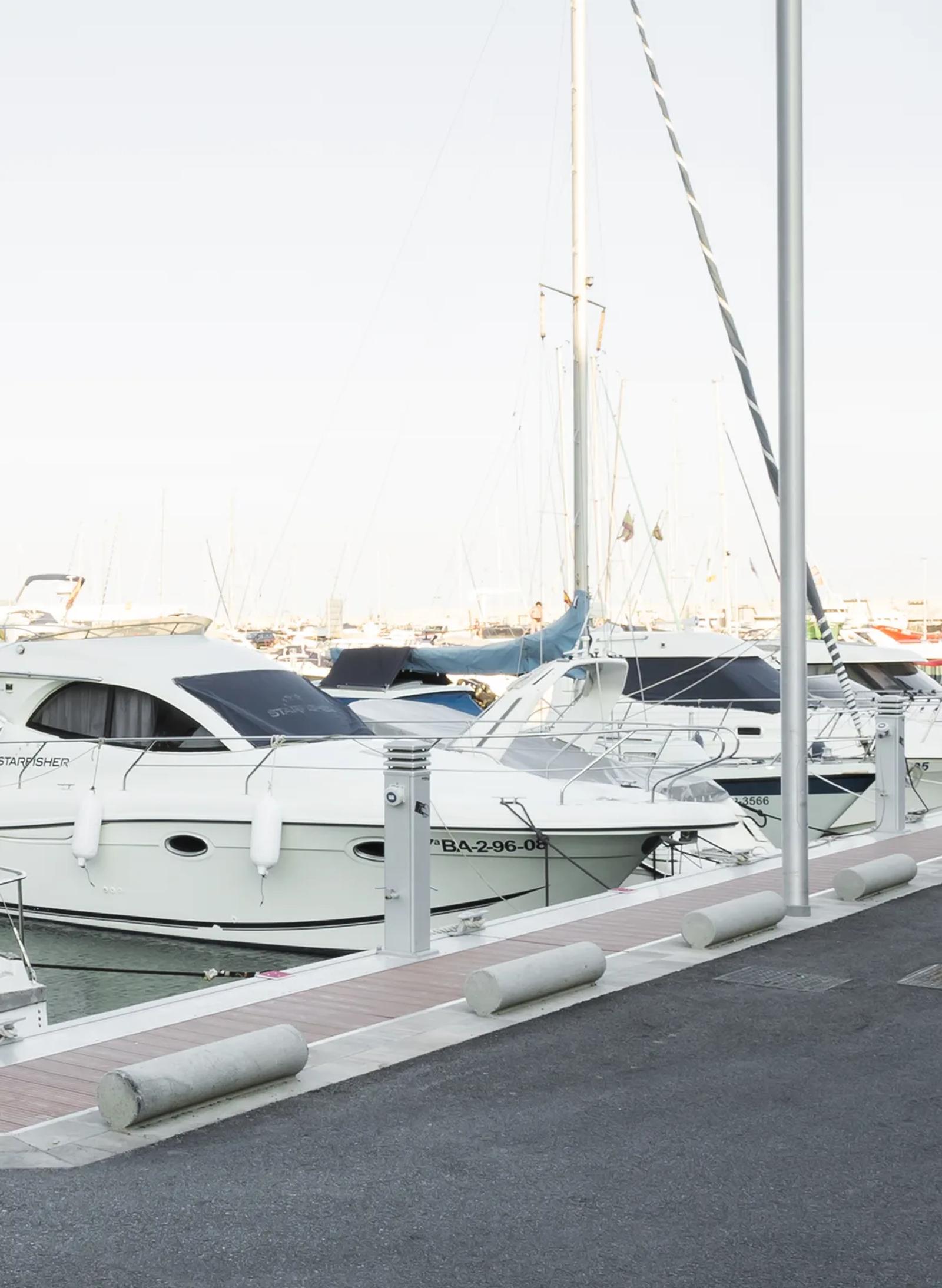

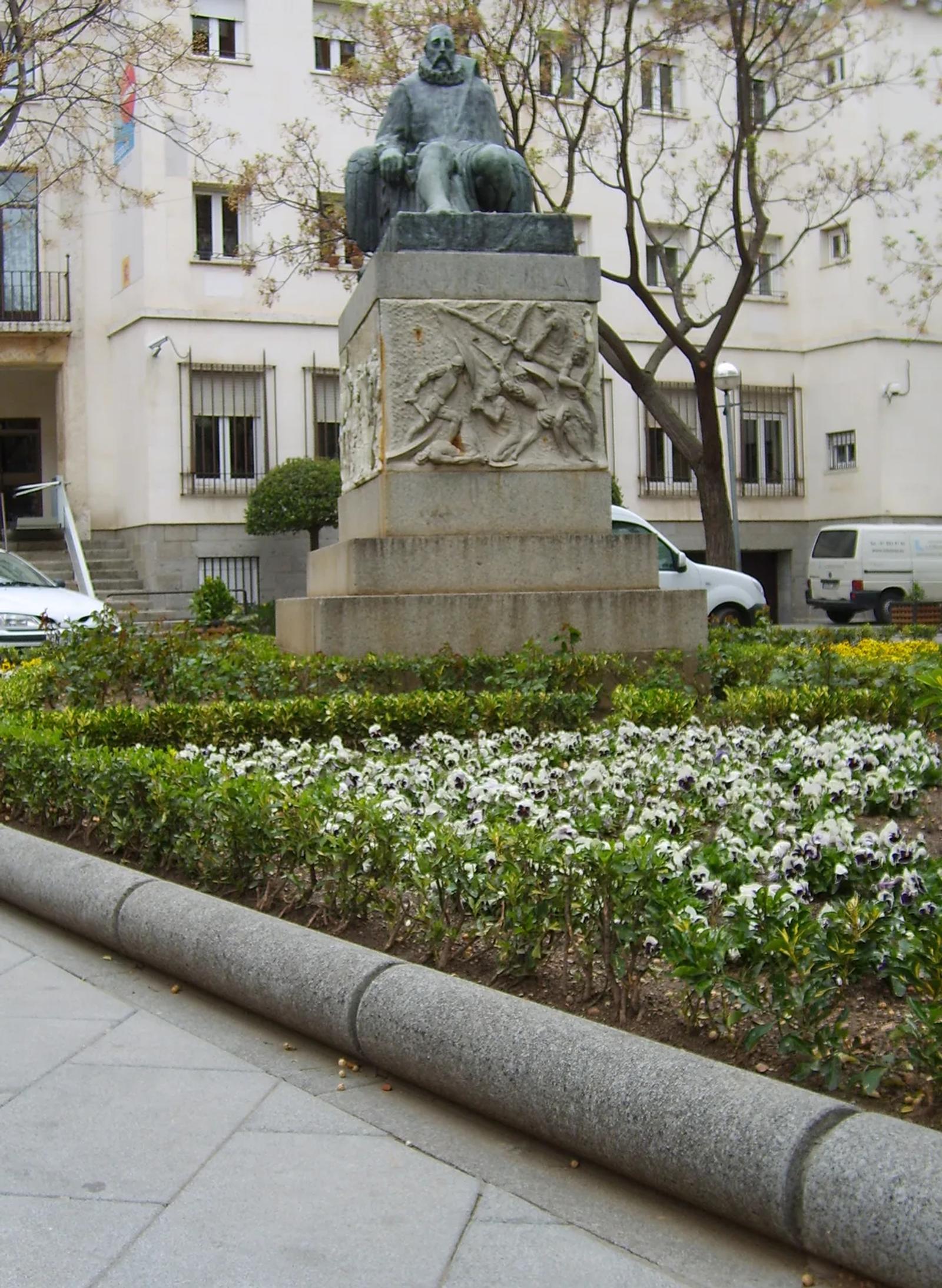

A boundary conceived to act as a divider for flowerbeds and garden areas, for the segregation of pedestrian walkways from vehicular traffic, and the demarcation of parking spaces.

The separation between the Cilindíco modules favours water drainage and permits subtle changes in alignment or level.

Cylindrical sections that appear to float, concealing the generatrix of union with the base.

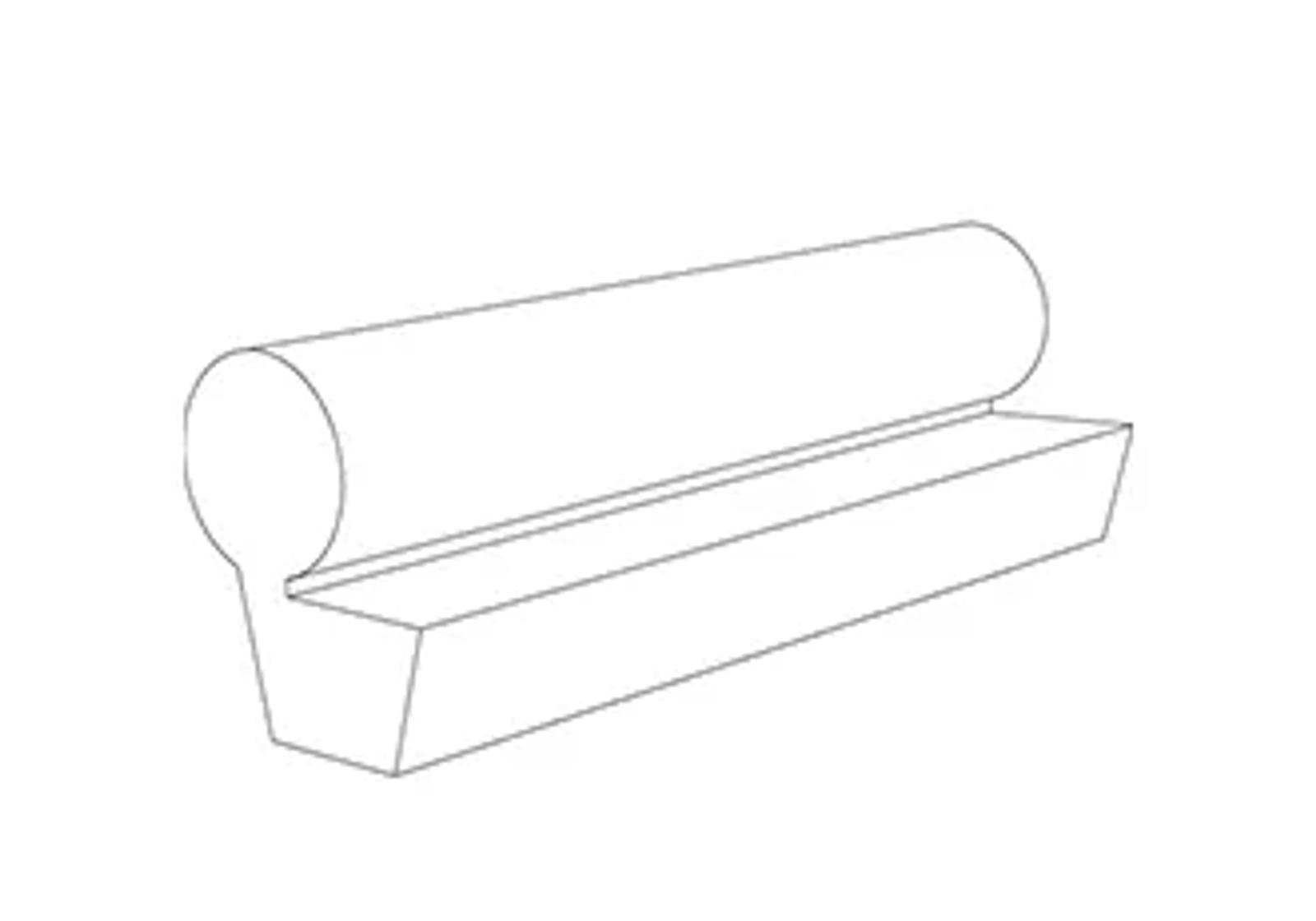

In geometrical terms, it comprises a trapezoidal base that is recessed flush with the paving, from which emerges a cylindrical body with a diameter of 18 cm and a length that is shorter than the base. This difference not only favours drainage, it generates an open joint of 4 cm between cylinders, which permit the absorption of small changes in alignment or slope, without causing geometric conflicts.

Moulded concrete reinforced with stainless steel, with a granite grey etched and waterproof finish. Recessed in the paving 12 cm below ground level.

Design year
1988
Dimensions / specification
100 x 26 x 32 cm
Weight
120 kg
Installation
EMBEDDED
Certificates
Susterra
Materials
ETCHED AND WATERPROOFED GREY CONCRETE
