sorting & recycling bins

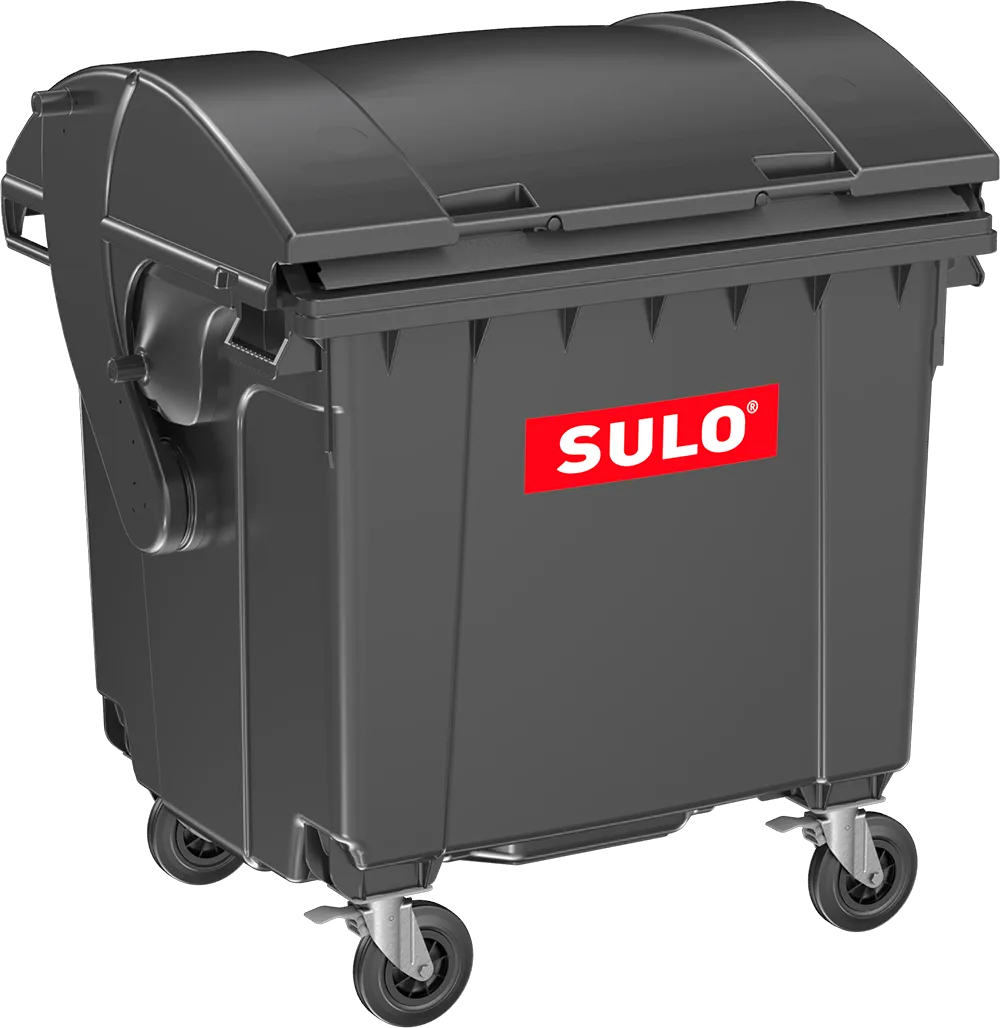

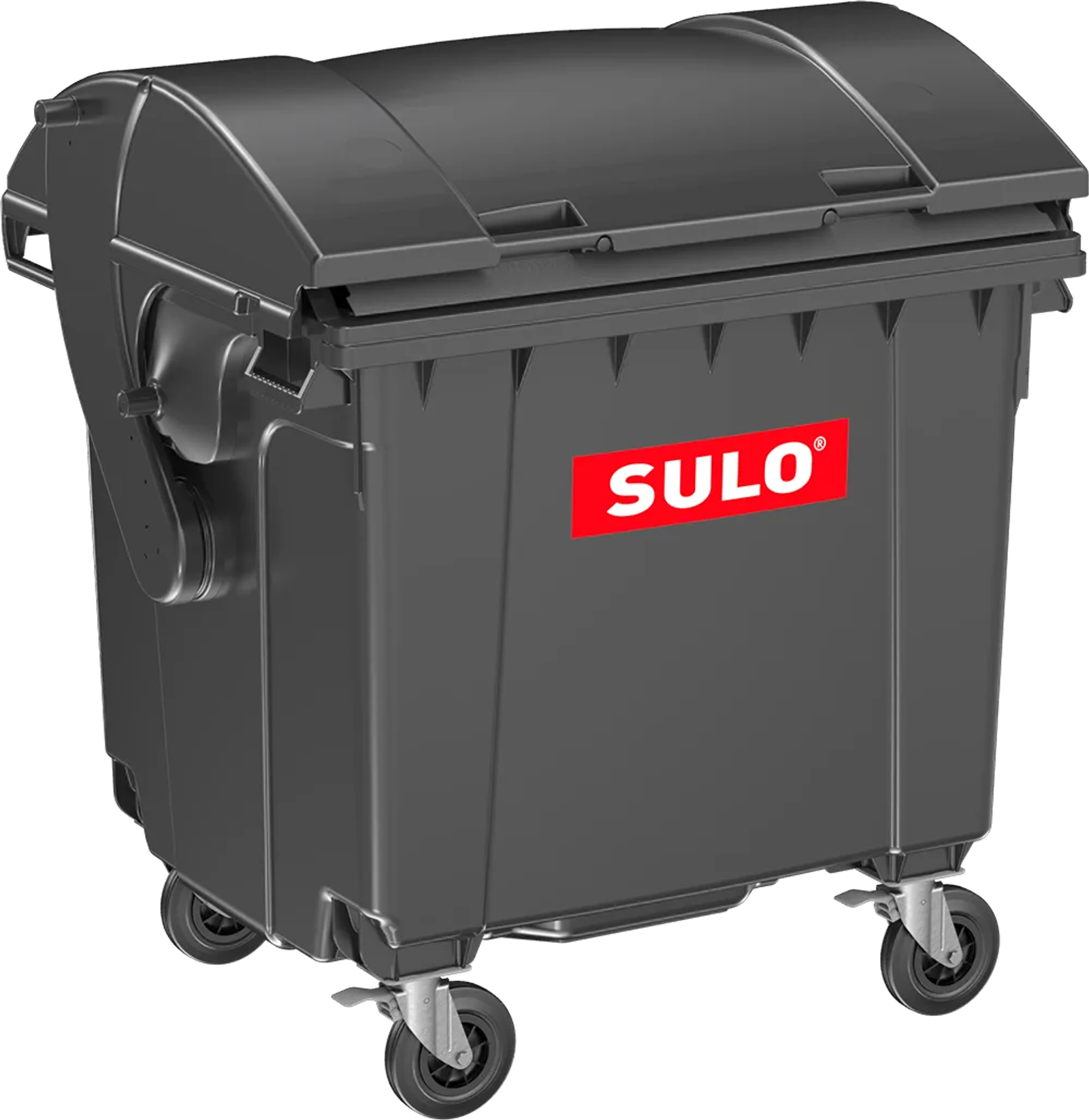

CITYBAC® 1100L Dome Lid HF
5 % less weight than previous bins 25 % more transport capacity because of optimized body Benchmark in terms of sustainability, quality, innovation The new bin generation with innovative ECO Design Controlled weight reduction Ergonomic advantage: easier to handle and move Optimized body for enhanced stability 25% more bins in one vehicle Remarkably less CO2 consumption than previous bin generations High durability, resistant to decay, frost, heat and most chemicals Metal components corrosion-resistant Individual configuration with all known product options, e.g. locks, throw-in systems or personalization Integrated chip nest Compatible with identification and weighing systems
specifications
- Nominal Volume
- 1100 L
- Certification marks
- TÜV ISO 9001, TÜV ISO 14001, TÜV ISO 45001, TÜV ISO 50001, RAL, Circular Eco, CE
- Standard
- EN 840
- Body colour
- Grey RAL 7021 (eco friendly, 100 % recycled)
- Lid colours
- Grey RAL 7021, Green RAL 6011, Brown RAL 8025, Blue RAL 5023, Yellow RAL 1018, Orange RAL 2008, Red RAL 3000
- Alternative body colours
- Green RAL 6011, Brown RAL 8025, Blue RAL 5023, Yellow RAL 1018 (eco friendly)
Dome lid
- Height total
- approx. 1460 mm
- Upper comb edge
- approx. 1205 mm
- Bin depth
- approx. 1060 mm
- Width total
- approx. 1370 mm
- Empty weight
- approx. 54 kg
- Max. filling weight
- approx. 440 kg
- Max. total weight
- approx. 510 kg
Dome lid with lid-in-lid
- Height total
- approx. 1460 mm
- Upper comb edge
- approx. 1205 mm
- Bin depth
- approx. 1060 mm
- Width total
- approx. 1370 mm
- Empty weight
- approx. 54 kg
- Max. filling weight
- approx. 440 kg
- Max. total weight
- approx. 510 kg
