sorting & recycling bins
CITYBAC® Stationary Barcelona
100 % Made out of recyclable HDPE 0 waste at the end of the lifecycle The attractive allrounder integrates perfectely into urban cityscapes Due to it´s aesthetic functionality Barcelona has gained the sympathy of users not only in Spain but all over the world. Maximal collection volume for lateral emptying Reworked design, that adds to a homogenous image of city furniture Optimised picking fo improved productivity of waste collection One-man-emptying Redesigned ergonomic features Improved accessibility for all people Less noise pollution Easy maintenence, mechanised washing Resistant to decay, frost, heat and many chemicals Special UV-stabilisation provides excellent ageing characteristics Metal elements are made of carbon steel and protected against corrosion Conforms to UNE - EN 12574 - 1/2/3 standard and meets all dimensional, safety and hygiene requirements Ecofriendly, made of recyclable HDPE
specifications
- Volume
- 2200 L, 3200 L
- Certification marks
- Bureau Veritas ISO 9001, Bureau Veritas ISO 14001, Bureau Veritas OHSAS 18001, Bureau Veritas ISO 50001, Bureau Veritas ISO 14006

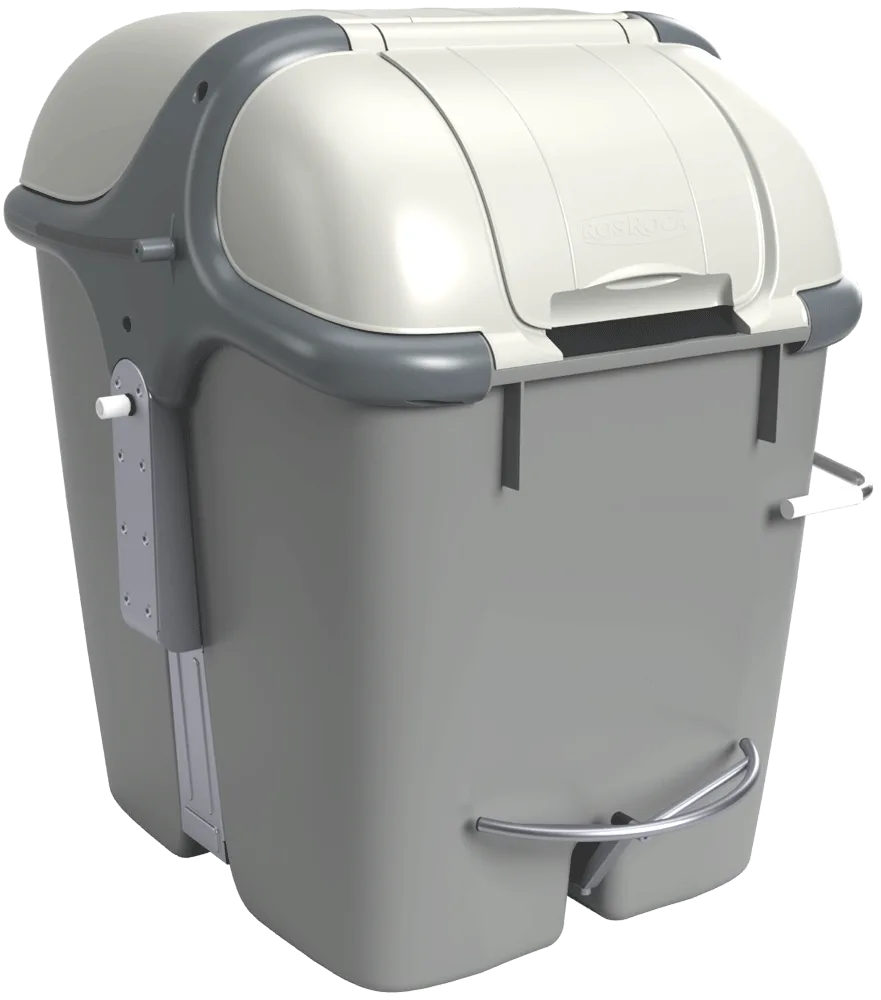

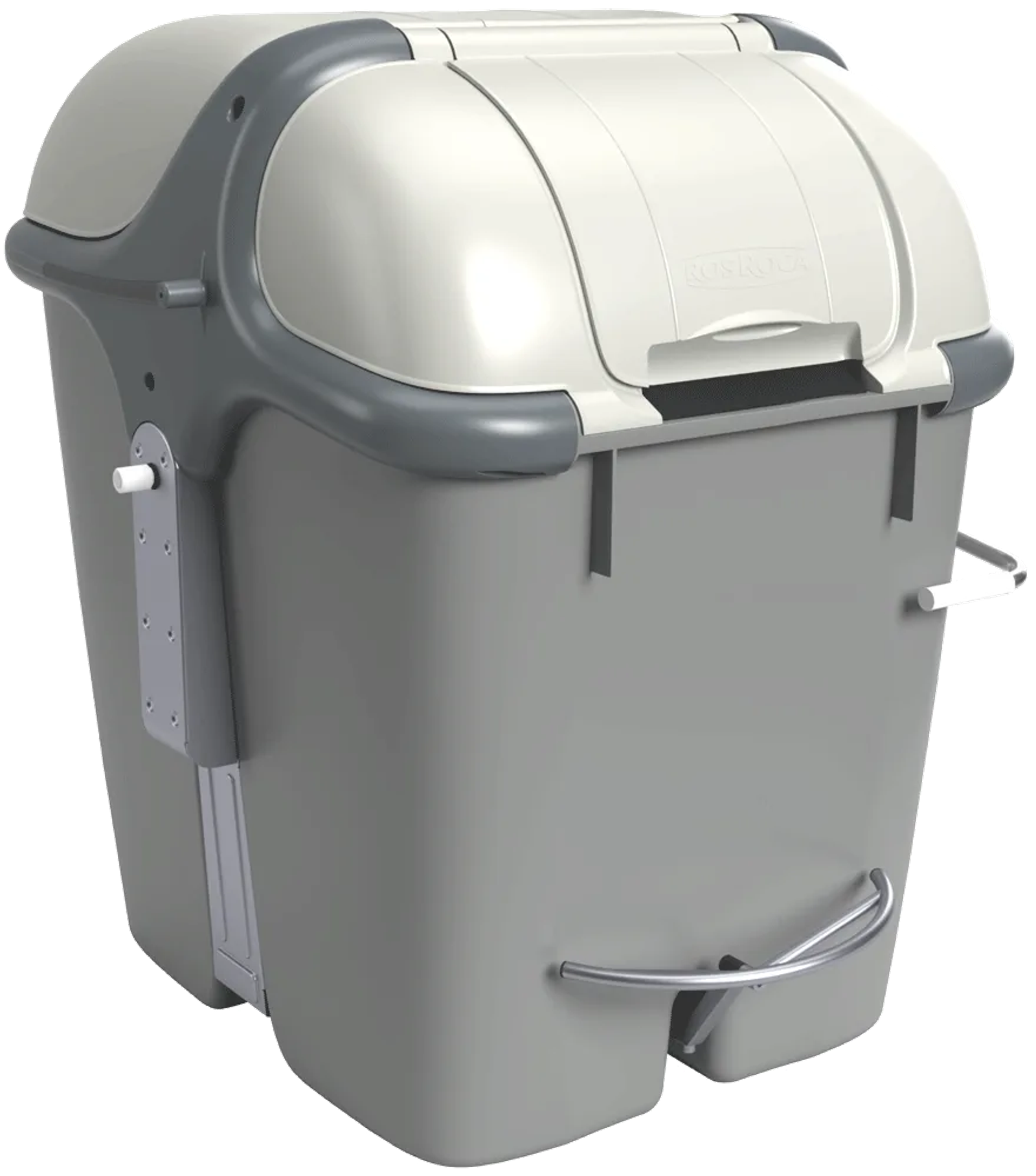

BARCELONA 2200
- Height total
- approx. 1755 mm
- Height, throw-in side
- approx. 1200 mm
- Height, rear
- approx. 1340 mm
- Depth total
- approx. 1520 mm
- Width total incl. trunnion
- approx. 1260 mm
- Empty weight incl. pedal and handle
- approx. 120 kg
- Standard
- UNE-EN 12574-1/2/3
- Nominal volume (unit printed as kg)
- 880
- Body colours
- Grey RAL 7037, Traffic grey RAL 7043
- Lid colours
- Grey RAL 7038, Brown RAL 8024, Blue RAL 5005, Yellow RAL 1018, Green RAL 6032
- Belt colours
- Dark grey RAL 7011, Light grey RAL 7038, Brown RAL 8024, Blue RAL 5005, Yellow RAL 1018, Green RAL 6032

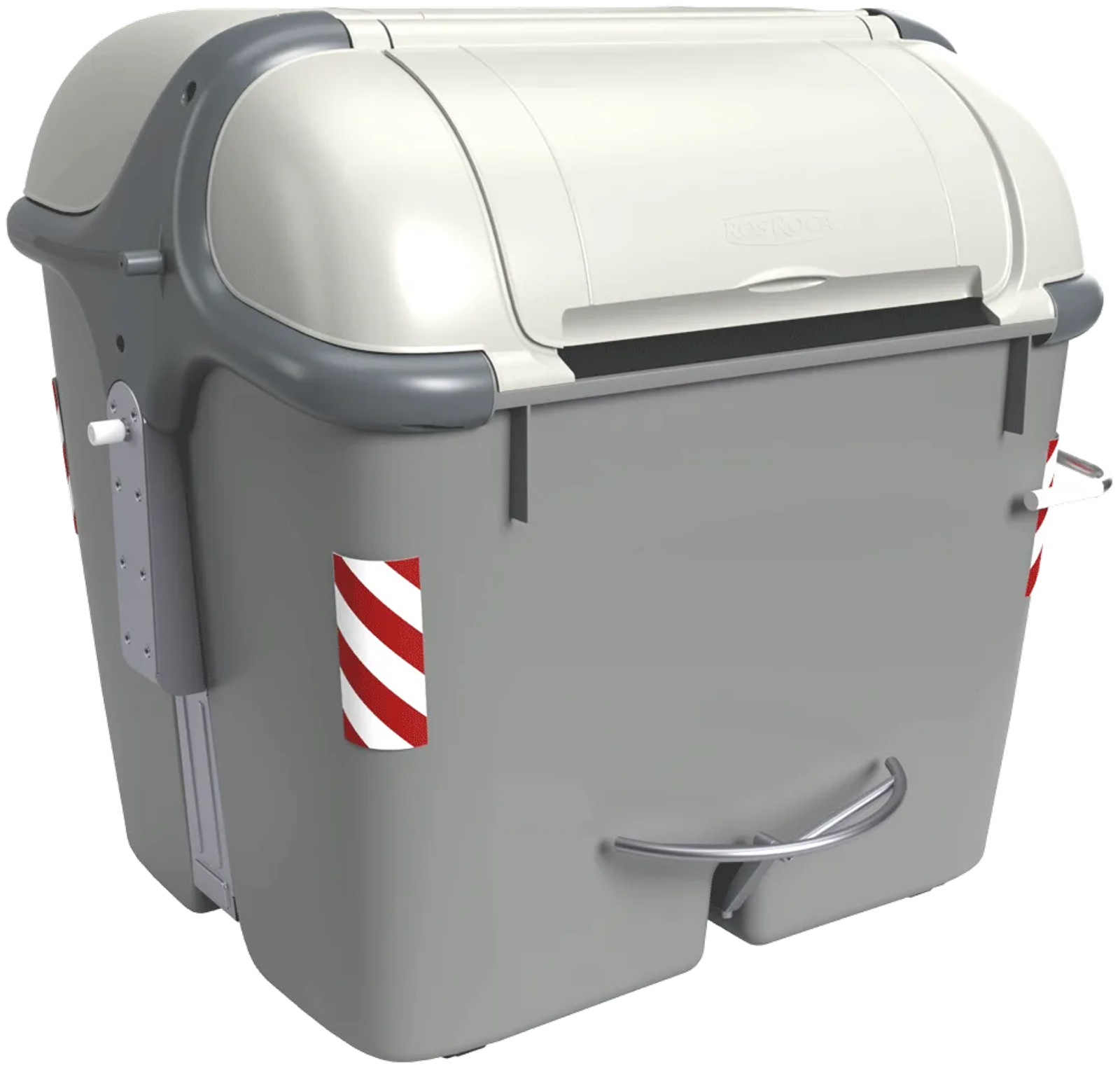

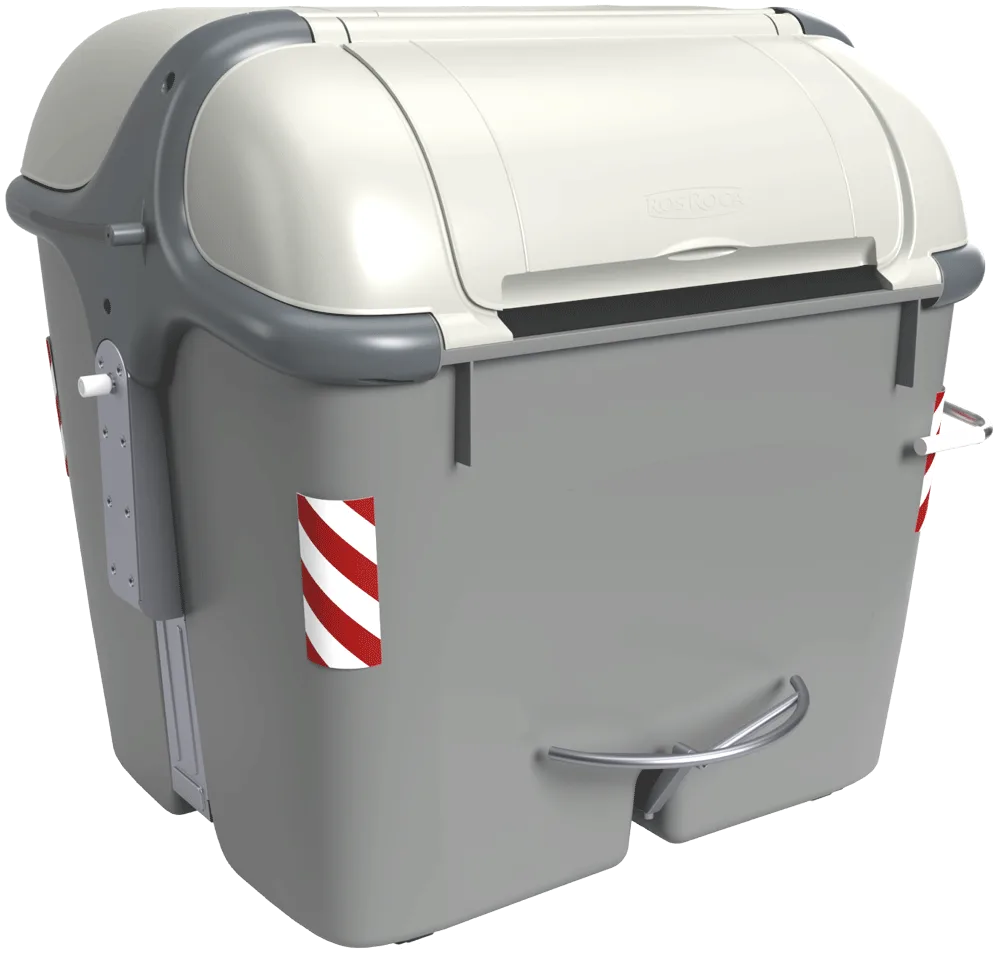

BARCELONA 3200
- Height total
- approx. 1755 mm
- Height, throw-in side
- approx. 1200 mm
- Height, rear
- approx. 1340 mm
- Depth total
- approx. 1520 mm
- Width total incl. trunnion
- approx. 1880 mm
- Empty weight incl. pedal and handle
- approx. 150 kg
- Standard
- UNE-EN 12574-1/2/3
- Nominal volume (unit printed as kg)
- 1280
- Body colours
- Grey RAL 7037, Traffic grey RAL 7043
- Lid colours
- Grey RAL 7038, Brown RAL 8024, Blue RAL 5005, Yellow RAL 1018, Green RAL 6032
- Belt colours
- Dark grey RAL 7011, Light grey RAL 7038, Brown RAL 8024, Blue RAL 5005, Yellow RAL 1018, Green RAL 6032
