sorting & recycling bins

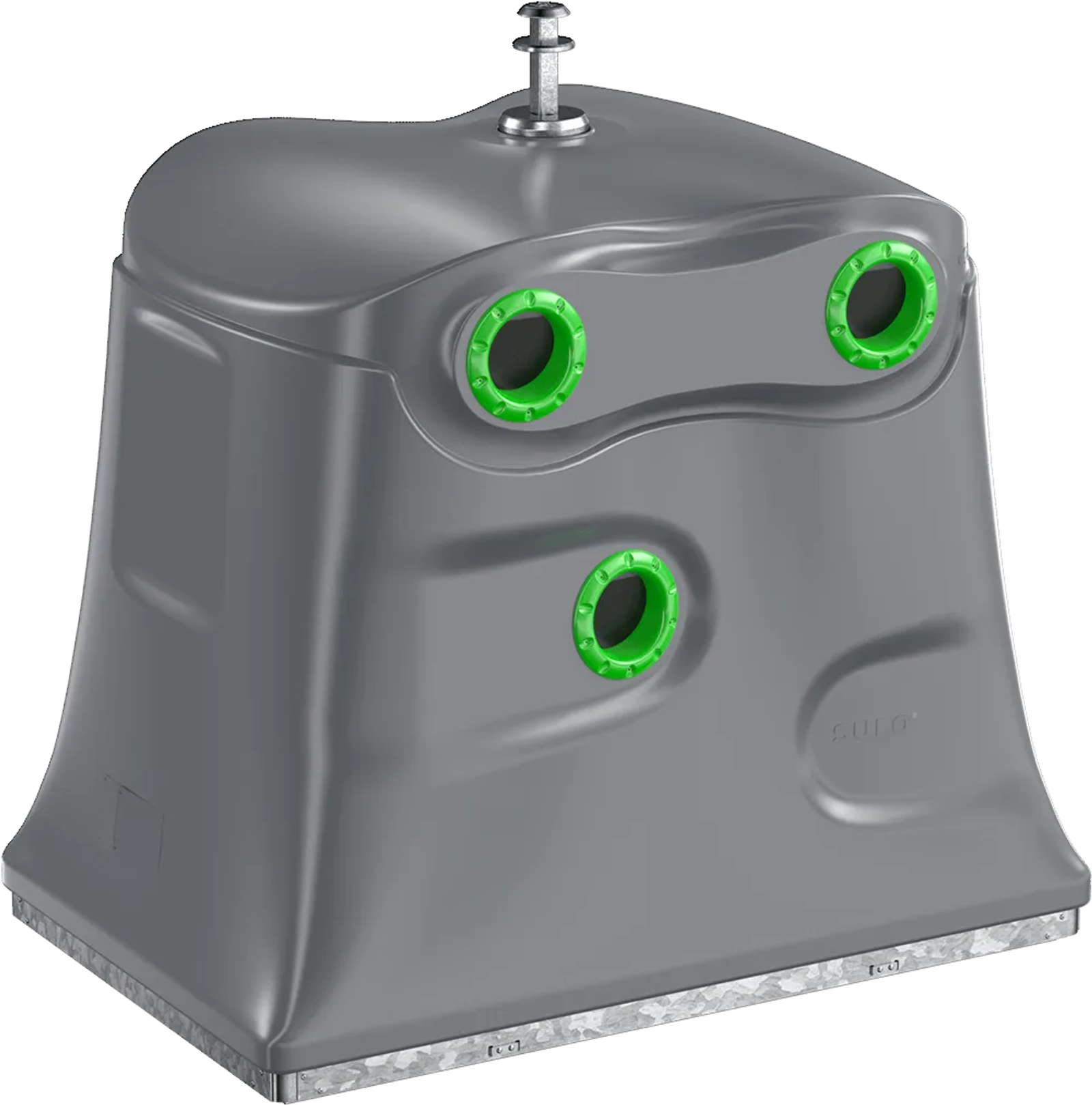

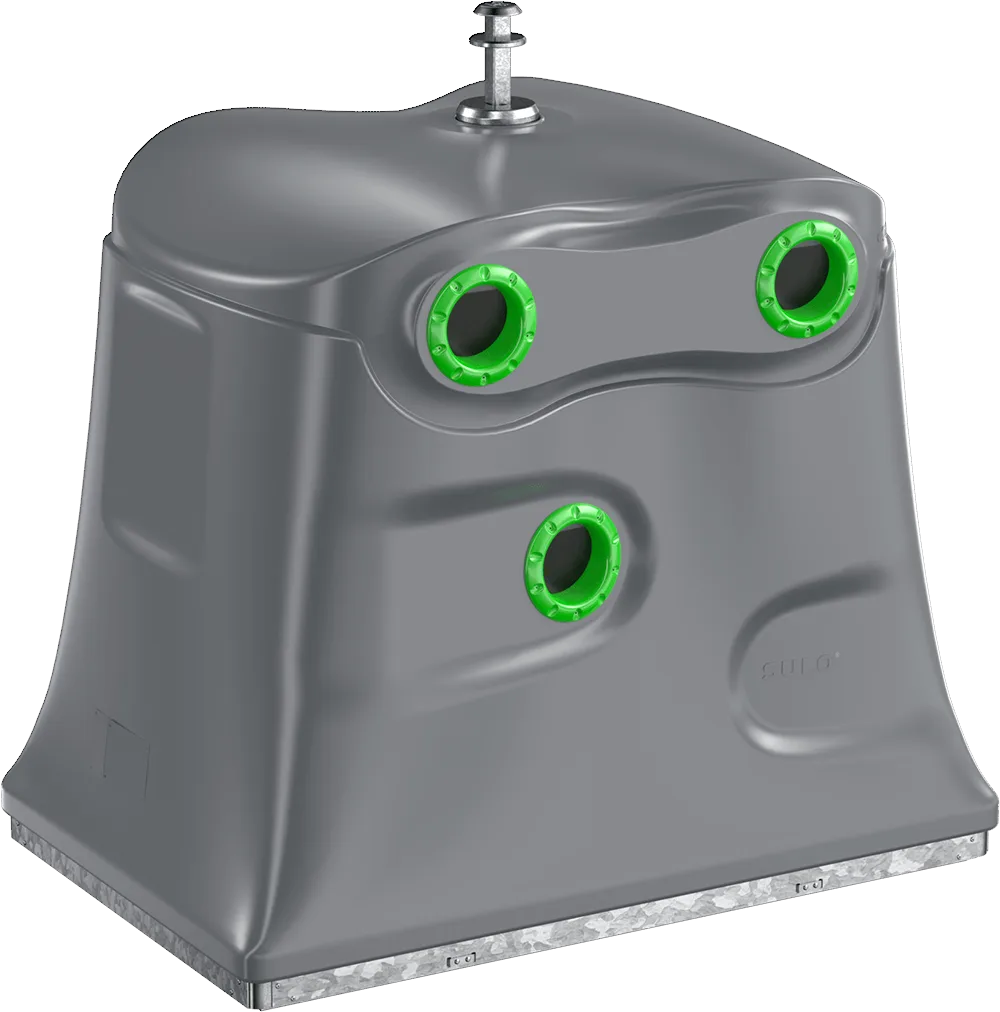

CITYSPOT® Volcano
100 % made of recycled HDPE 100 % recyclable Waste sorting made fun Avantgardistic eyecatcher with a human touch With a variety of selectable colours and shapes, this futuristic recycling bank is a sympathetic statement for a liveable and creative city. Recognisible, lightly rounded design creates a pleasant environment Any impression of massiveness is avoided Made of rotomolded HDPE in a great variety of colours and shapes Inside structure optimized for maximal use of the volume Increased weather resistance, shock and break-proof Several top and bottom panels on both front sides faciliate the barrierfree use for older people and children Maximal vandal resistant finish, because grainy surfaces make it difficult for stickers and posters to adhere
specifications
- Volume
- 3 m³, 4 m³
- Waste Fraction
- Regular Waste, Packaging, Glass, Paper
- Certification marks
- Bureau Veritas ISO 9001, Bureau Veritas ISO 14001, Bureau Veritas OHSAS 18001, Bureau Veritas ISO 50001, Circular Eco
- Material
- 100 % recycled LLDPE
- Colours (on demand)
- English Green Pantone 5535 C, Ash Green Pantone Q752-3-2, Chromic Oxide Green RAL 6020, Flint Grey Pantone Q710-3-2, Pearl Grey Pantone Grey 6 C, Dark Grey Pantone Grey 11 C, Charcoal Grey Pantone Q728-1-2, Walnut Brown Pantone Q710-1-2, Chocolate Brown RAL 8019, Navy Blue Pantone 296 C
- Material
- 100 % recycled LLDPE
- Colours (on demand)
- English Green Pantone 5535 C, Ash Green Pantone Q752-3-2, Chromic Oxide Green RAL 6020, Flint Grey Pantone Q710-3-2, Pearl Grey Pantone Grey 6 C, Dark Grey Pantone Grey 11 C, Charcoal Grey Pantone Q728-1-2, Walnut Brown Pantone Q710-1-2, Chocolate Brown RAL 8019, Navy Blue Pantone 296 C

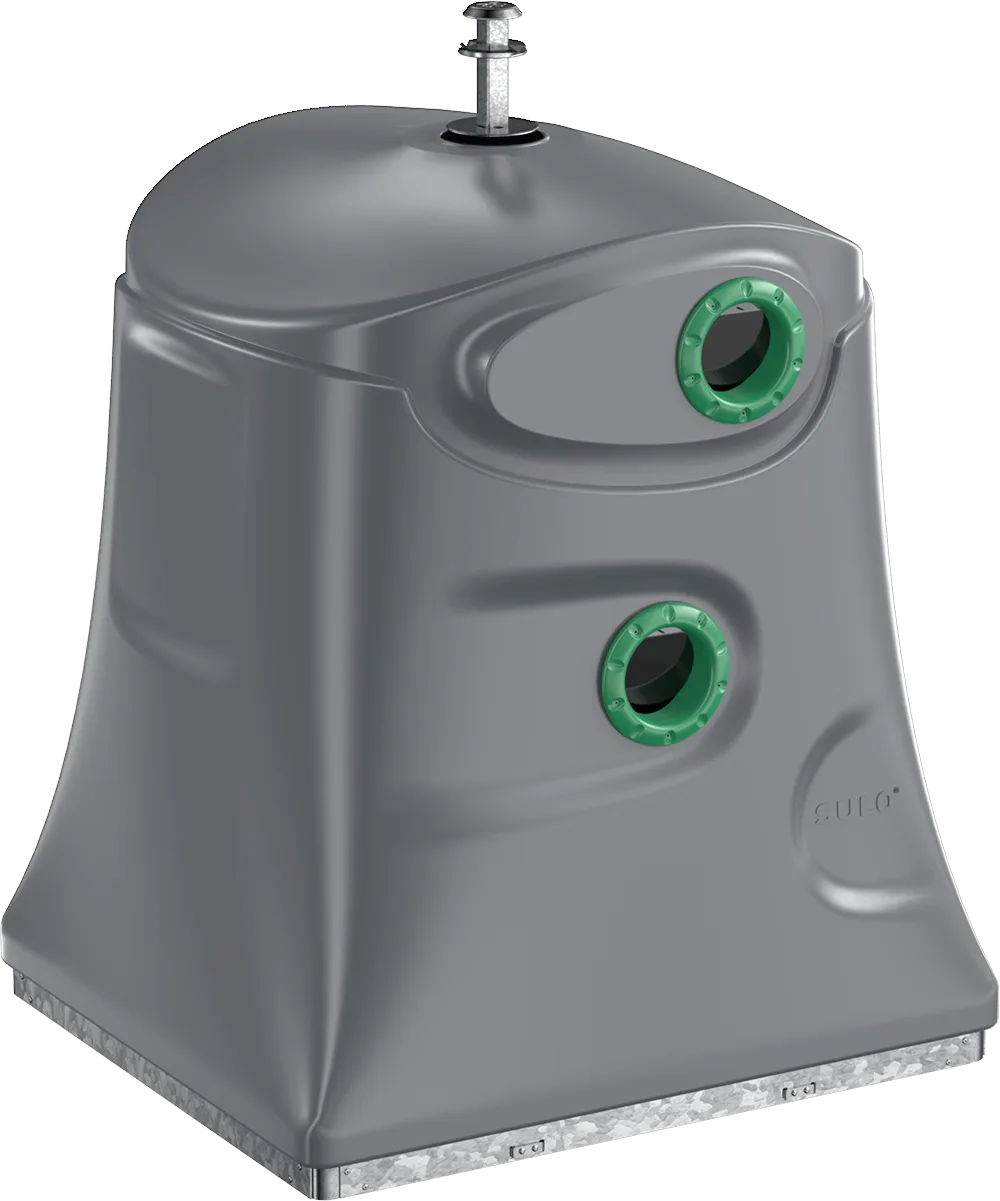

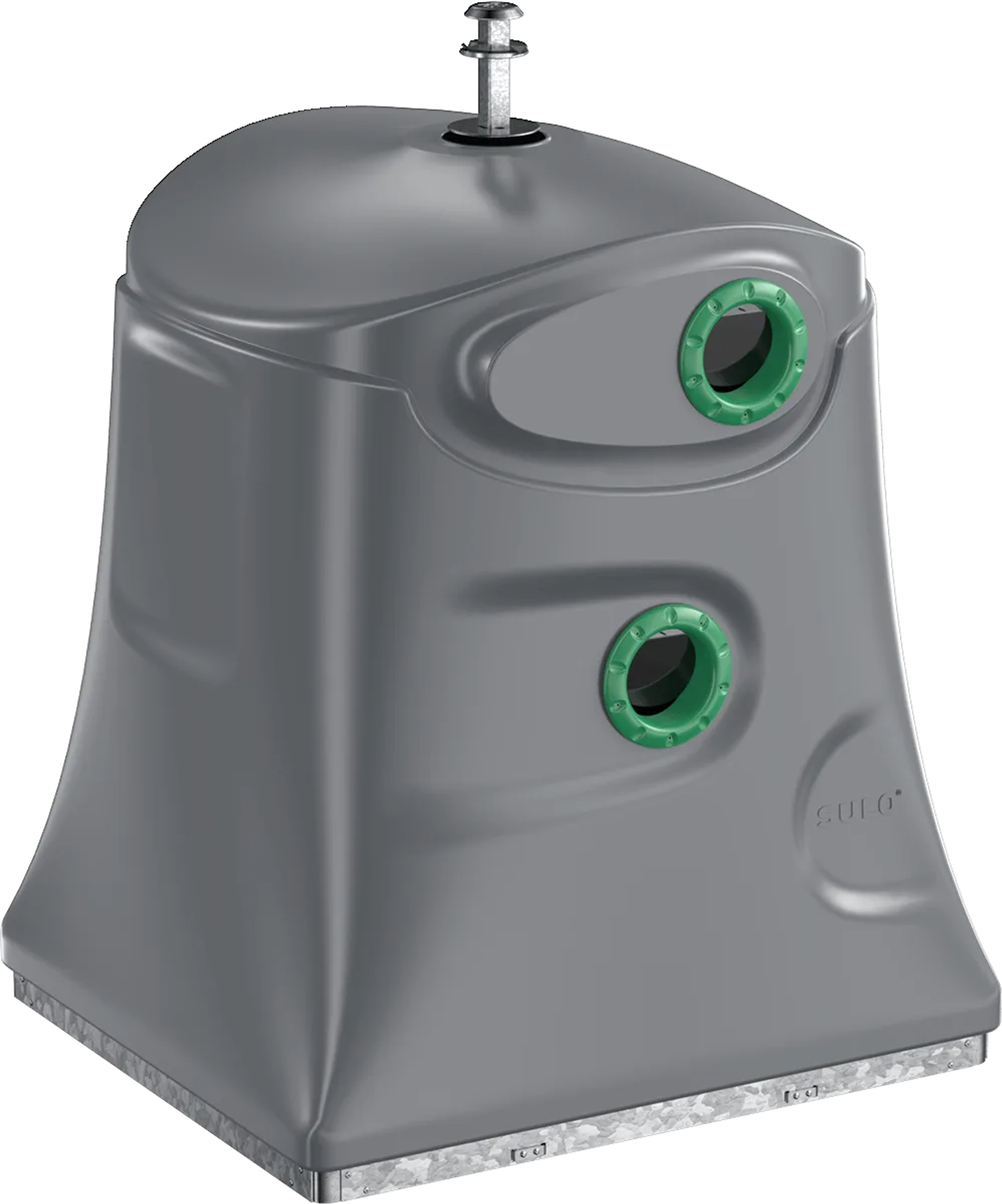

Volcano 3 m³
- Width
- approx. 1640 mm
- Height
- approx. 1920 mm
- Depth
- approx. 1440 mm
- Height from the ground
- approx. 1550 mm
- Height for reduced mobility
- approx. 900 mm
- Useful volume
- approx. 2.85 m³
- Unloaded weight
- 180 kg
- Maximum weight
- 2500 kg
- Space requirements
- 2.36 m²
- Standard
- NF EN 13071
Volcano 4 m³
- Width
- 2190 mm
- Height
- 2215 mm
- Depth (Kinshofer)
- 1440 mm
- Depth (single hook)
- 1600 mm
- Height of holes from the ground
- 1500 mm
- Useful volume
- 3.85 m³
- Unloaded weight
- Single hook: 225 kg, Kinshofer: 250 kg
- Space requirements
- Single hook: 3.55 m², Kinshofer: 3.14 m²
- Standard
- NF EN 13071
