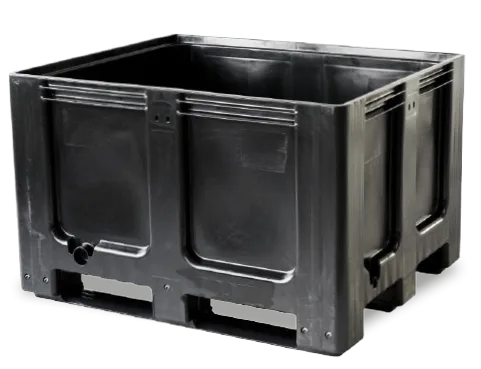

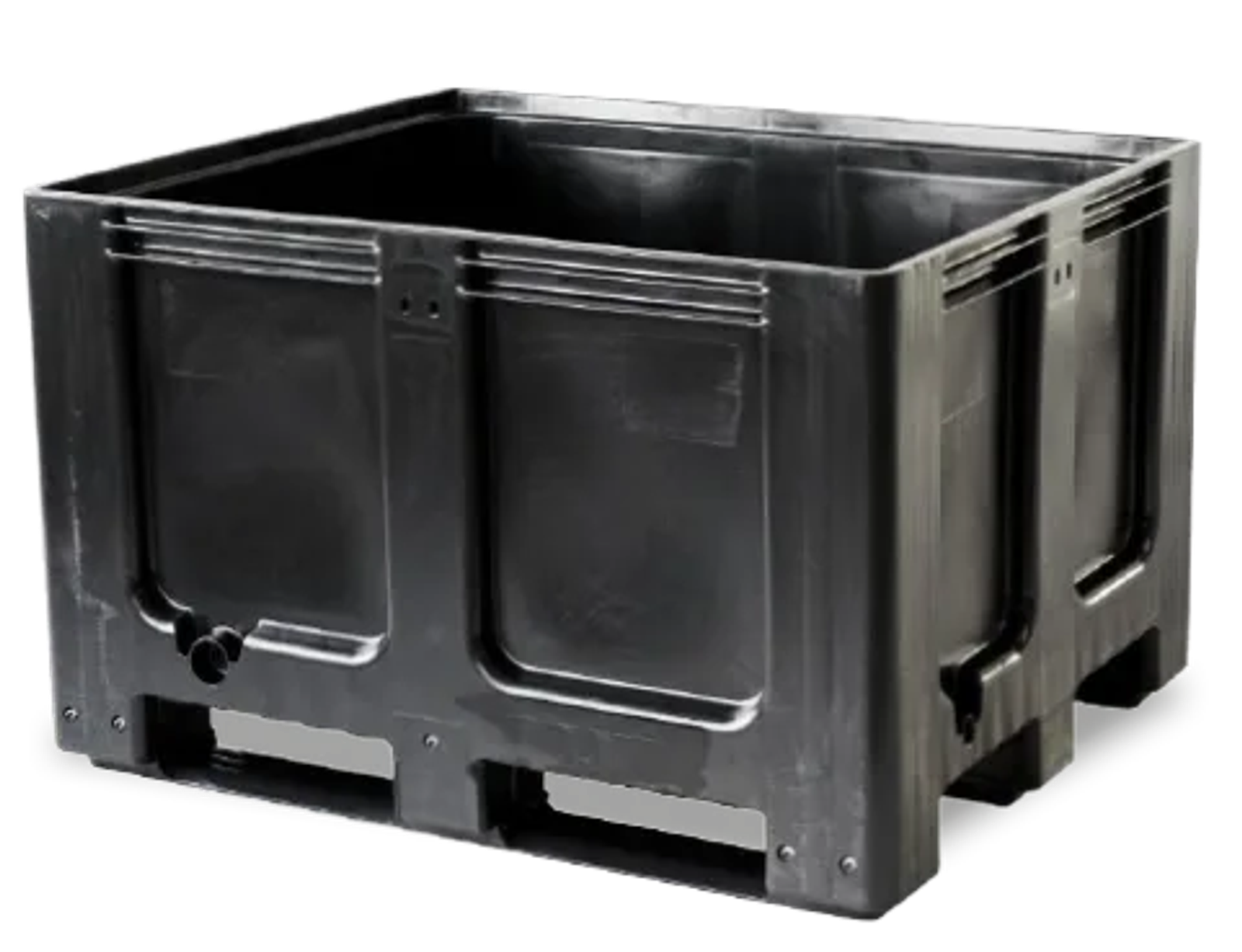

CT/R3 610 L ECO
EUROPLAST box made of high-quality HDPE (s. image) for transport and storage in industrial for bulk material and small parts. The box is manufactured in an injection moulding process, acid-resistant and has smooth internal walls for easy cleaning.

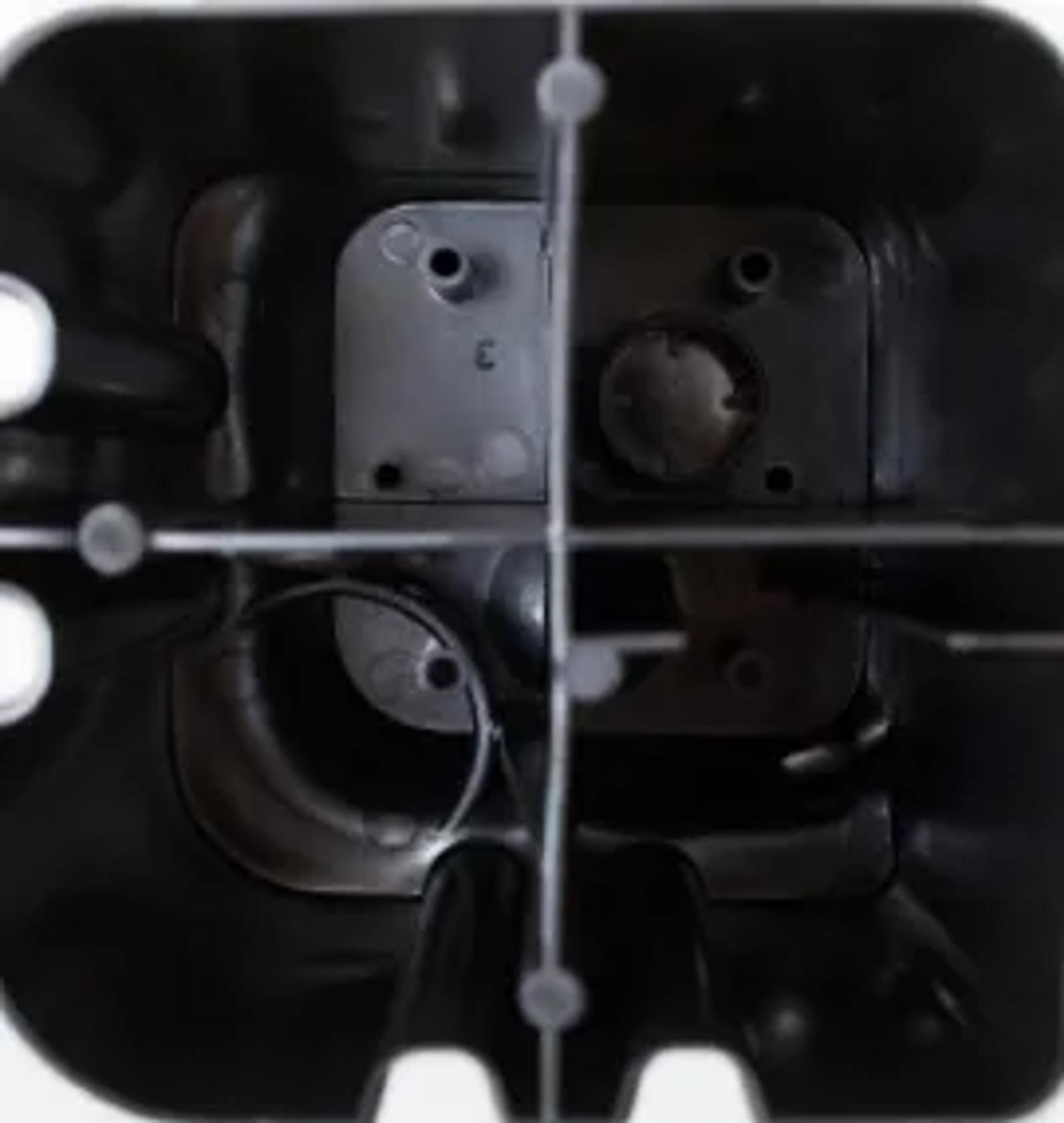

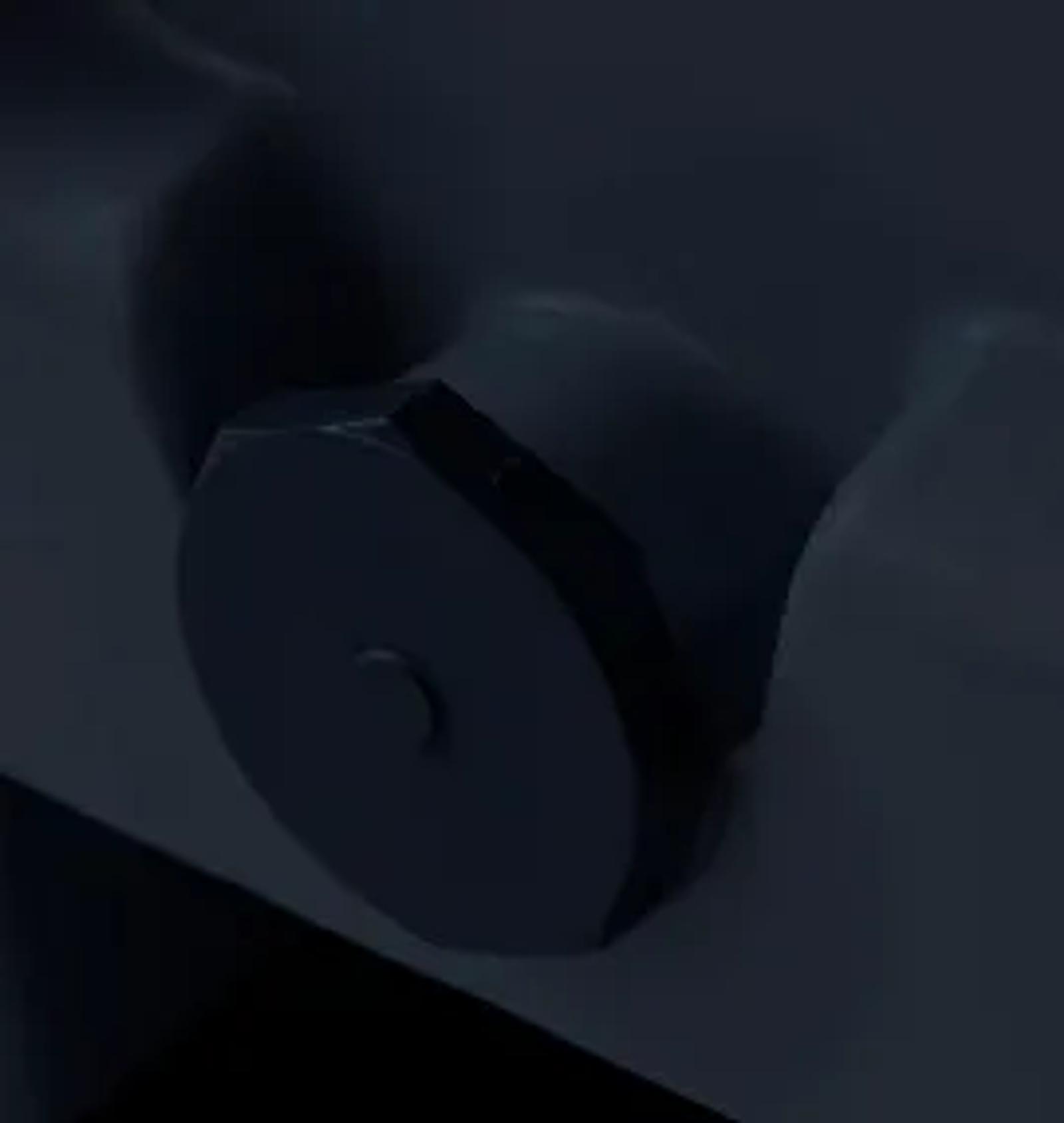

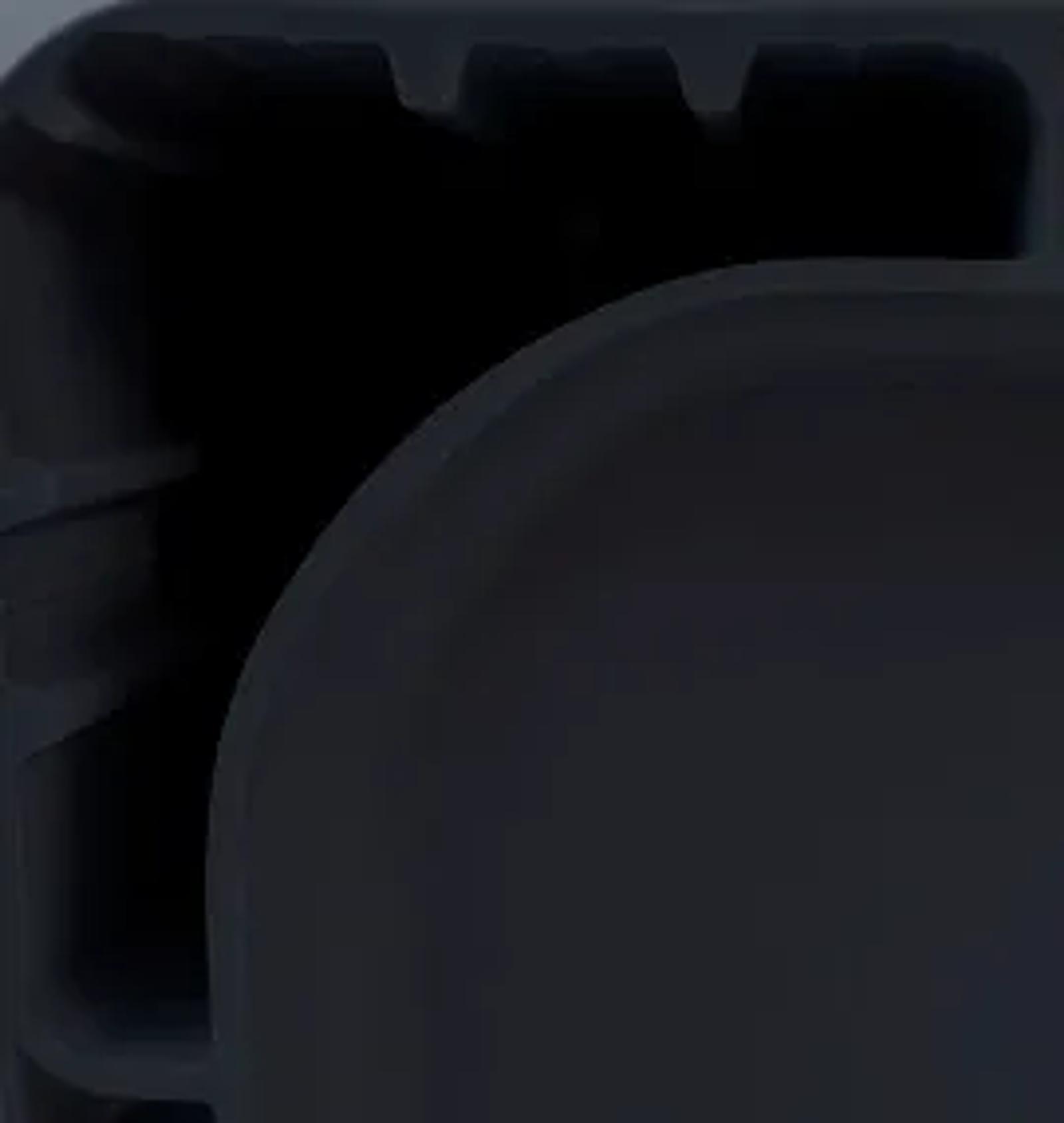

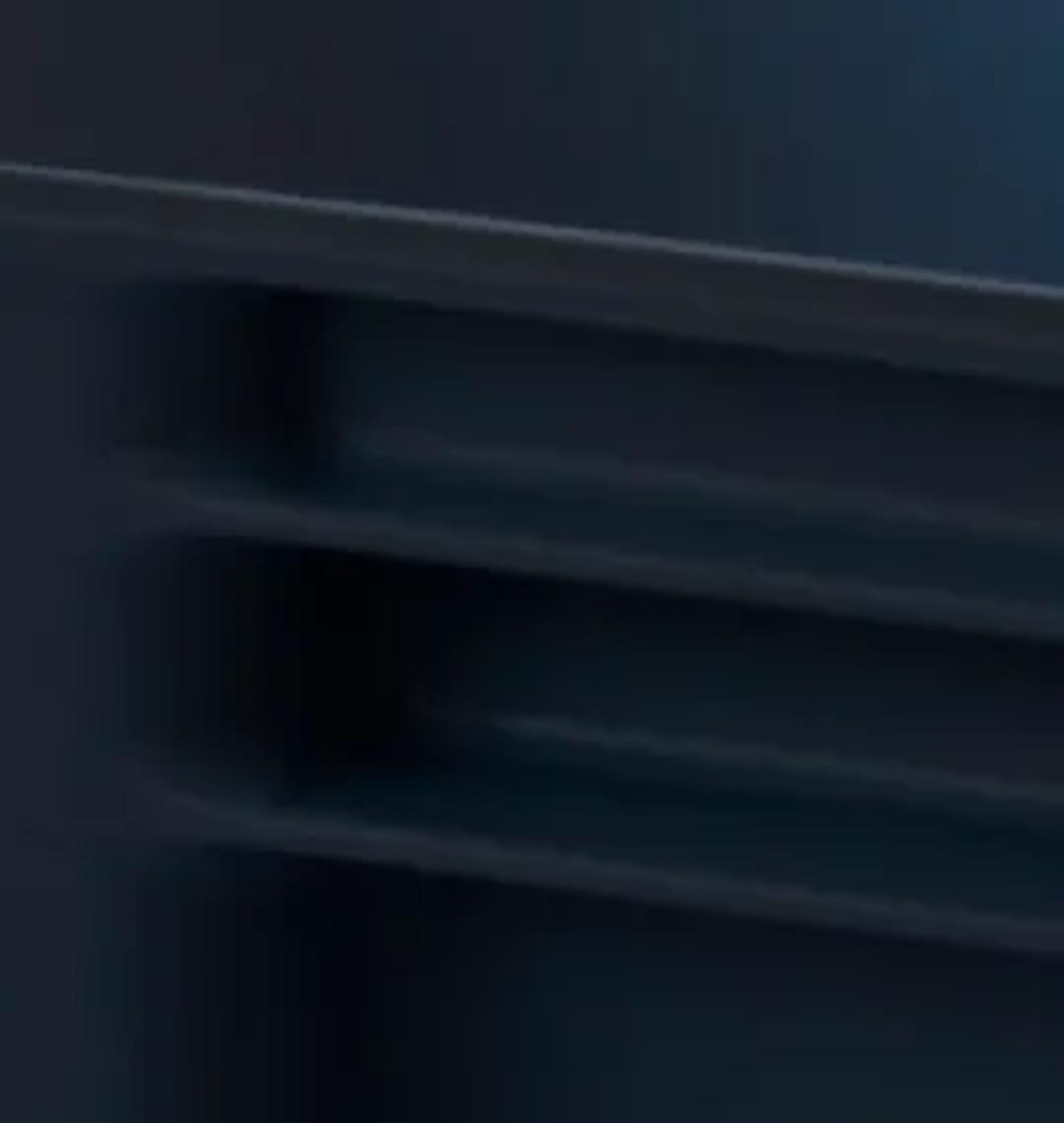

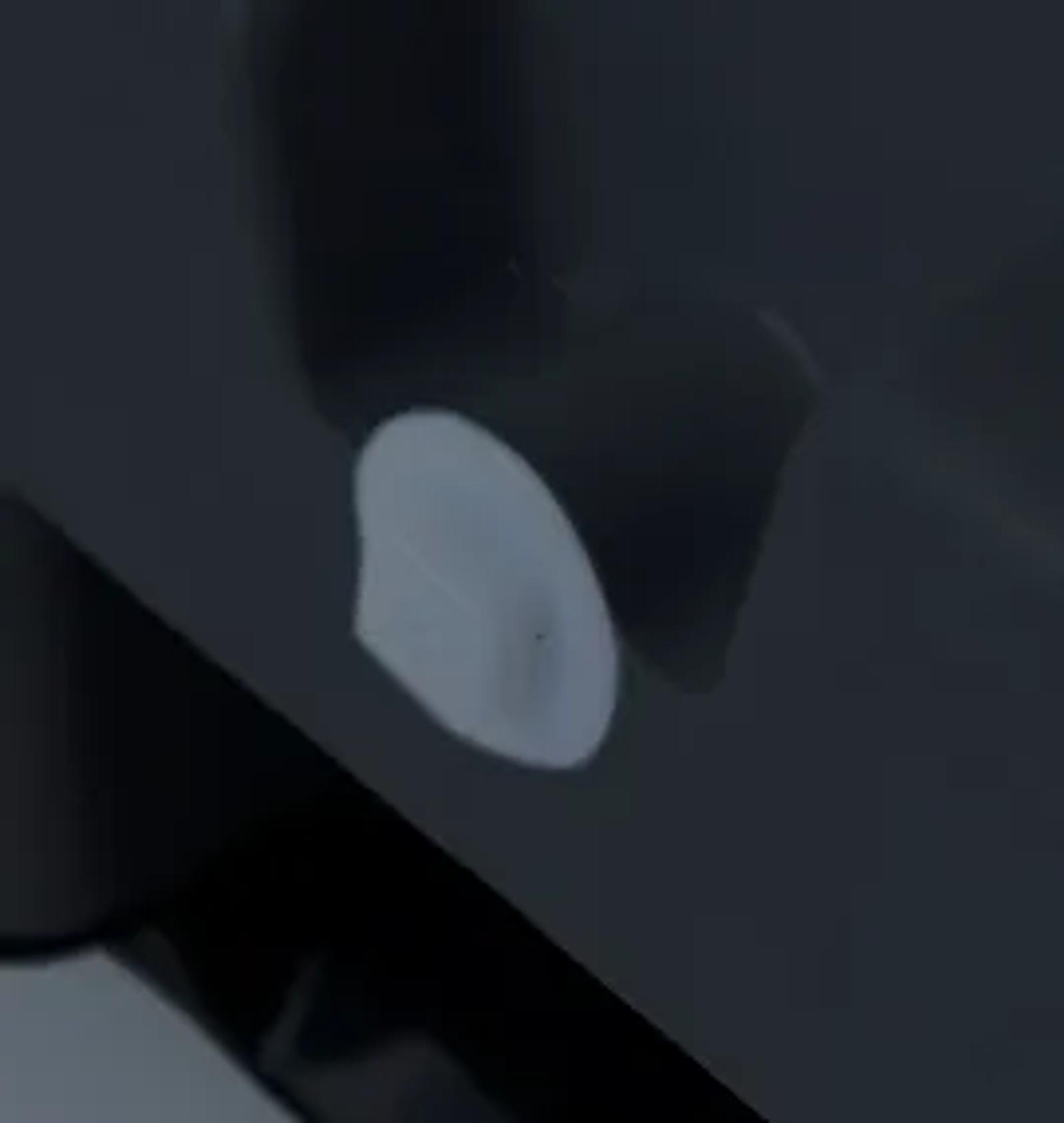

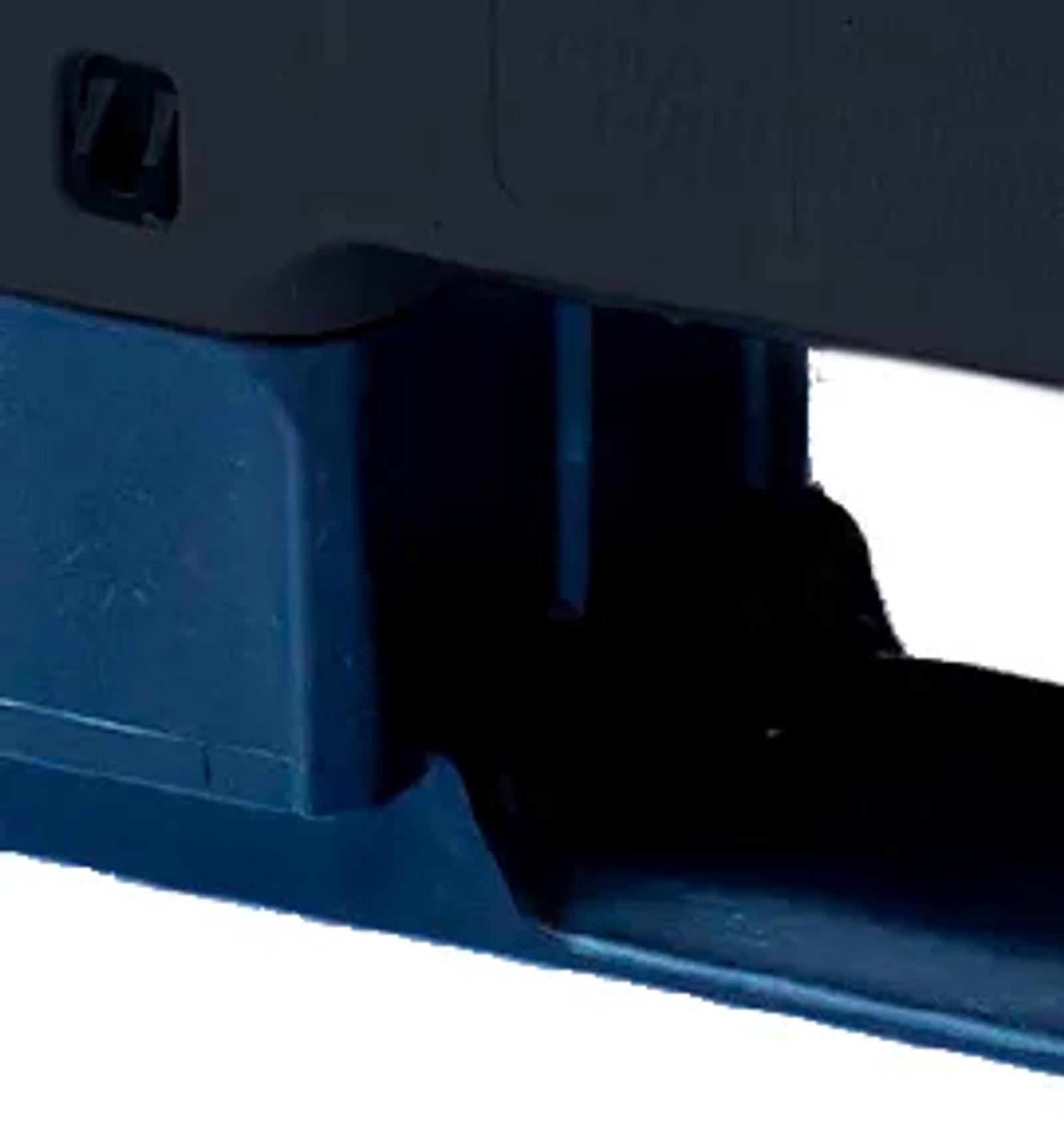

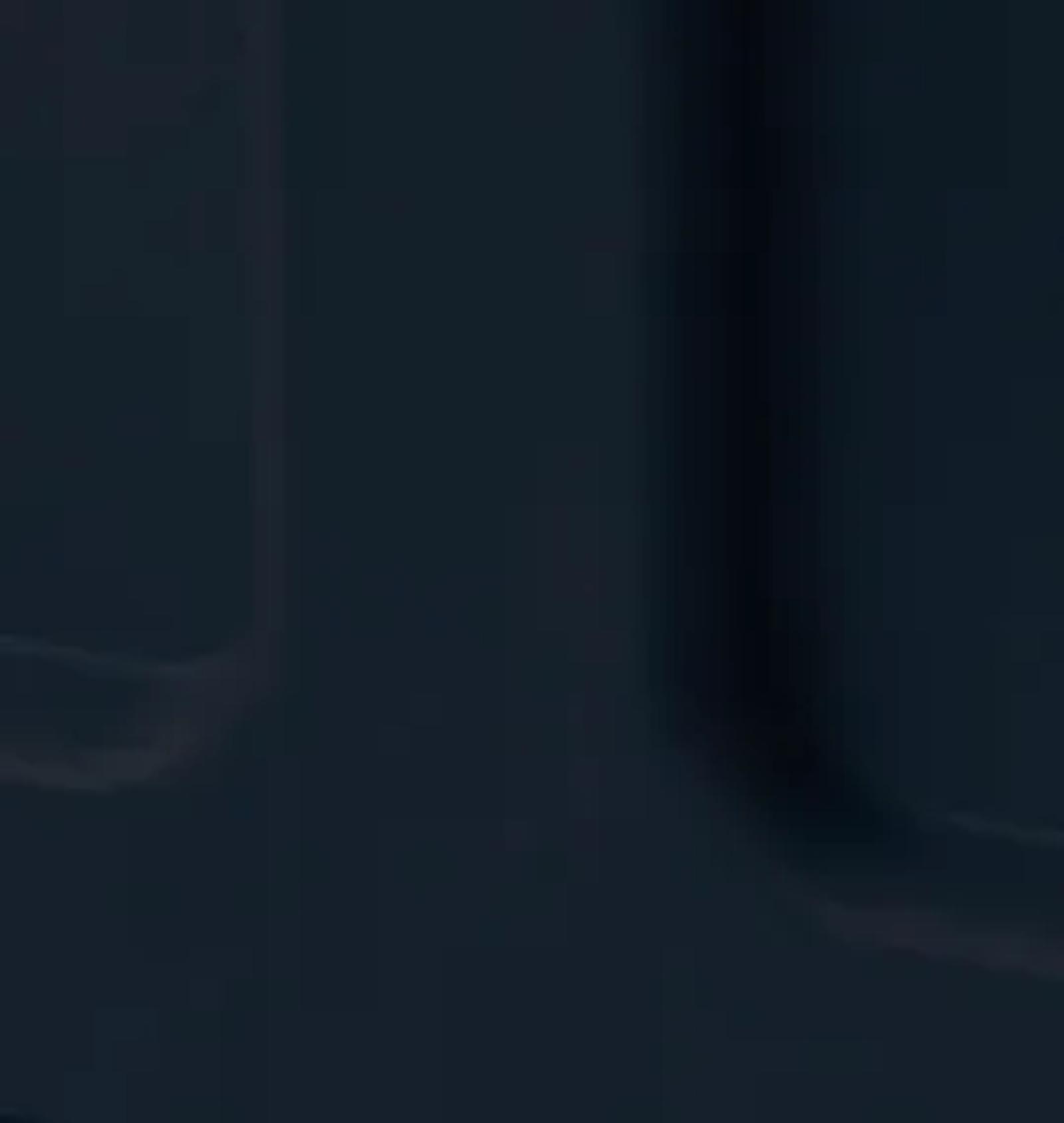

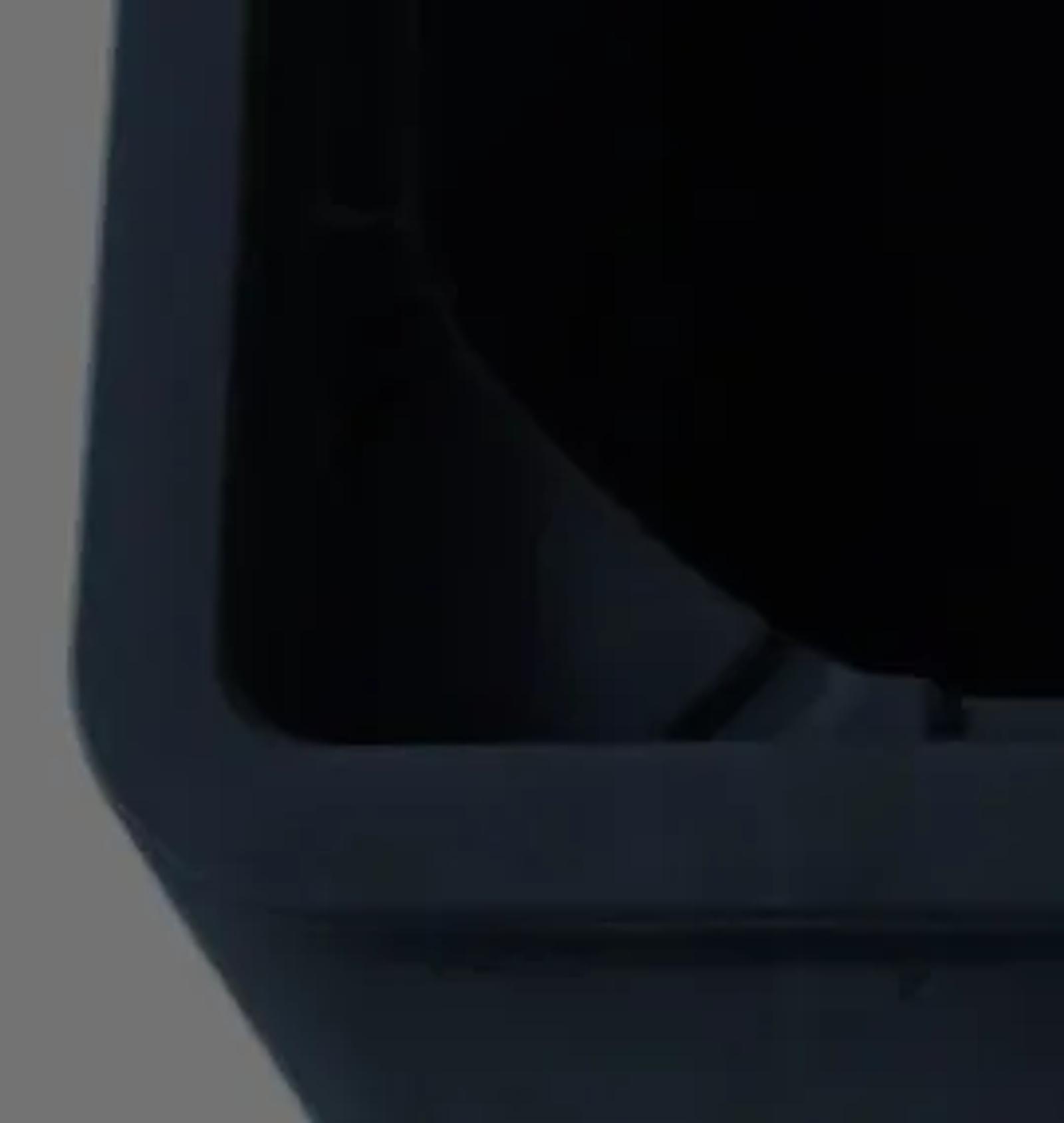

simple stacking and nesting Chip receiving pockets for standard (Industry 4.0) including special transponders increased ground clearance ... radii on the inside of the girders - for easy and quick cleaning No corners, large radii, closed carry columns ... ... and two 1-inch outlet openings on the side and in the bottom two 2-inch outlet openings on the side and in the bottom... increased strength through statically optimized internal construction of supporting columns
specifications
- Nominal volume
- 610 L
- Max. permitted gross weight-solids closed, 4 feet
- 300 kg
- Max. permitted gross weight-solids closed, 3 crossbars
- 350 kg
- Net weight closed,, 4 feet
- 32.1 kg (+/-5%)
- Net weight closed,, 3 crossbars
- 37 kg (+/-5%)

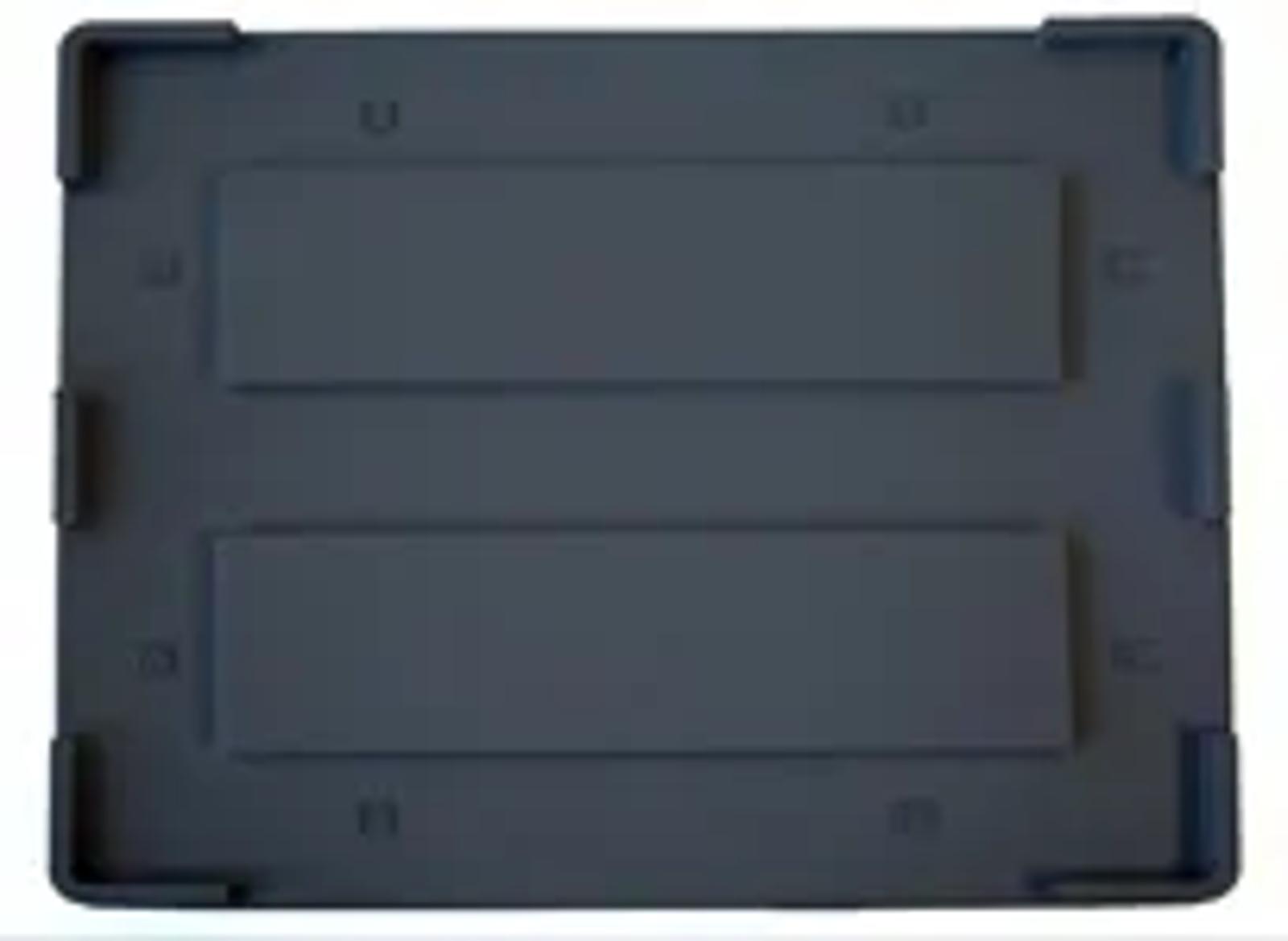

- Net weight lid
- 6.9 kg (+/-5%)
- Colours
- grey; Other colors on request
- Inner dimensions (W x D x H)
- 1120 x 920 x 600 mm
- Max. stacking load at 23 °C
- 2000 kg
- Material
- PE (Polyethylene)
- Recyclable
- 100 %
- Chemical resistance
- High
- Food safe
- No
- Standard operating temperature
- -20 °C to +40 °C (at +40 °C reduced stacking load)
- Quality requirements
- Internal audit
Box with feet

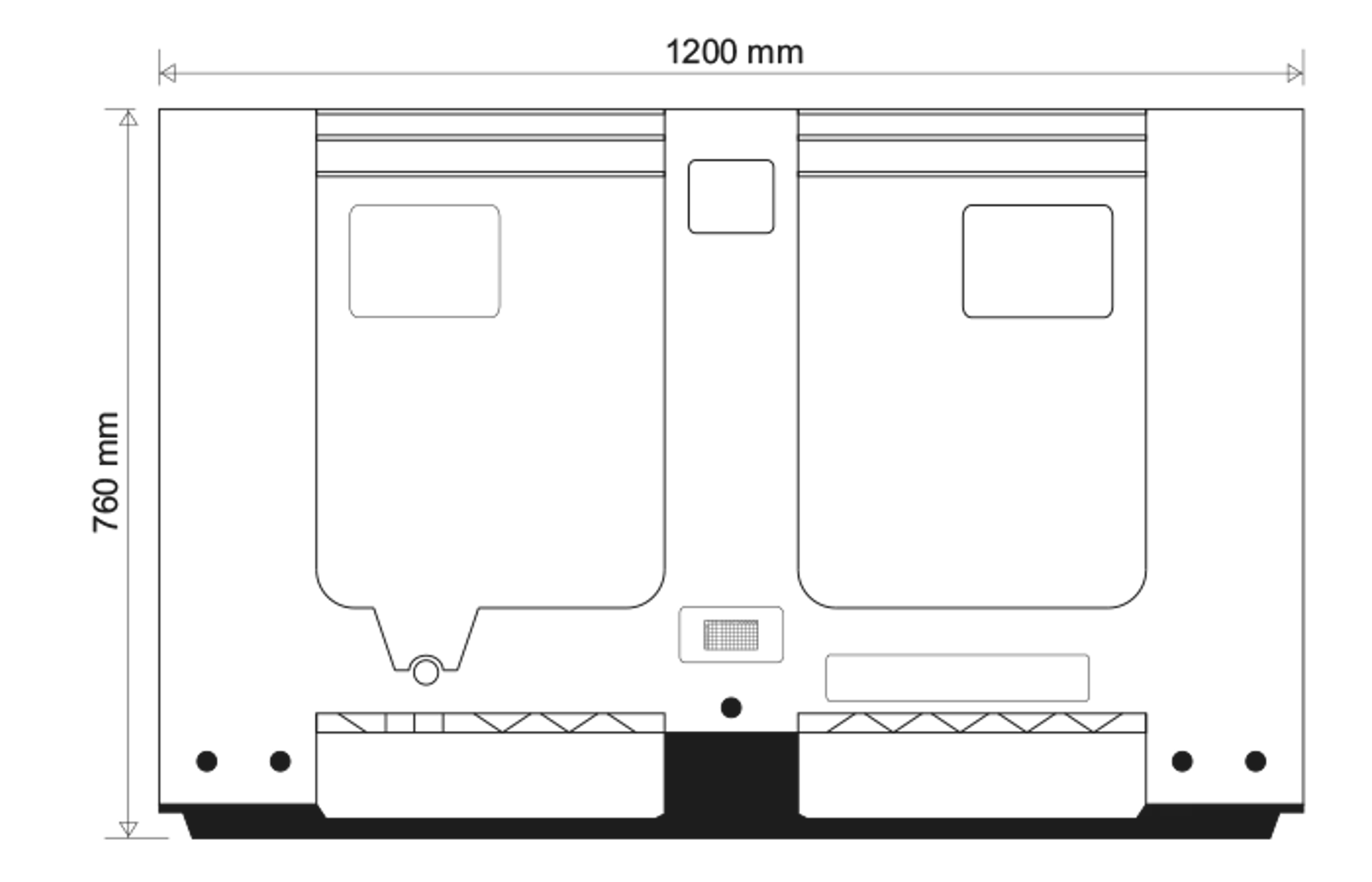

- Outer dimensions (W x D x H)
- 1200 x 1000 x 760 mm
Box incl. lid and feet
- Outer dimensions (W x D x H)
- 1210 x 1010 x 820 mm
Standard: 13.6 m x 2.65 m
- Full truck load
- 104 pcs.
Jumbo: 15.4 m x 2.95 m
- Full truck load
- 156 pcs.
Container 20' / 20' HC (5.90 x 2.35 x 2.39 / 2.68 m)
- Container load
- 40 pcs.
Container 40' / 40' HC (12.03 x 2.35 x 2.39 / 2.68 m)
- Container load
- 84 pcs.
