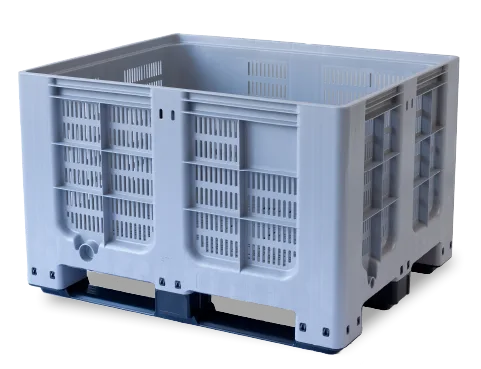

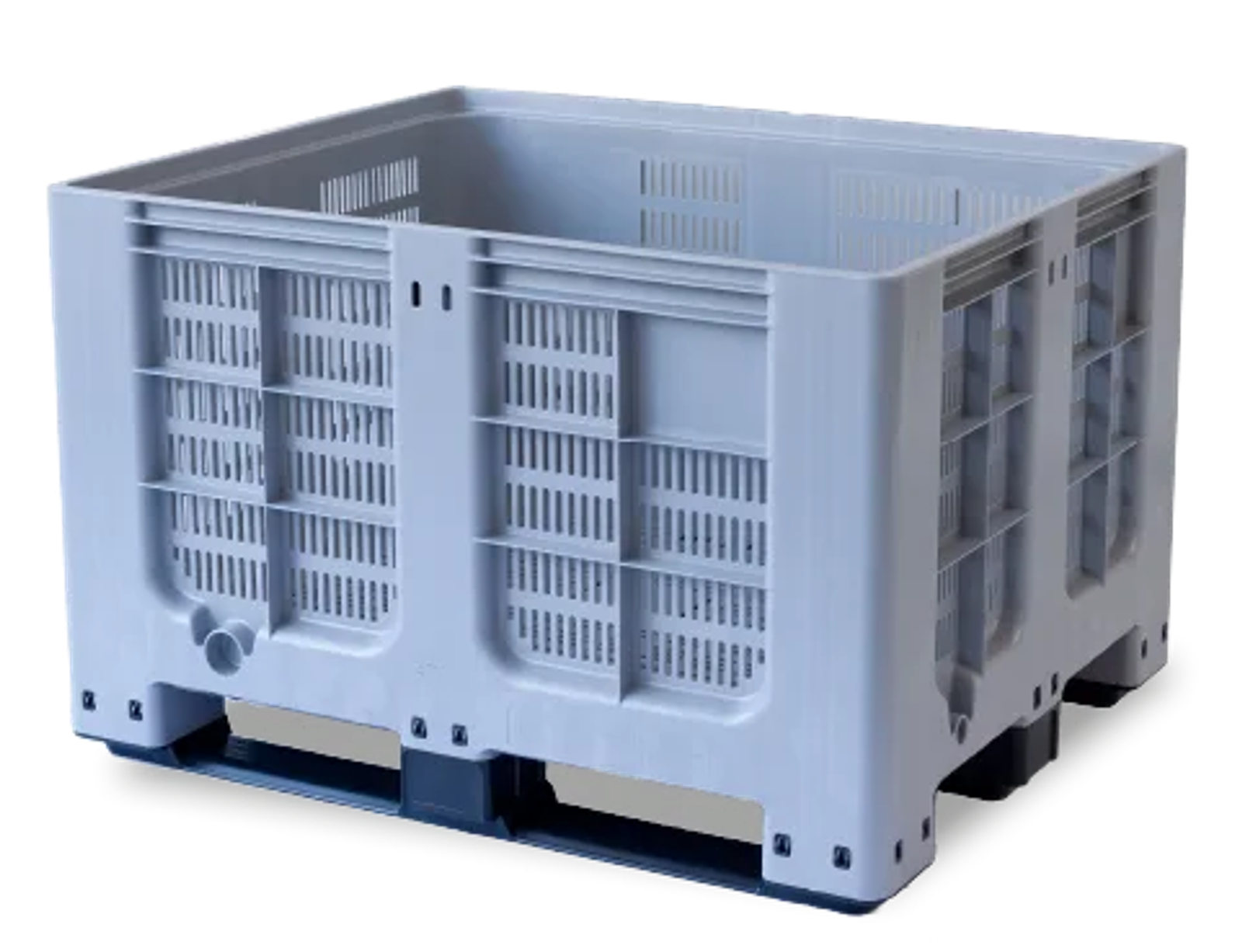

CT/R4 610 L
EUROPLAST box made of high-quality HDPE (s. image) for transport and storage in industrial and food production, for bulk material and small parts. The box is manufactured in an injection moulding process, has extreme resilience, is food-safe and acid-resistant and has smooth internal walls for easy cleaning.

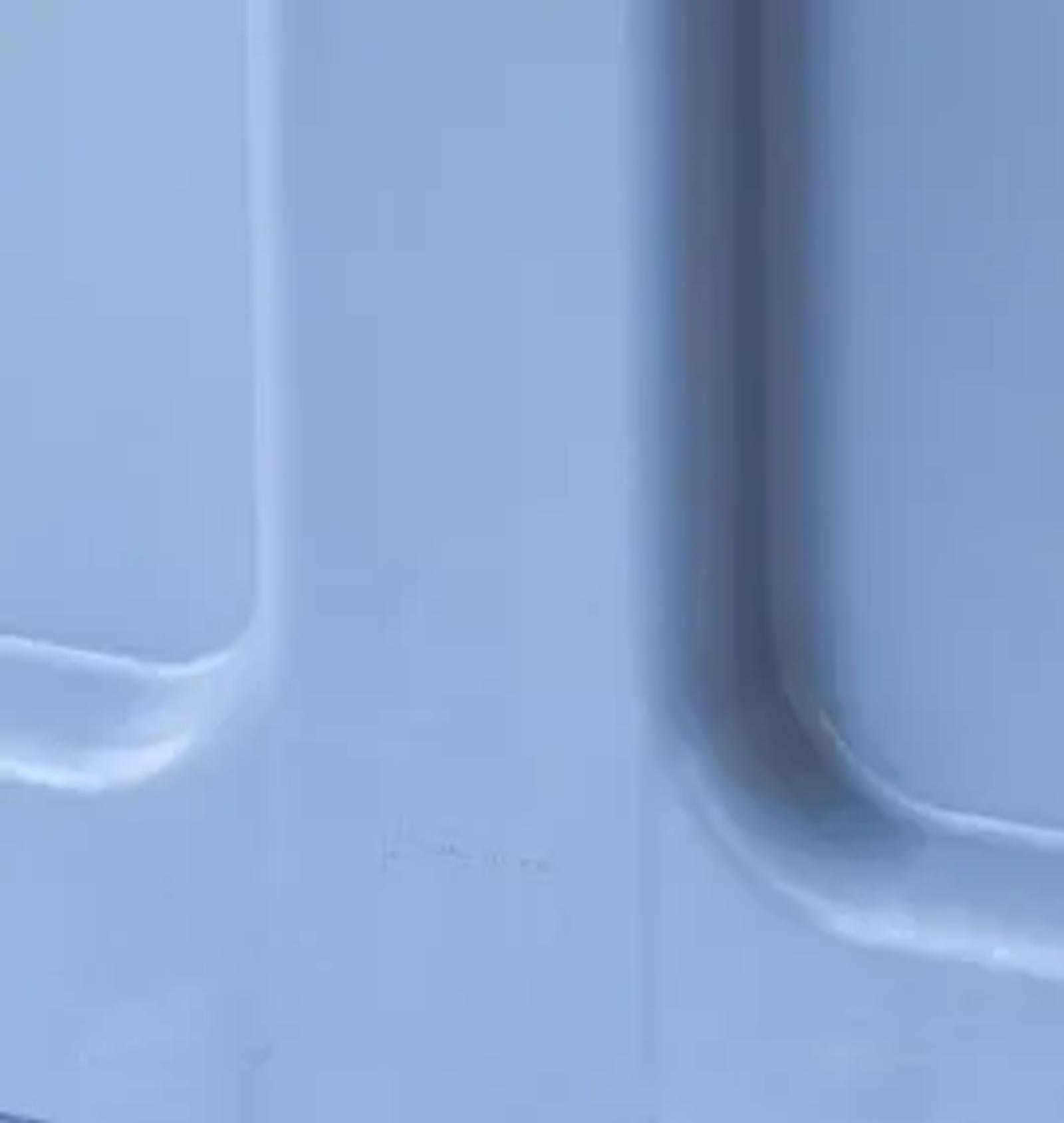

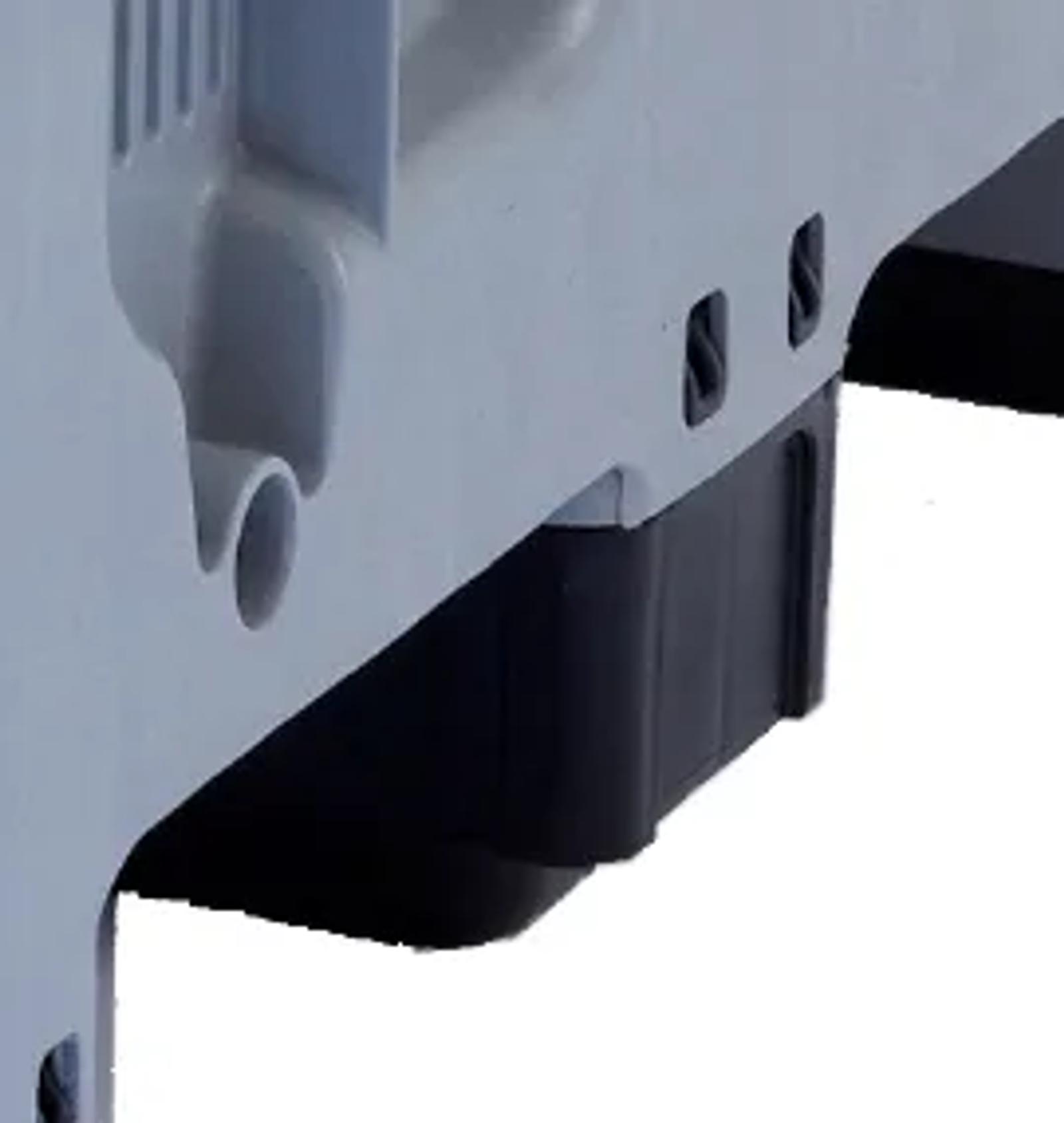

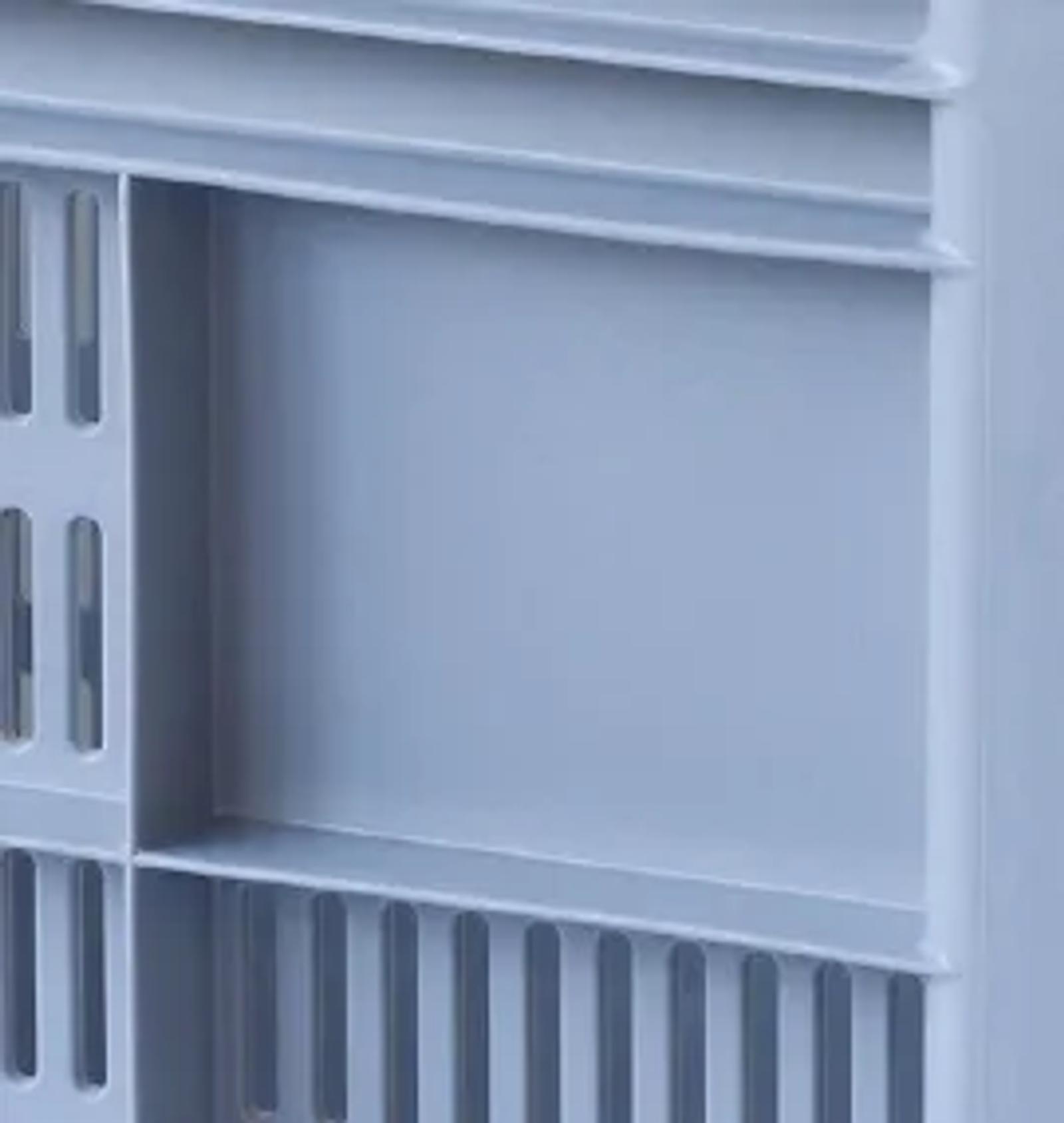

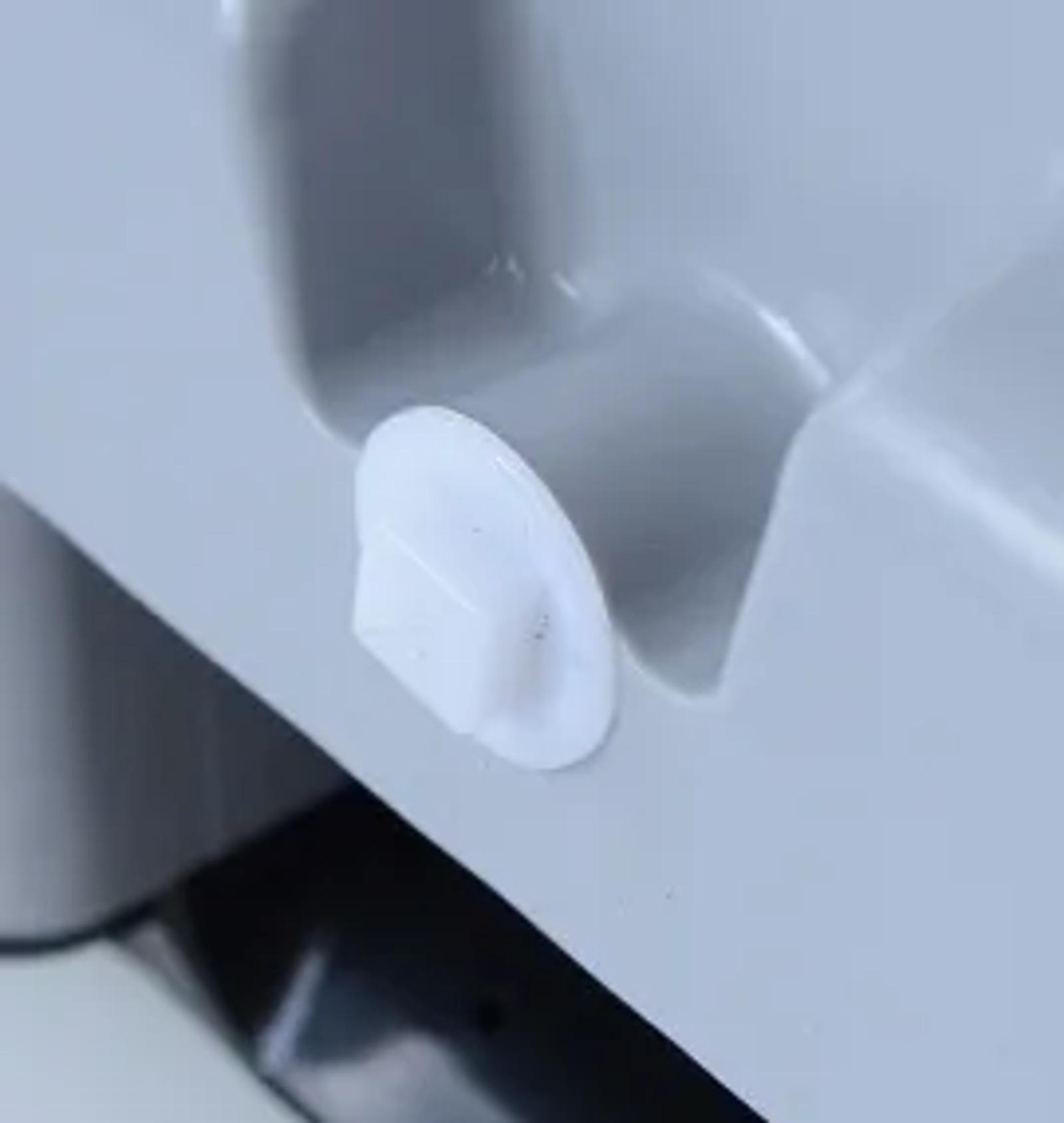

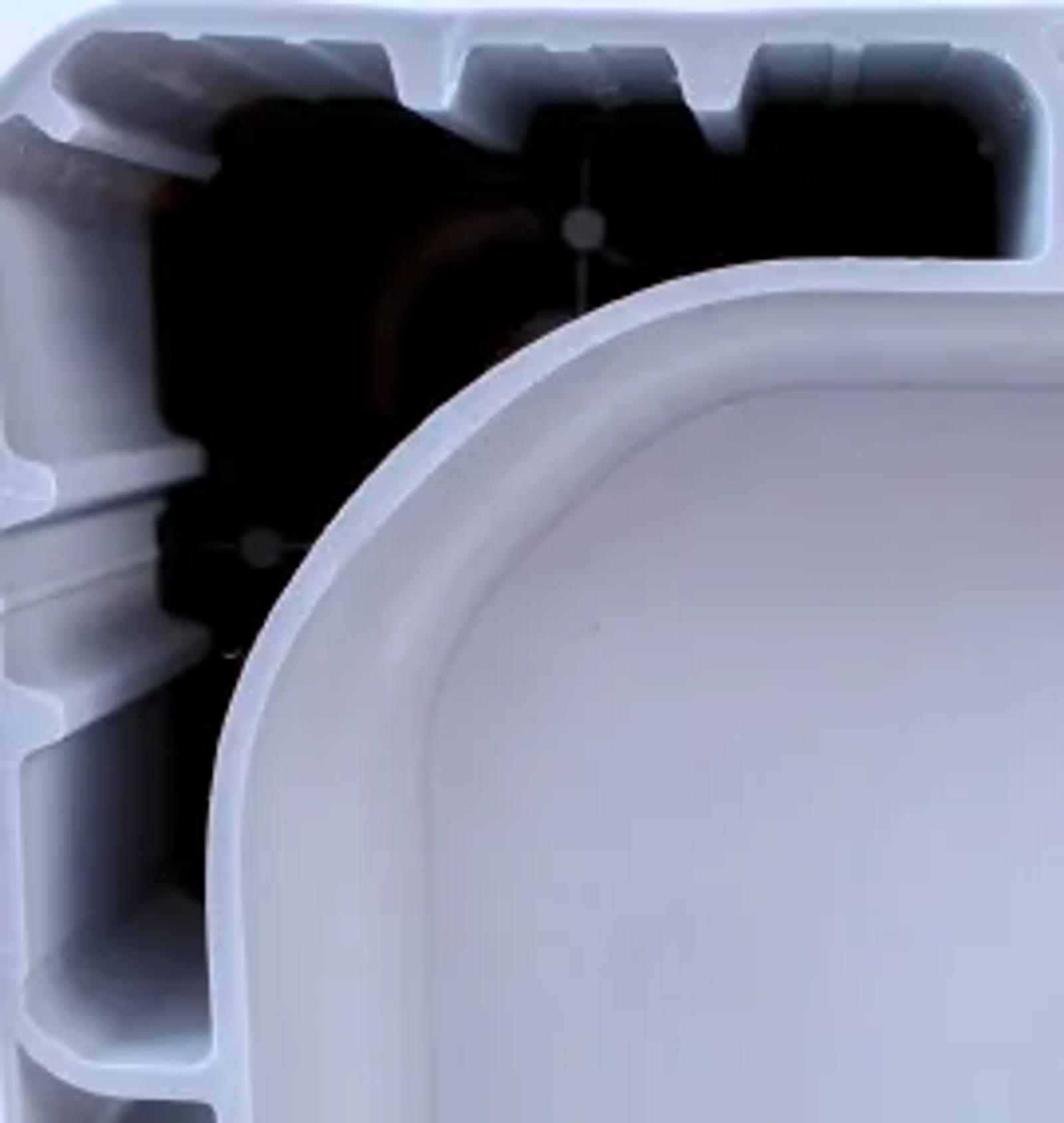

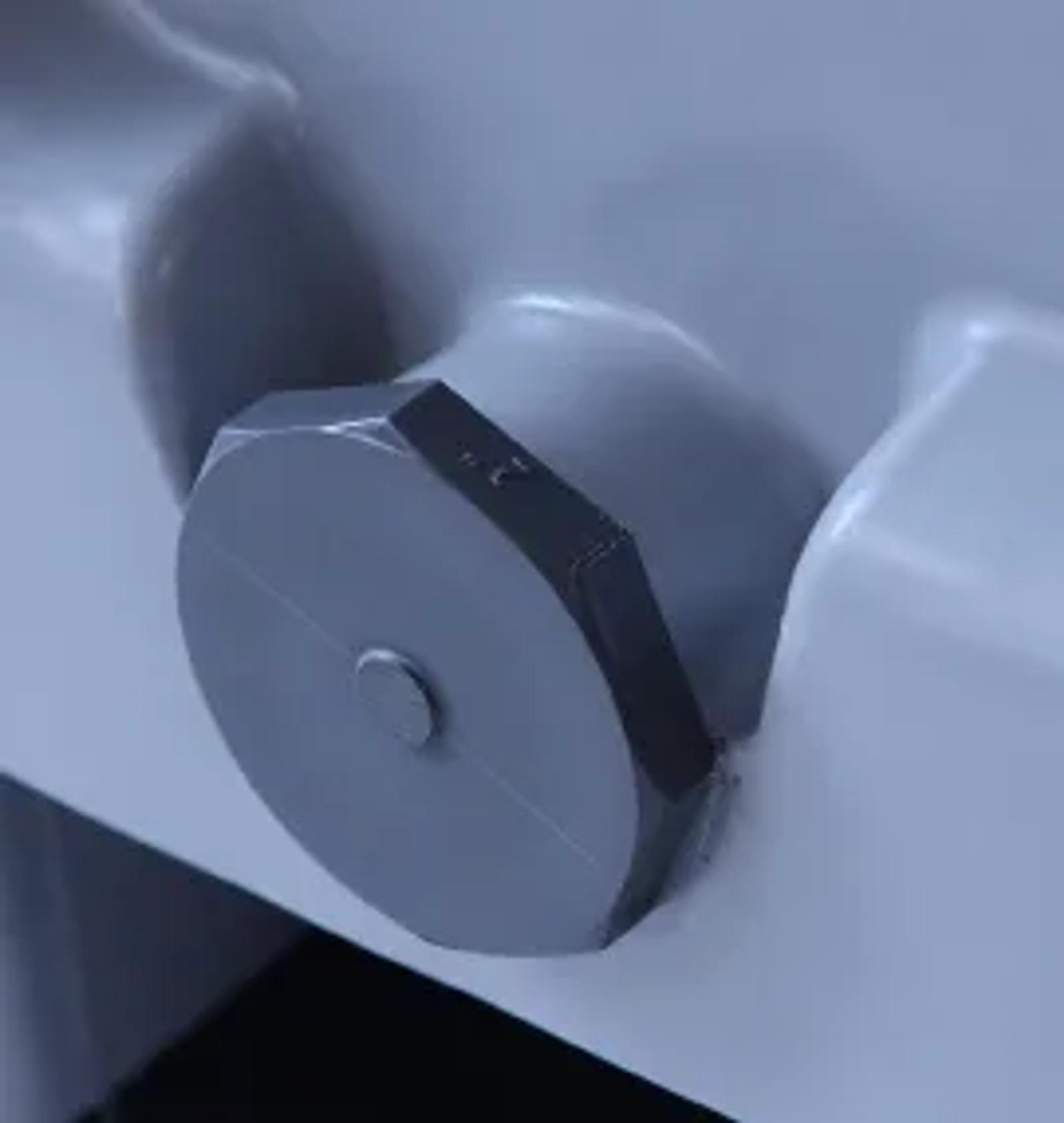

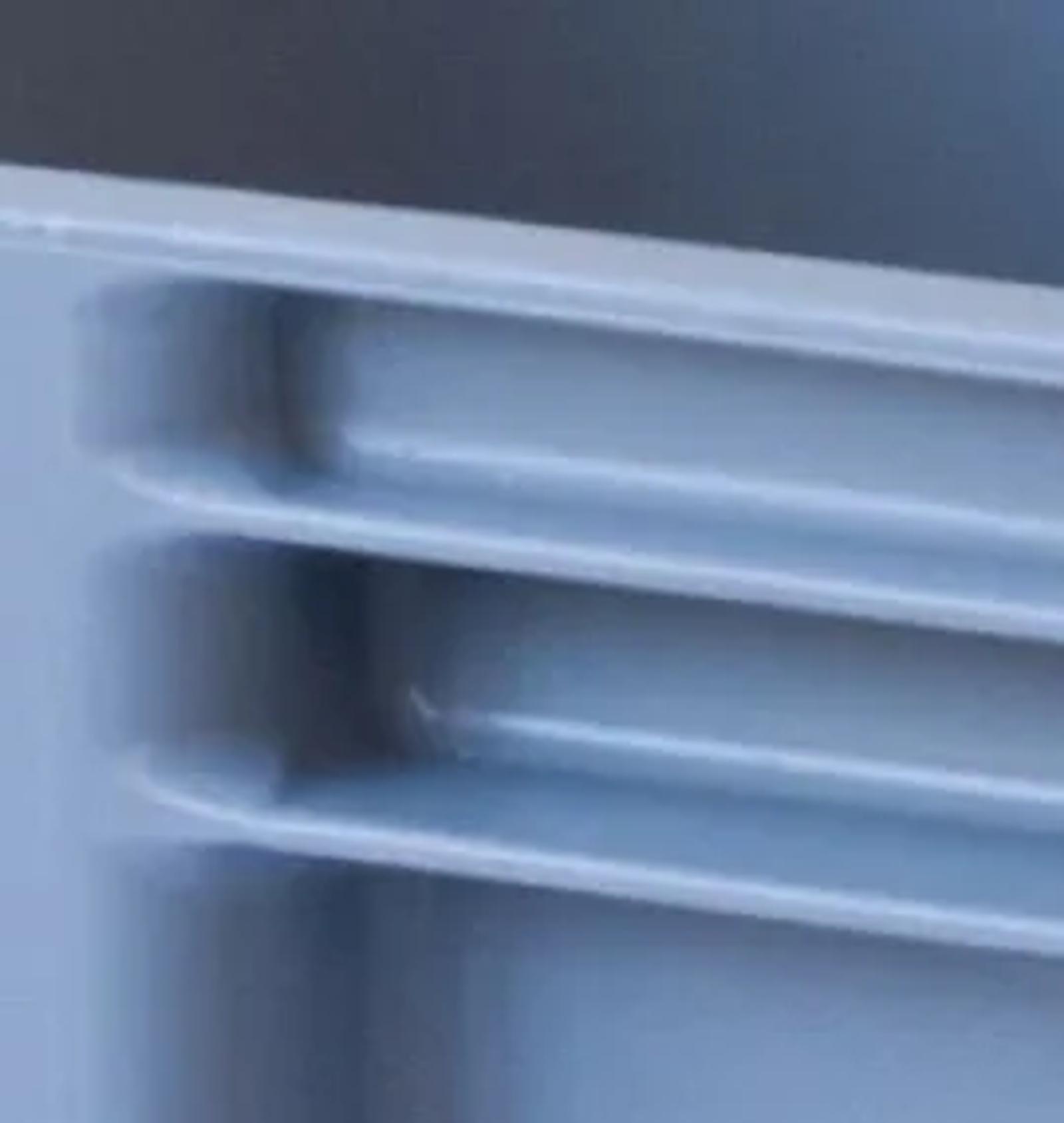

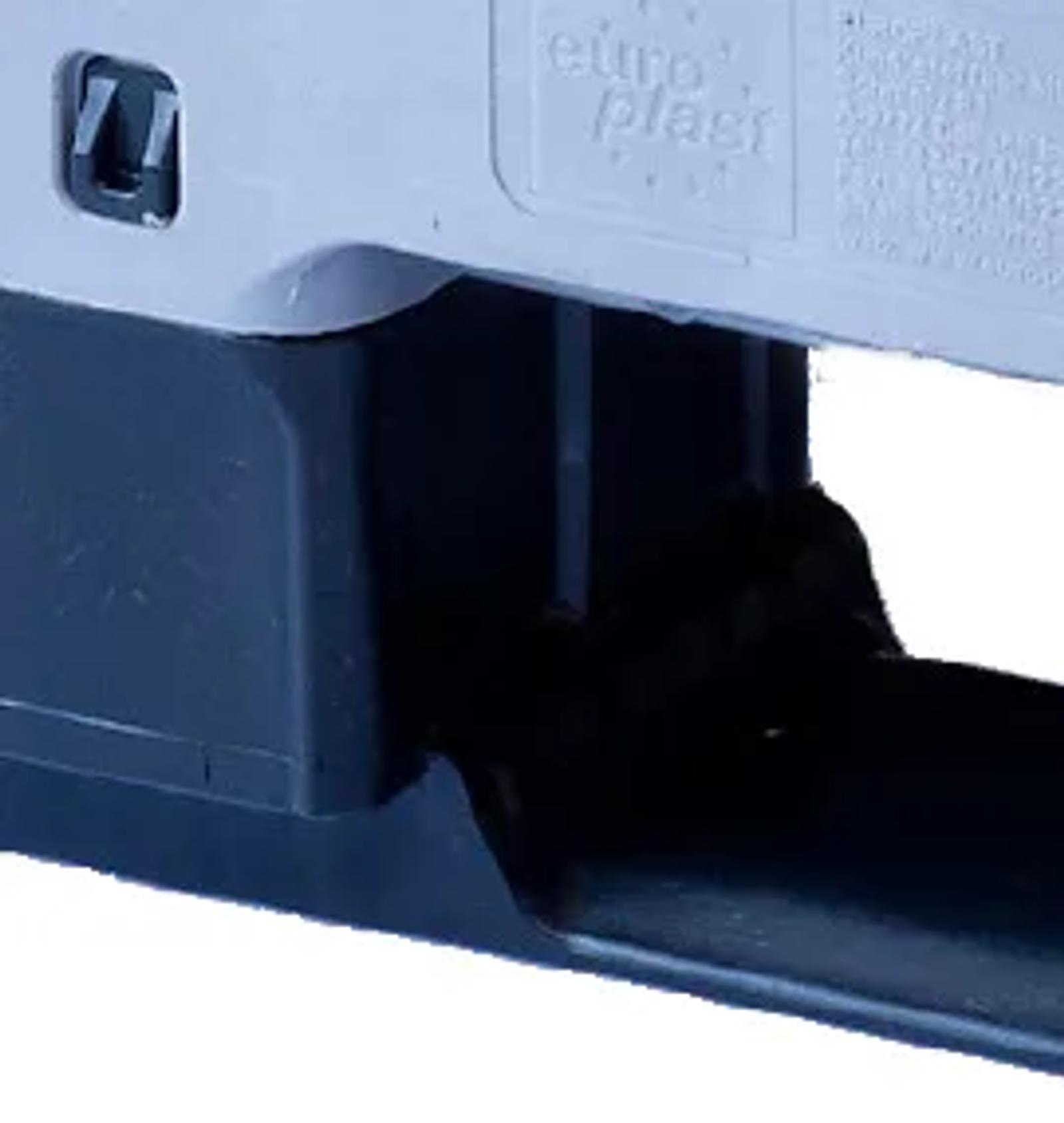

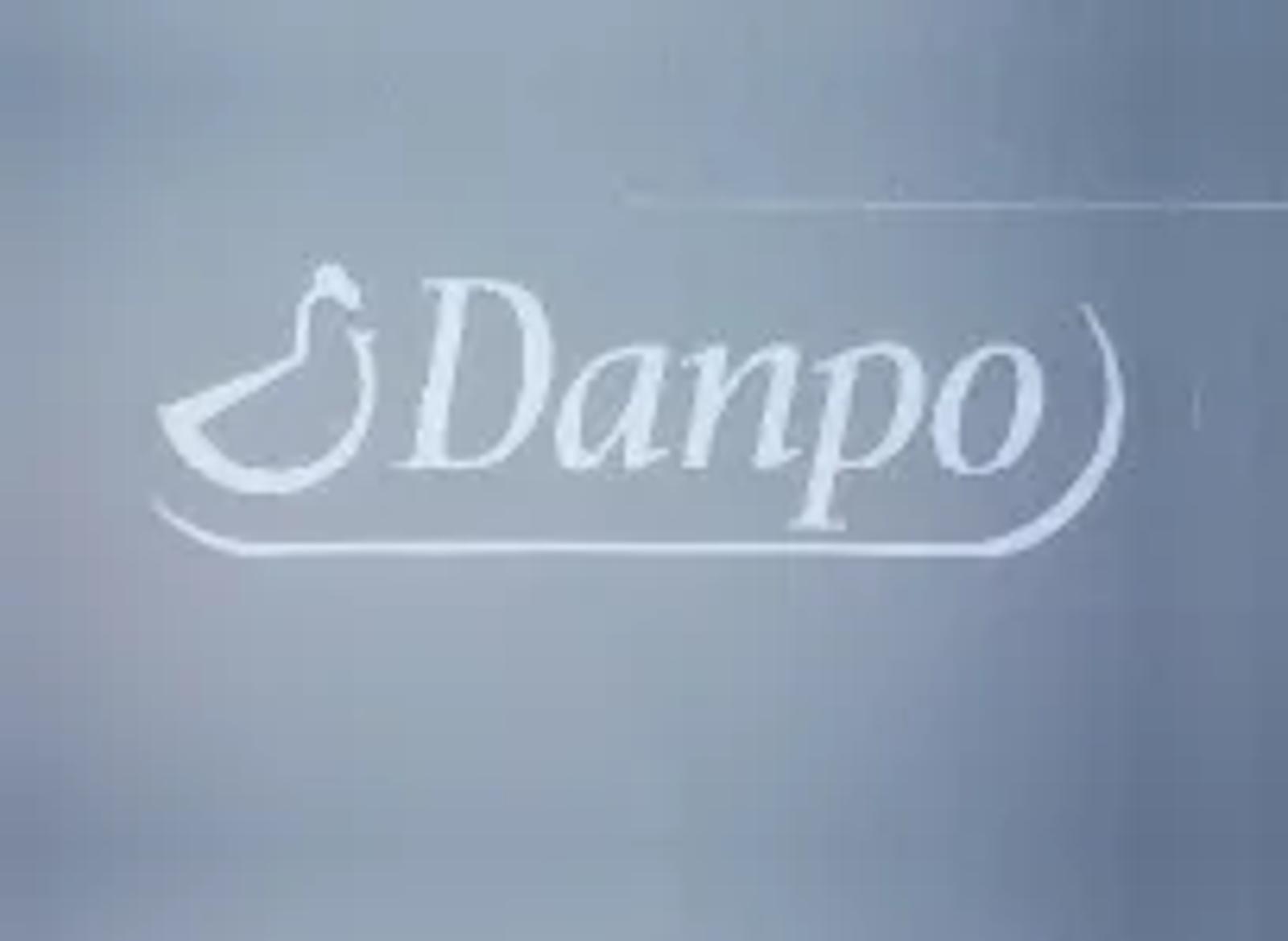

increased stability thanks to structurally optimised internal construction of the supporting columns two 2-inch outlet openings in the side and in the base ... ... and two 1-inch outlet openings in the side and in the base ... No angles, big radiuses, closed supporting columns ...Radii on the inside of the supporting beams – quick and easy cleaning Increased ground clearance 3 robust runners Hot printing area
specifications
- Nominal volume
- 610 L
- Max. permitted gross weight-solids perforated, 4 feet
- 400 kg
- Max. permitted gross weight-solids perforated, 3 runners
- 450 kg
- Net weight perforated, 4 feet
- 33.3 kg (+/-5%)
- Net weight perforated, 3 runners
- 36.8 kg (+/-5%)

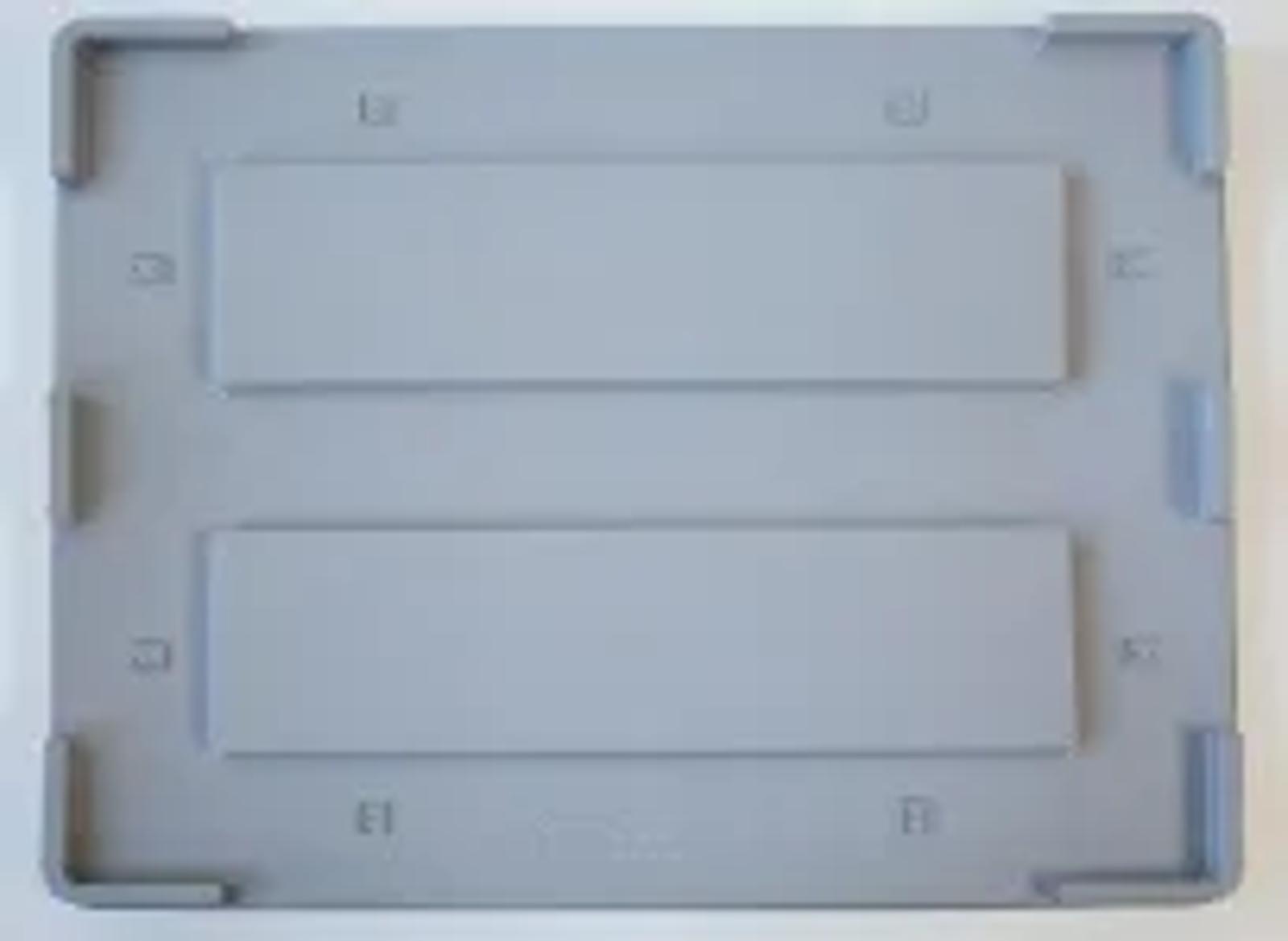

- Net weight lid
- 6.9 kg (+/-5%)
- Colours
- grey; Other colors on request
- Inner dimensions (W x D x H)
- 1120 x 920 x 600 mm
- Max. stacking load at 23 °C
- 3500 kg
- Material
- PE (Polyethylene)
- Recyclable
- 100 %
- Chemical resistance
- High
- Food safe
- Yes
- Standard operating temperature
- -20 °C to +40 °C (at +40 °C reduced stacking load)
- Quality requirements
- Internal audit
Box with feet
- Outer dimensions (W x D x H)
- 1200 x 1000 x 760 mm
Box incl. lid and feet
- Outer dimensions (W x D x H)
- 1210 x 1010 x 820 mm
Standard: 13.6 m x 2.65 m
- Full truck load
- 104 pcs.
Jumbo: 15.4 m x 2.95 m
- Full truck load
- 156 pcs.
Container 20' / 20' HC (5.90 x 2.35 x 2.39 / 2.68 m)
- Container load
- 40 pcs.
Container 40' / 40' HC (12.03 x 2.35 x 2.39 / 2.68 m)
- Container load
- 84 pcs.
