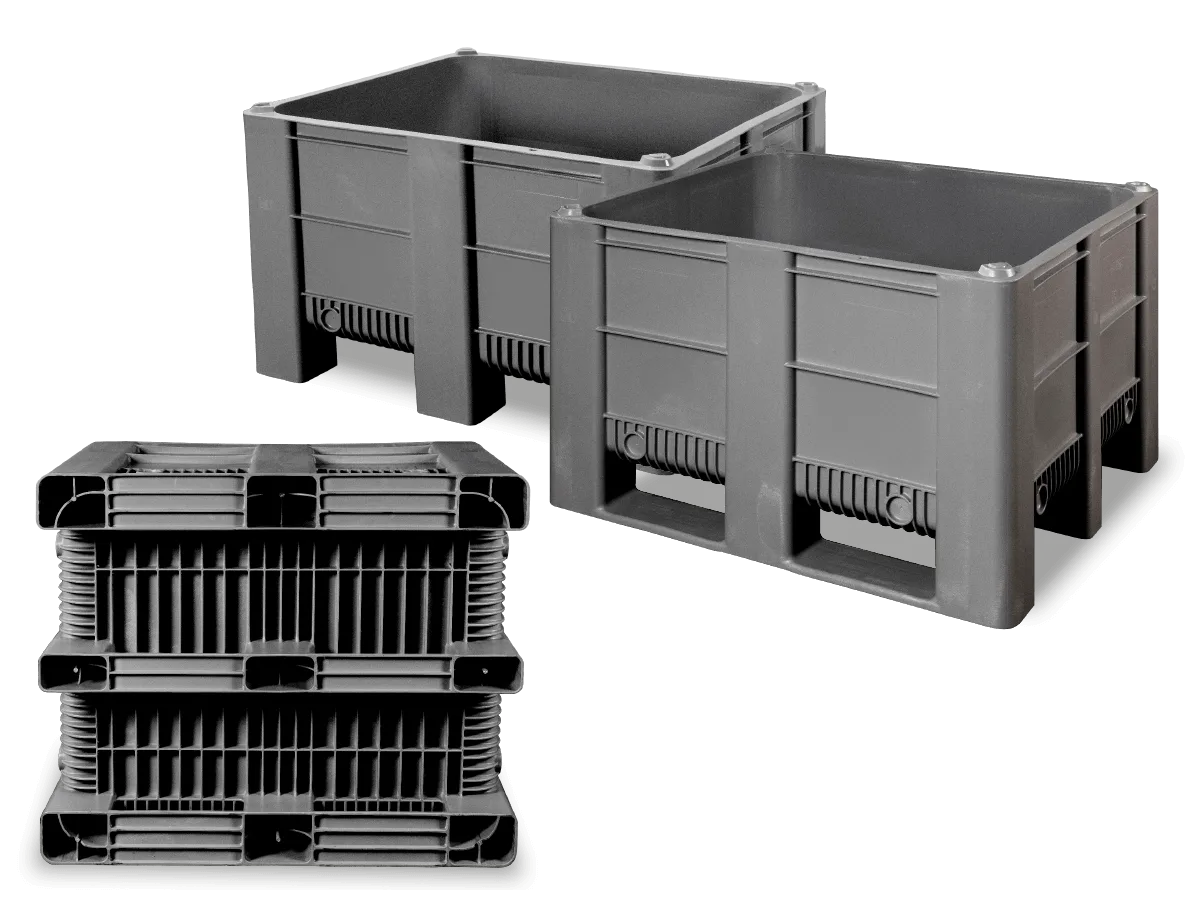

CT/RH 650 L

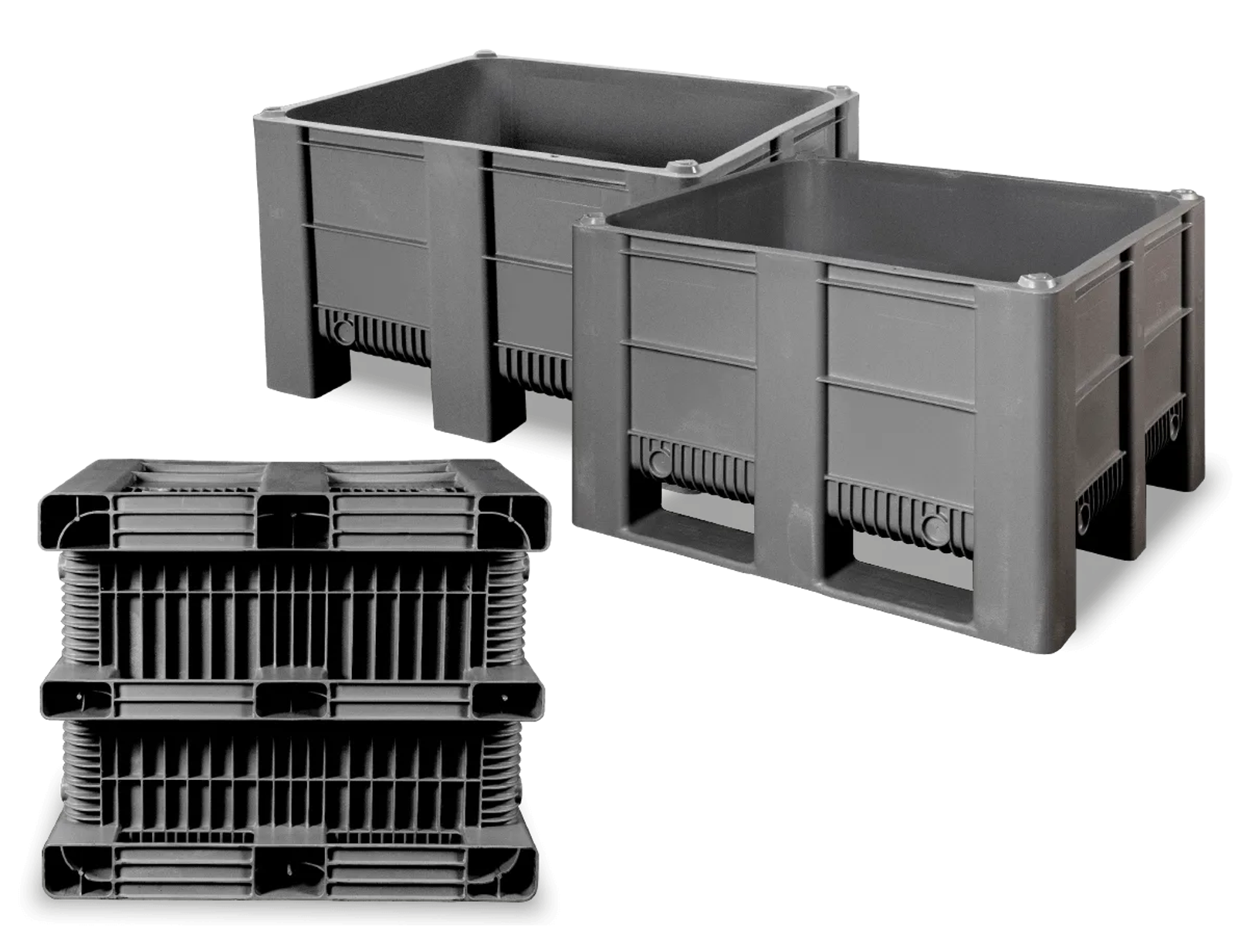

EUROPLAST box made of high-quality HDPE (see illustration) for transport and storage in industry, food production, bulk goods, and small parts. Manufactured using injection molding, it is extremely durable, food-safe, acid-resistant, and features smooth interior walls for easy cleaning.

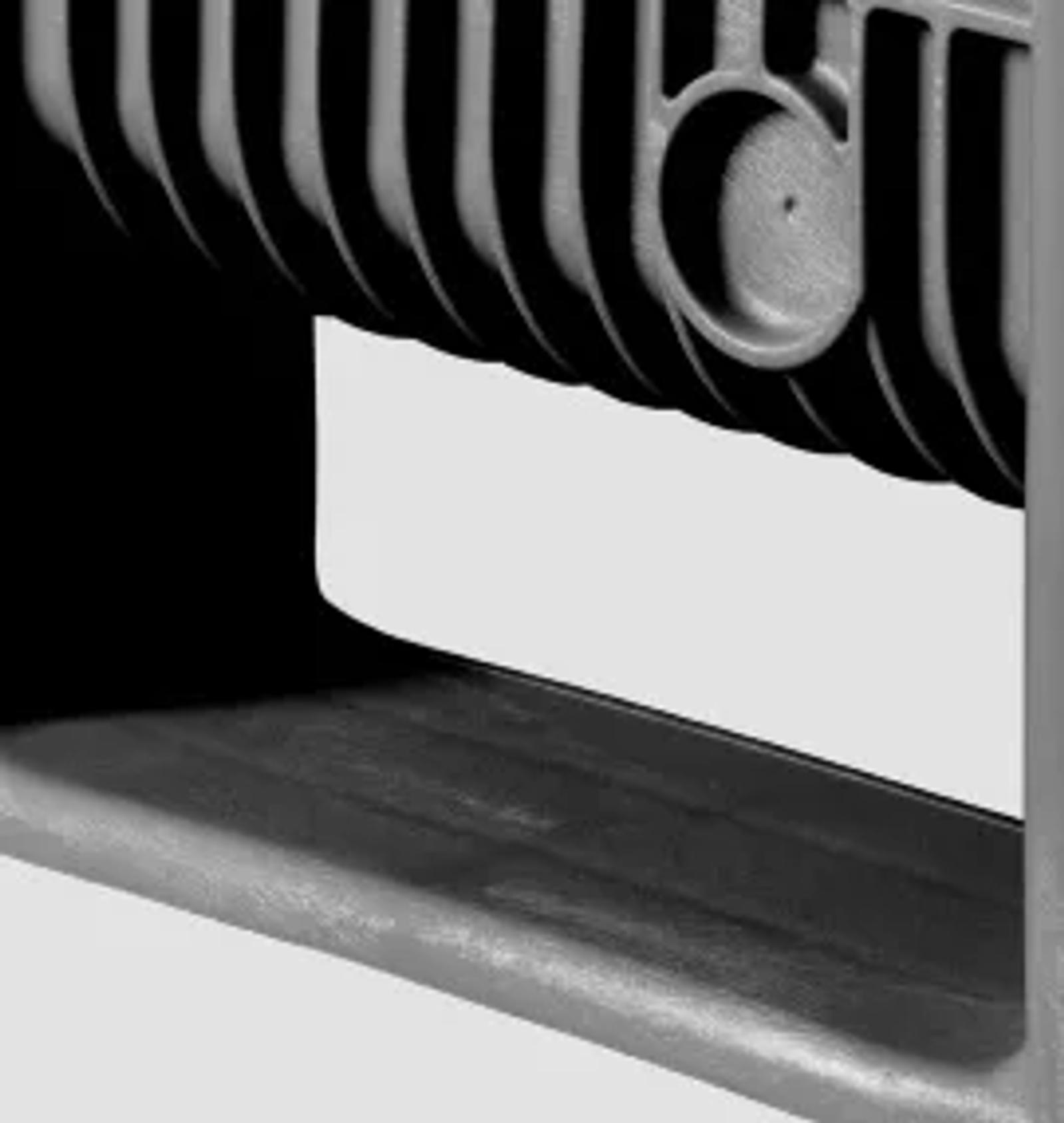

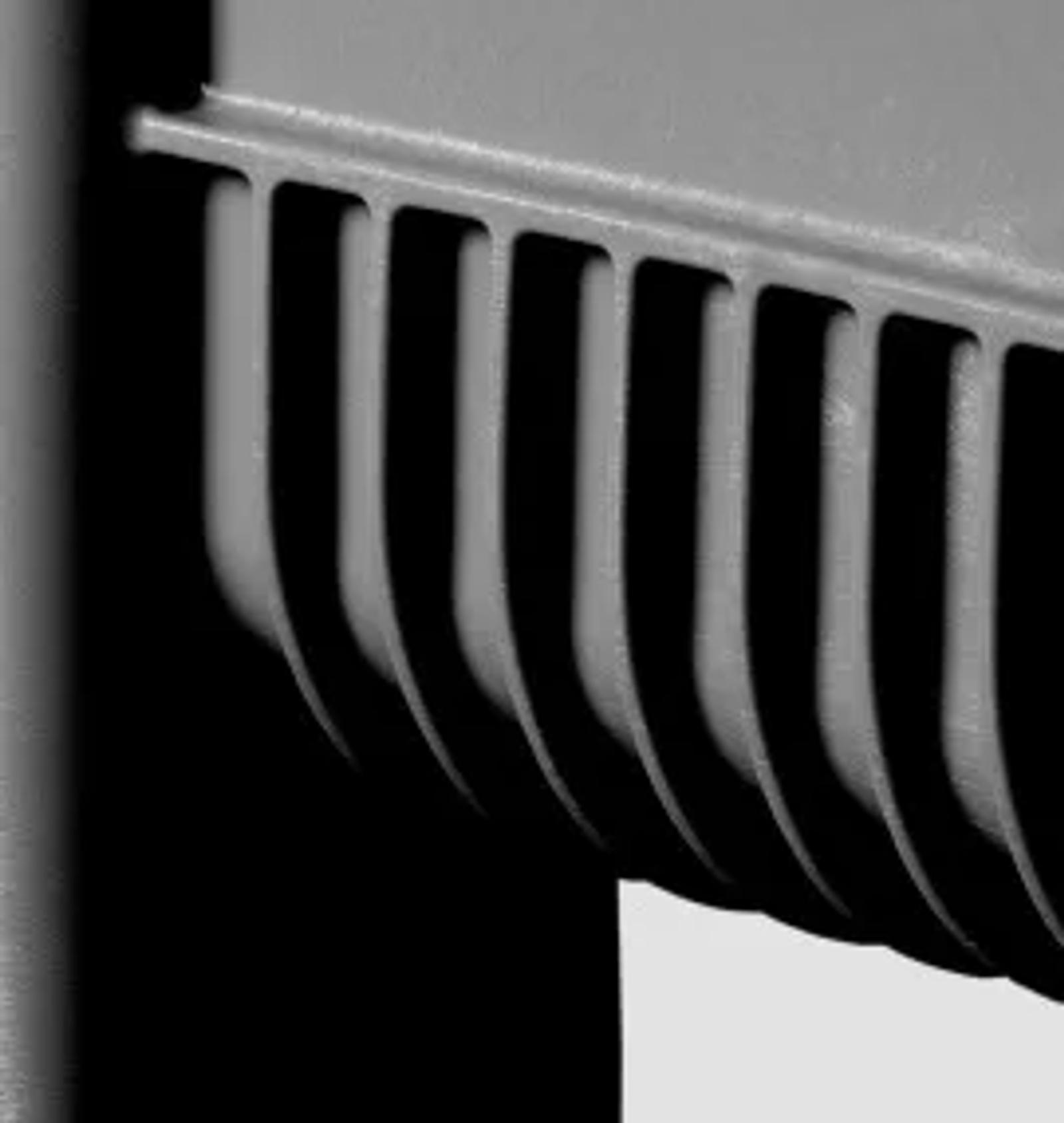

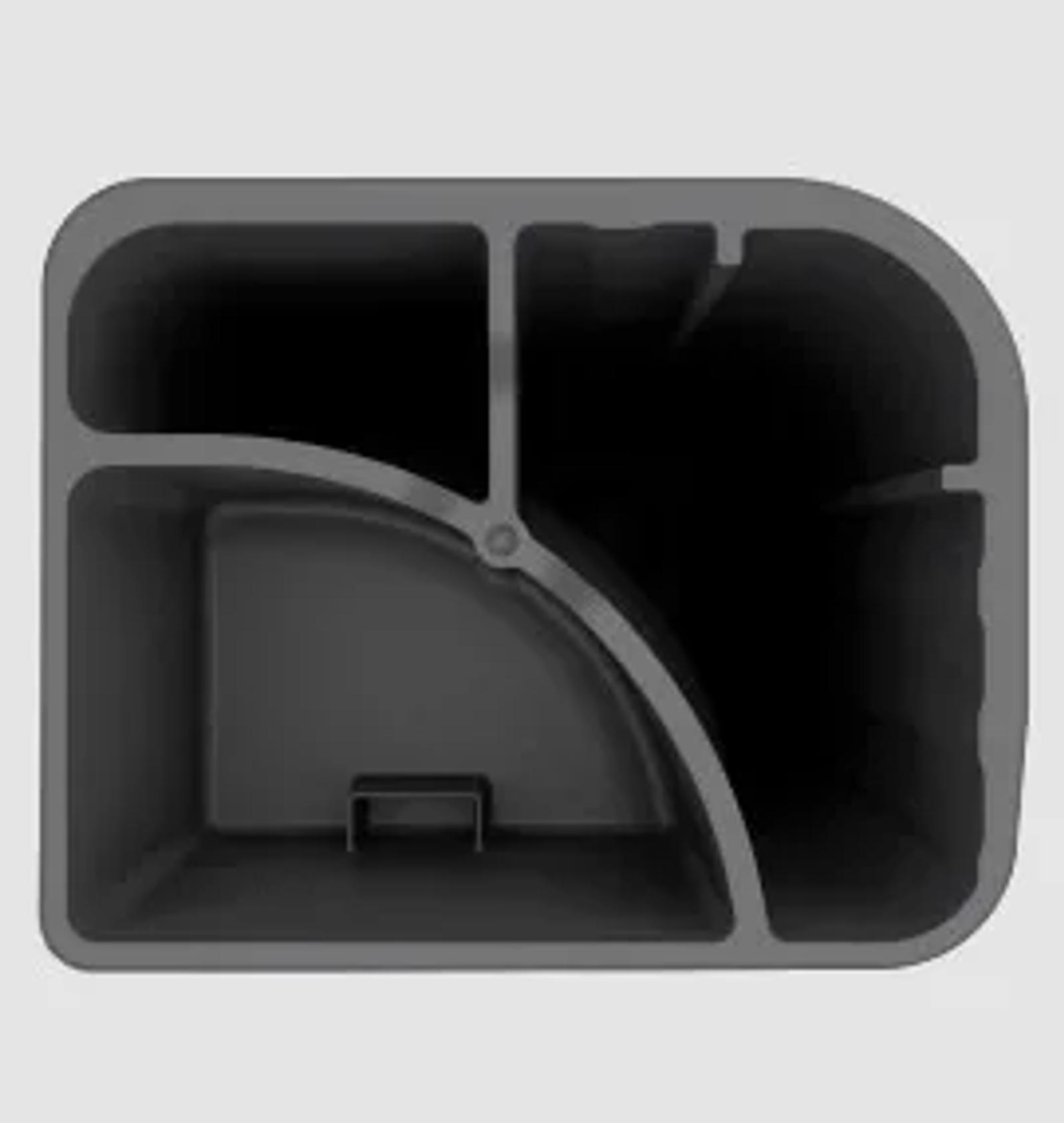

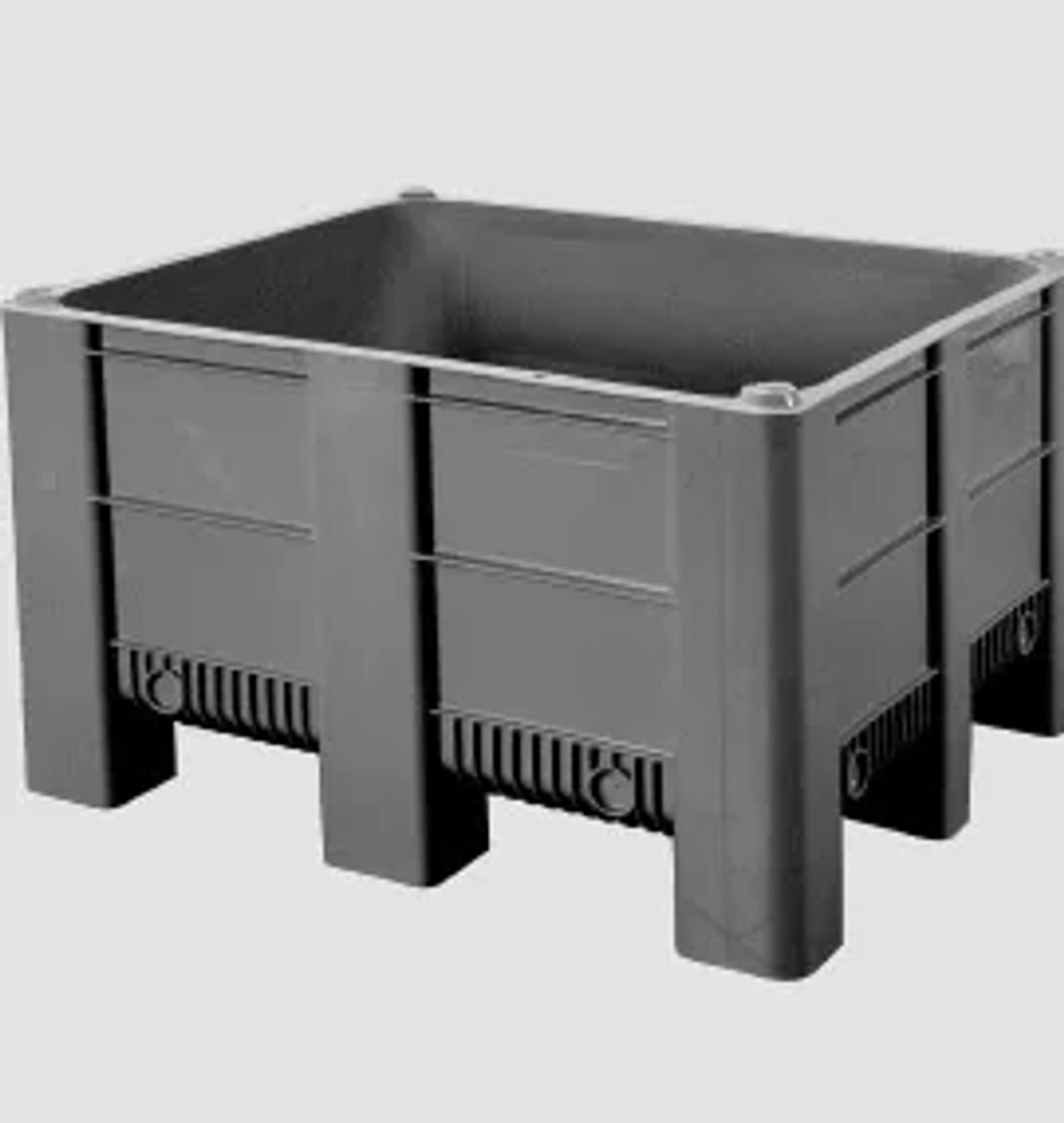

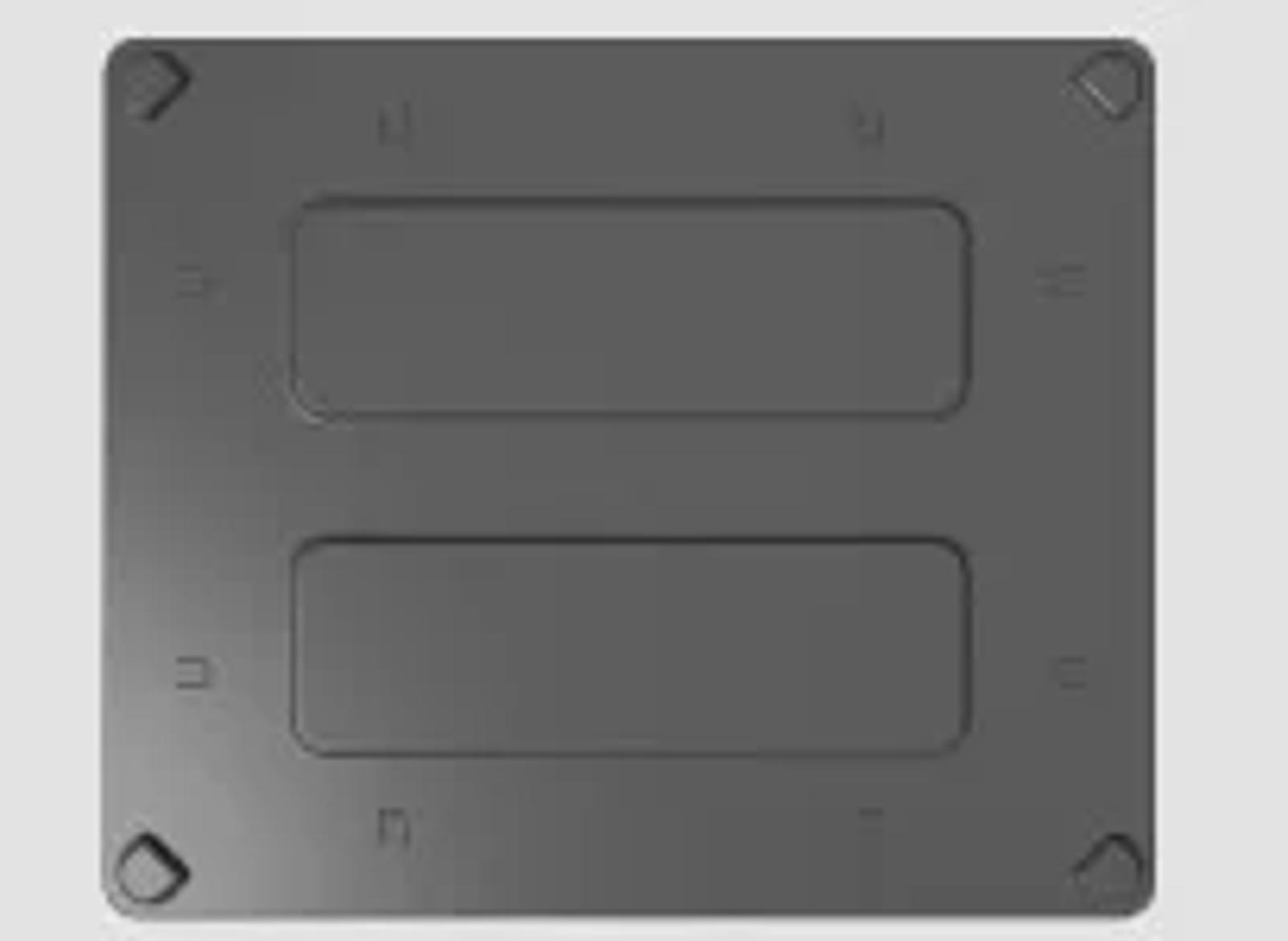

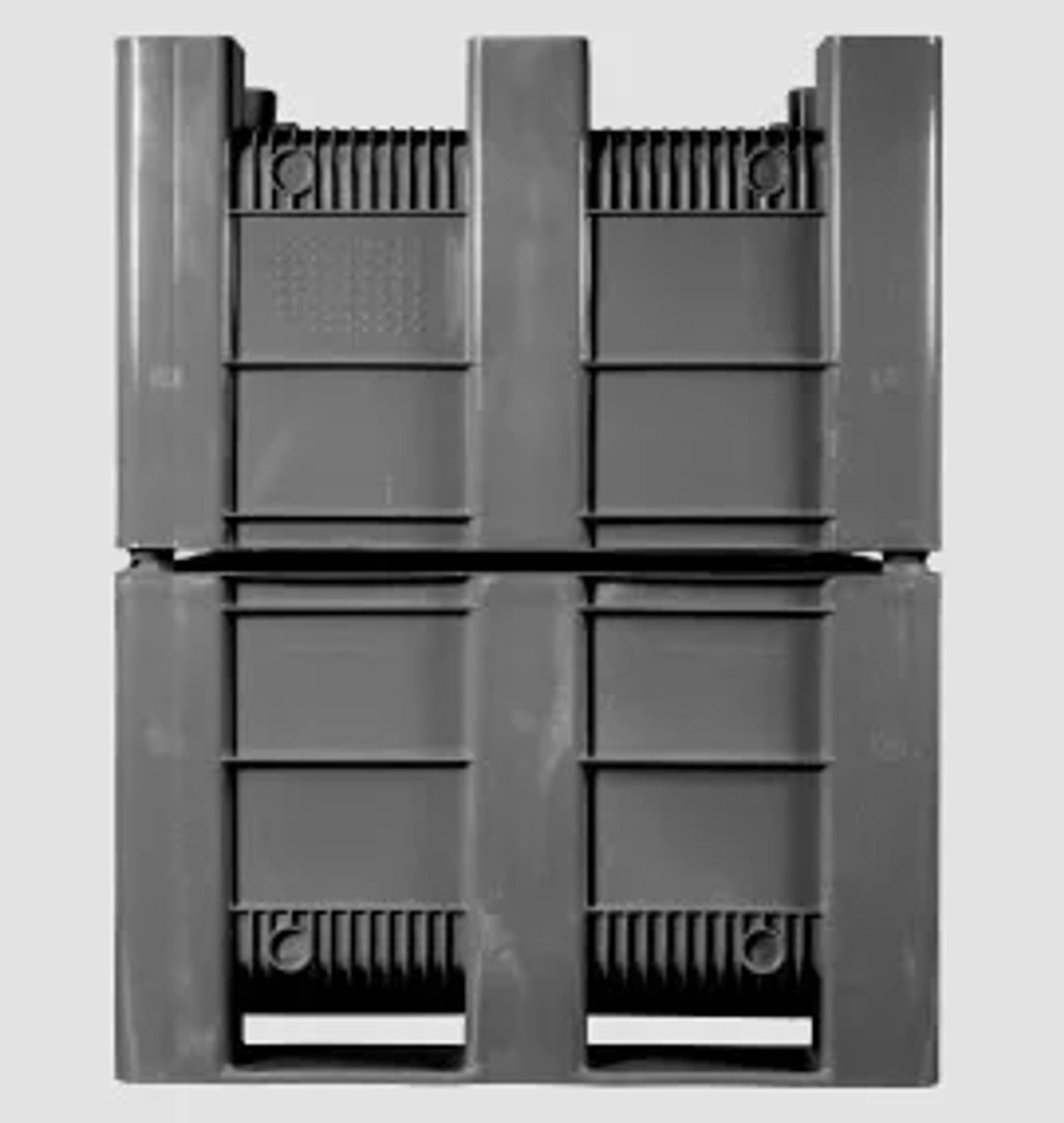

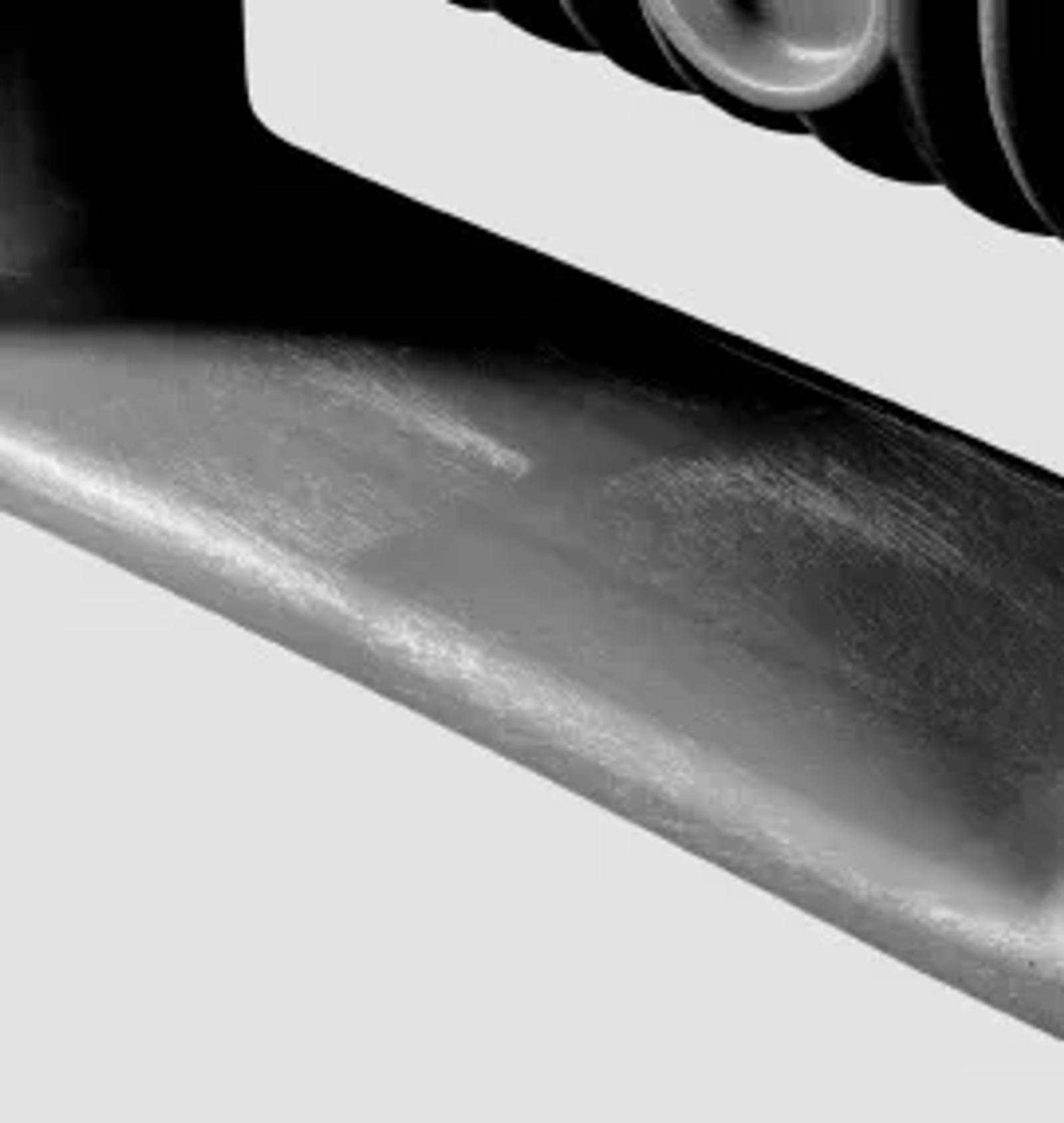

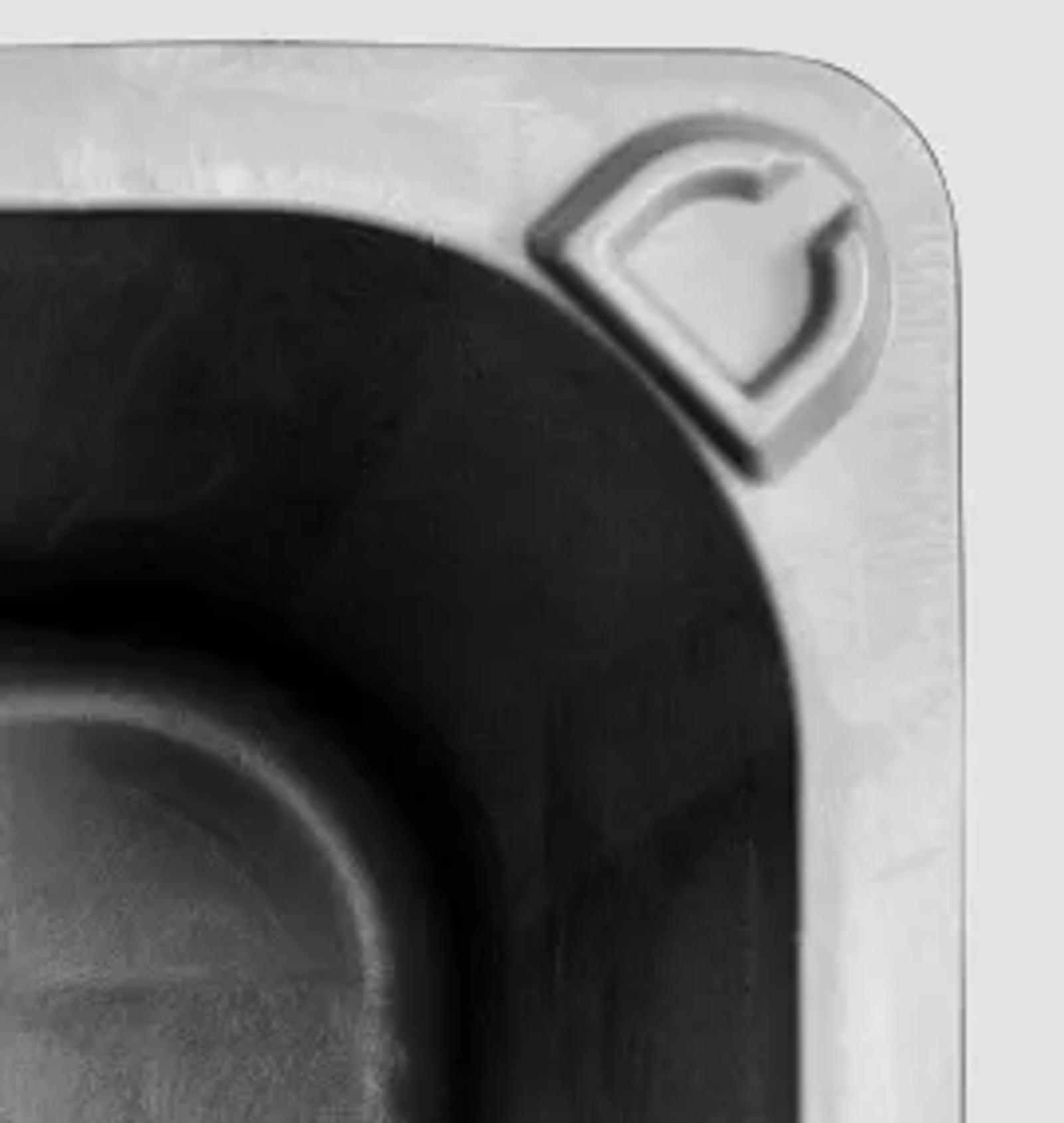

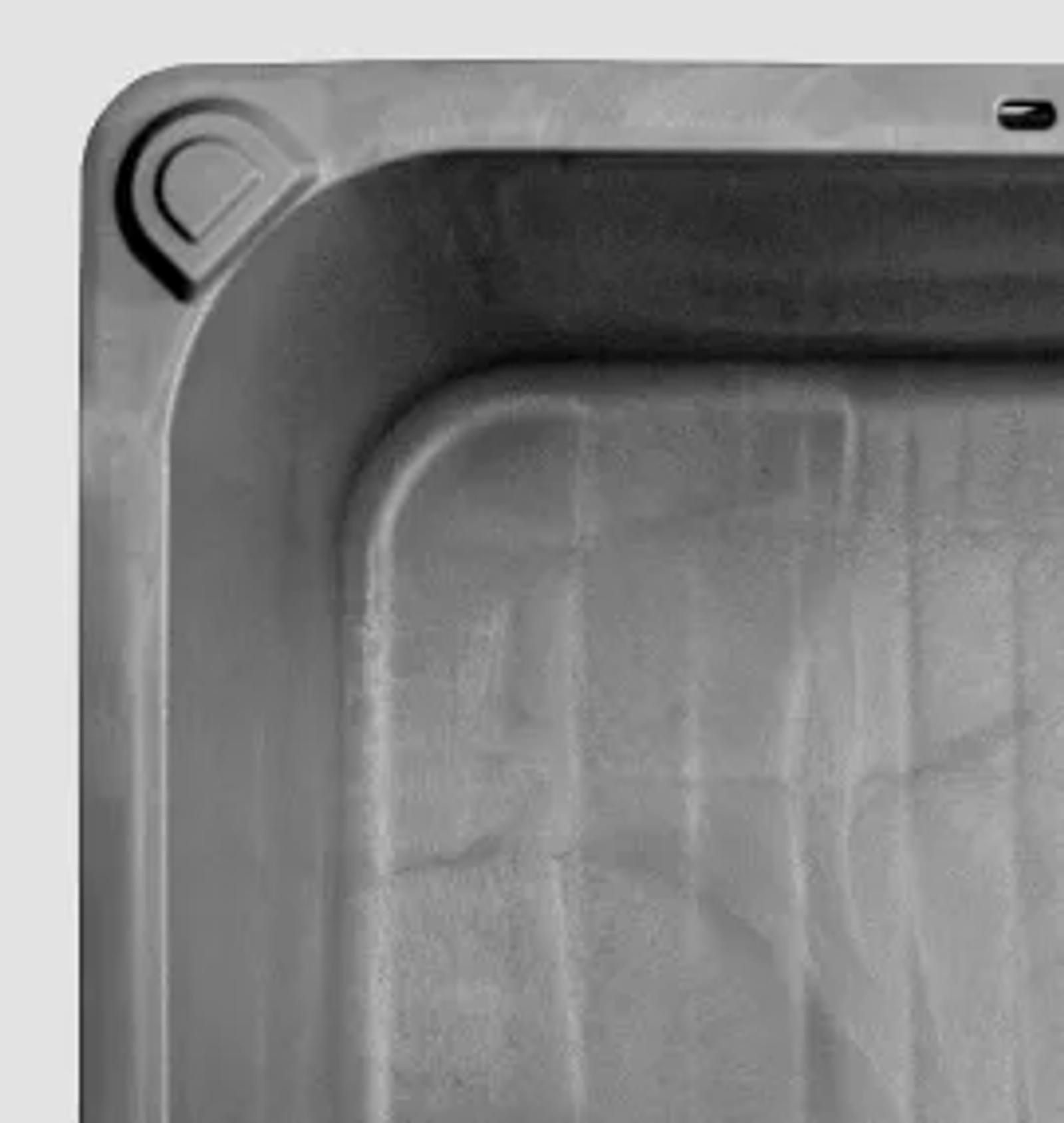

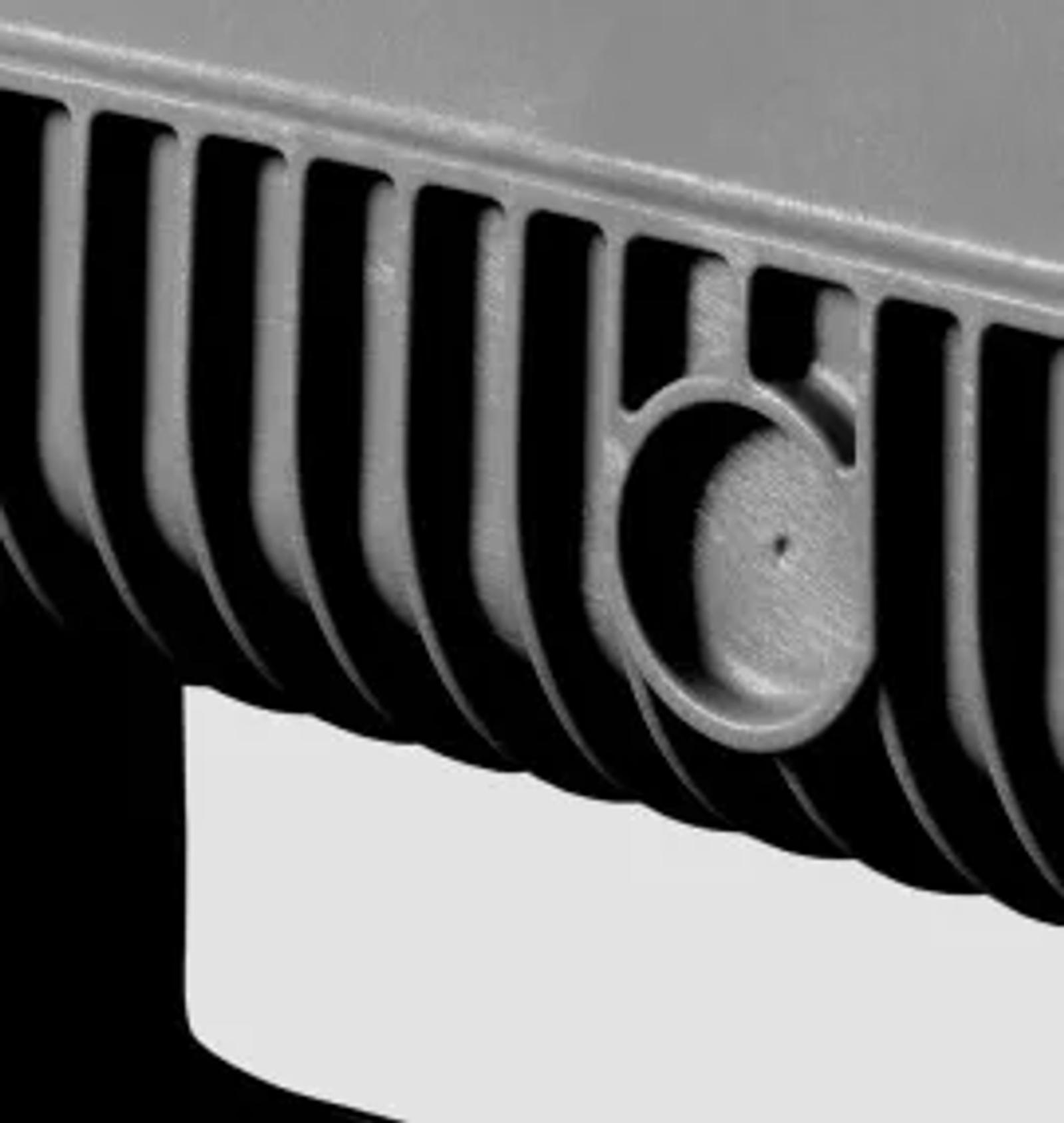

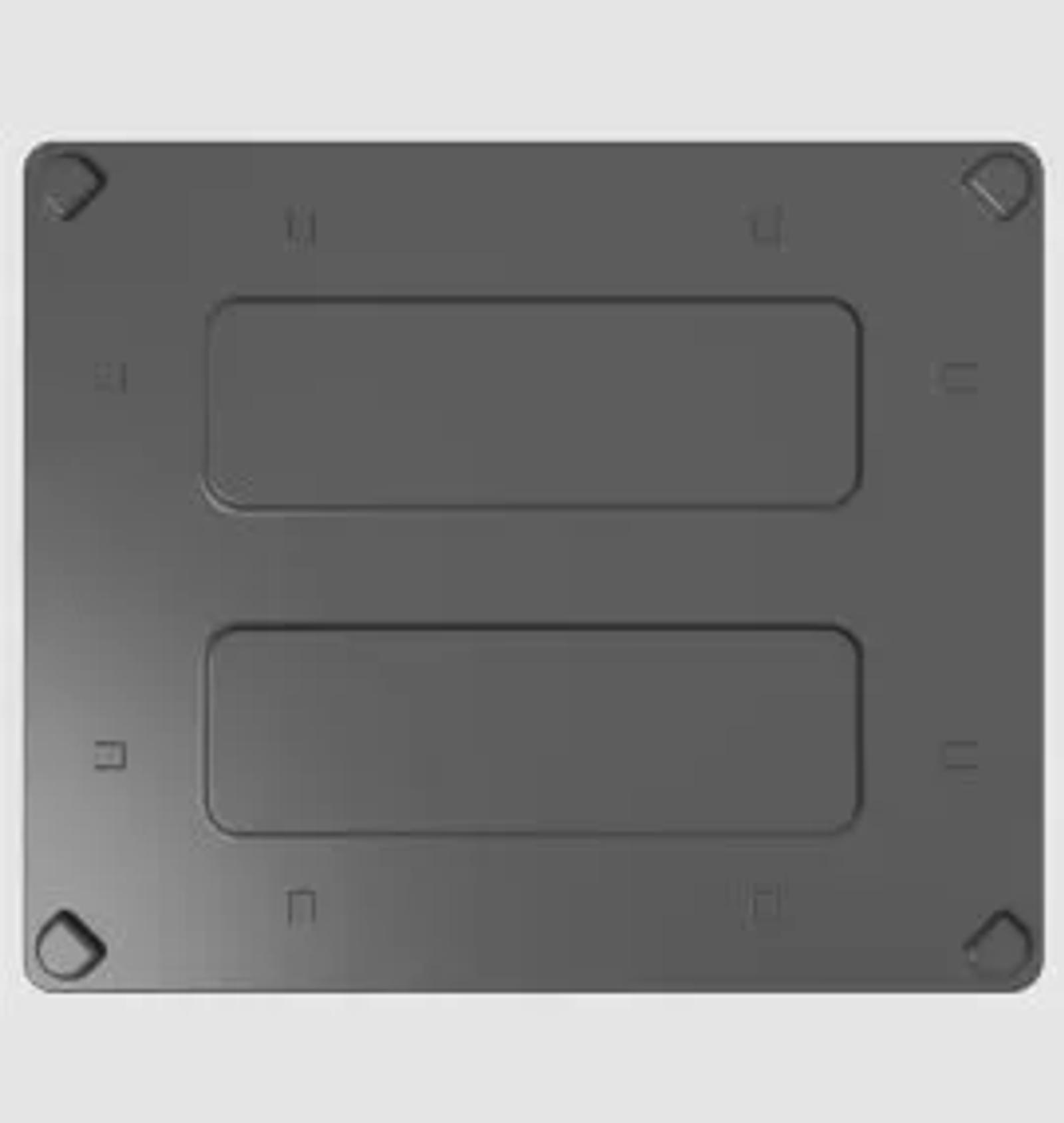

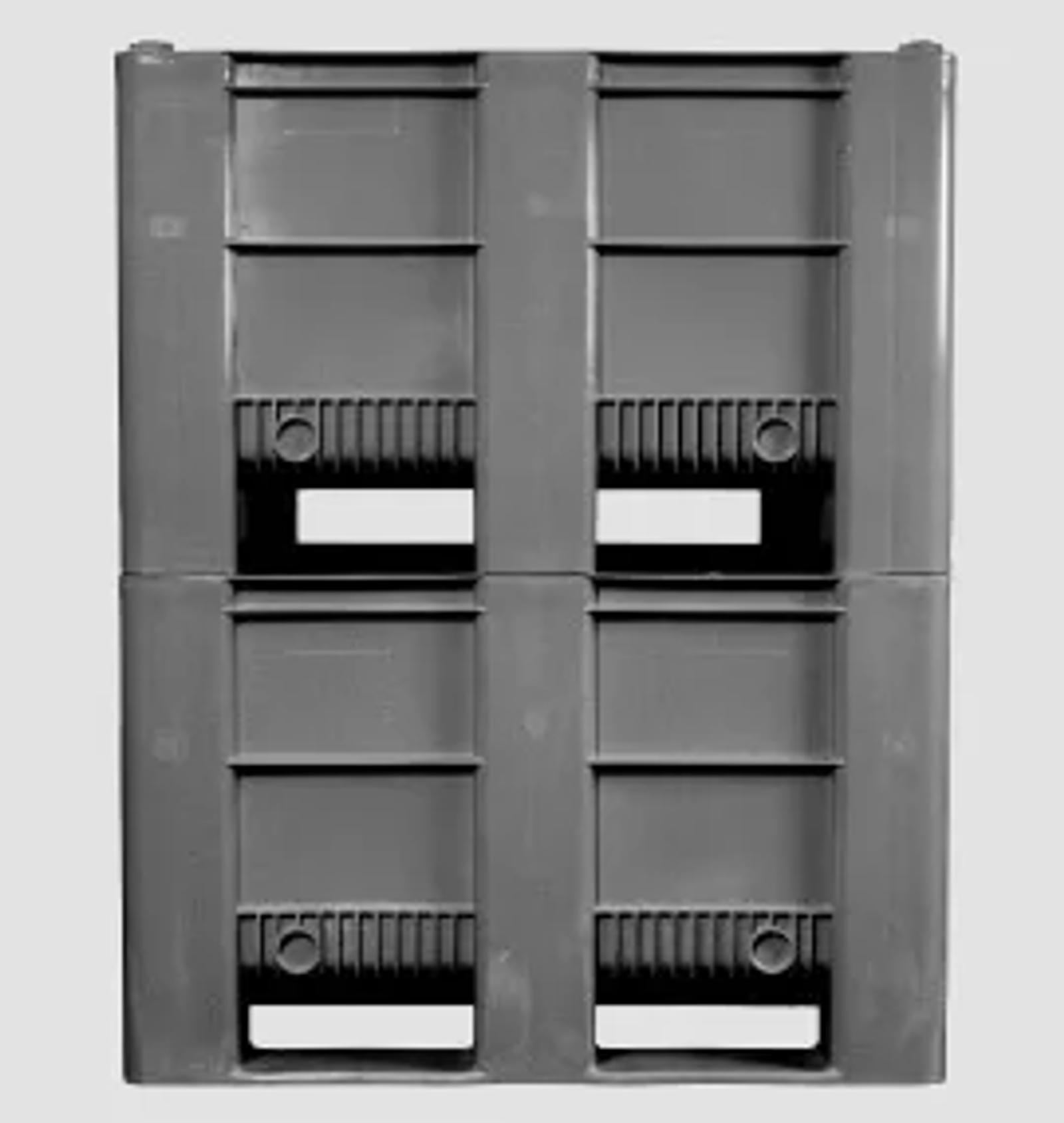

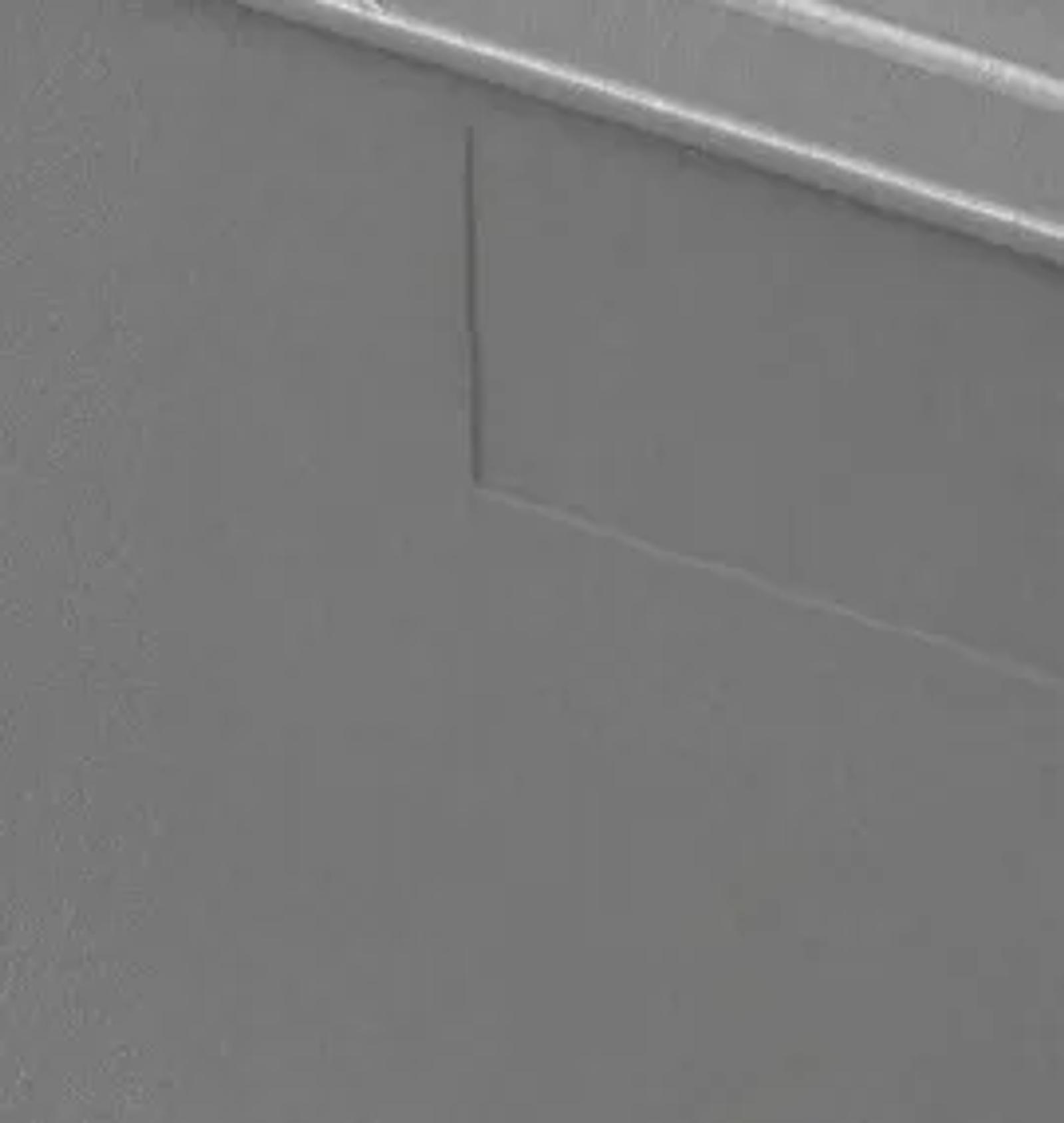

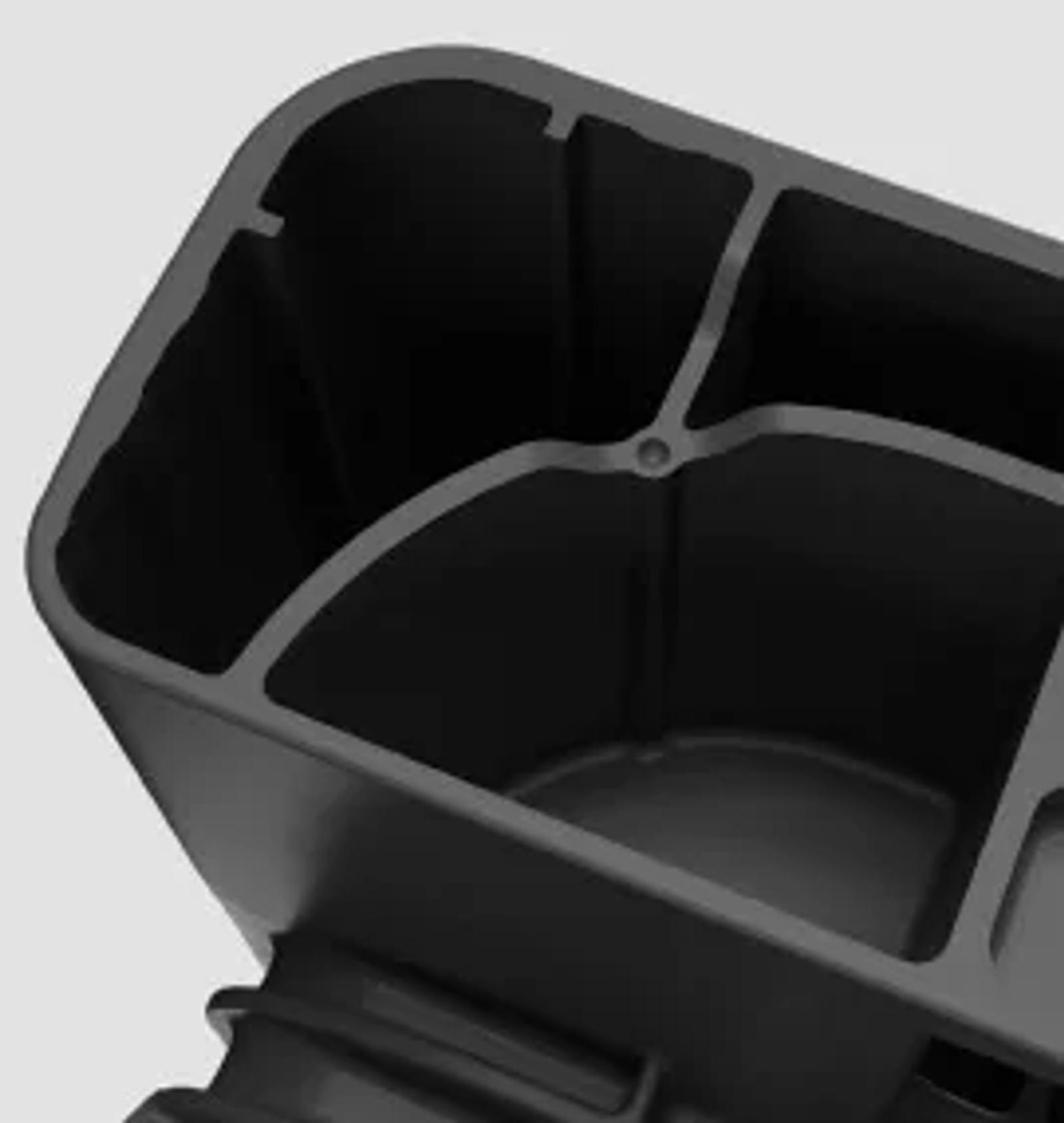

Increased ground clearance Impact protection against damage Outlet openings – 2 inches on all sides Reinforced bottom and base area – Structurally optimized interior design Smooth interior with large radii non-slip base Stackable Lid 9 feet Smooth outer walls for easy cleaning Integrally molded crossbars in one piece Chip recording pockets
specifications
- Nominal volume
- 650 L*
- Max. permitted gross weight-solids closed, 4 feet
- 550 kg
- Max. permitted gross weight-solids closed, 9 feet
- 550 kg
- Max. permitted gross weight-solids closed, 3 runners
- 750 kg
- Net weight closed, 4 feet
- 34 kg (+/-5%)
- Net weight closed, 9 feet
- 36 kg (+/-5%)
- Net weight closed, 3 runners
- 38 kg (+/-5%)
- Net weight lid
- 5 kg (+/-5%)
- Note
- *Taking into account conventional manufacturing tolerances of +/- 5 %.
- Colours
- grey; Other colors on request
- Inner dimensions (W x D x H)
- 1130 x 930 x 595 mm
- Material
- PE (Polyethylene)
- Recyclable
- 100 %
- Chemical resistance
- High
- Food safe
- Yes
- Standard operating temperature
- -20 °C to +40 °C (at +40 °C reduced stacking load)
- Quality requirements
- Internal audit
Box
- Outer dimensions (W x D x H)
- 1200 x 1000 x 760 mm
Box incl. lid
- Outer dimensions (W x D x H)
- 1215 x 1015 x 765 mm
Flat, pressure-resistant floor and wind-protected stand, ambient temperature 5 °C
- Max. stacking load
- 5000 kg (at maximum load: maximum stacking height of 6)
Standard: 13.6 m x 2.65 m
- Full truck load
- 104 pcs.
Jumbo: 15.4 m x 2.95 m
- Full truck load
- 156 pcs.
Container 20' / 20' HC (5.90 x 2.35 x 2.39 / 2.68 m)
- Container load
- 40 pcs.
Container 40' / 40' HC (12.03 x 2.35 x 2.39 / 2.68 m)
- Container load
- 84 pcs.
