Ful

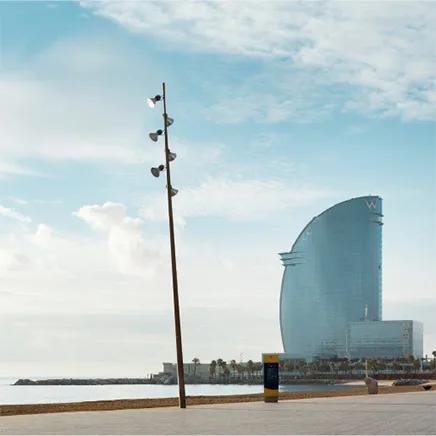

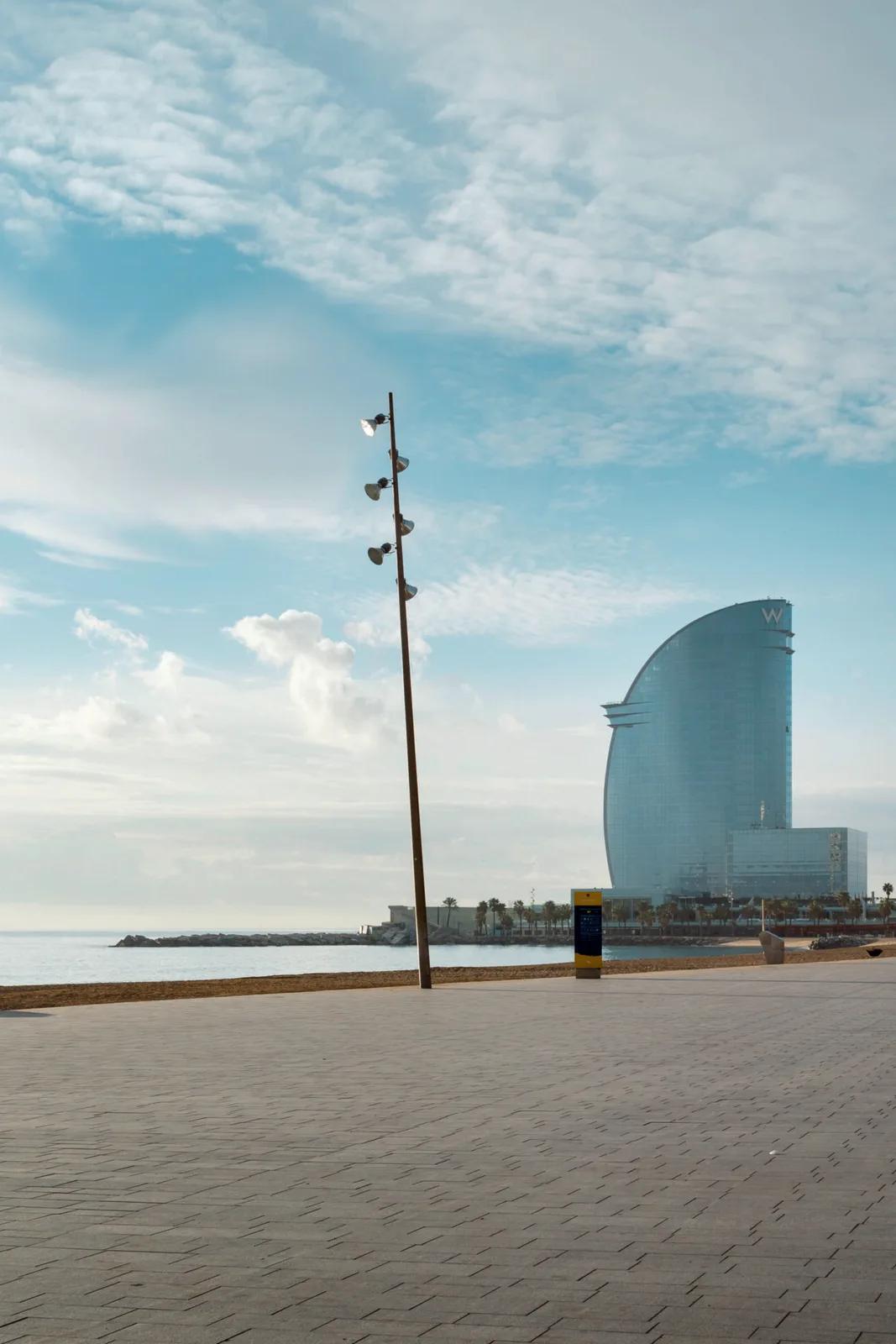

The Ful lighting column series consists of six models with a truncated cone section, slightly bifurcated with an inclination of 85° and variable height and curvature.
Their design providing considerable freedom to optimise their orientation and create a formal result in apparent movement. The tree-like composition of this series enhances its integration into both vegetated and urban environments, and the multiplication of the louvres provides a good effect of light distribution and uniformity.
The superimposition of small projectors is in contrast to the pronounced height of the columns. This accentuated distance between the user on the ground and the multiple light points of the lamps evokes the sensation of walking beneath the light of the stars.

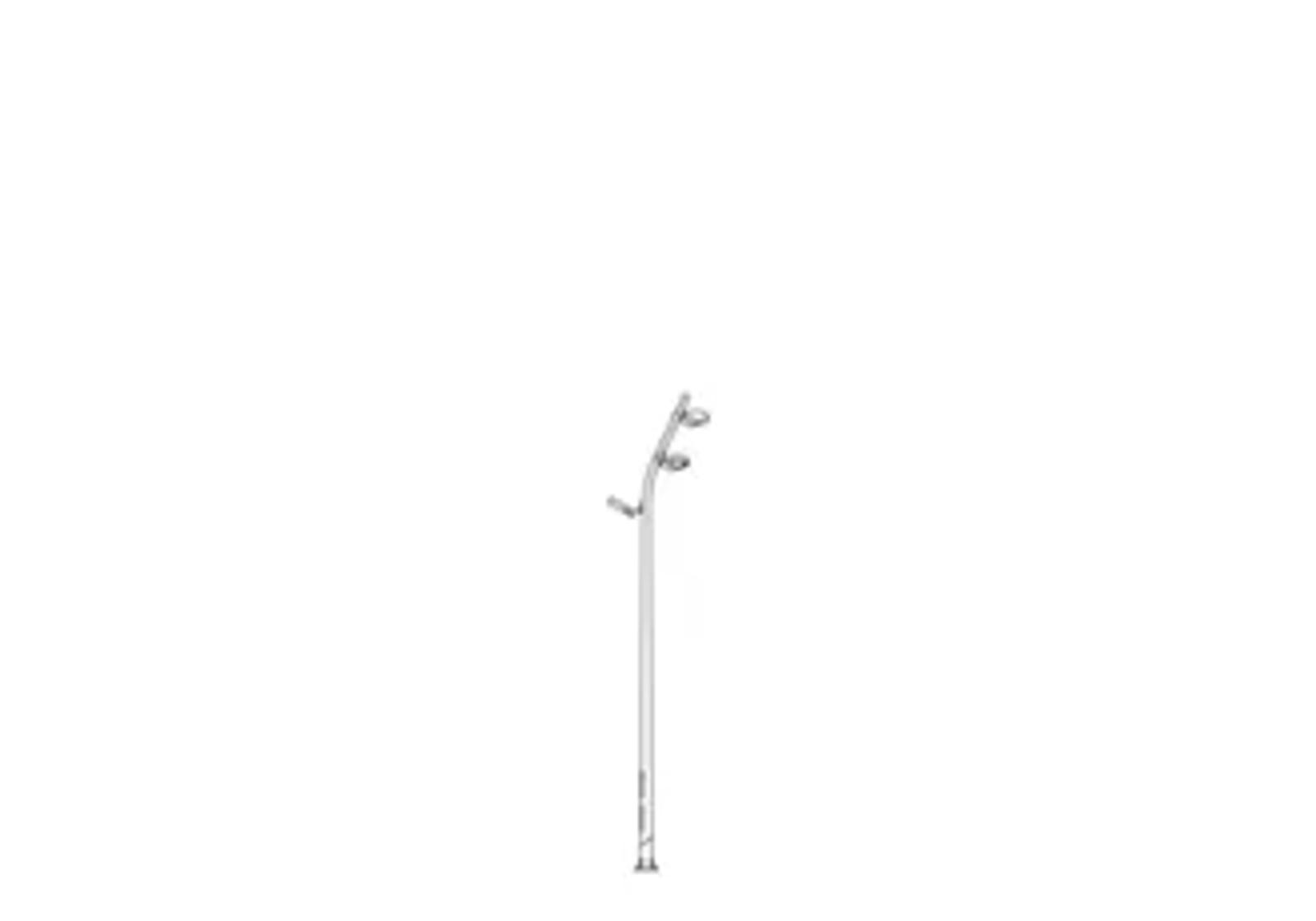

Supplied in heights of 12, 10, 7, 5 and 4 metres, and fitted with 5 to 1 projector supports and cable exits compatible with any circular projector anchored with bow shackles. Columns with a truncated cone cross section made from Cor-ten steel, galvanizsed steel. Must be unloaded and handled with slings. Anchored with a base plate and four threaded bolts to a concrete foundation with the recommended generic dimensions.
specifications
- Design year
- 1998
- Dimensions / specification

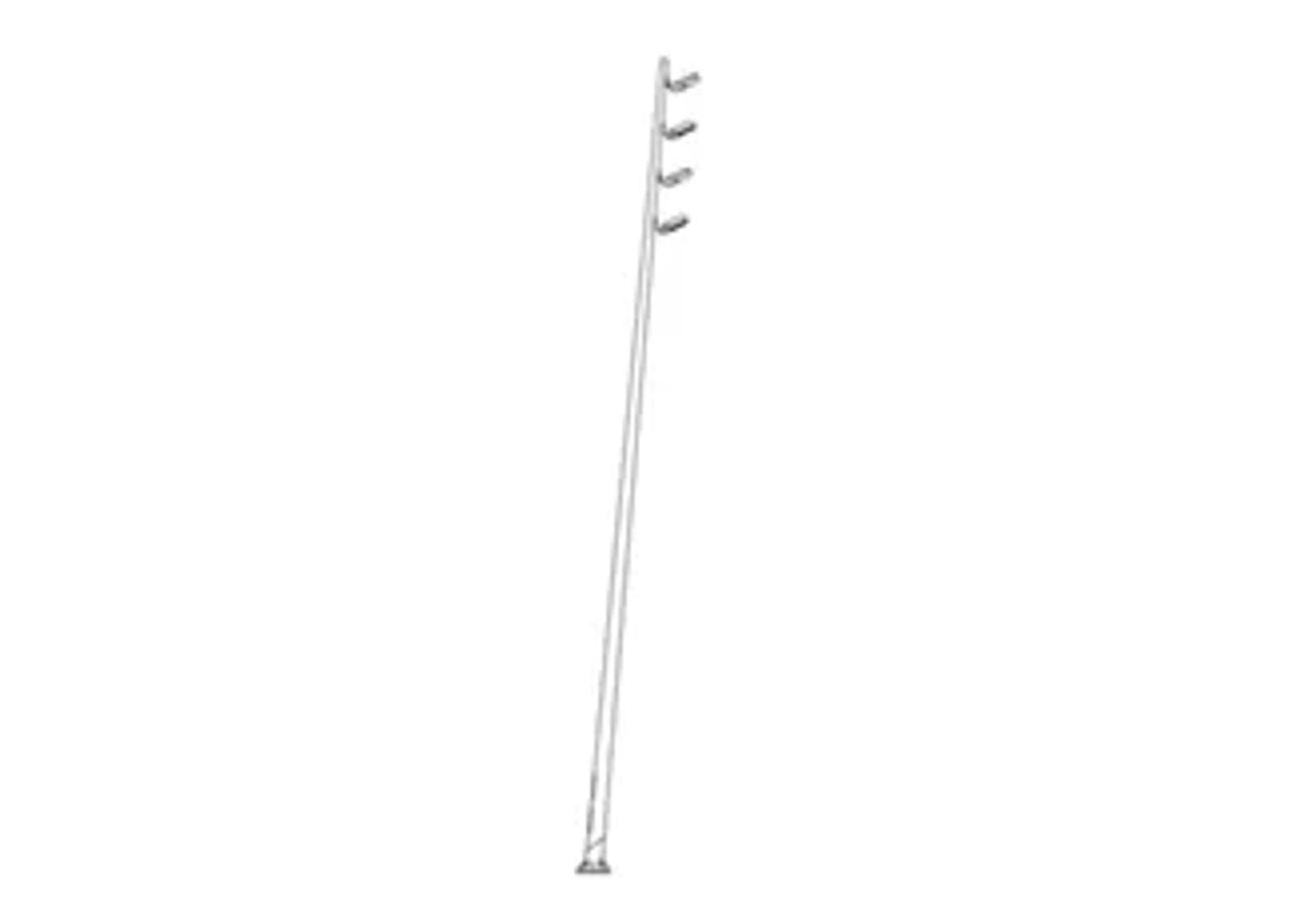

- 12 m
- Weight
- 254 kg
- Dimensions / specification

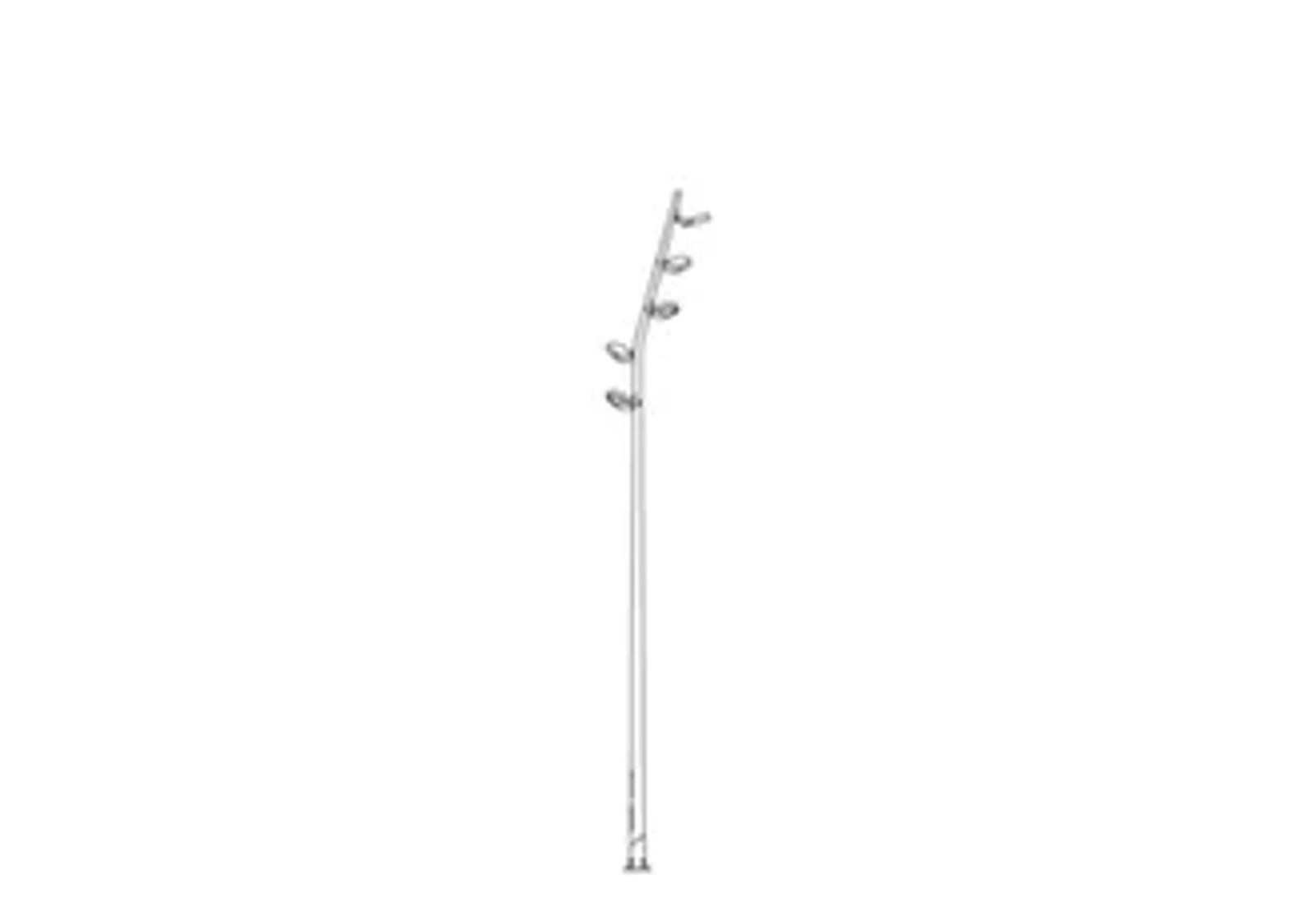

- 10 m
- Weight
- 202 kg

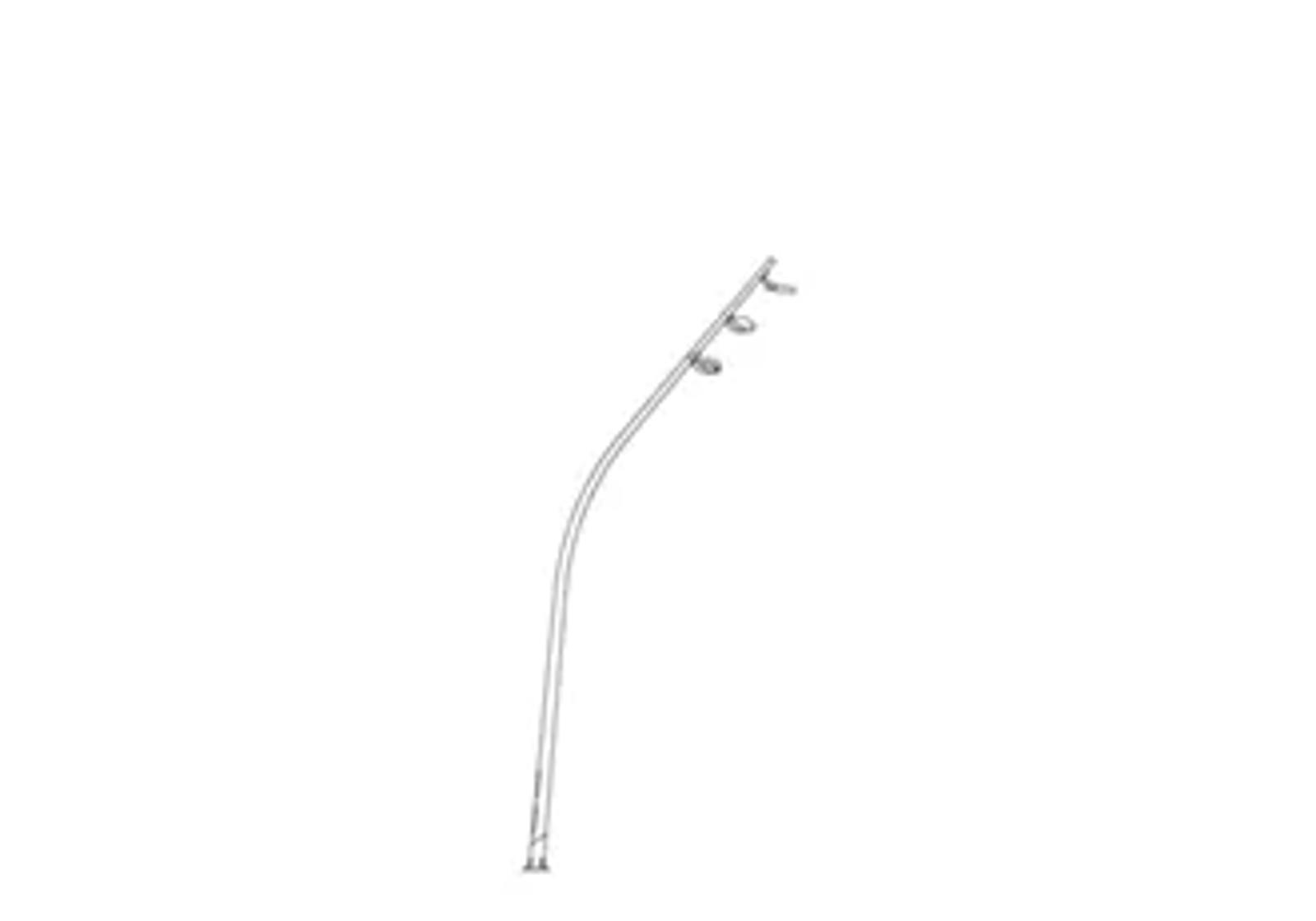

- Dimensions / specification

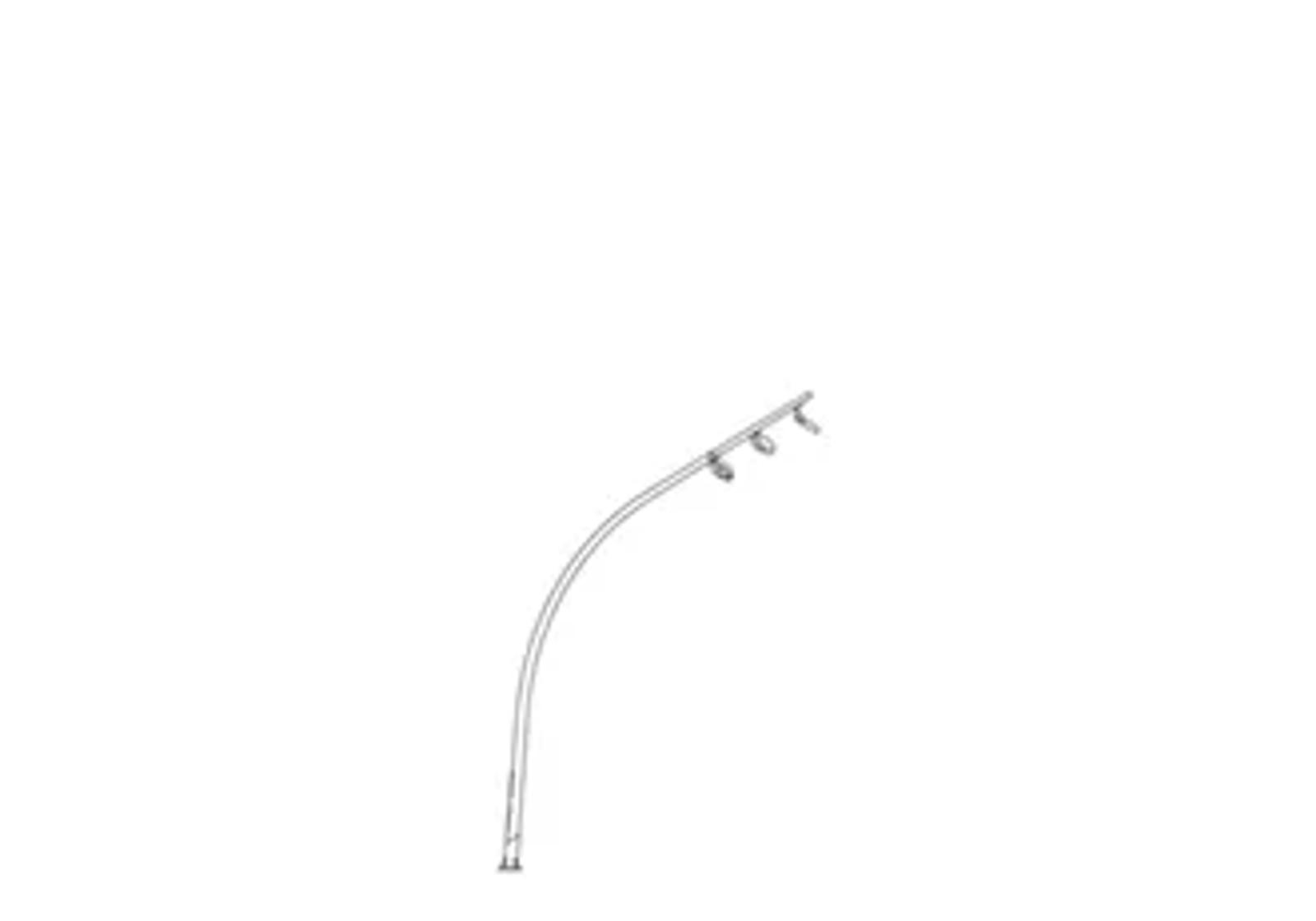

- 9 m
- Weight
- 202 kg
- Dimensions / specification
- 7 m
- Weight
- 202 kg
- Dimensions / specification
- 7 m
- Weight
- 149 kg
- Dimensions / specification

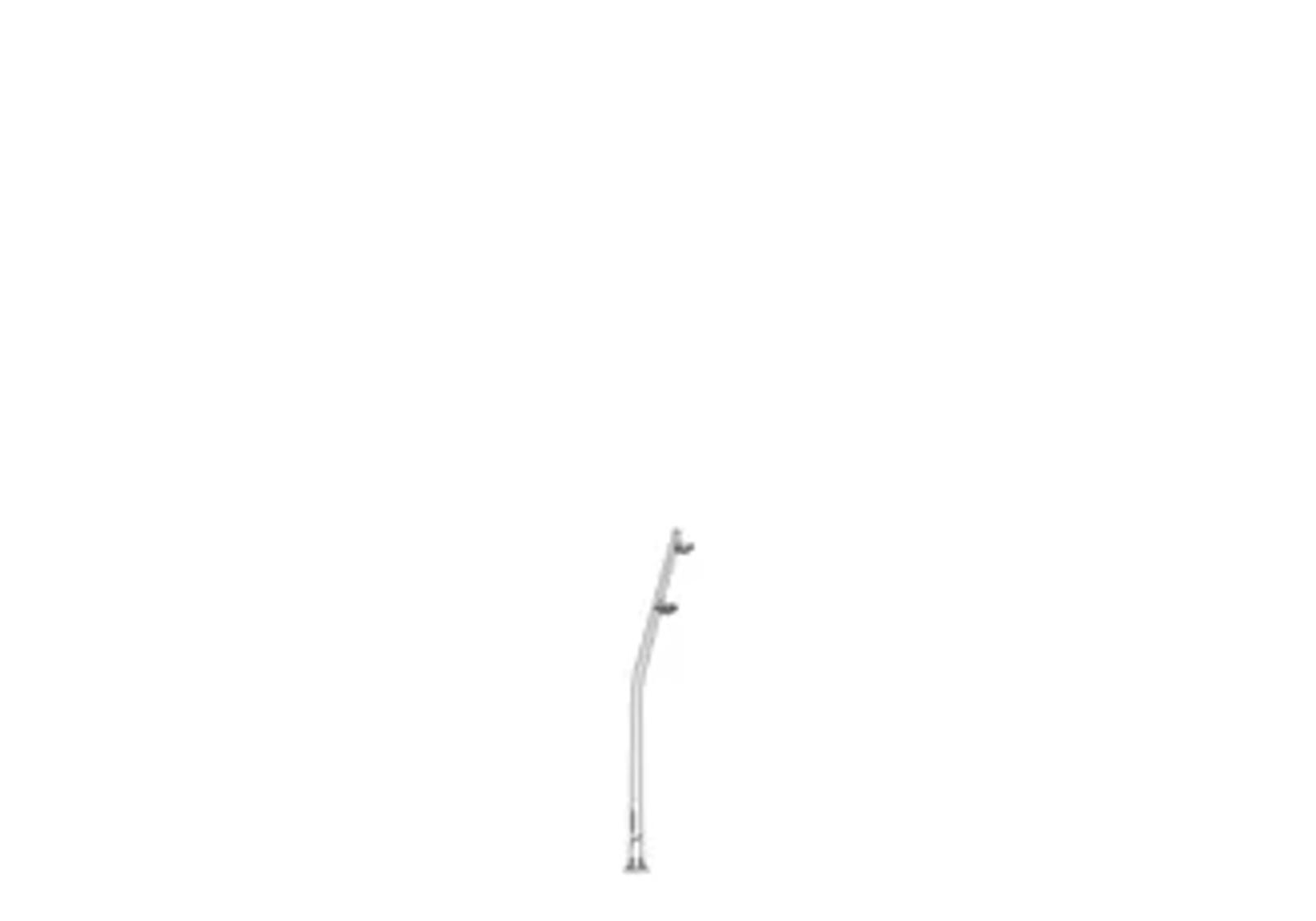

- 5 m
- Weight
- 112 kg

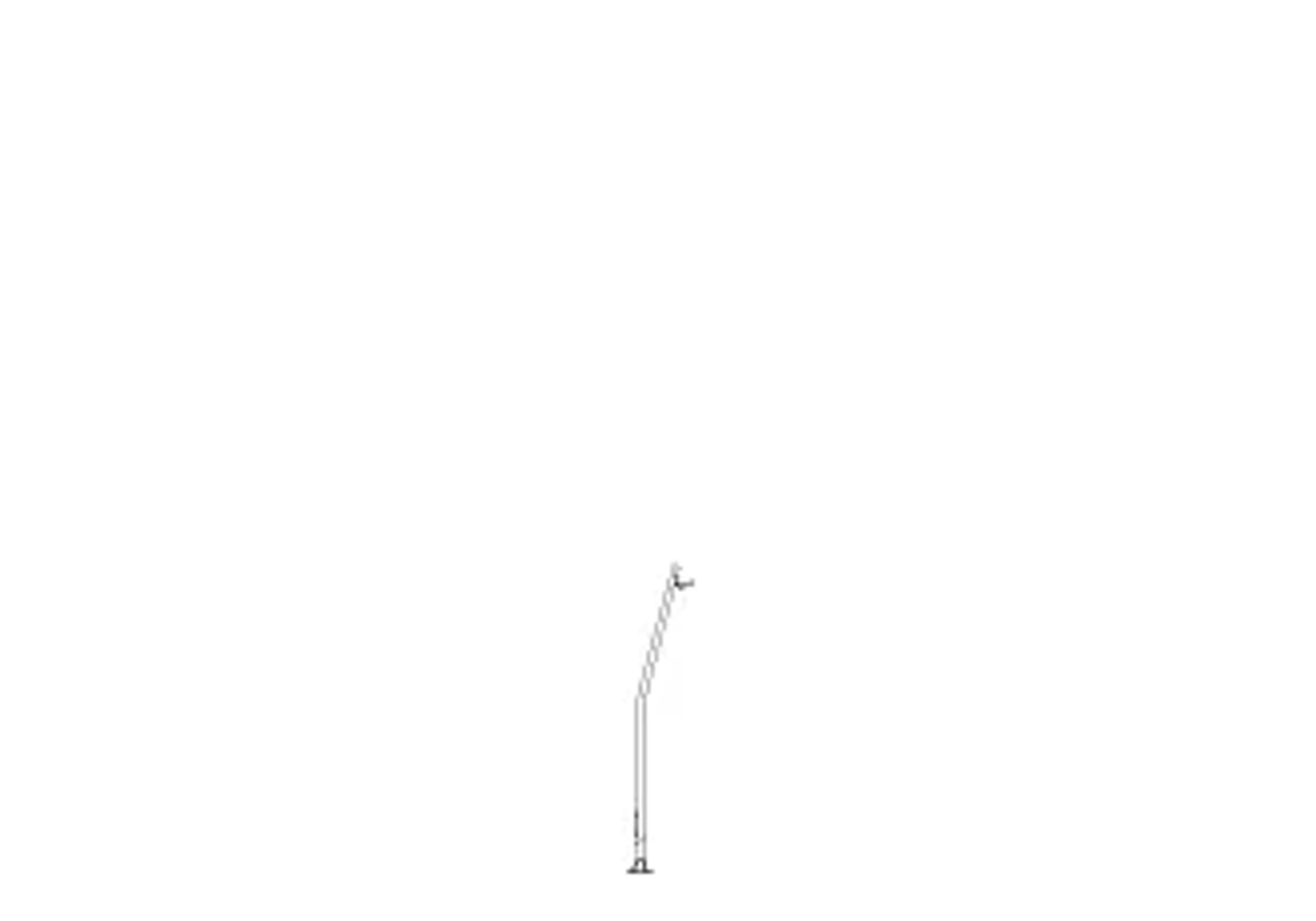

- Dimensions / specification
- 4 m
- Weight
- 65 kg
- Installation
- ANCHORED WITH BASE PLATE
- Properties
- LED PROJECTOR / CLASS I / 10 KV SURGE PROTECTOR / CE / UNE-EN-40-50
- Materials
- STEEL COLUMN IN *COR-TEN, GALVANIZED OR PAINTED WITH A COR-TEN EFFECT OR LIGHT GRAY RAL 9006 WITH C5 ANTICORROSIVE PROTECTION / OTHER COLORS AVAILABLE UPON REQUEST / A2-A4 STAINLESS STEEL SCREWS *NO ASSOCIATED STANDARD
