Hebi

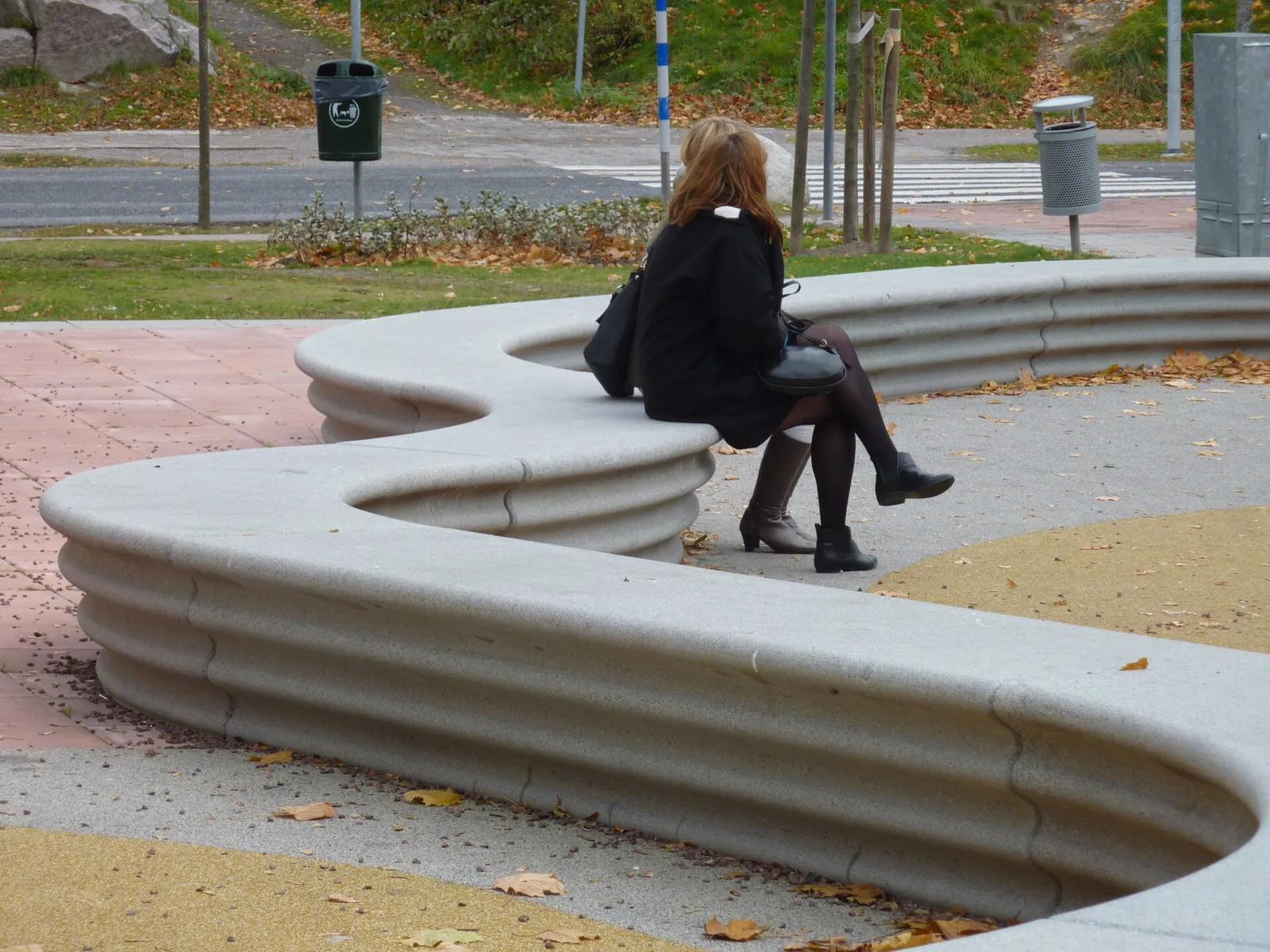

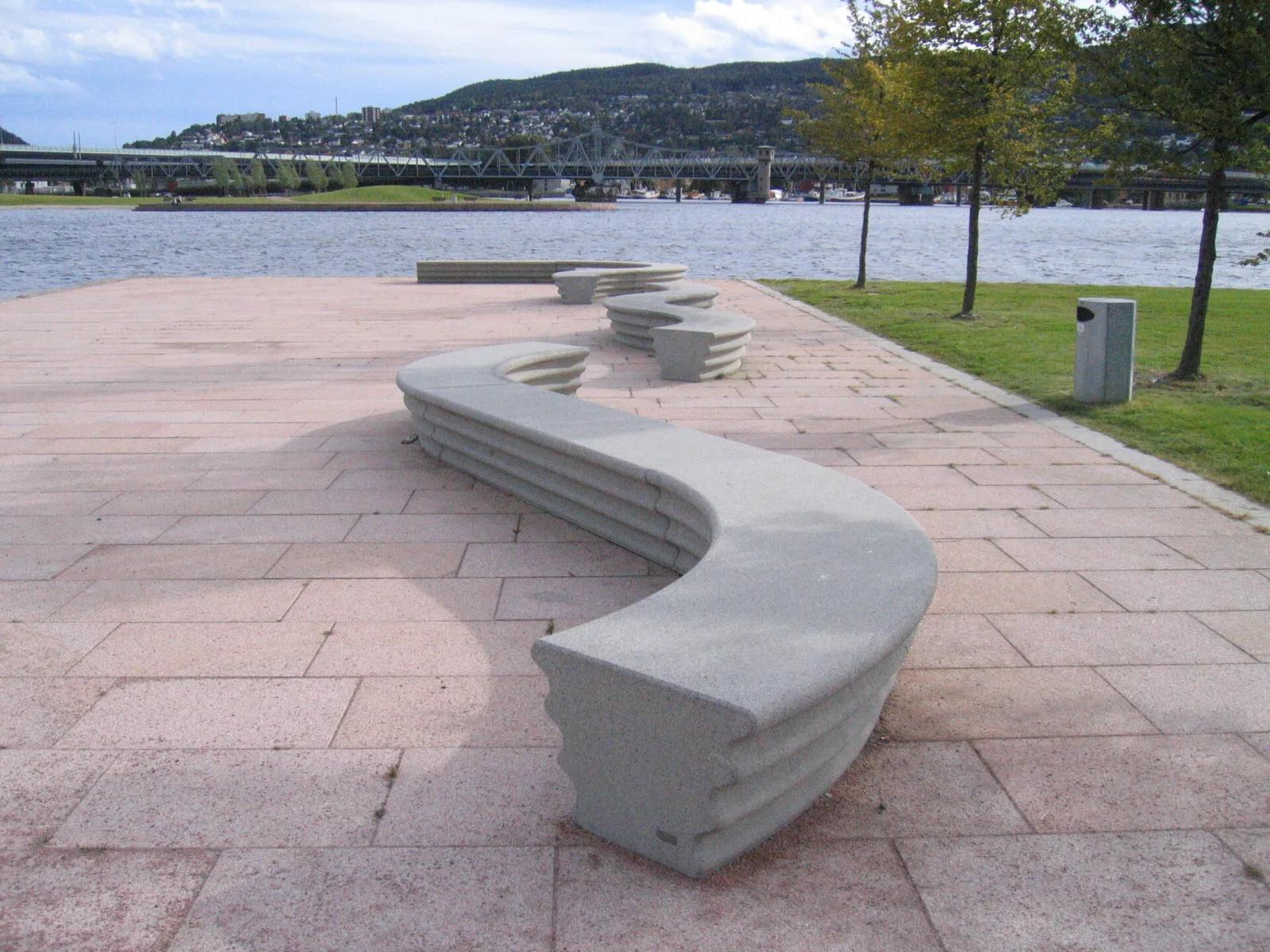

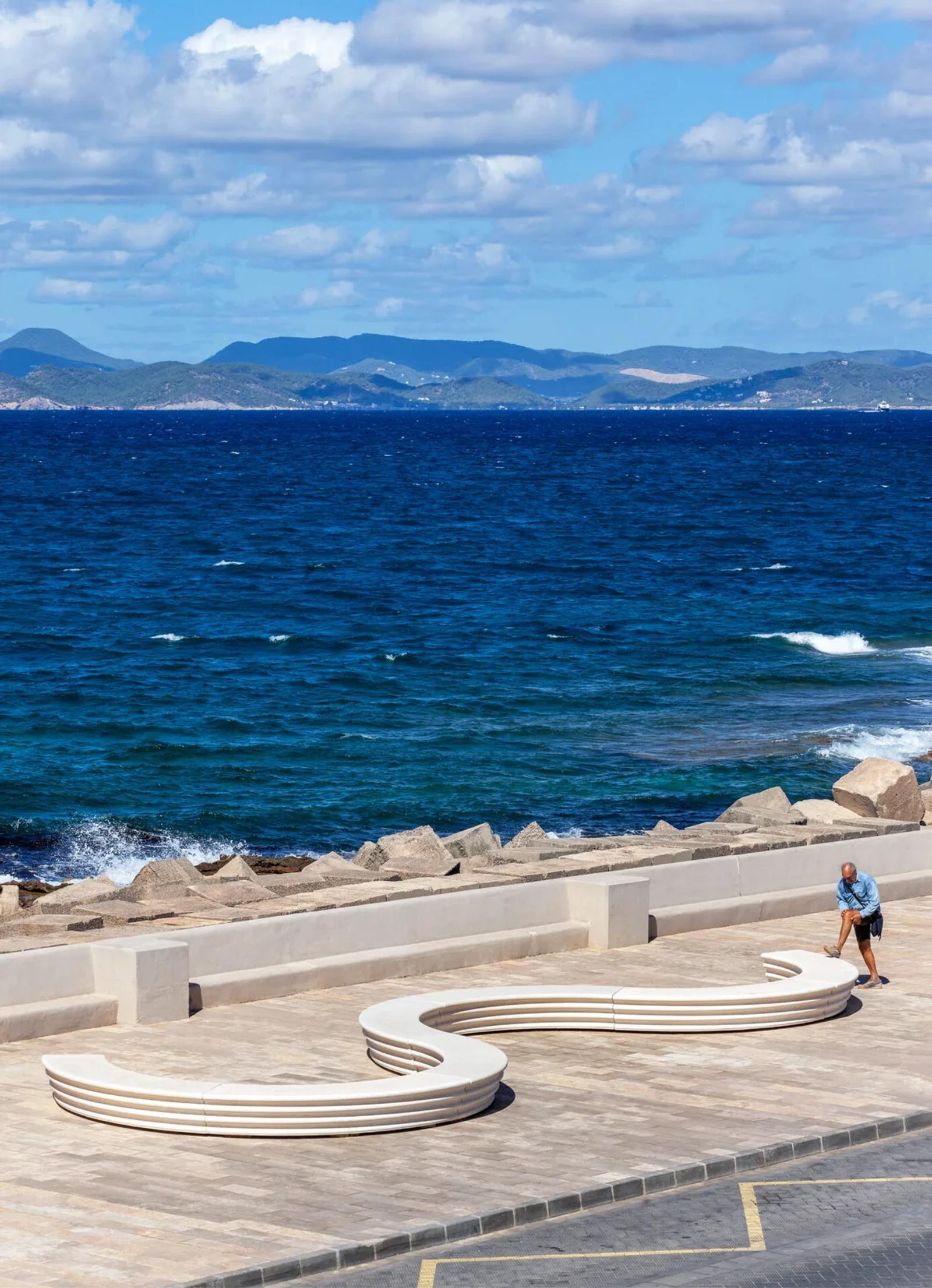

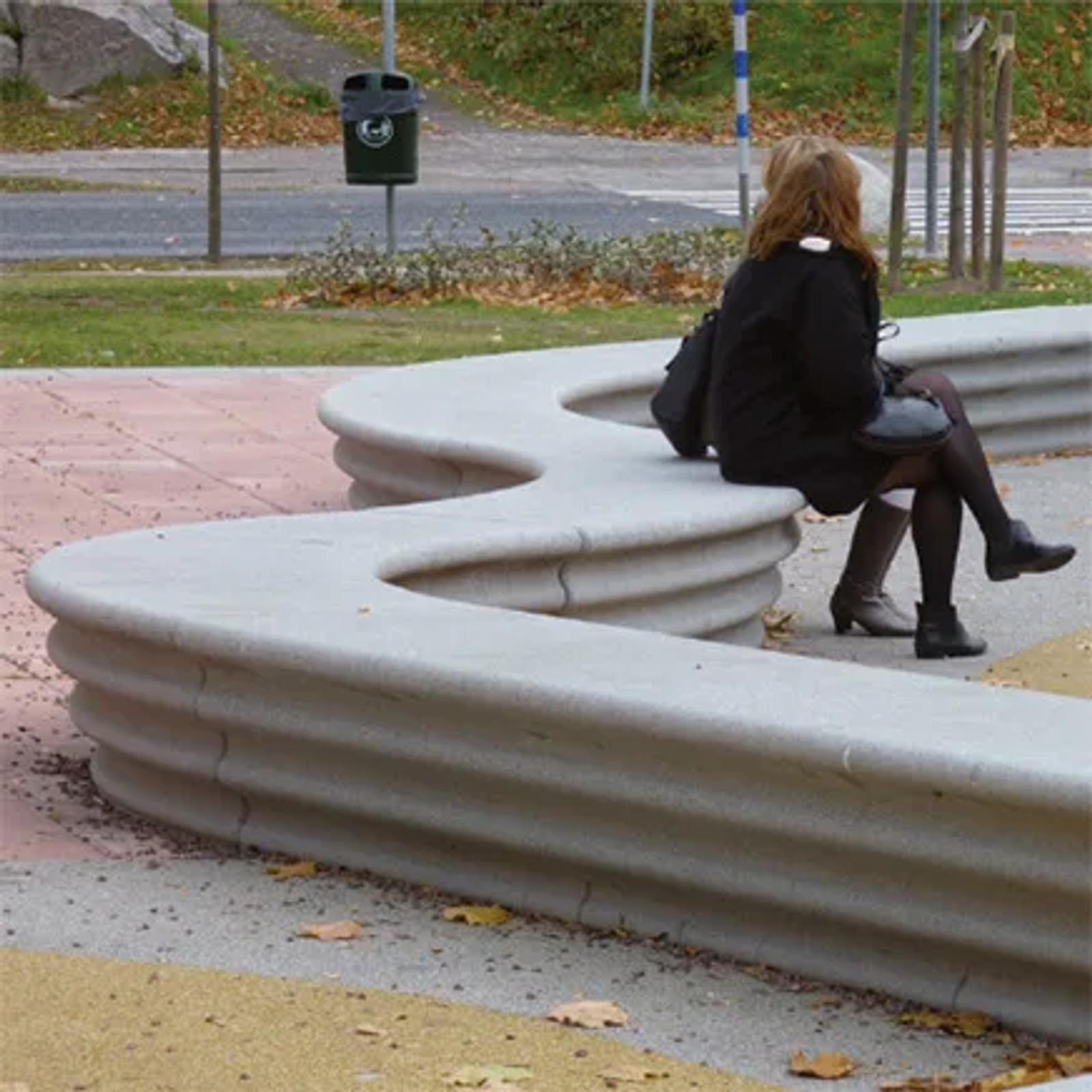

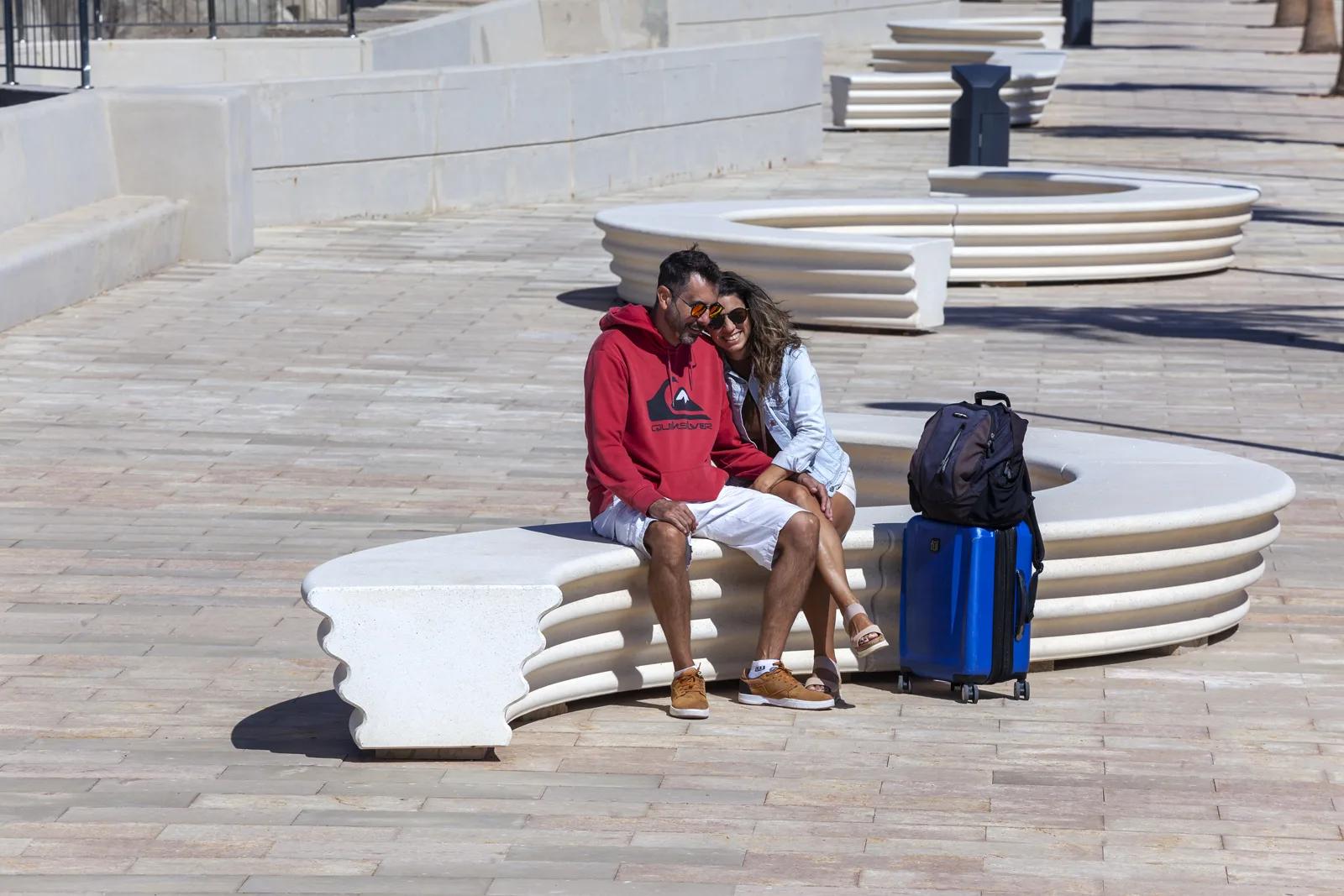

Modular reinforced concrete bench with extruded profile of great flexibility that conveys an organic sensation of movement, as if capable of growing and advancing freely, zigzagging among trees.
The Hebi modular bench consists of four monobloc dry mix concrete models edited in two versions, solid and floating, and in two formats, curved and straight.

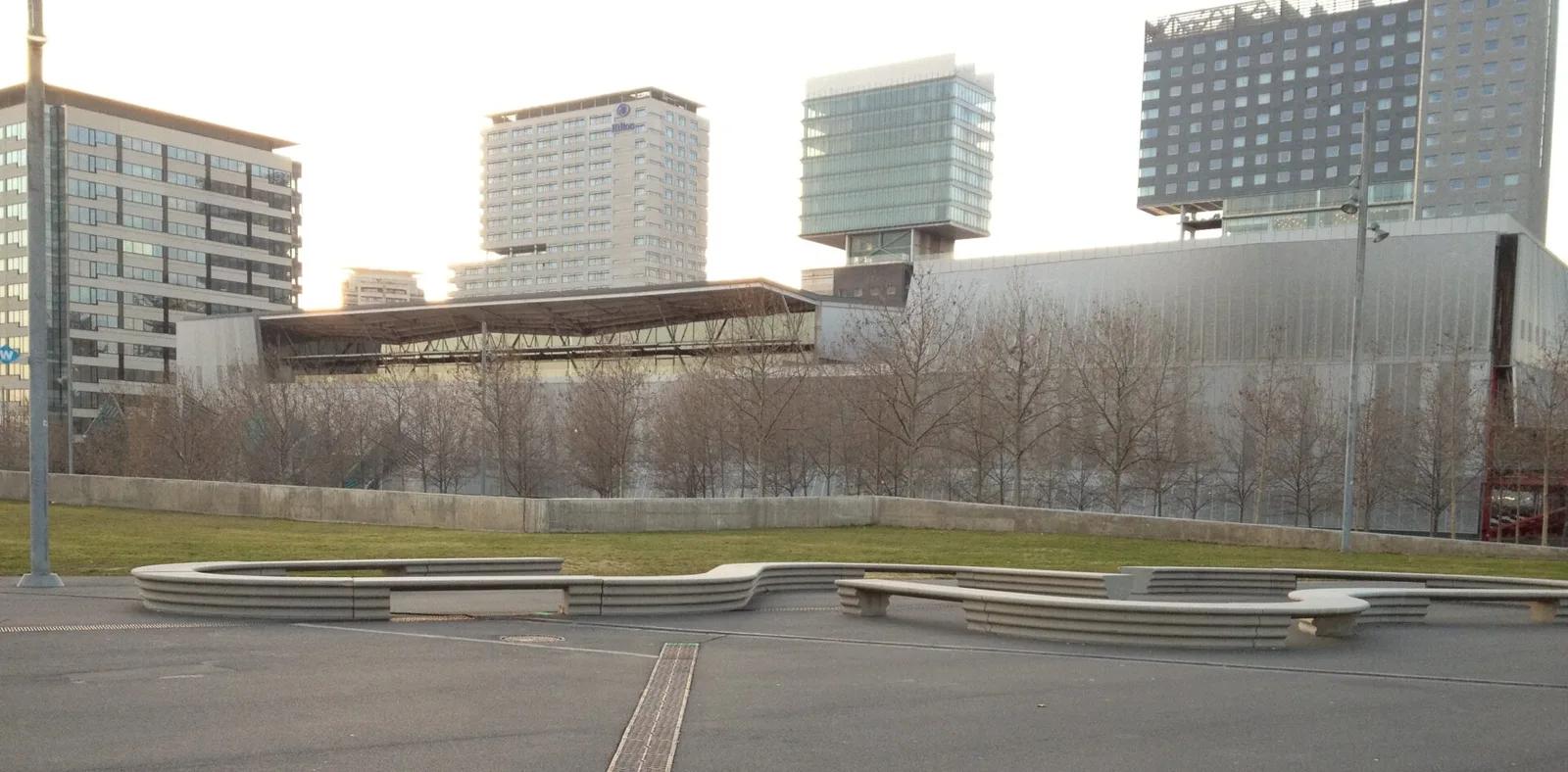

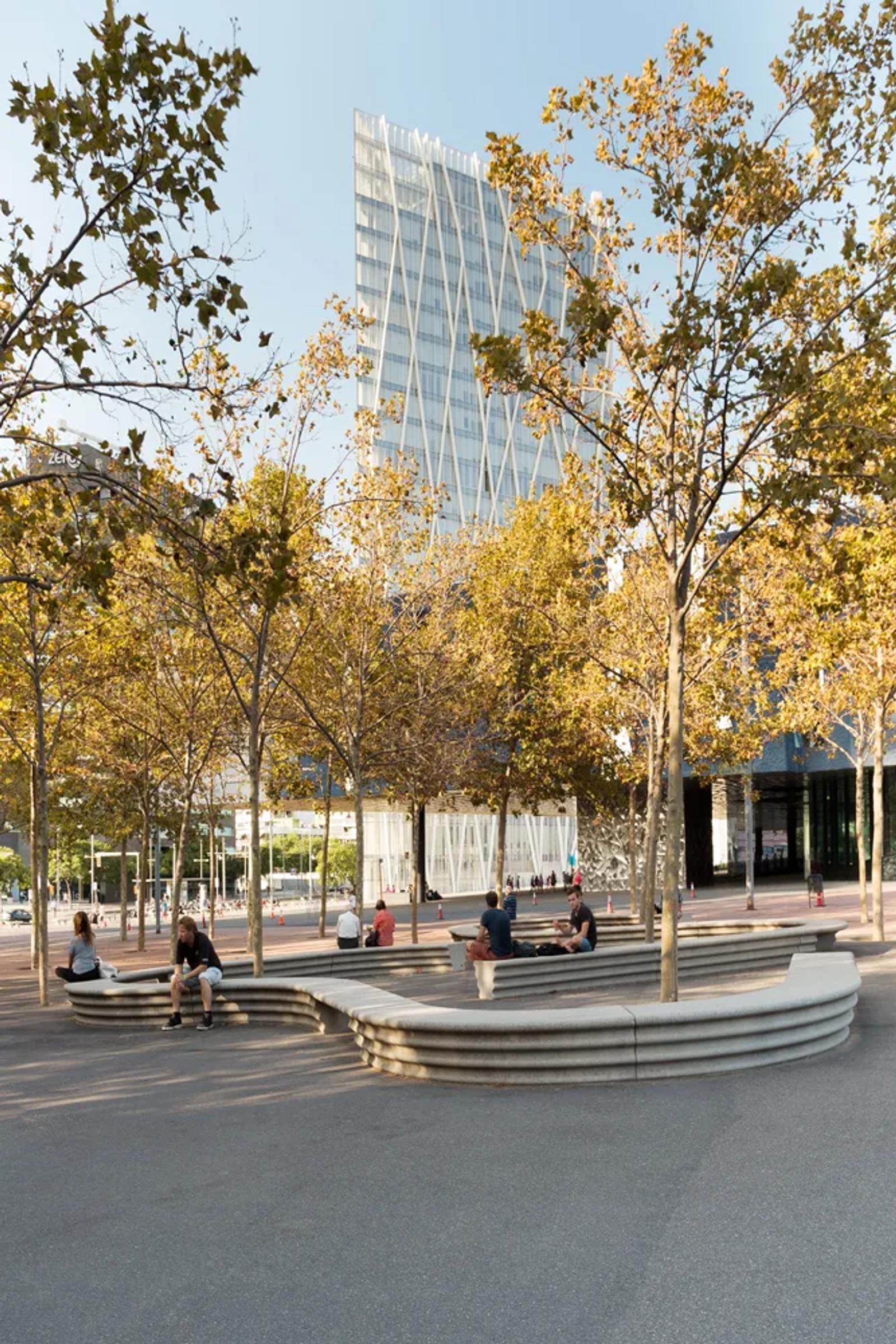

Hebi gets its name from the Japanese word for snake and this is without doubt the spirit behind the development of this item, which was first used to furnish the central esplanade of the Forum Park in Barcelona 2004.

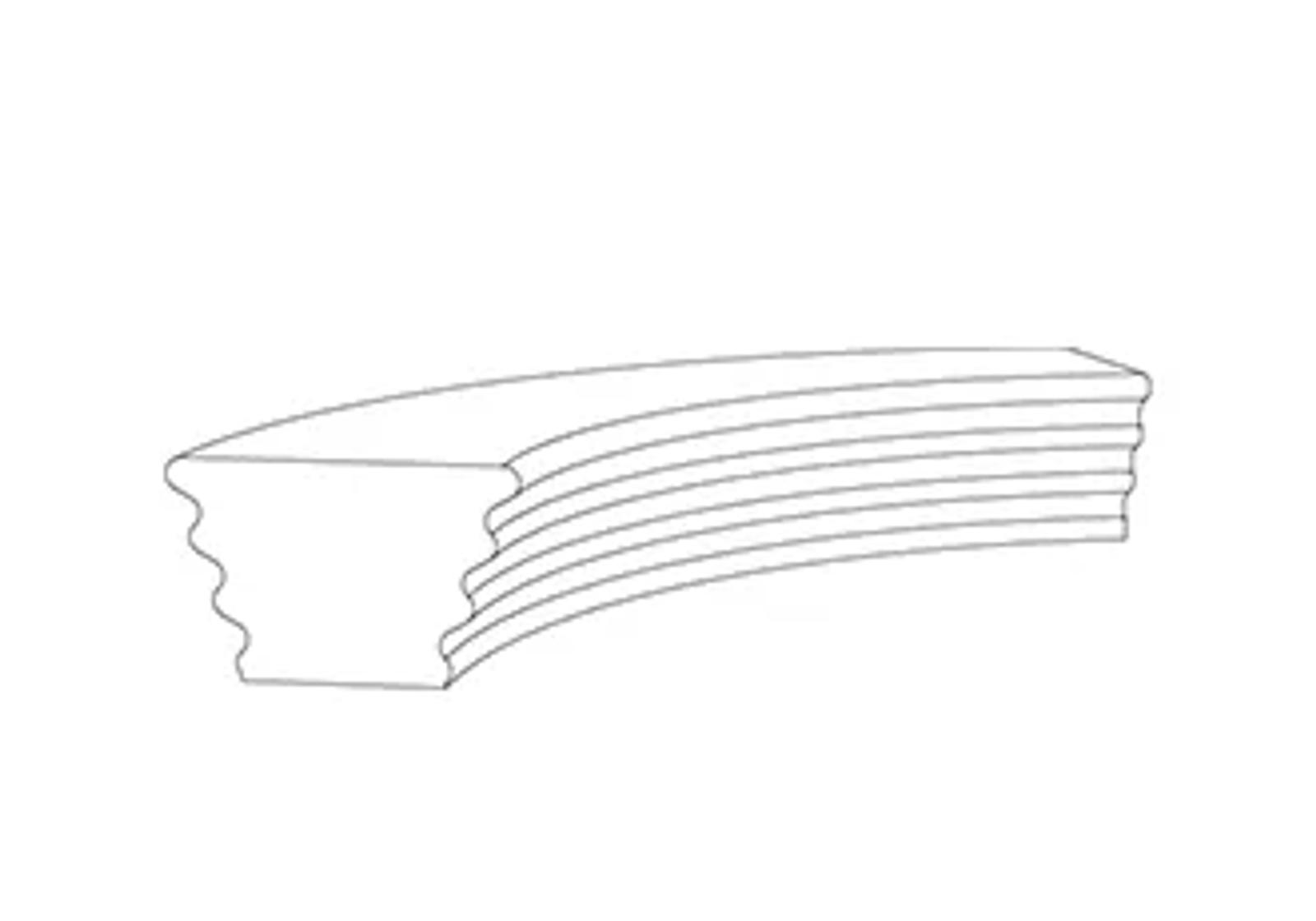

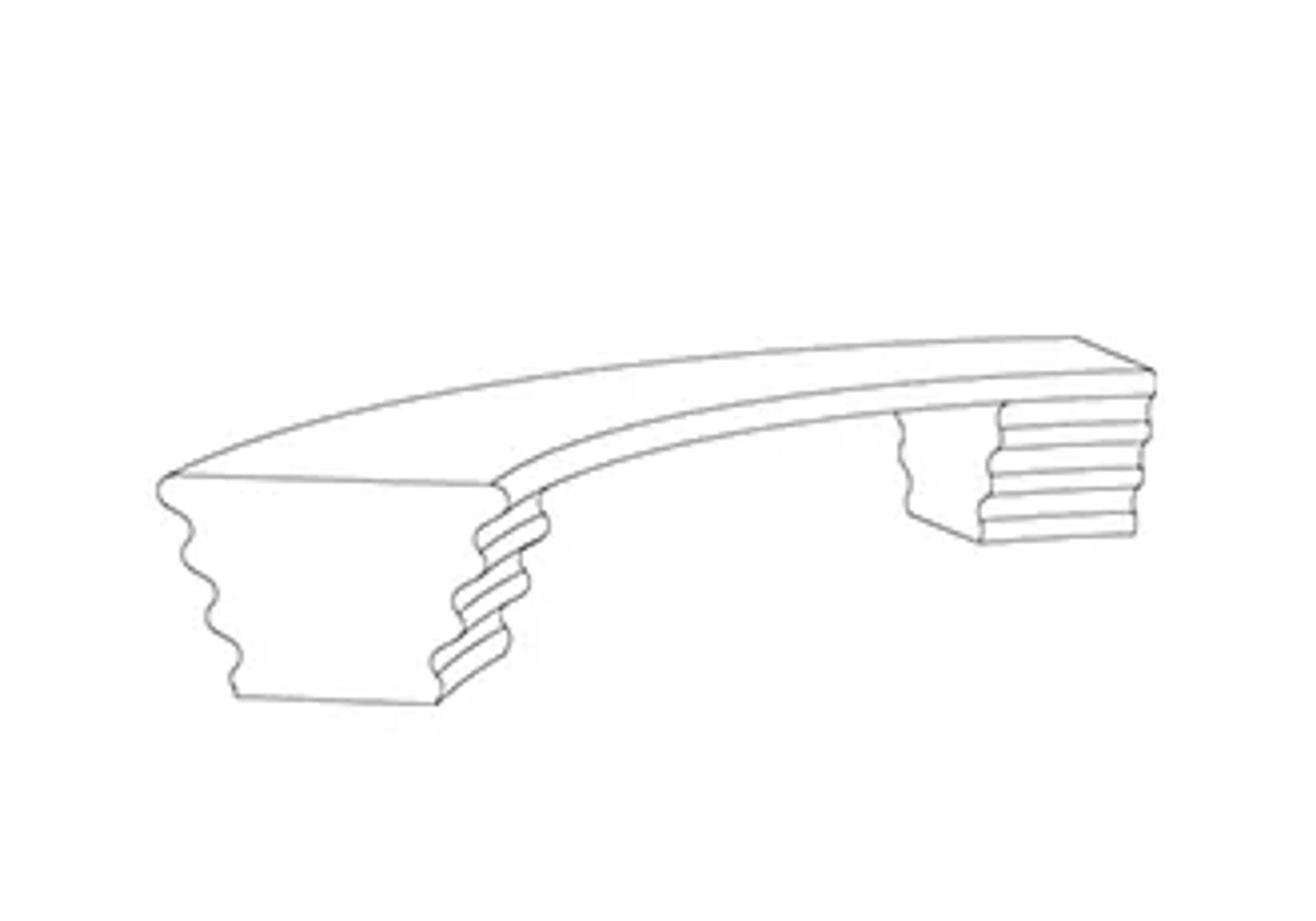

A combination of four models. Straight and curved for the solid version, and floating to permit the passage of light and air, forming modular aggregations with long extensions in large-scale projects.

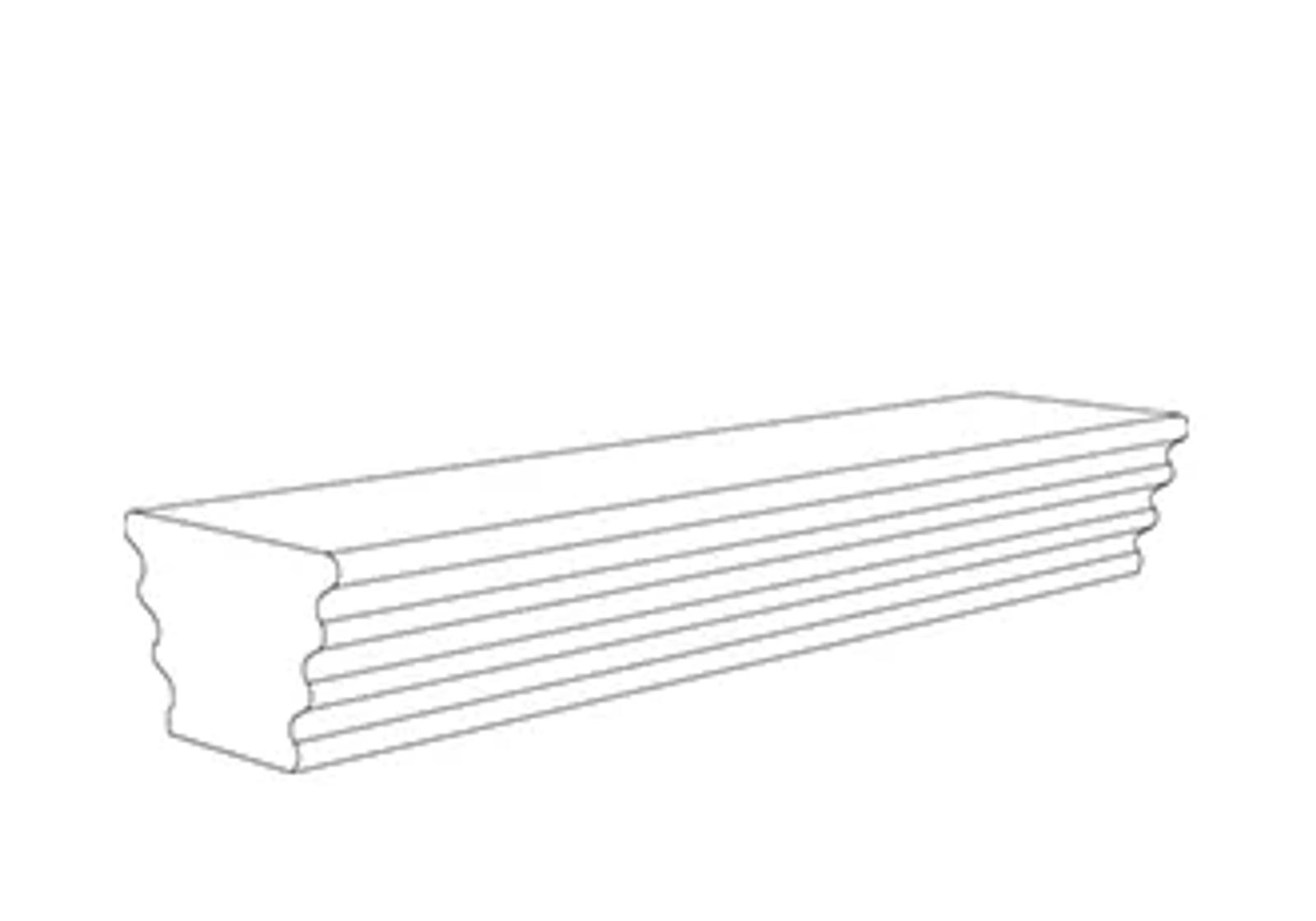

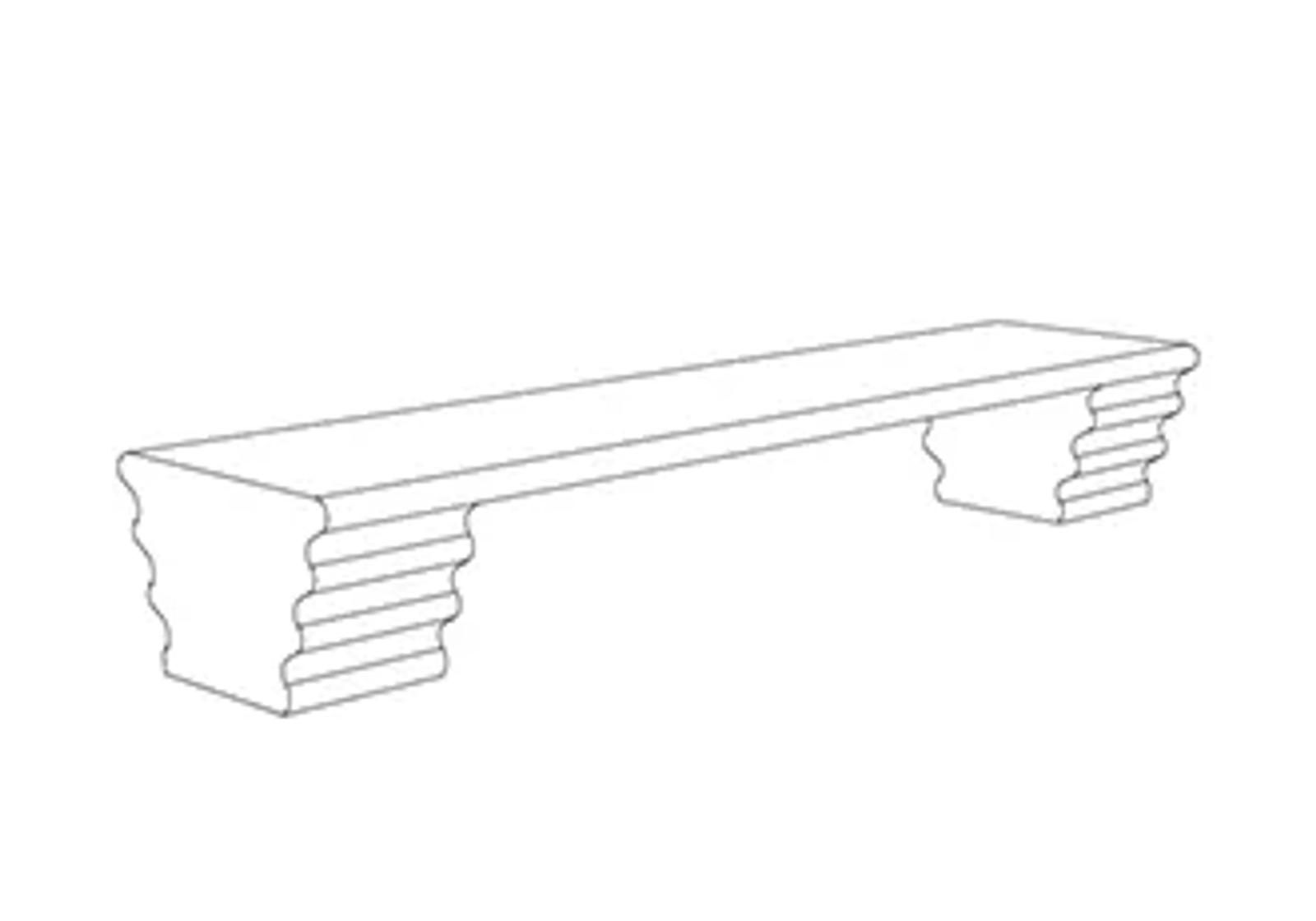

Made from moulded concrete with an etched finish. Supplied in all the Escofet standard chart colours. The solid Hebi is straight and curved and with no reinforcement. The floating Hebi is straight and curved and has stainless steel reinforcement. Hebi macizo is installed directly on the paving, with no anchors, in its straight and curved versions, while Hebi flotante is anchored at its ends by four threaded bolts and metal expansion plugs embedded in the paving or concrete slab.
specifications
- Design year
- 2003
- Designer
- ELÍAS TORRES + J.A. MARTÍNEZ-LAPEÑA
- Dimensions / specification
- 289 x 72 x 45 cm
- Weight
- 950 kg
- Dimensions / specification
- 289 x 72 x 45 cm
- Weight
- 1750 kg
- Dimensions / specification
- 306 x 108 x 45 cm
- Weight
- 1750 kg
- Dimensions / specification
- 306 x 108 x 45 cm
- Weight
- 950 kg
- Installation
- FIXED WITH SCREEWS / FREE-STANDING
- Certificates
- Environmental Product Declaration (EPD)
- Materials
- ETCHED AND WATERPROOFED CONCRETE
