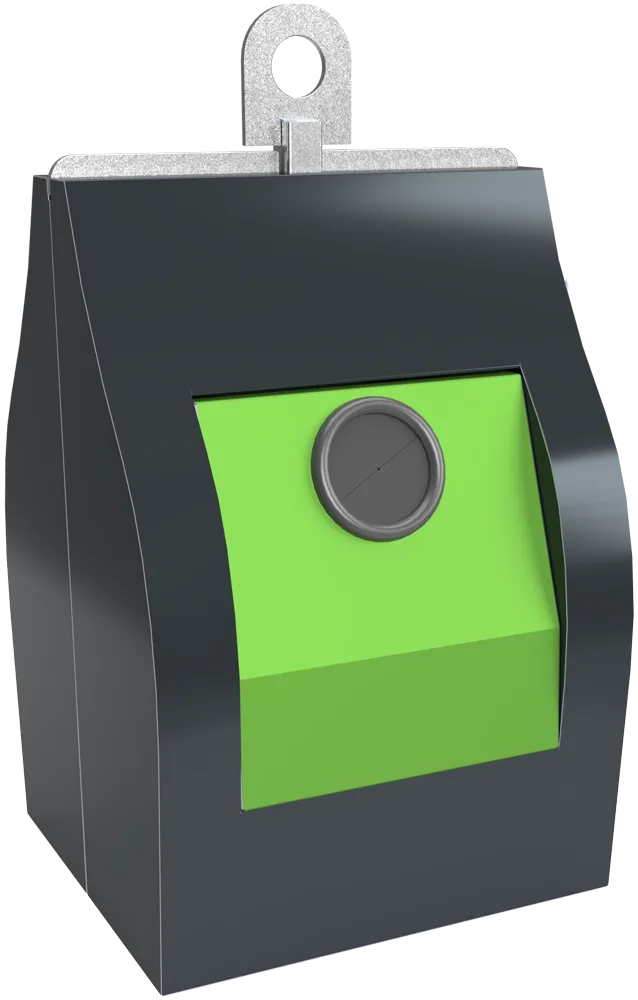

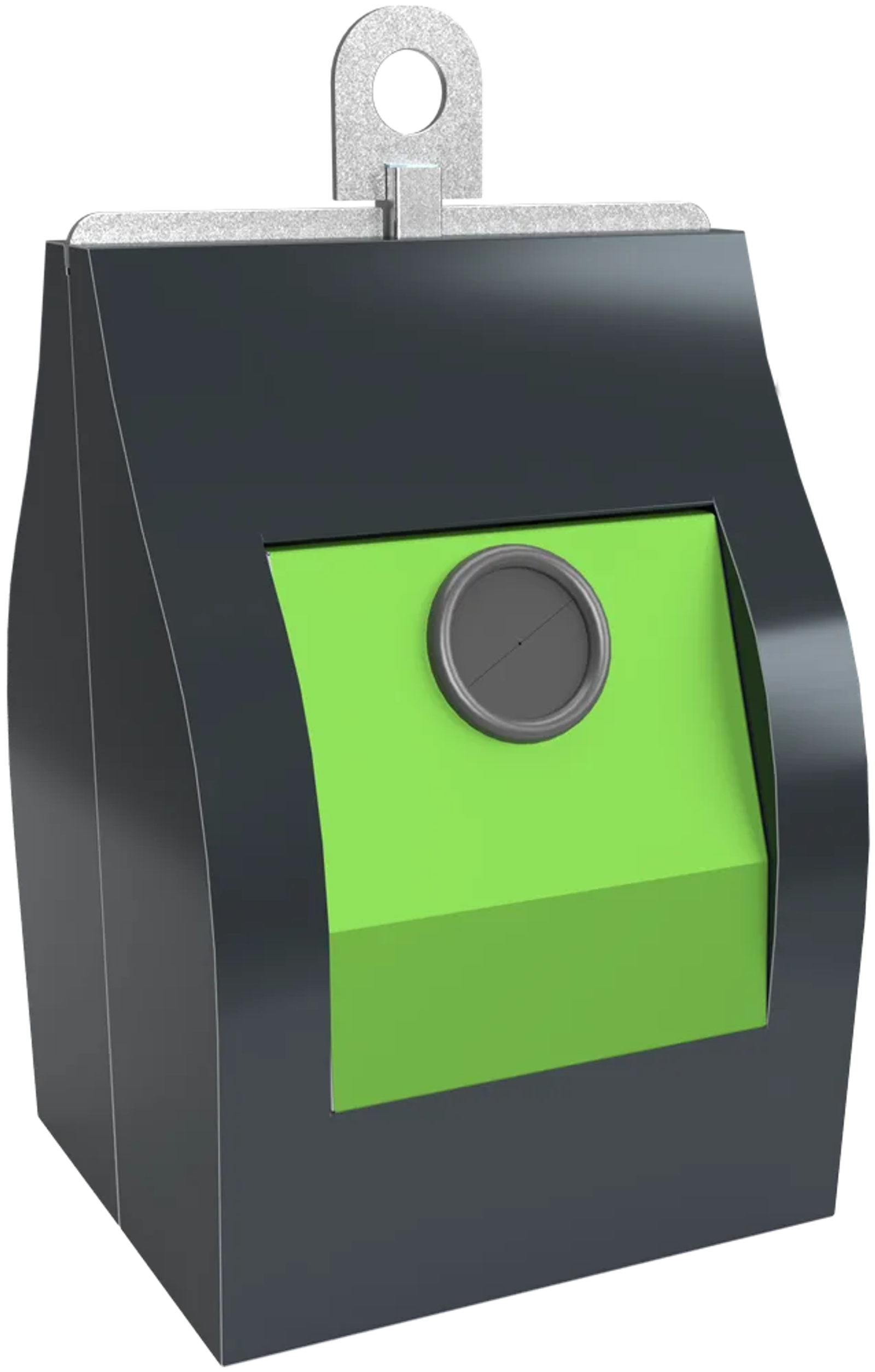

ICEBERG® MAX 4
5 m³ volume equals the capacity of 5 regular 1.100 L 4-wheel bins 66 % less space needed in comparison with regular waste deposit zones Sweeping design, robust quality ICEBERG® MAX 4 is the favorite of our customers due to its sweeping design and because it is the perfect sum of the best features of the other three Iceberg® Max pillars. BASIC CONFIGURATION Lifting device Single hook and many other options Pillar Width 800 mm Steel paint in anthracite grey matt RAL 7016 Inspection door At the rear Rectangular: 400 x 820 mm Locked by double bit captive key Slot system Glass, throw-in width 200 mm Front Panel Steel paint in yellow green RAL 6018 Position Decentralized on the pedestrian platform Optional foot pedal There are many more options of equipment, please see the datasheets.
specifications
- Width of Pillar
- 800 mm
- Certification marks
- TÜV ISO 9001, TÜV ISO 14001, TÜV OHSAS 18001
- Pillar finish
- Brushed or painted 304 stainless steel
- Pillar colour
- Anthracite grey matt RAL 7016 (steel paint)
- Front panel colour
- Yellow green RAL 6018 (steel paint)
- Standard
- NF EN 13071
Concrete container
- Width
- 1725 mm
- Depth
- 1725 mm
Concrete container 4 m³
- Height
- 2425 mm
- Weight
- 4250 kg
Concrete container 5 m³
- Height
- 2940 mm
- Weight
- 5000 kg
Inner container
- Width
- 1342 mm
- Depth
- 1342 mm
- Material
- Steel
Inner container 3 m³
- Useful load
- 3.2 m³
- Height
- 1691 mm
- Weight
- < 605 kg
Inner container 4 m³
- Useful load
- 4 m³
- Height
- 2251 mm
- Weight
- < 635 kg
Inner container 5 m³
- Useful load
- 4.7 m³
- Height
- 2811 mm
- Weight
- < 665 kg
