Prisma

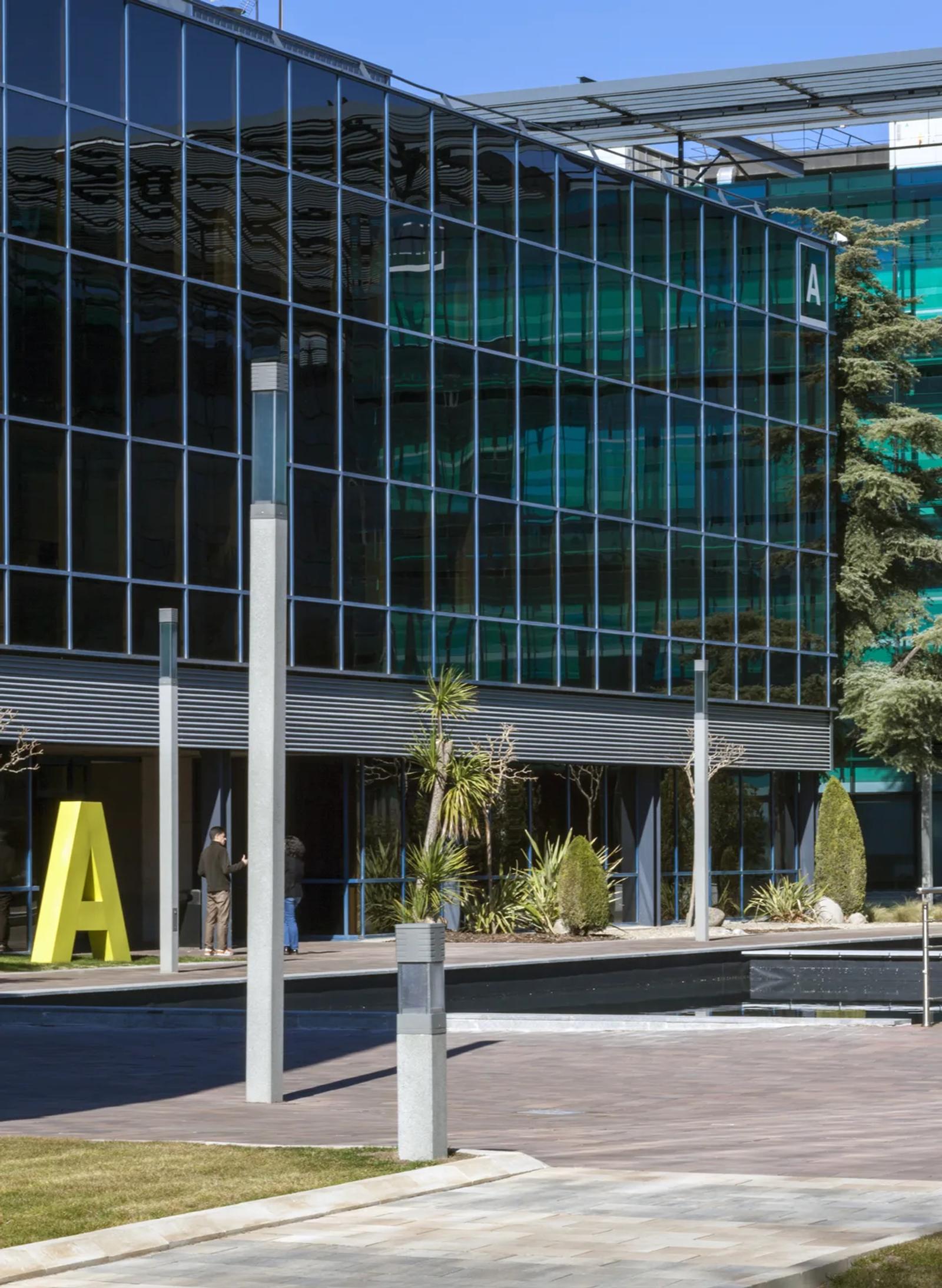

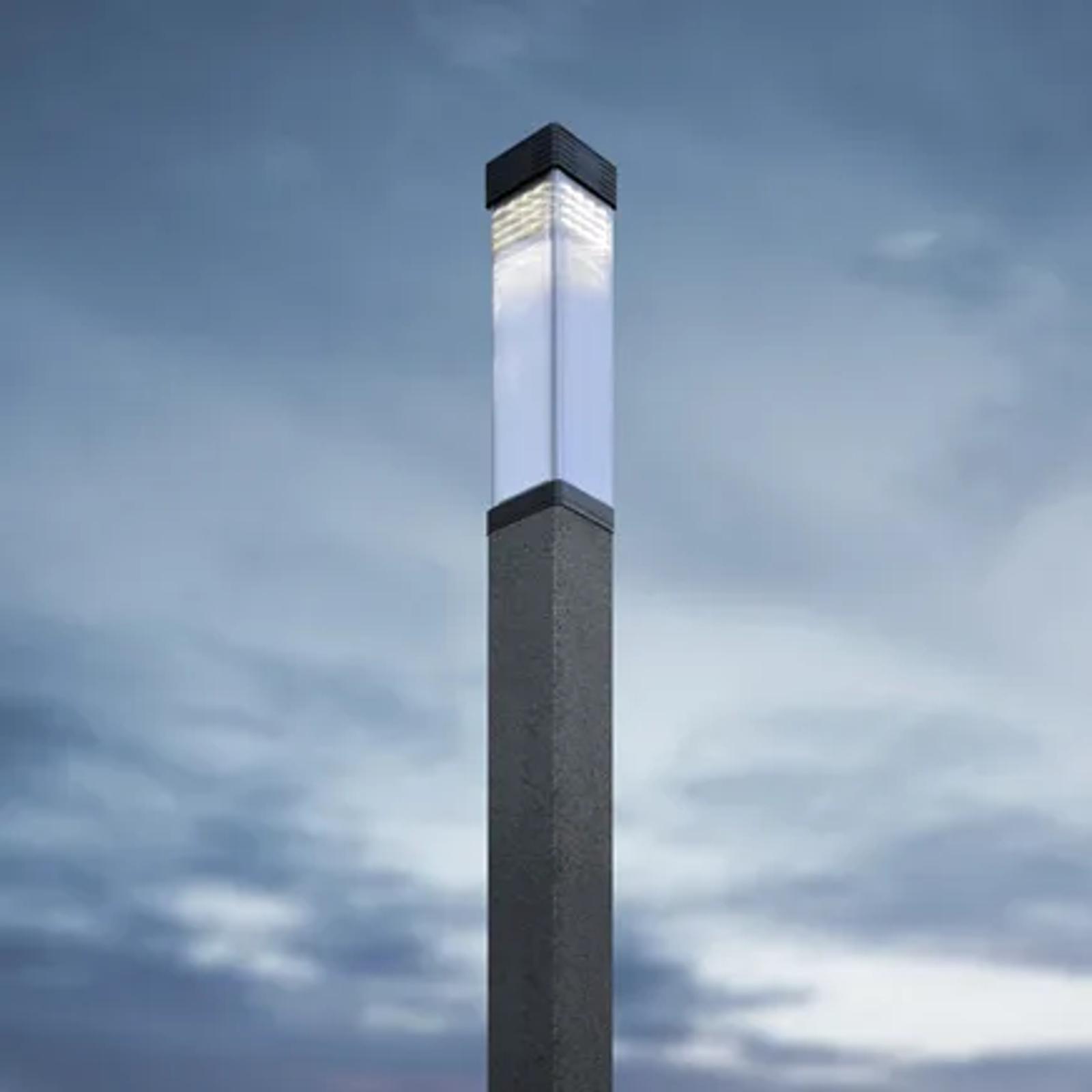

A collection comprising two columns and one ambient lighting beacon designed for public spaces, distinguished by its slender prismatic geometry.

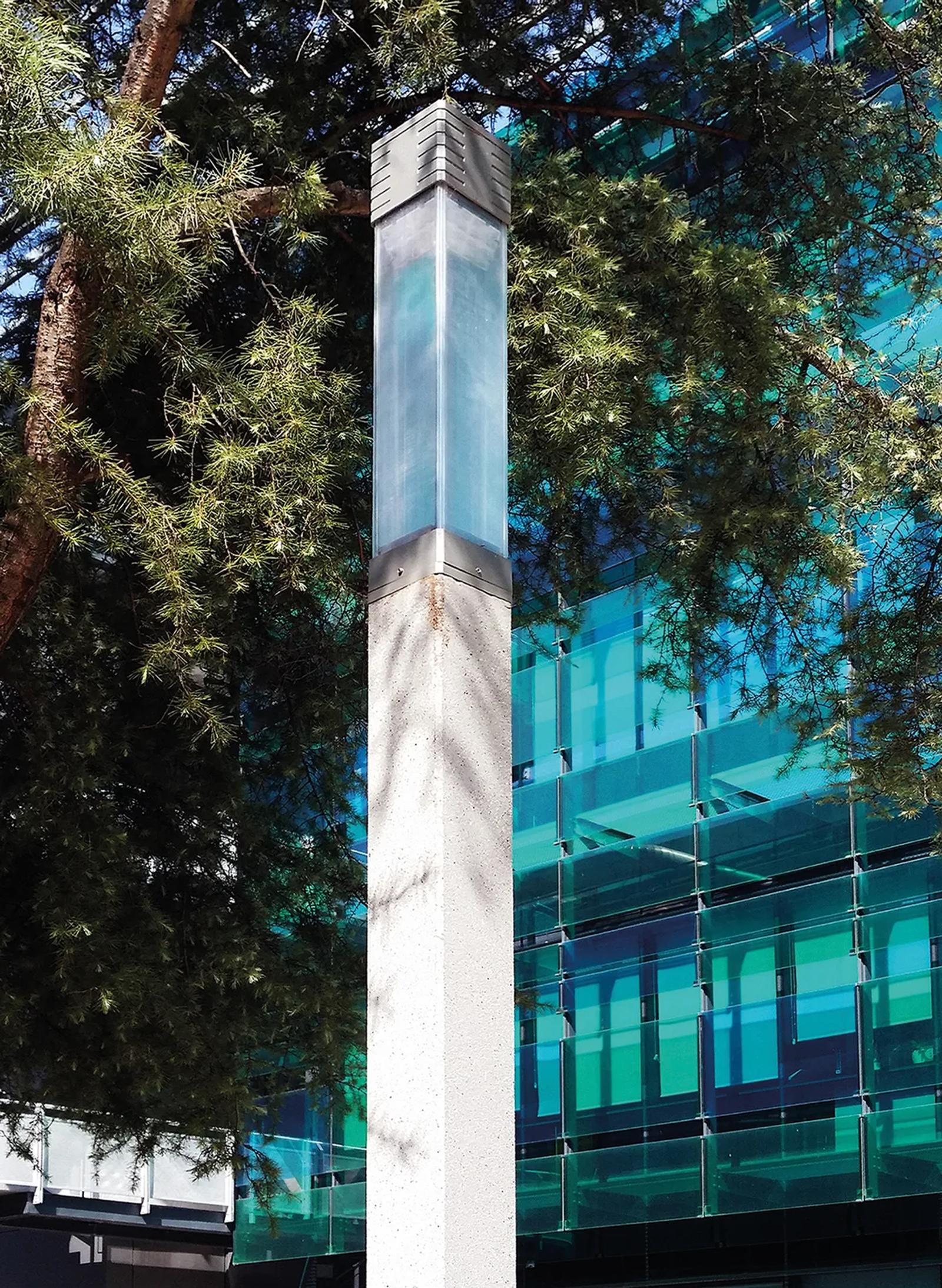

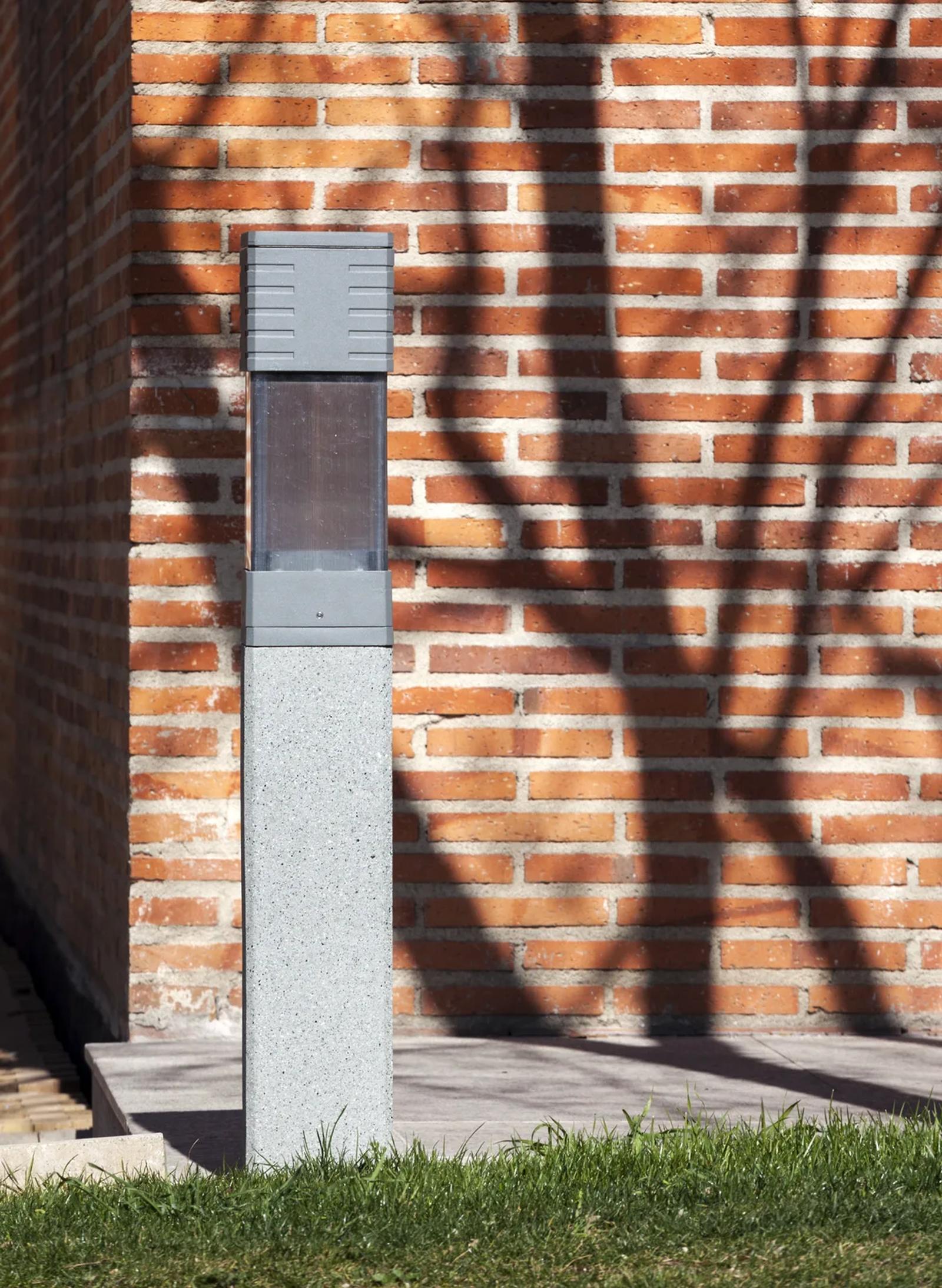

Prisma easily blends into the landscape, with two optional materials for the column: concrete or steel. The lamp holder has an extruded polycarbonate diffuser that deflects the light flow, giving it an attractive beacon-like effect in addition to its main lighting function.

Prisma was created as a technological review of a classic model from 1991, originally supplied only in concrete and wood. Beacon-like effect with a minimum UHF coefficient of 2.48 %. IP65 seal, IP67 LED equipment, IK09 protection against impacts and protection against transient overvoltages.

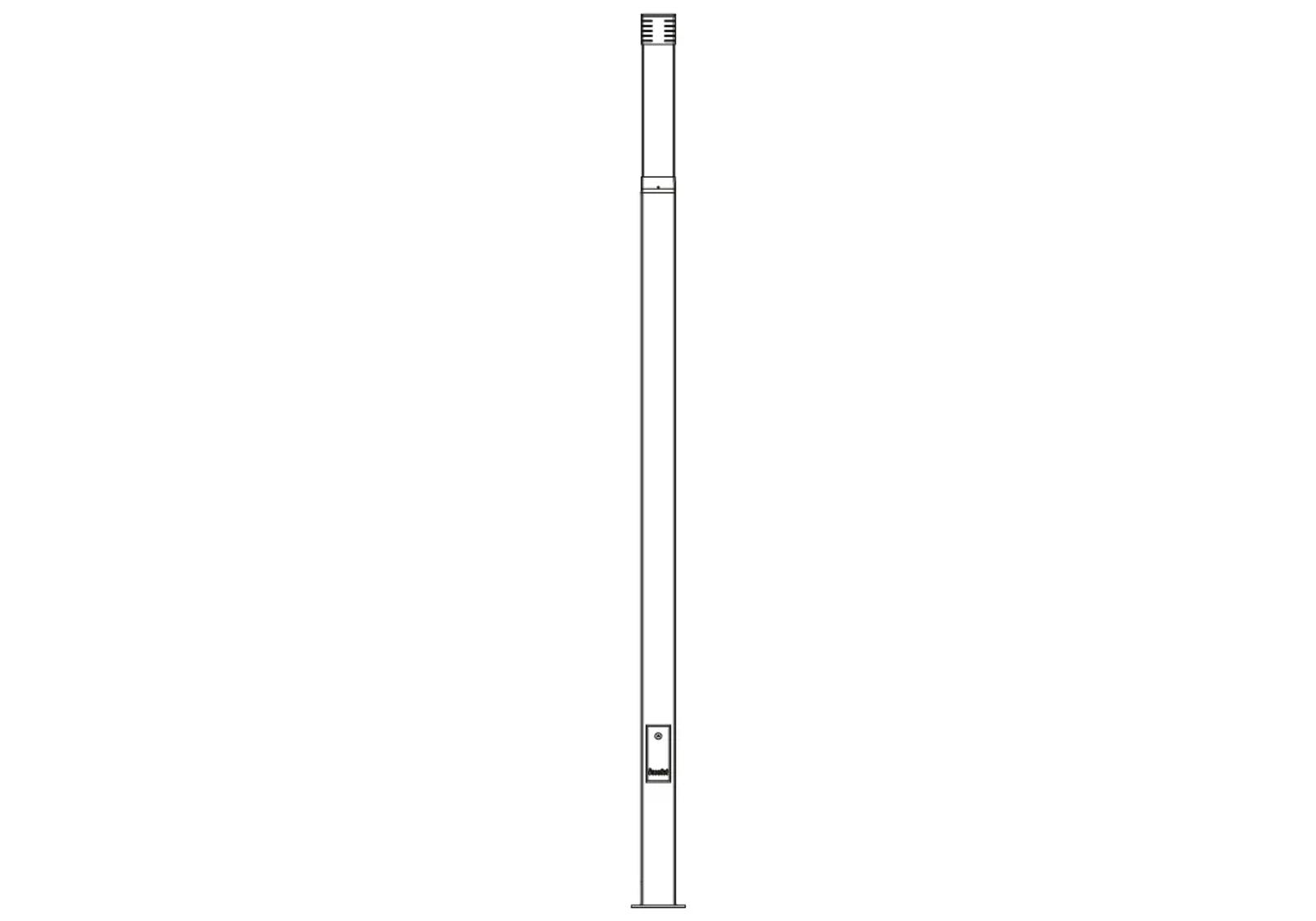

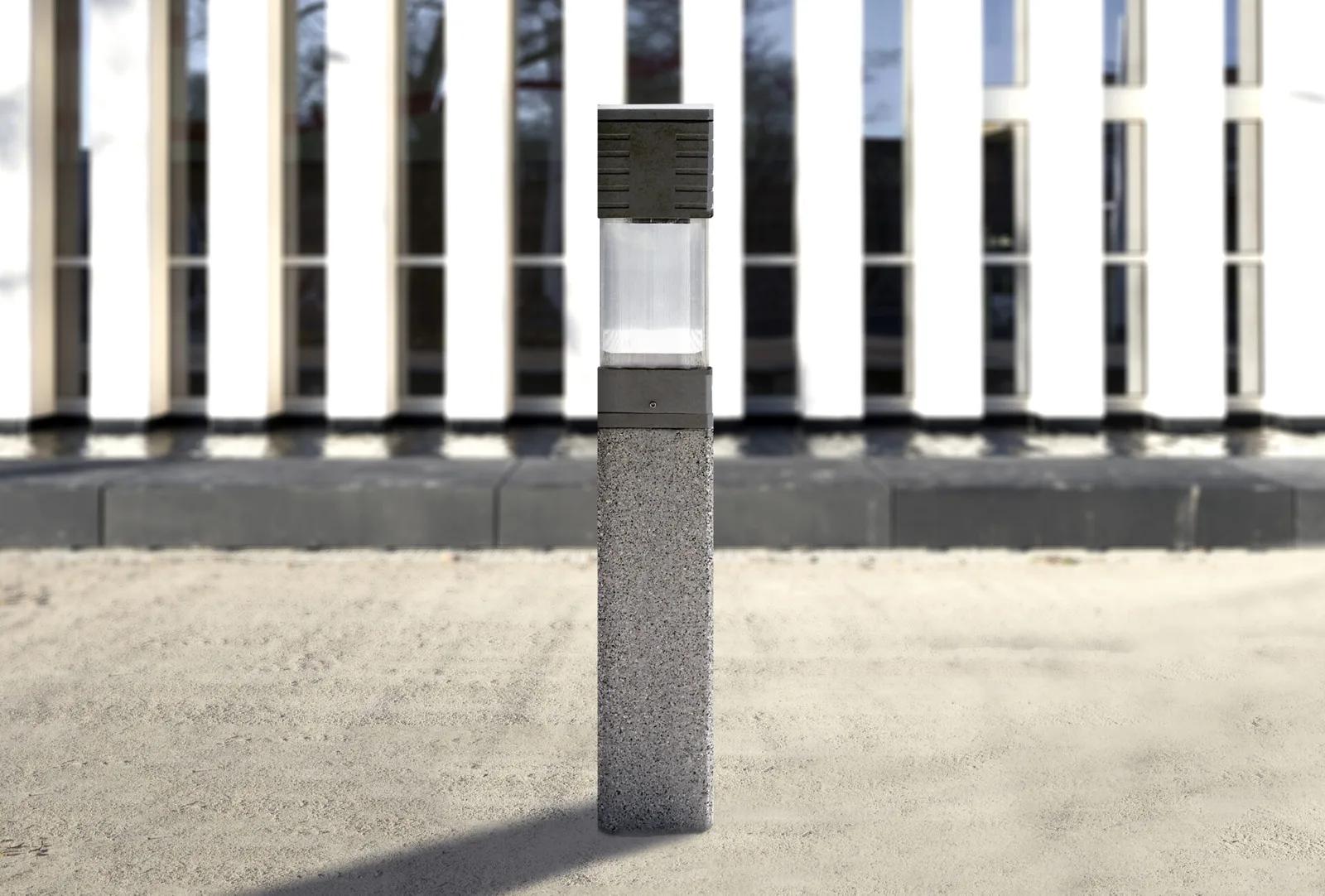

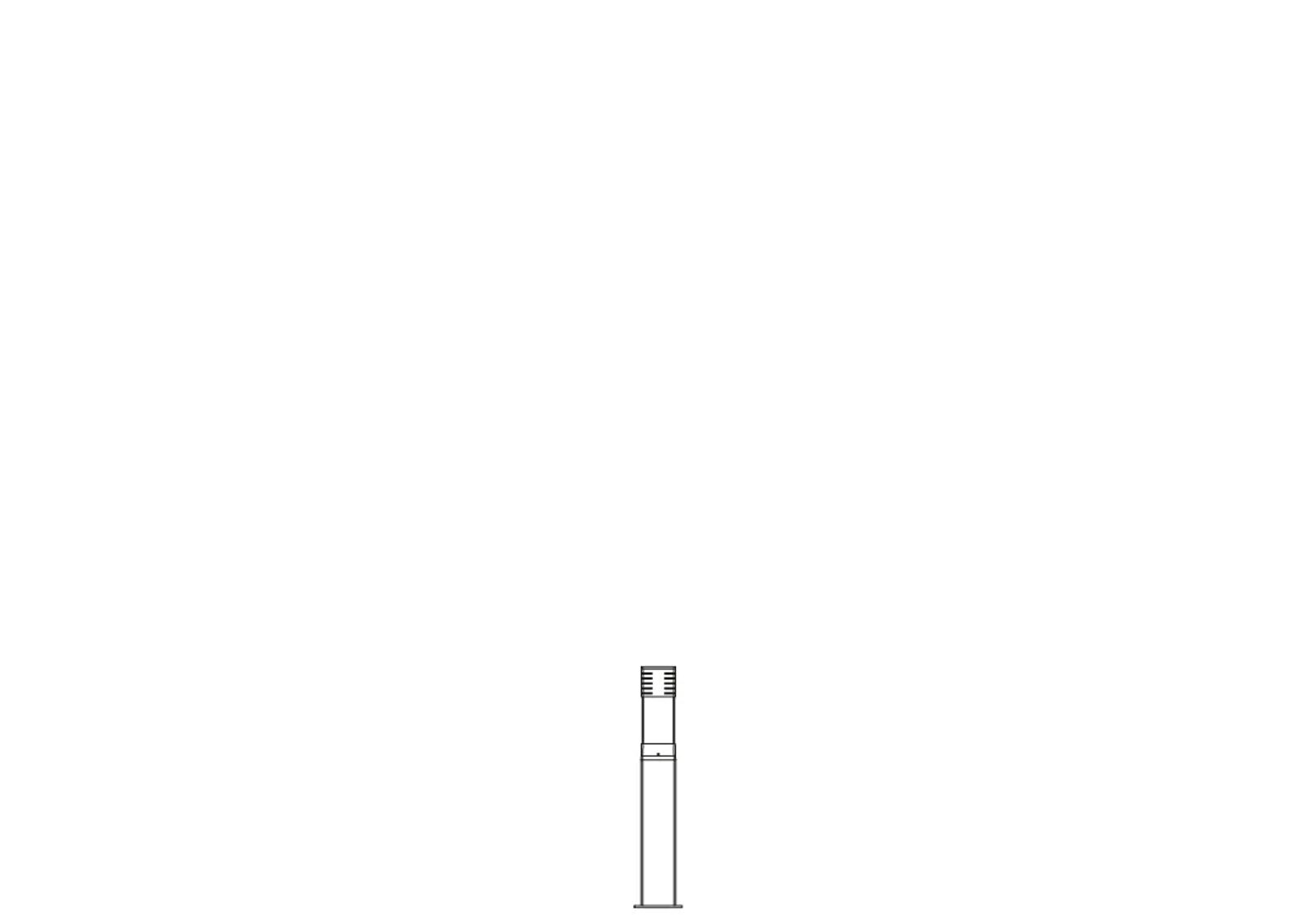

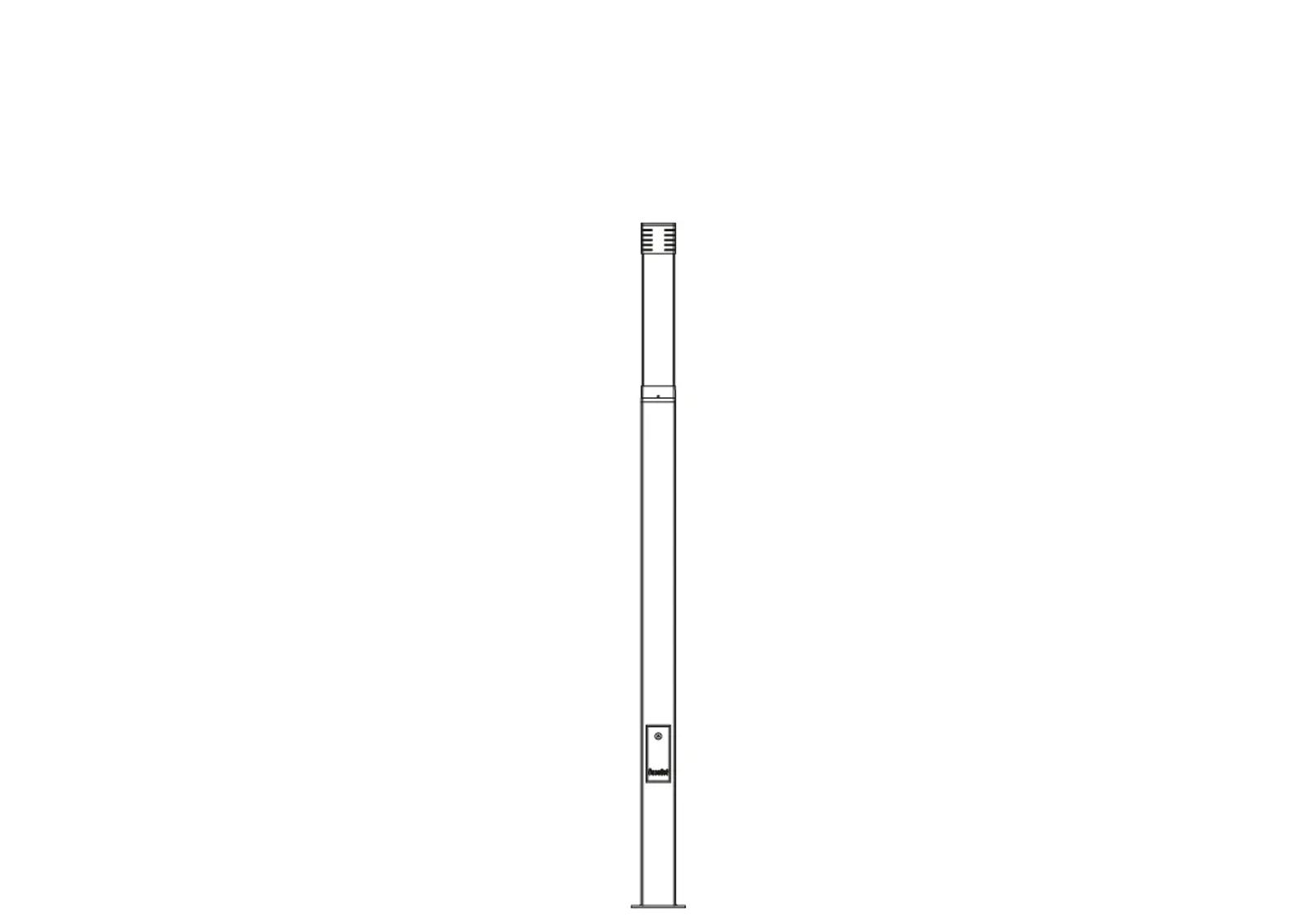

in three heights and with a common cross section of 16 x 16 cm: Prisma 420, Prisma 320 and Prisma 100, with two material options: grey reinforced concrete with an etched, water-repellent finish; or zinc plated steel with a textured silver paint finish. Lamp holder with a cast aluminium base and top cover and an extruded clear polycarbonate diffuser with an internal microgroove. LED 700 mA 38 V module for Prisma 420 and Prisma 320 and LED 500 mA 29 V module for Prisma 100.

All three column models share a stainless steel anchor plate measuring 22 x 22 cm which is anchored below the paving to the concrete foundation with the recommended generic dimensions. Must be unloaded and handled with slings.
