Recycling station

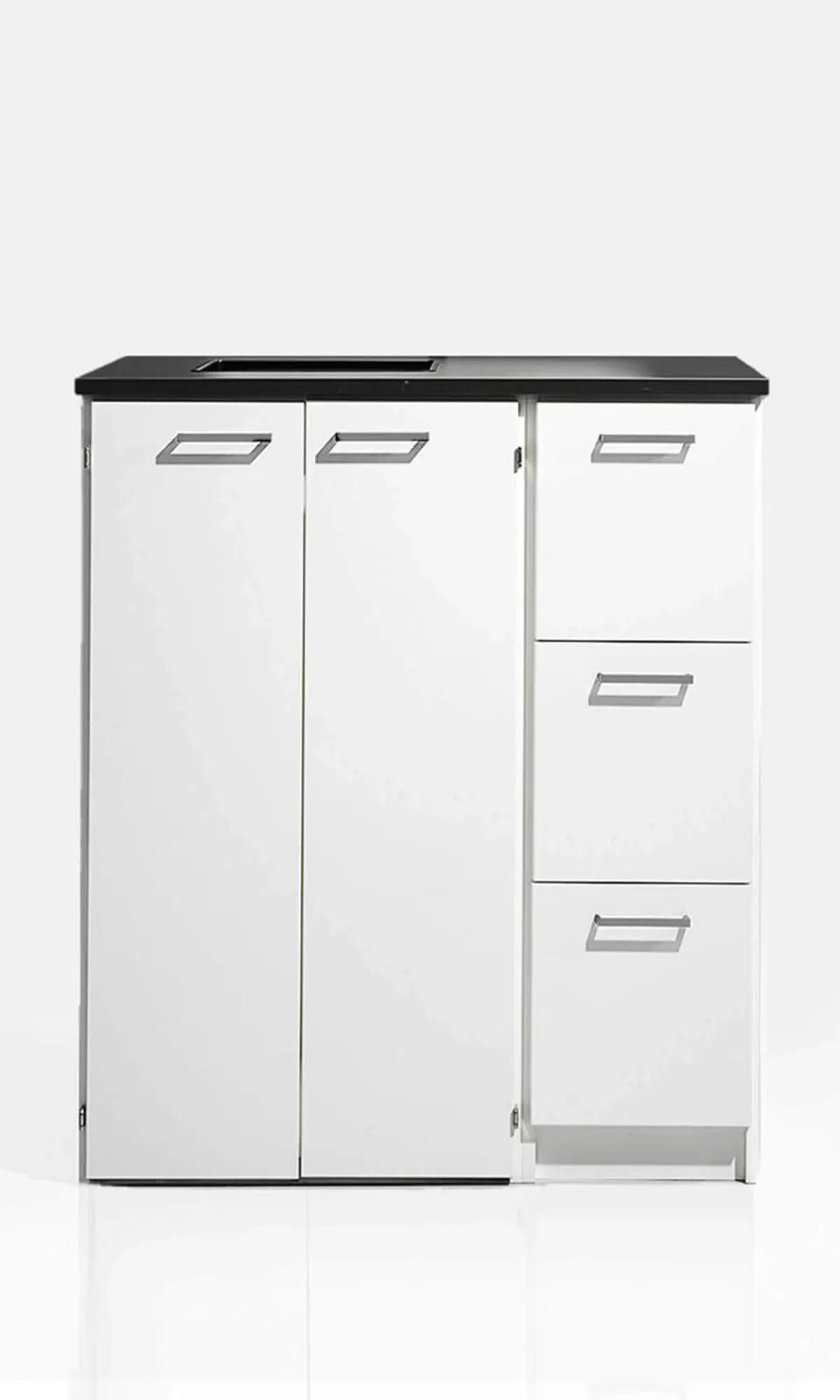

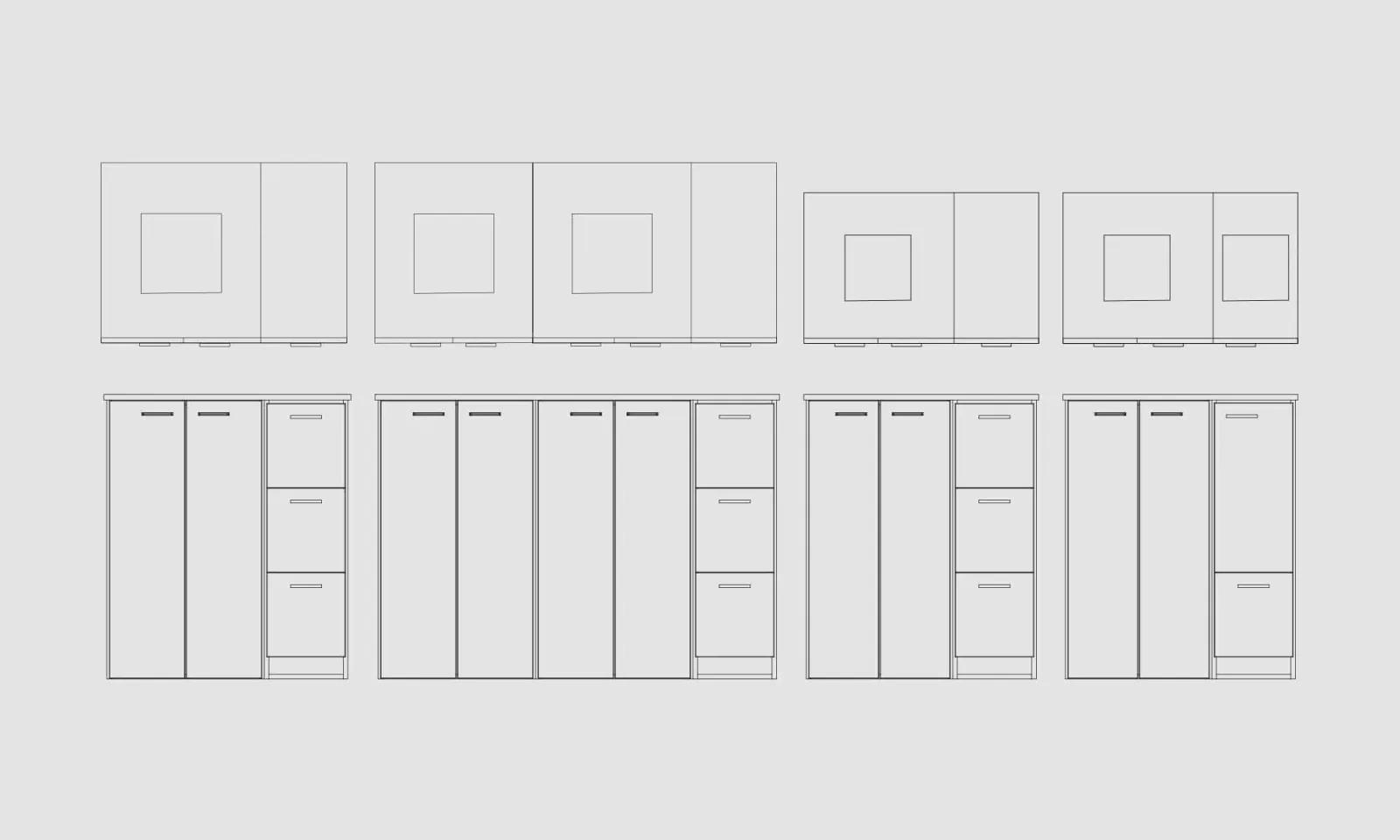

Recycling stations are ready-made combinations with worktop and inlet included Ready combined recycling stations that cover the entire waste sorting for both large and small offices. Frames and doors in standard white and worktops in high-pressure laminate, anthracite. Stainless steel handles are standard. All drawers with soft closing and full extension that can withstand loads up to 35 kg. There are four ready combined recycling stations. Recycling station 2 is shown in the picture above. Complete with environmental symbols and suitable containers from our range of accessories. If you prefer to combine your own station, see modules under CombiLine Recycling Unit. Available as standard in white laminate. It is also available in beech, birch and oak, as well as in other materials on request. This product is Möbelfakta-certified and meets Möbelfakta’s requirements for quality, the environment and responsible supply chains.
specifications
- Specification
- Back, frame, doors and edging strips have matching colours/wood as other parts, unless otherwise stated.
- MFC laminate
- White, beech, birch and oak.
- Frame
- 19 mm, 0.8 mm straight ABS edging
- Fronts
- 16 mm, 2 mm straight ABS edging
- Back
- 12 mm, MFC inside and outside
- Plinth height
- 157 mm
- Plinth front
- 75 mm
- Plinth
- Pulled in plinth at the front and rear with 4x adjustable feet that are integrated (does not apply to recycling units with loading ramps). Can be replaced with adjustable legs in stainless steel, adjustable or lockable wheels, height 104 mm.
- Doors
- Self-closing and concealed hinges with integrated door dampers (does not apply to products with aximat hinges with 180° opening). Single doors are right-hung as standard.
- Drawers
- Dampers in drawers depth 570 mm.
- Specification
- 100% extension, max 35 kg
- Specification
- 100% extension, max 65 kg
- Handles
- Stainless steel handles c/c 128 mm as standard. Alternatively grip handles 40 mm or knobs 19 mm in diameter.
- Lock types
- Cabinet locks, padlock fittings, code locks and RFID locks (EM & Mifare).
- Size

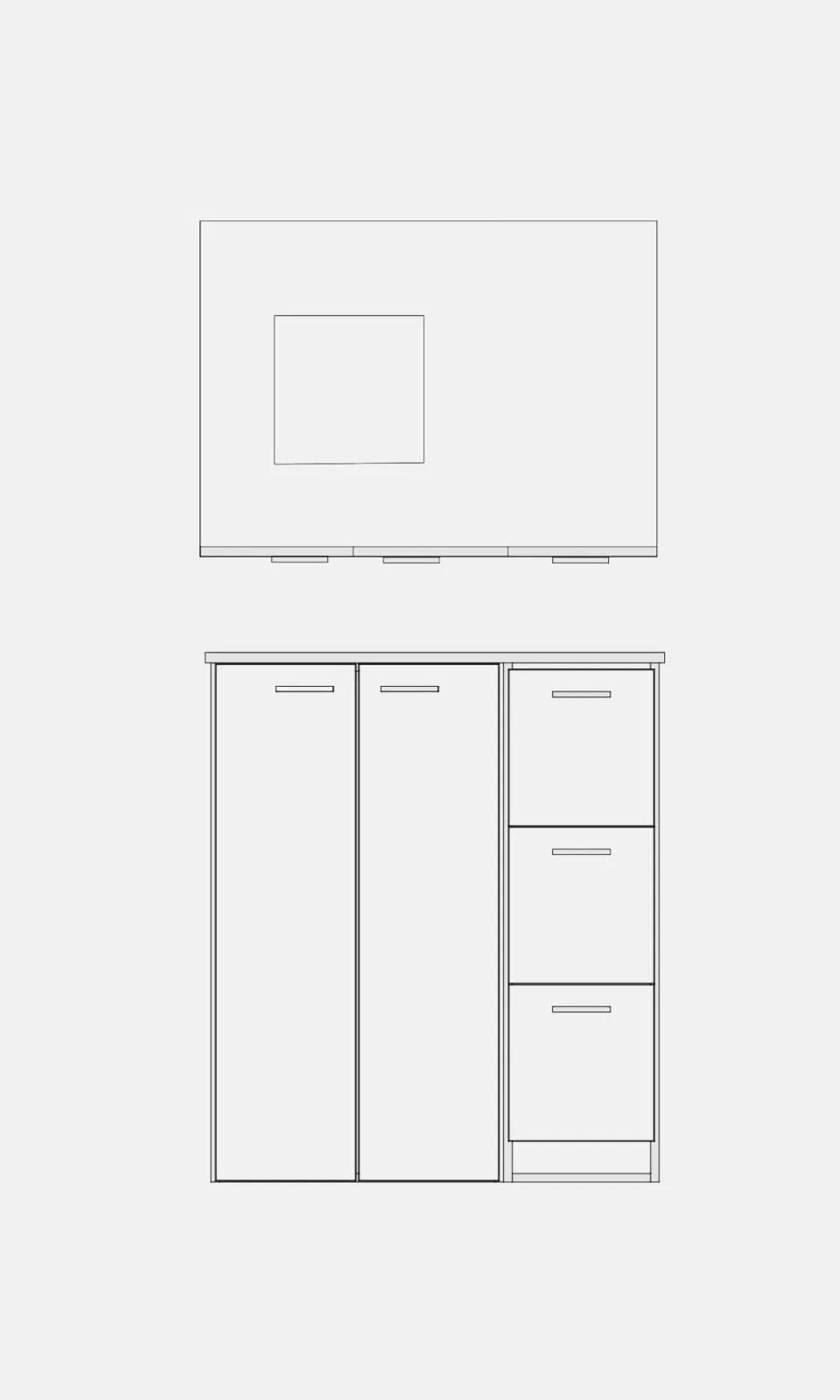

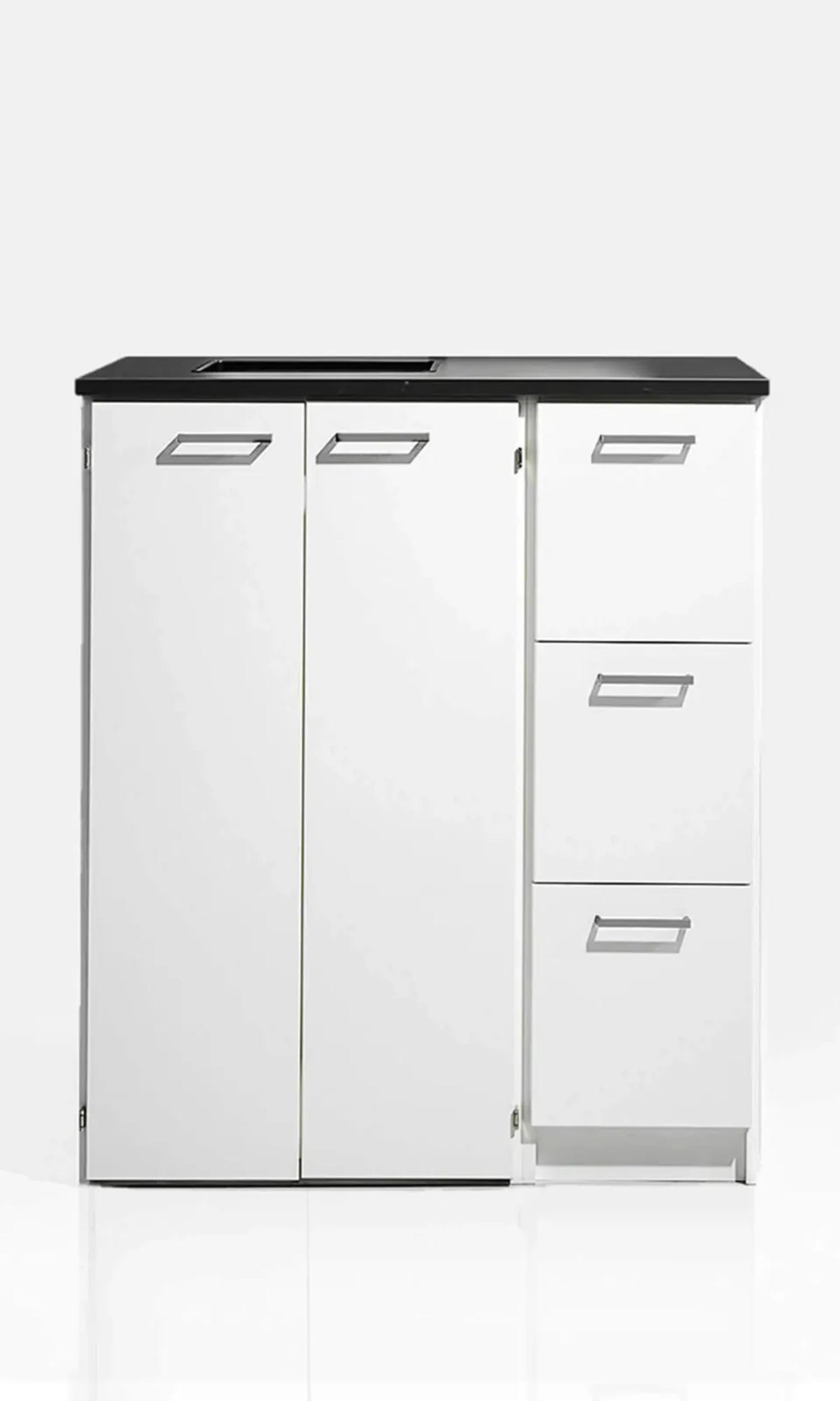

- 1020x1174x760 mm

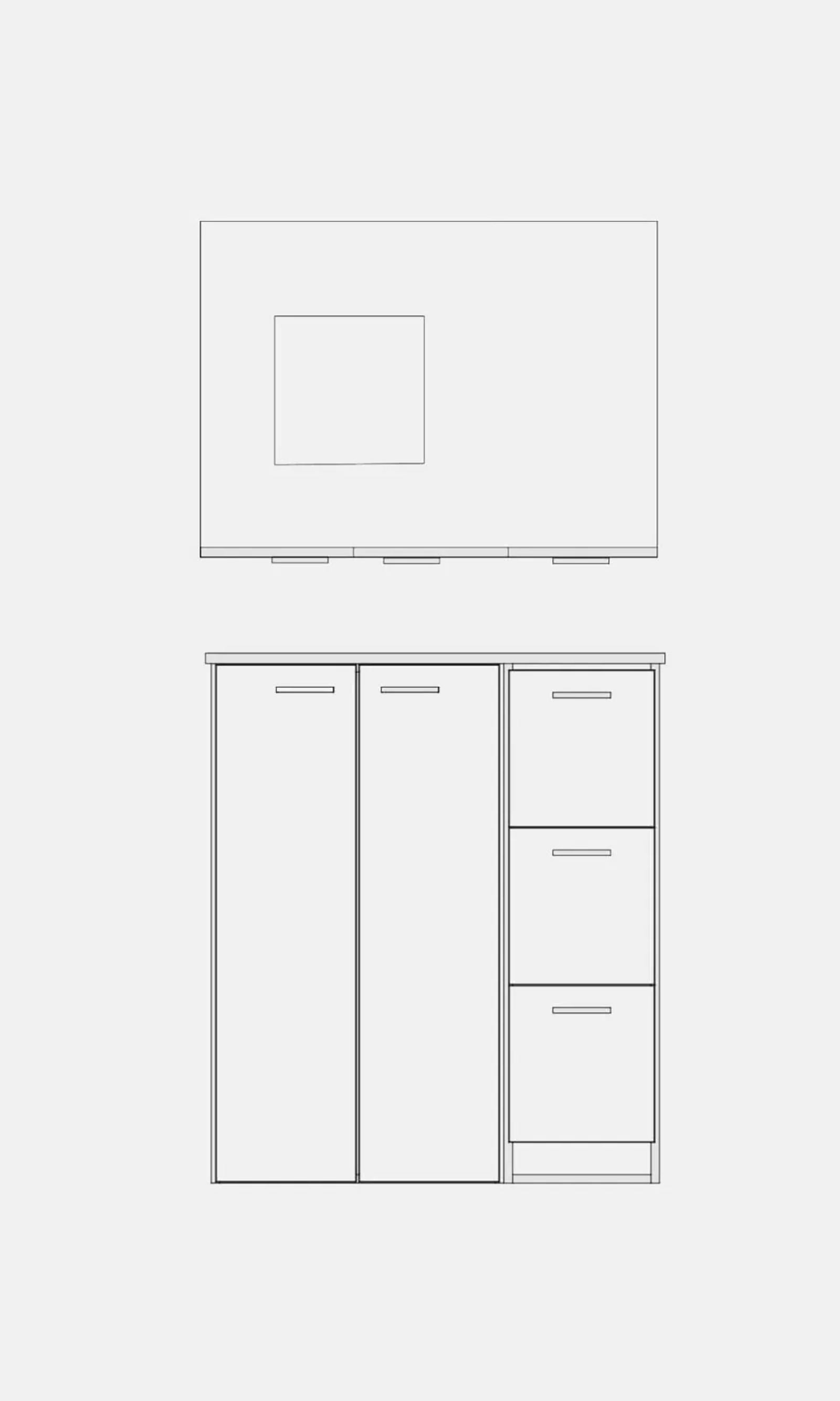

- Configuration
- with inlet in black powder coated steel, 350×350 mm in the worktop. 3x high drawers with 100% extension with a maximum load of 35 kg. 1x pair of doors with aximate hinges that can be opened 180 degrees. Base with access ramp in stainless steel for easy emptying of bin containers. The station is adapted for 190 liter bin containers/carts and 19 + 10 liter containers.
- Size

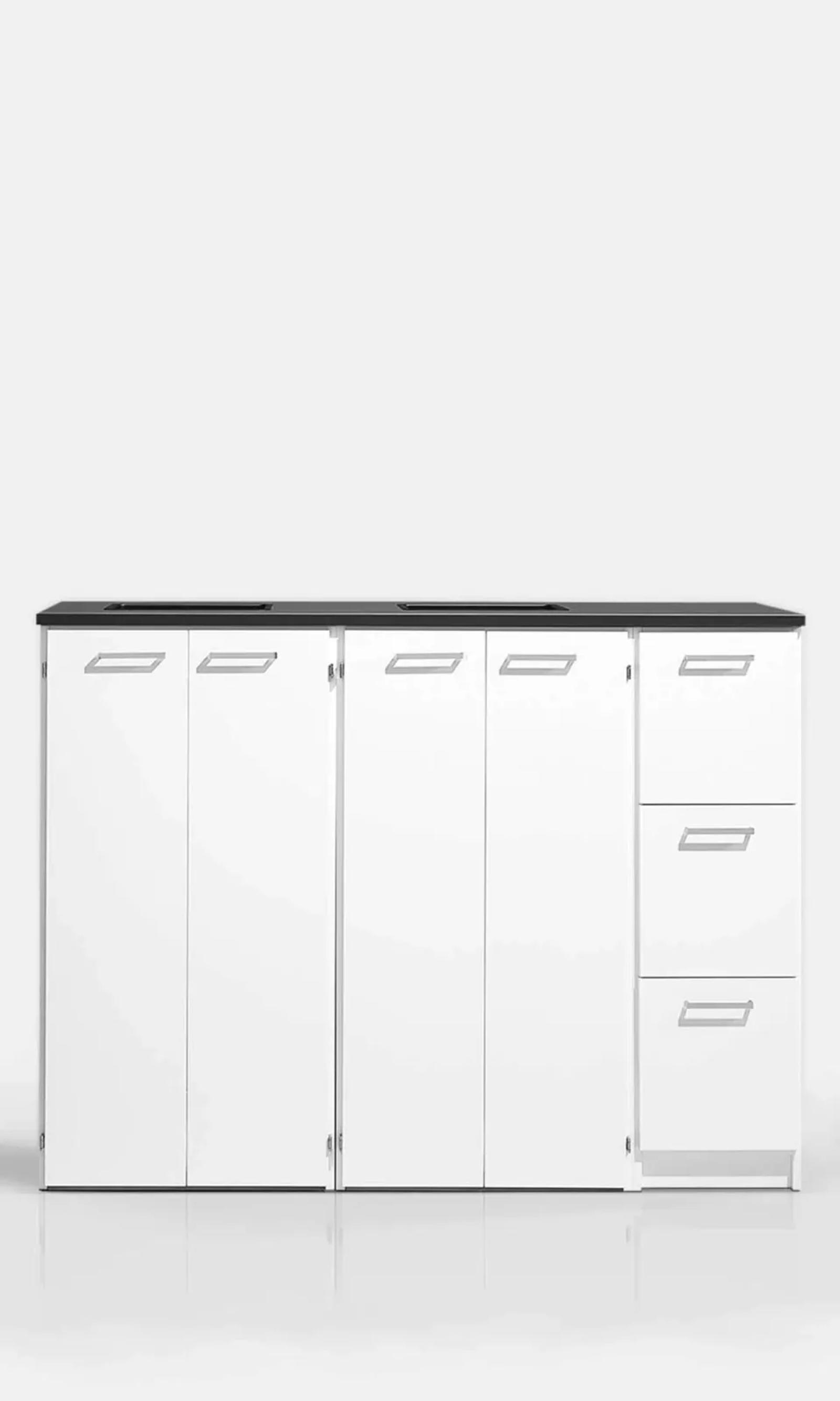

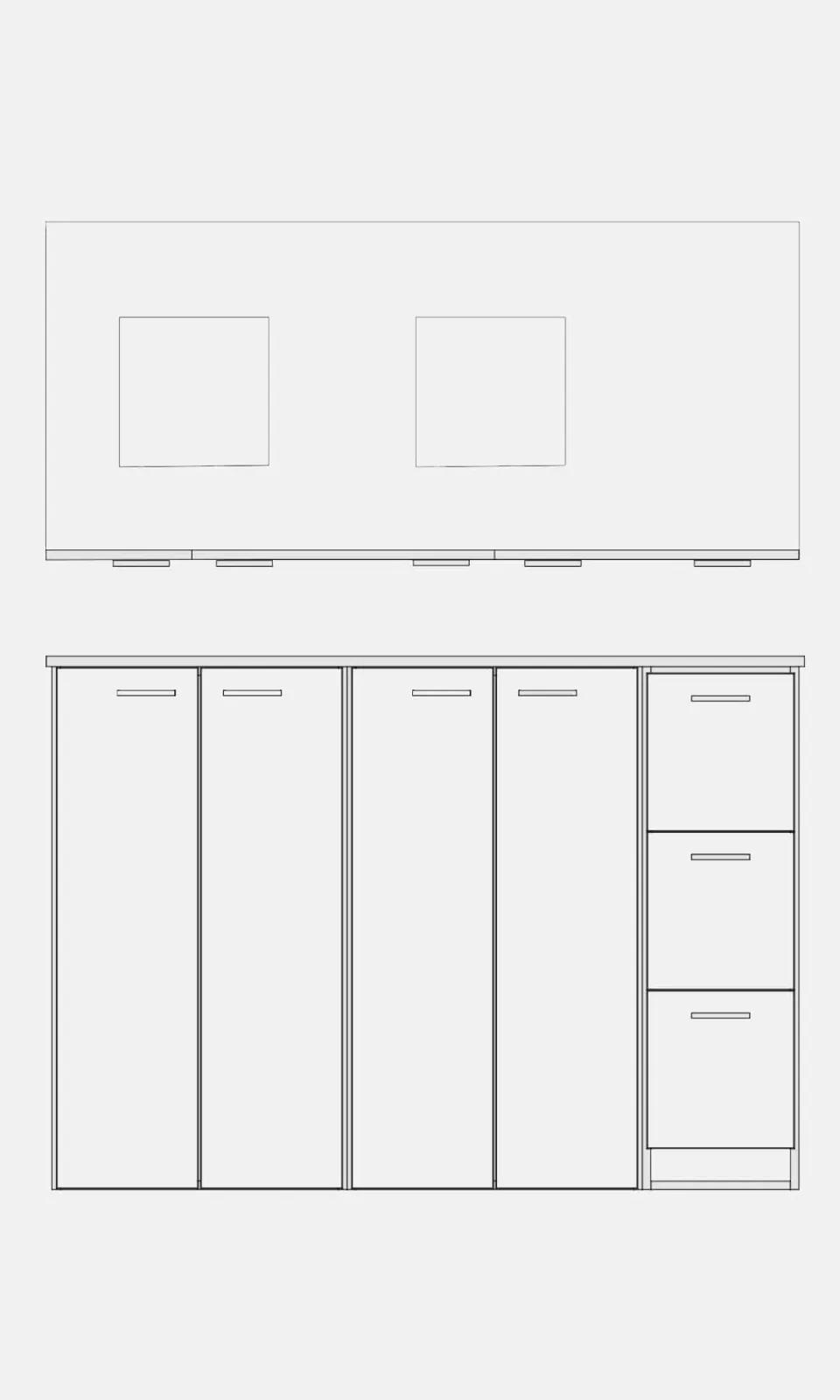

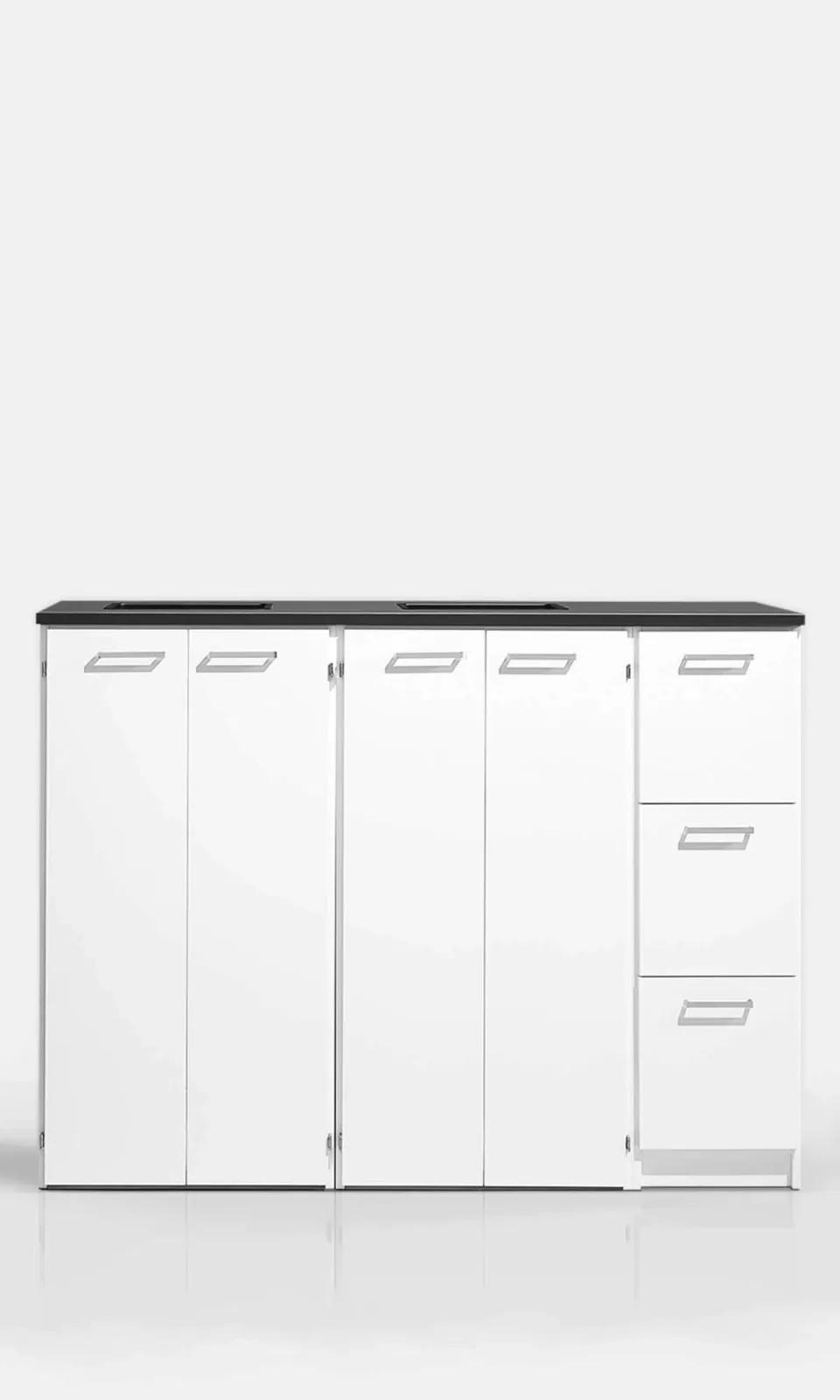

- 1670x1174x760 mm

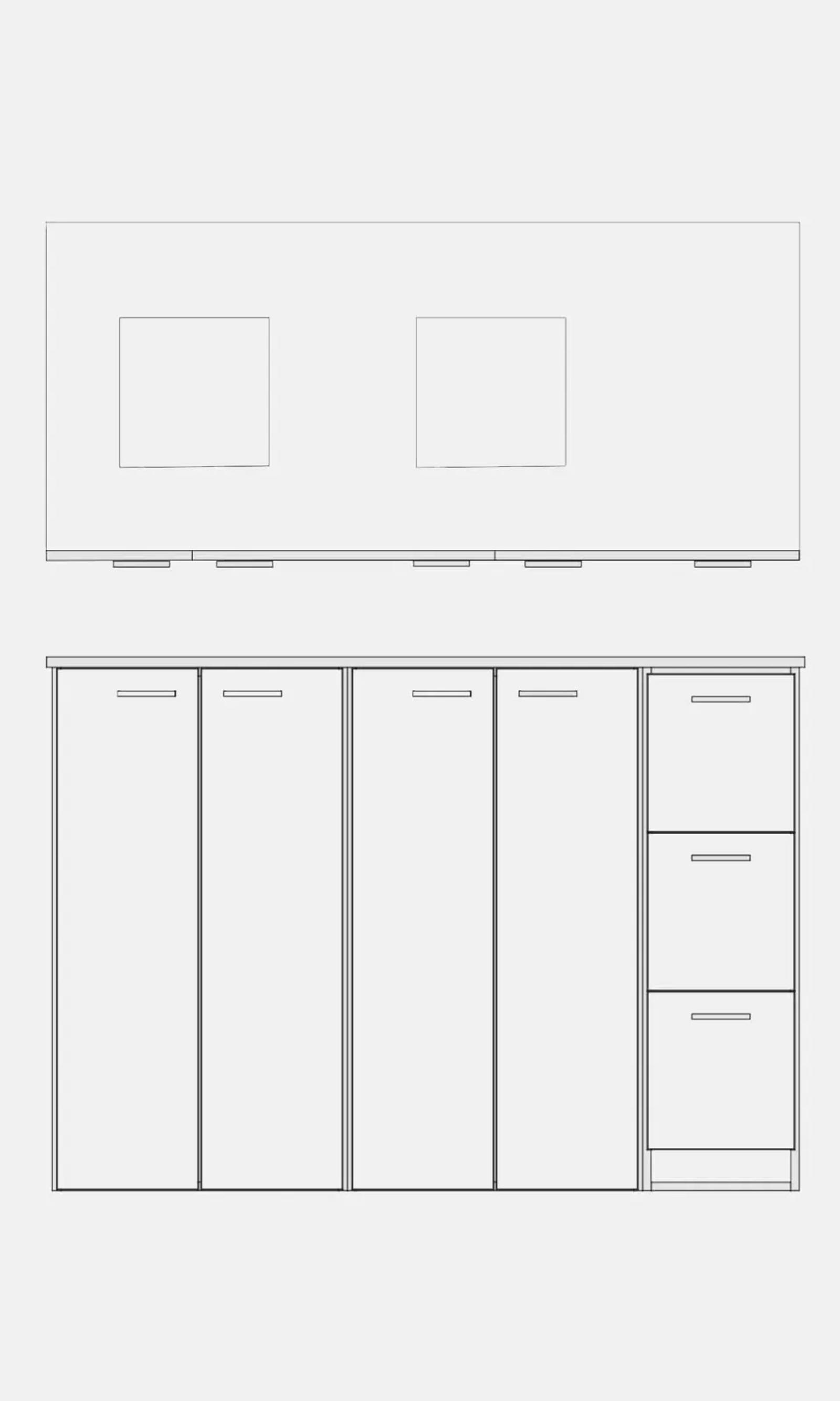

- Configuration
- with 2x inlets in black powder coated steel, 350×350 mm in the worktop. 3x high drawers with 100% extension with a maximum load of 35 kg. 2x pair of doors with aximate hinges that can be opened 180 degrees. Base with access ramp in stainless steel for easy emptying of bin containers. The station is adapted for 190 liter bin containers/carts and 19 + 10 liter containers.
- Size

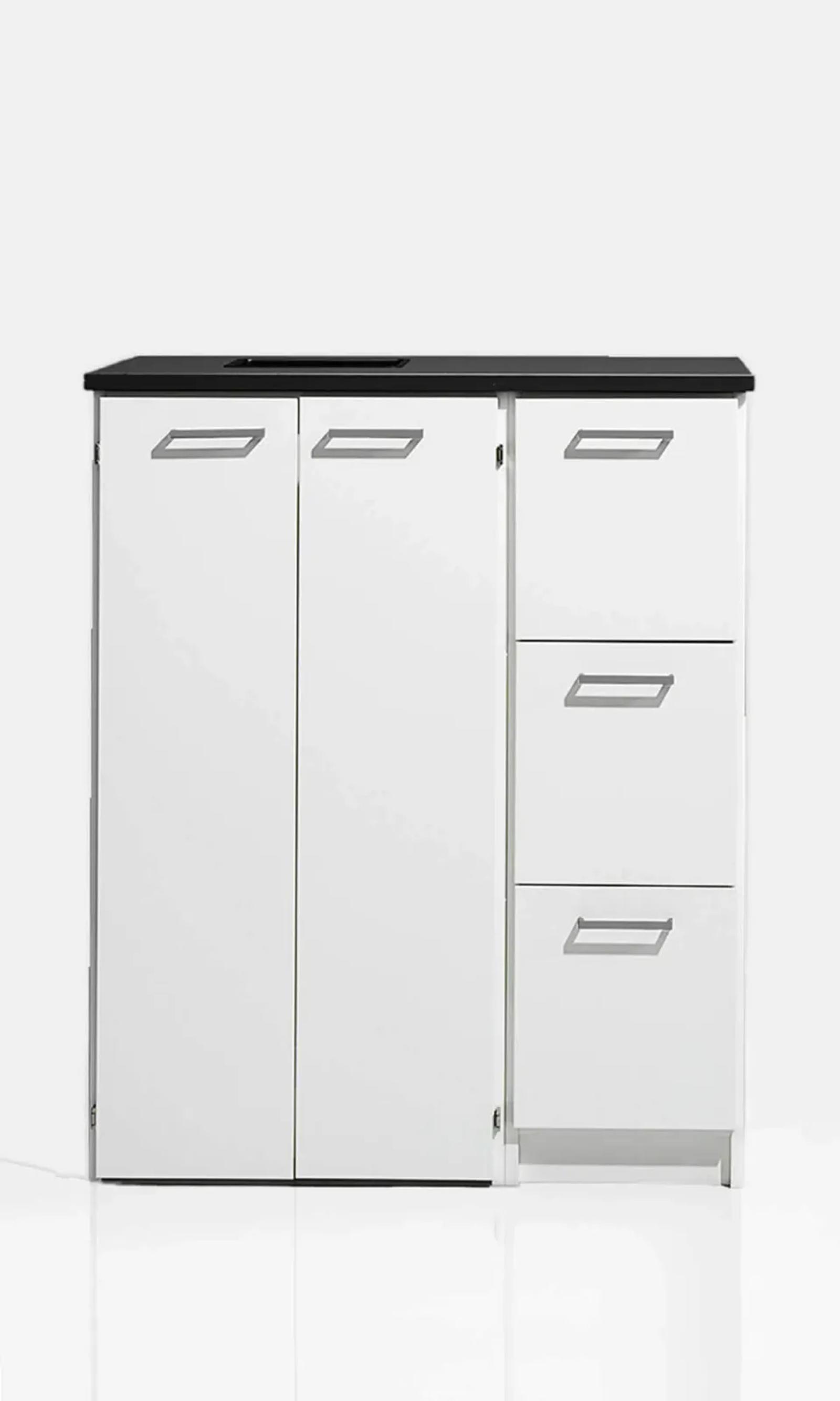

- 970x1174x600 mm

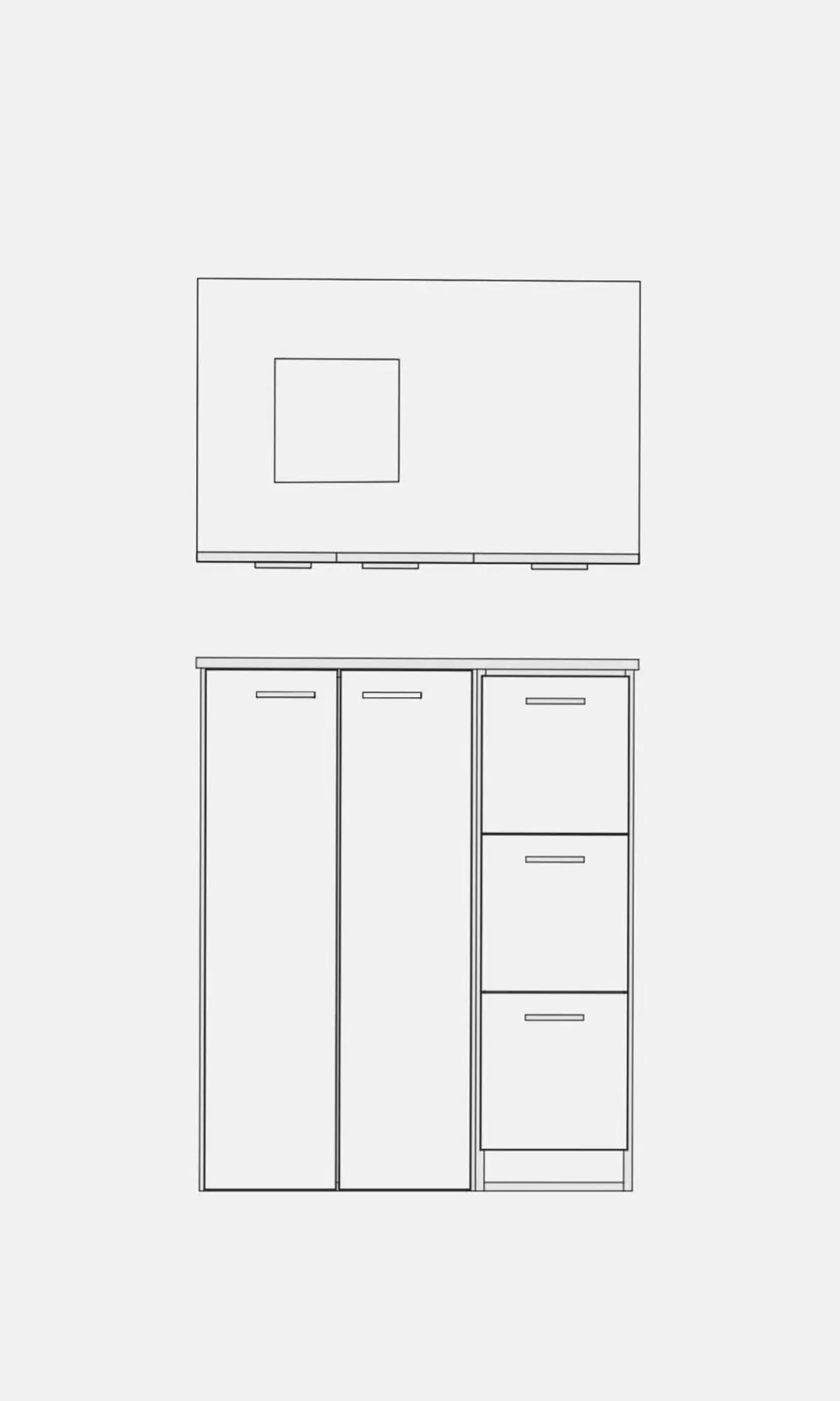

- Configuration
- with inlet in black powder coated steel, 250×250 mm in the worktop. 3x high drawers with 100% extension with a maximum load of 35 kg. 1x pair of doors with aximate hinges that can be opened 180 degrees. Base with access ramp in stainless steel for easy emptying of bin containers. The station is adapted for 140 liter bin containers/carts and 19 + 10 liter containers.
- Size

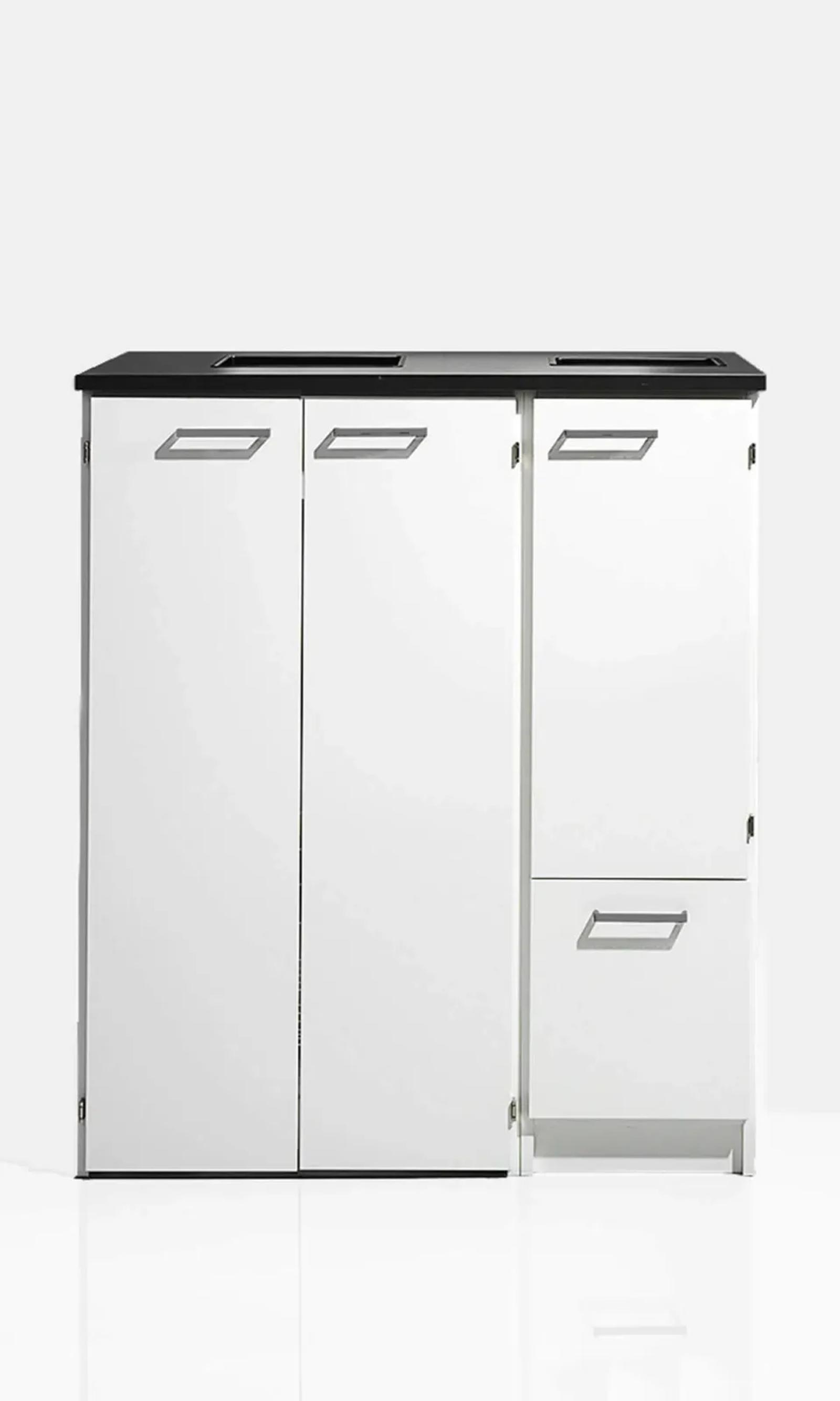

- 970x1174x600 mm

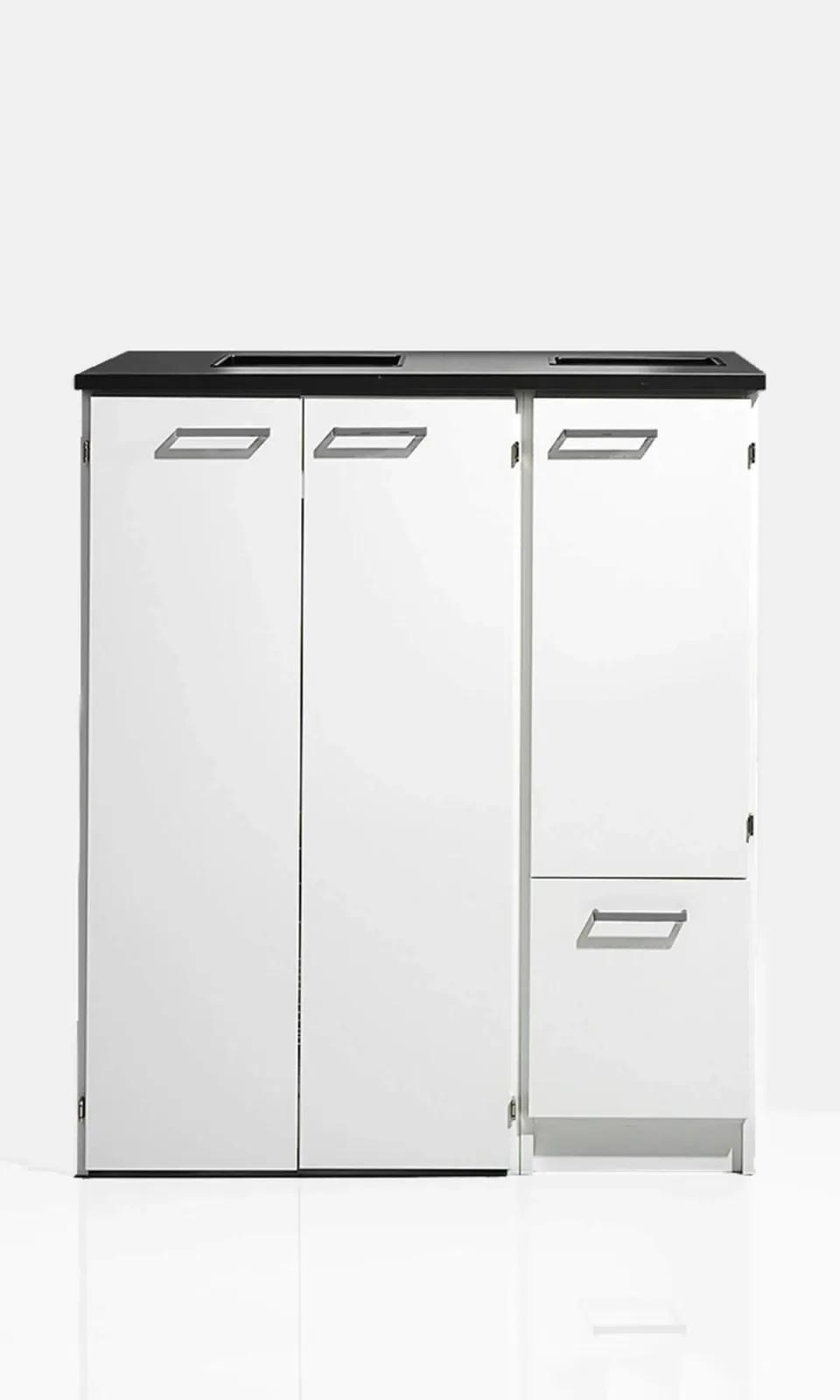

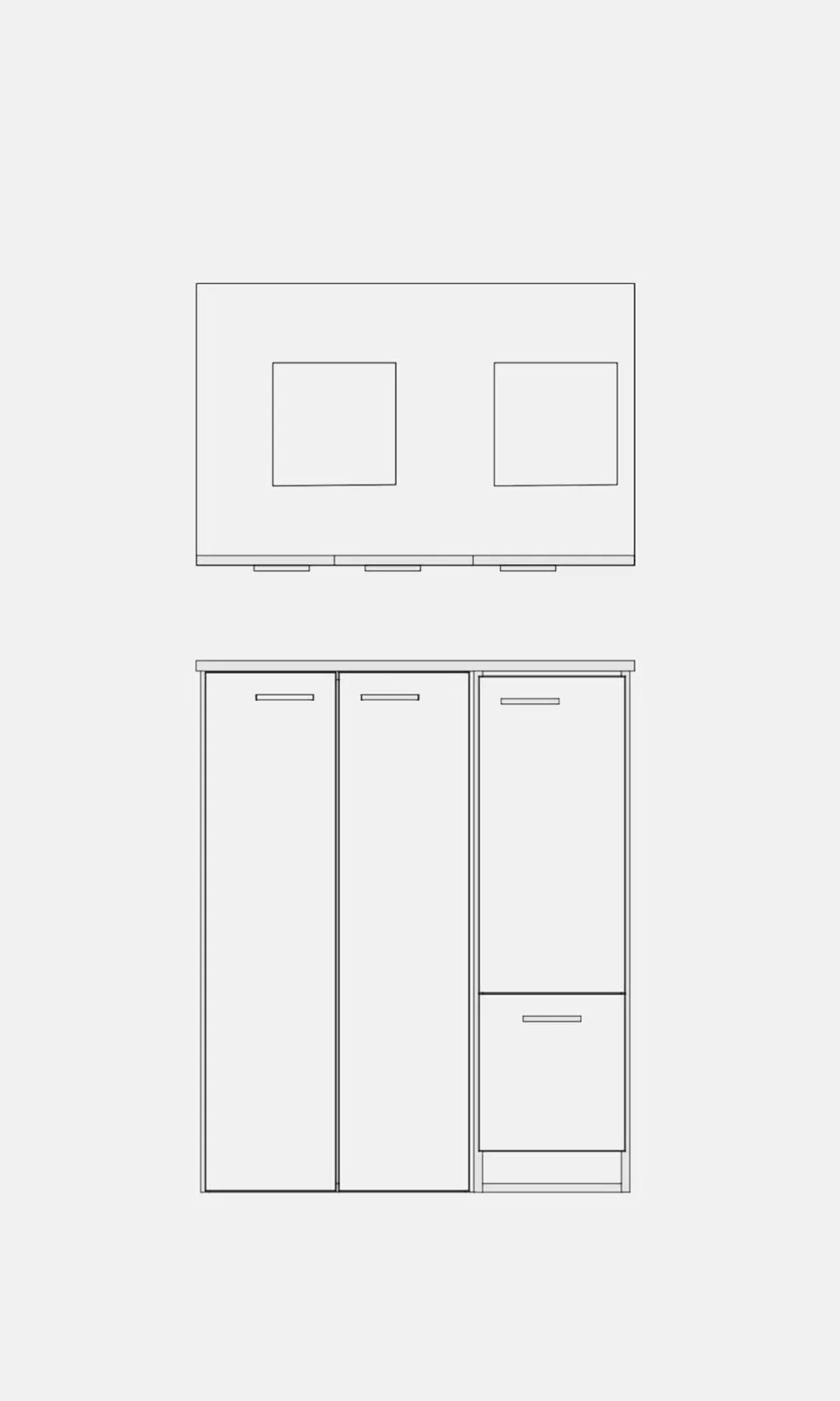

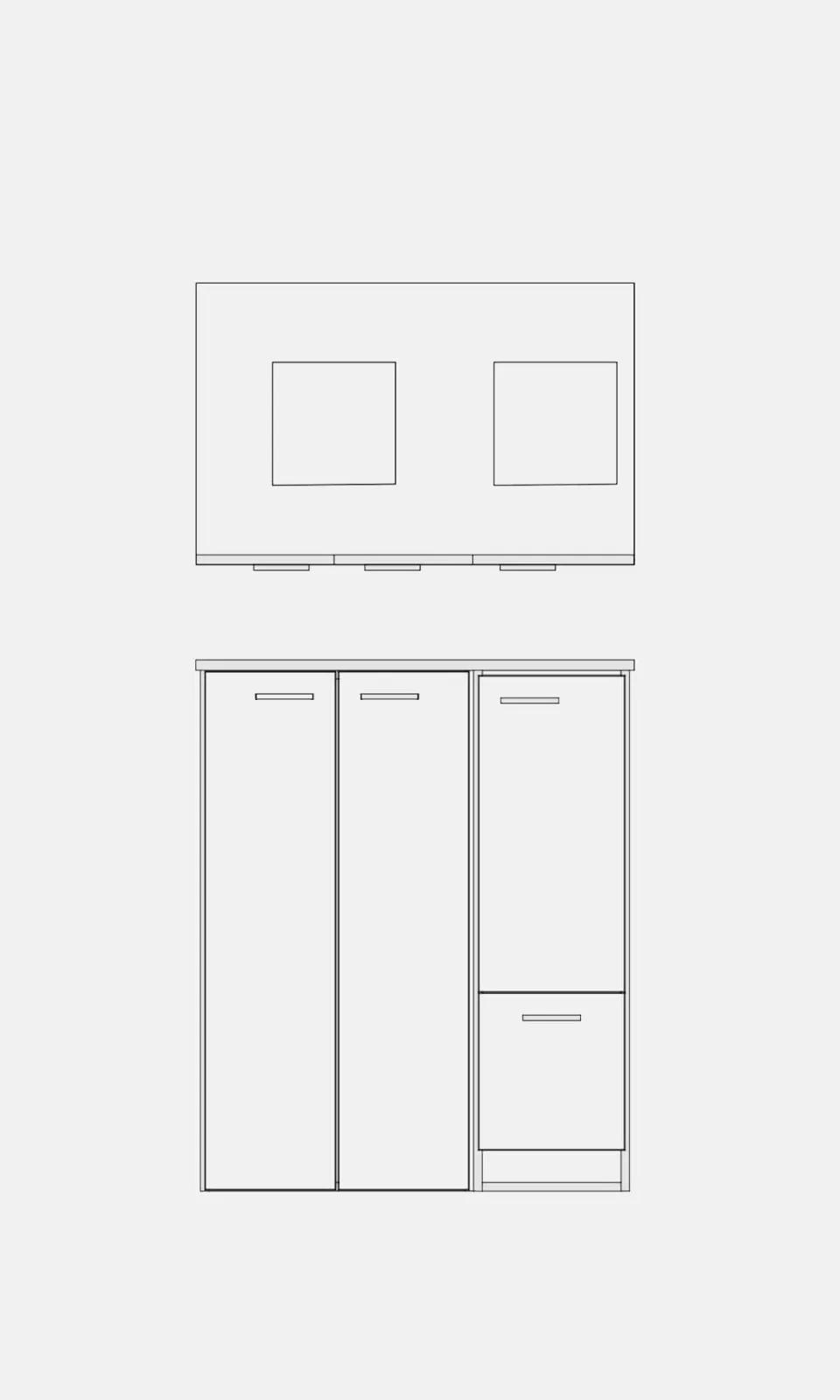

- Configuration
- with inlet in black powder coated steel, 250×250 mm in the worktop. 1 x high drawers with 100% extension with a maximum load of 35 kg. 1x compartment with door. 1x pair of doors with aximate hinges that can be opened 180 degrees. The station is adapted for 140 liter bin containers/carts and 10, 19 and 60 liter containers.
