Serp
A modular bench system with fluid geometry that, through the combination of different radii, enables the creation of long zigzag configurations capable of structuring space with rhythm and continuity.

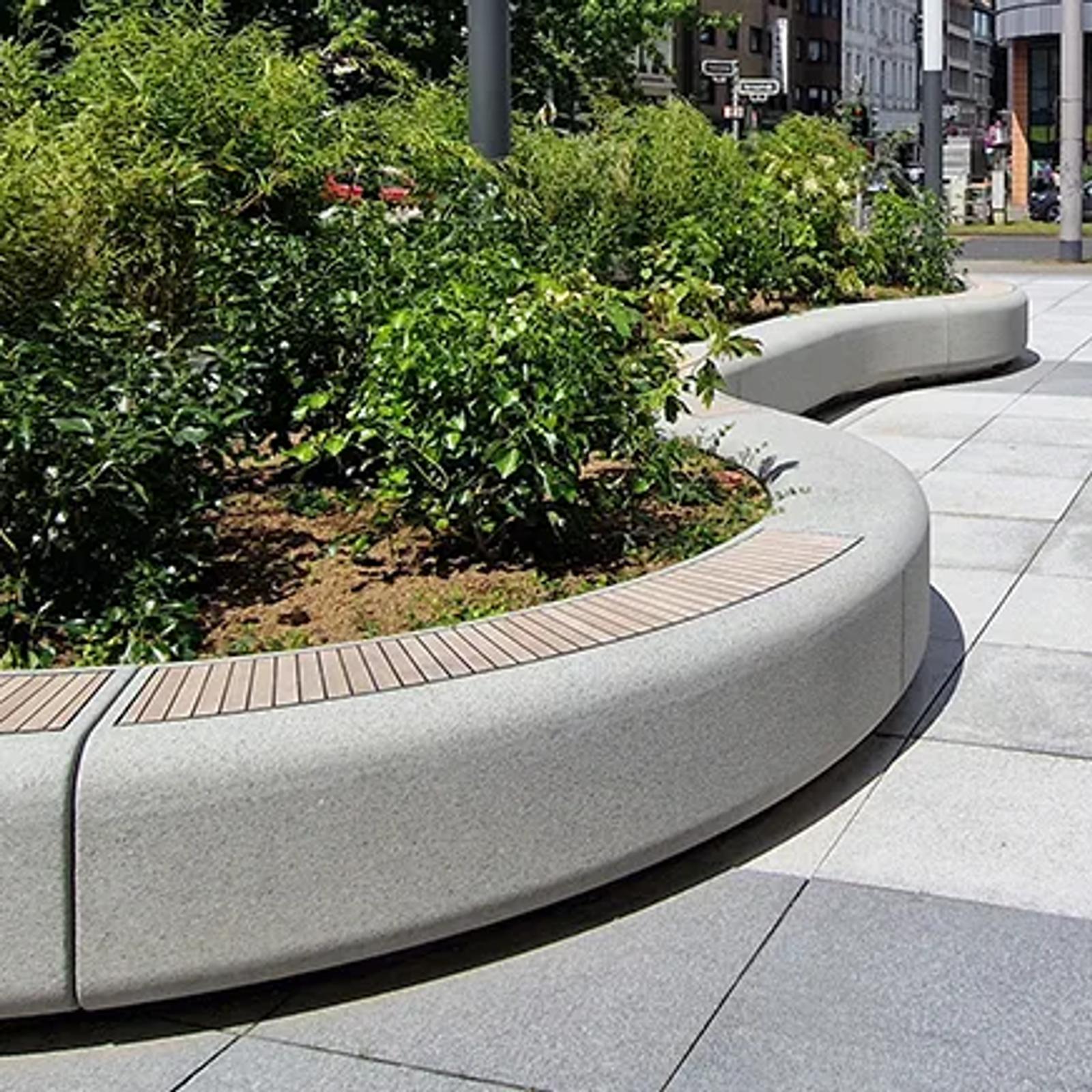

Its rounded ends permit the installation of continuity modules, with no specific requirements in terms of precision. In the Serp Comfort version, the modules have a recessed teak wood seat.

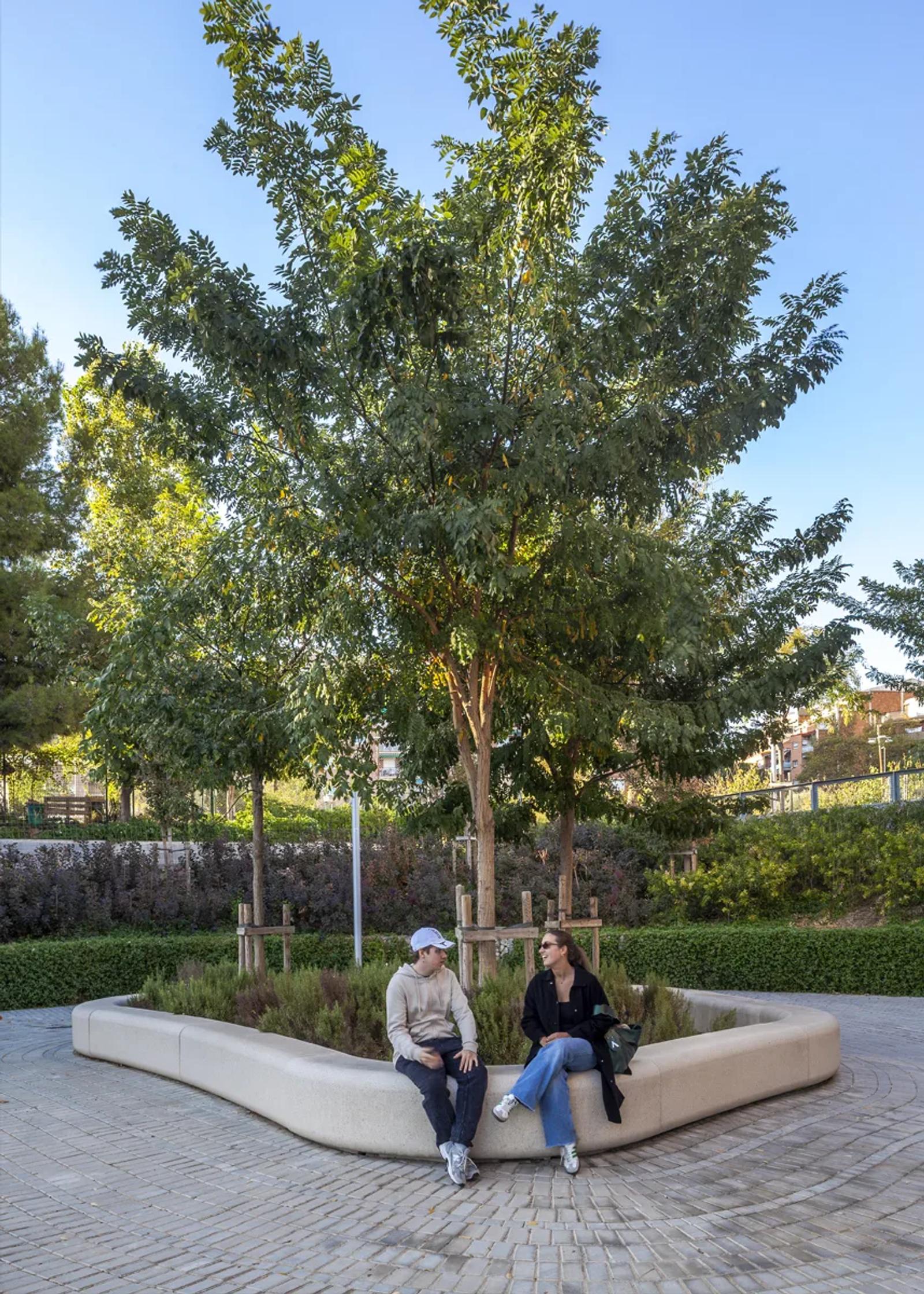

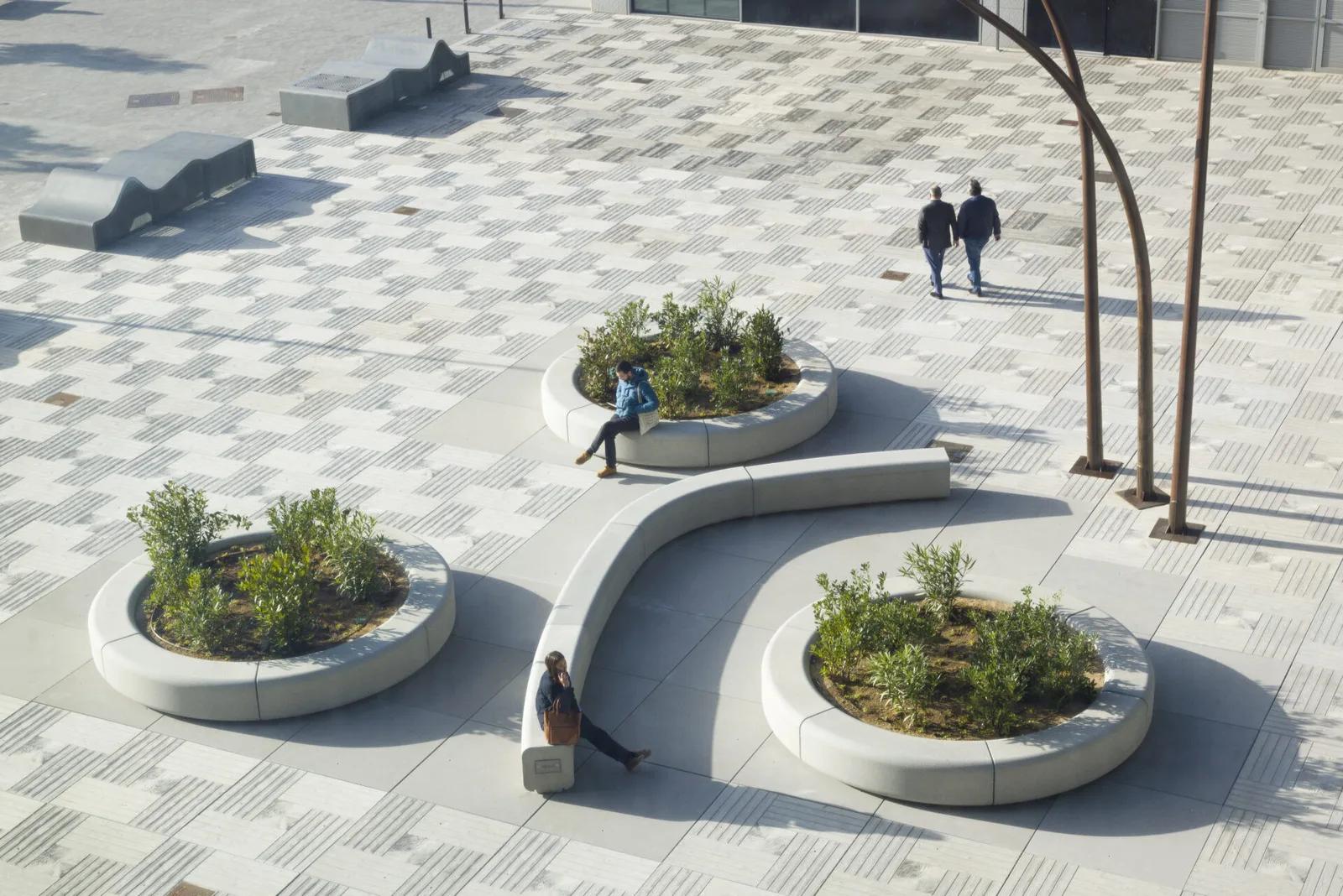

The various aggregations of the Serp modular system allow for the creation of continuous straight or undulating benches that adapt to a wide variety of spaces and accessibility requirements, thanks to the option of a backrest. They also serve as retaining benches for soil and as boundaries between vegetated areas, seating areas, and pedestrian circulation spaces.

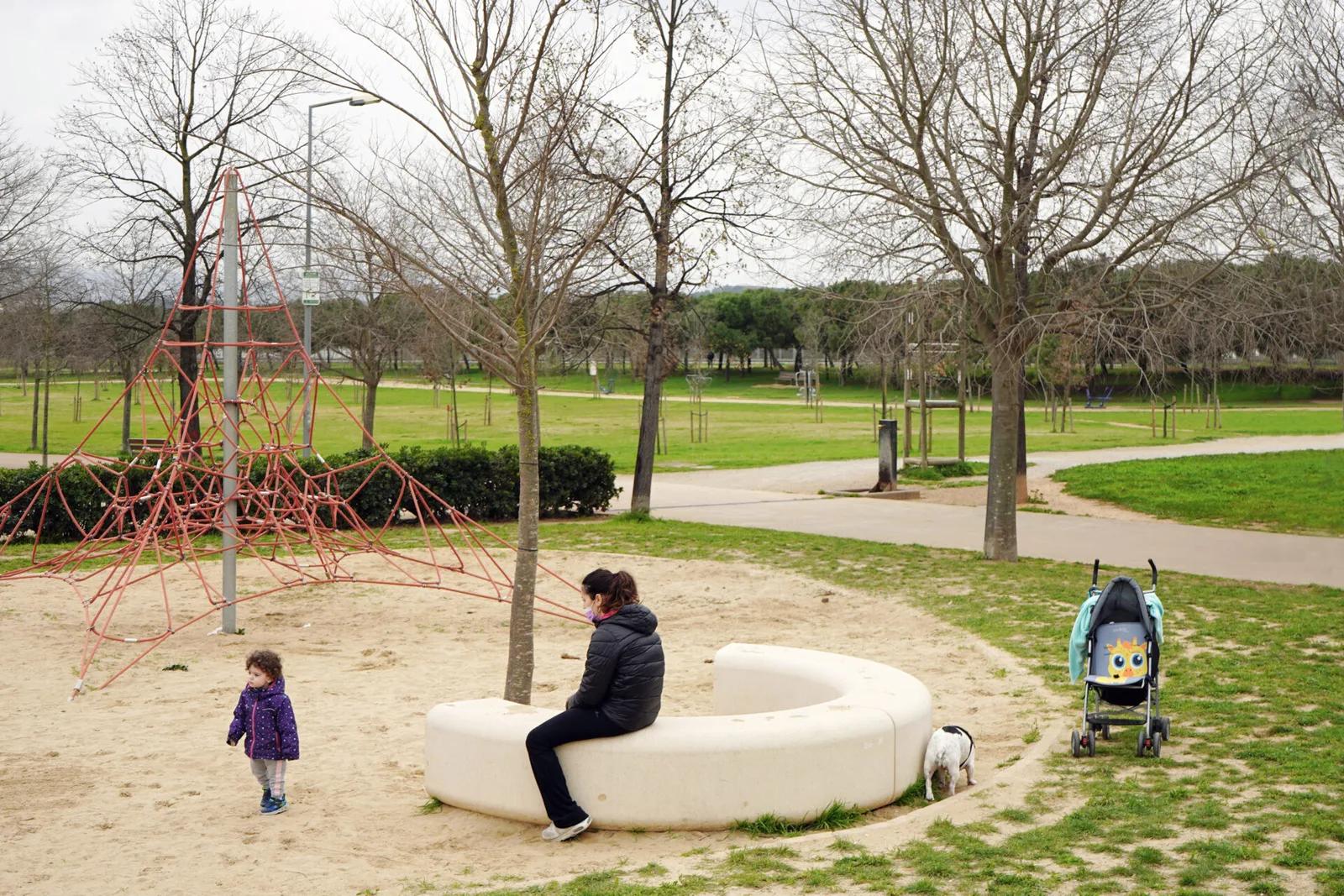

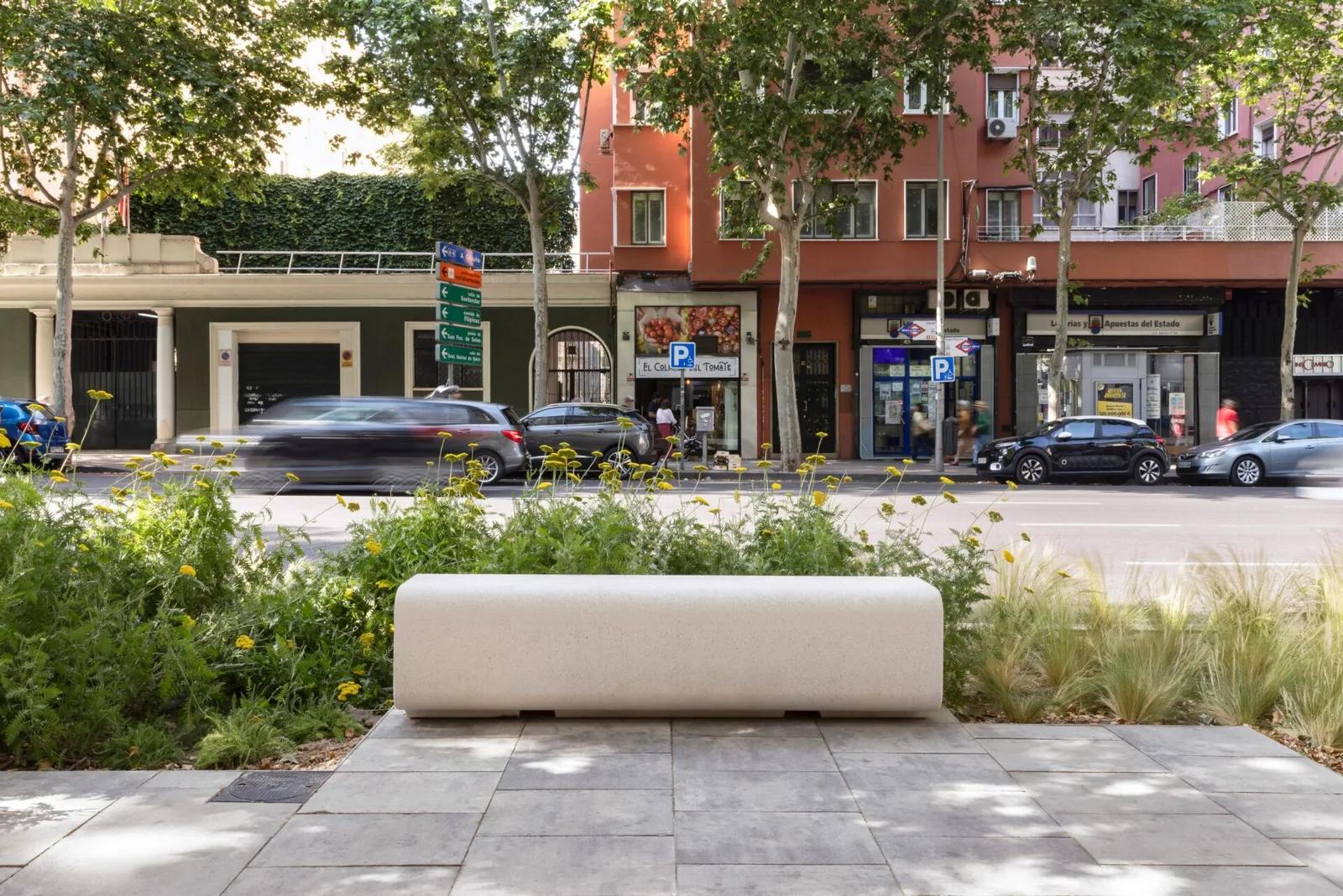

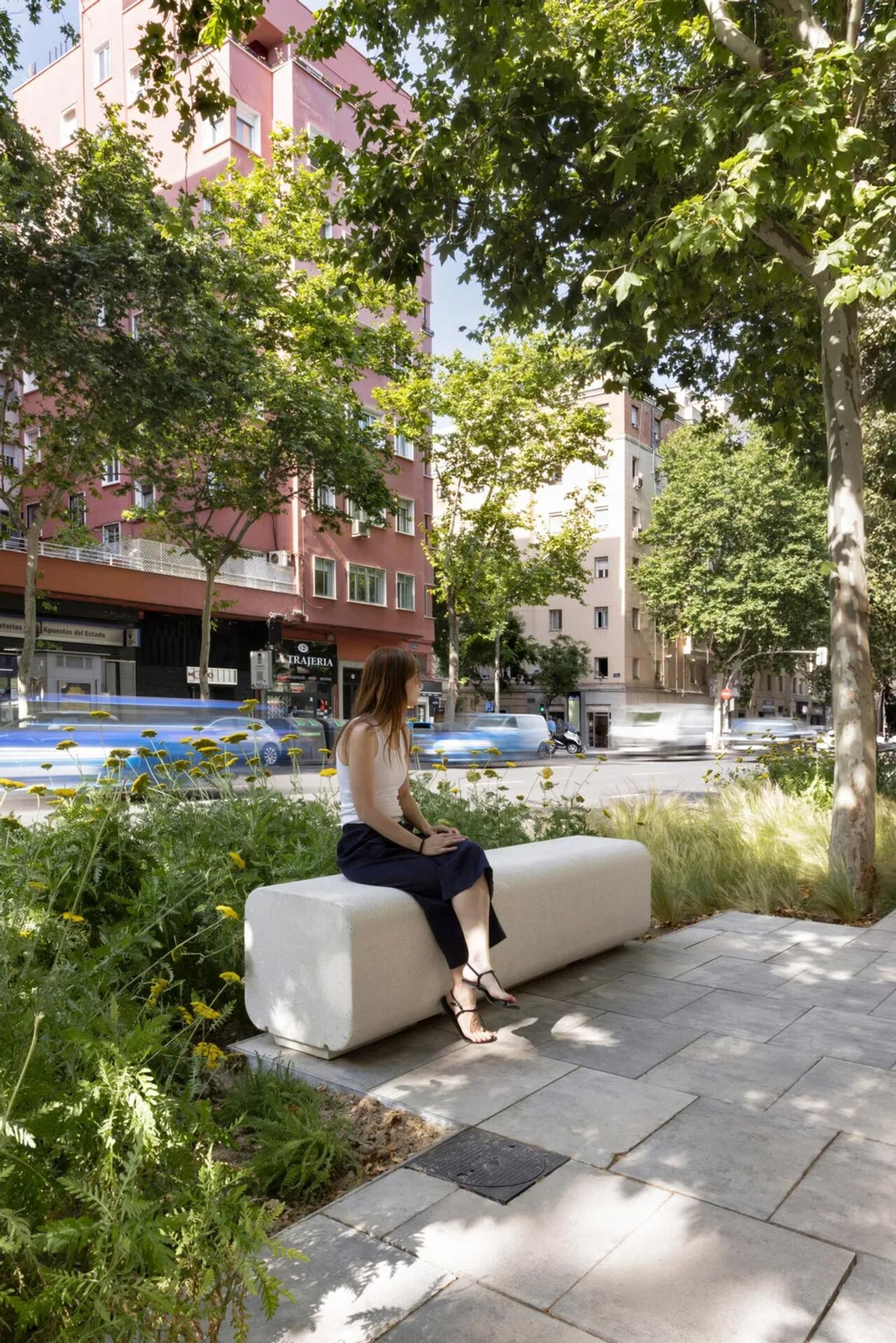

Durable and low-maintenance benches, ideal for designing open urban spaces such as parks and gardens, public squares, promenades, or environments that complement children's areas.
The square-section modules, measuring 50 x 50 cm with gently rounded edges, are made of molded concrete with an etched and waterproofed finish and colors from the standard Escofet color chart. Due to their significant weight, they rest subtly on the ground or pavement without the need for anchors. Each module has a baseboard with two sling passages for lifting and transport, raising it off the ground to facilitate the runoff of rainwater.
specifications
- Design year
- 2011
- Designer
- ESCOFET LAB
- Installation
- FREE-STANDING
- Properties

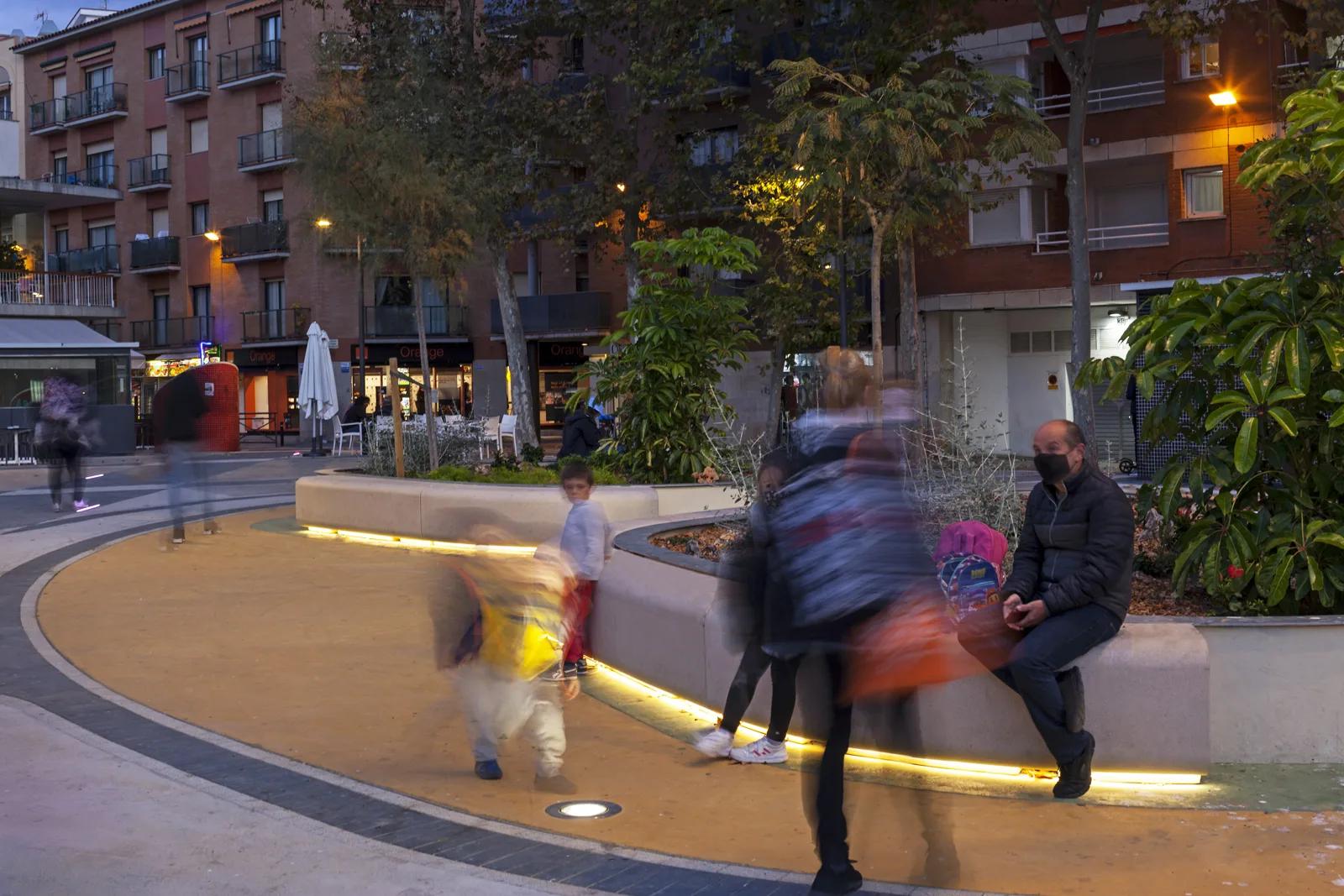

- KIT LED
- Certificates
- Environmental Product Declaration (EPD)
- Materials
- ETCHED AND WATERPROOFED CONCRETE / TEAK WOOD
| model | Dimensions / specification | Weight |
|---|---|---|

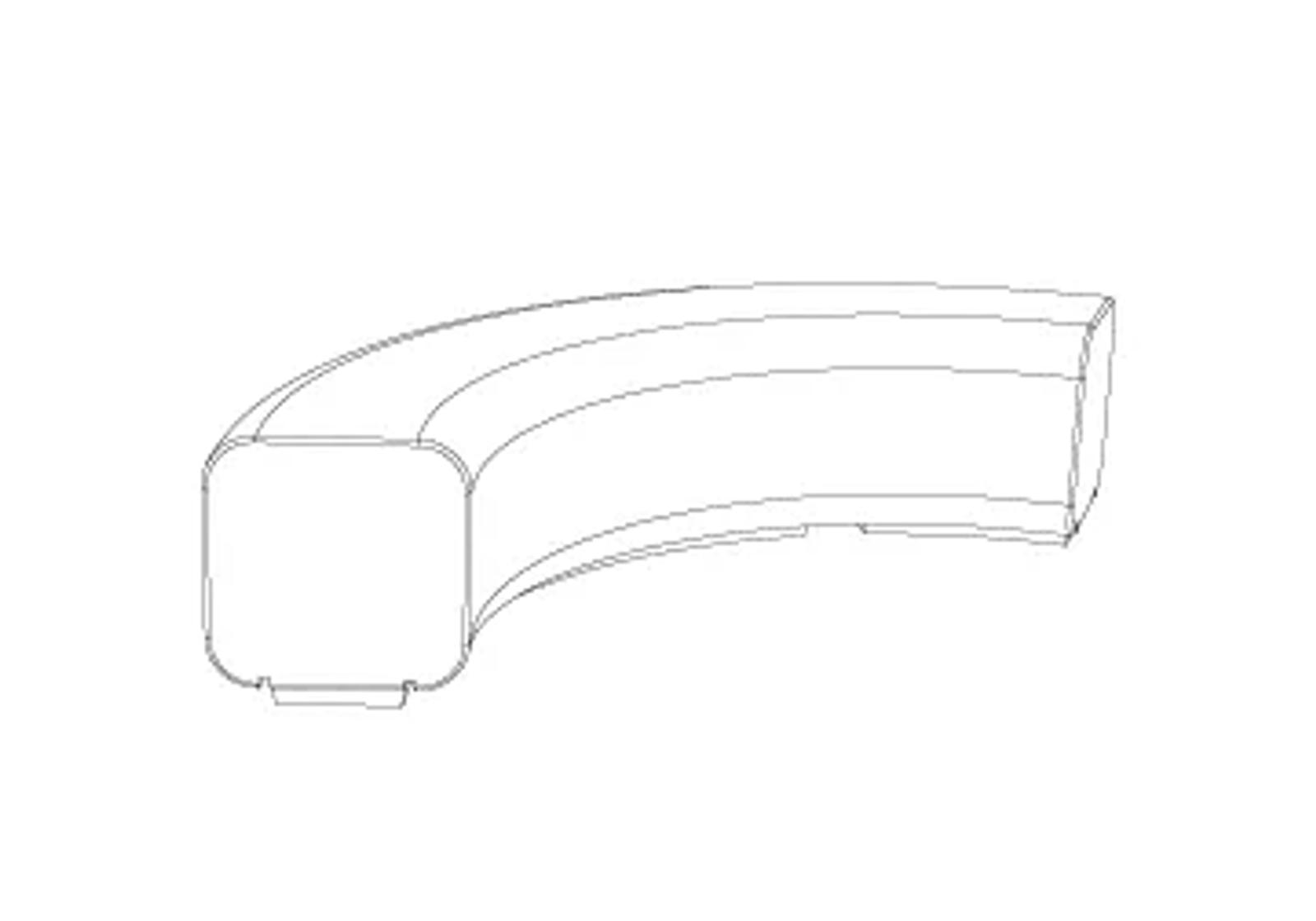

| serp r100 | 243 x 92 x 54 cm | 1430 kg |

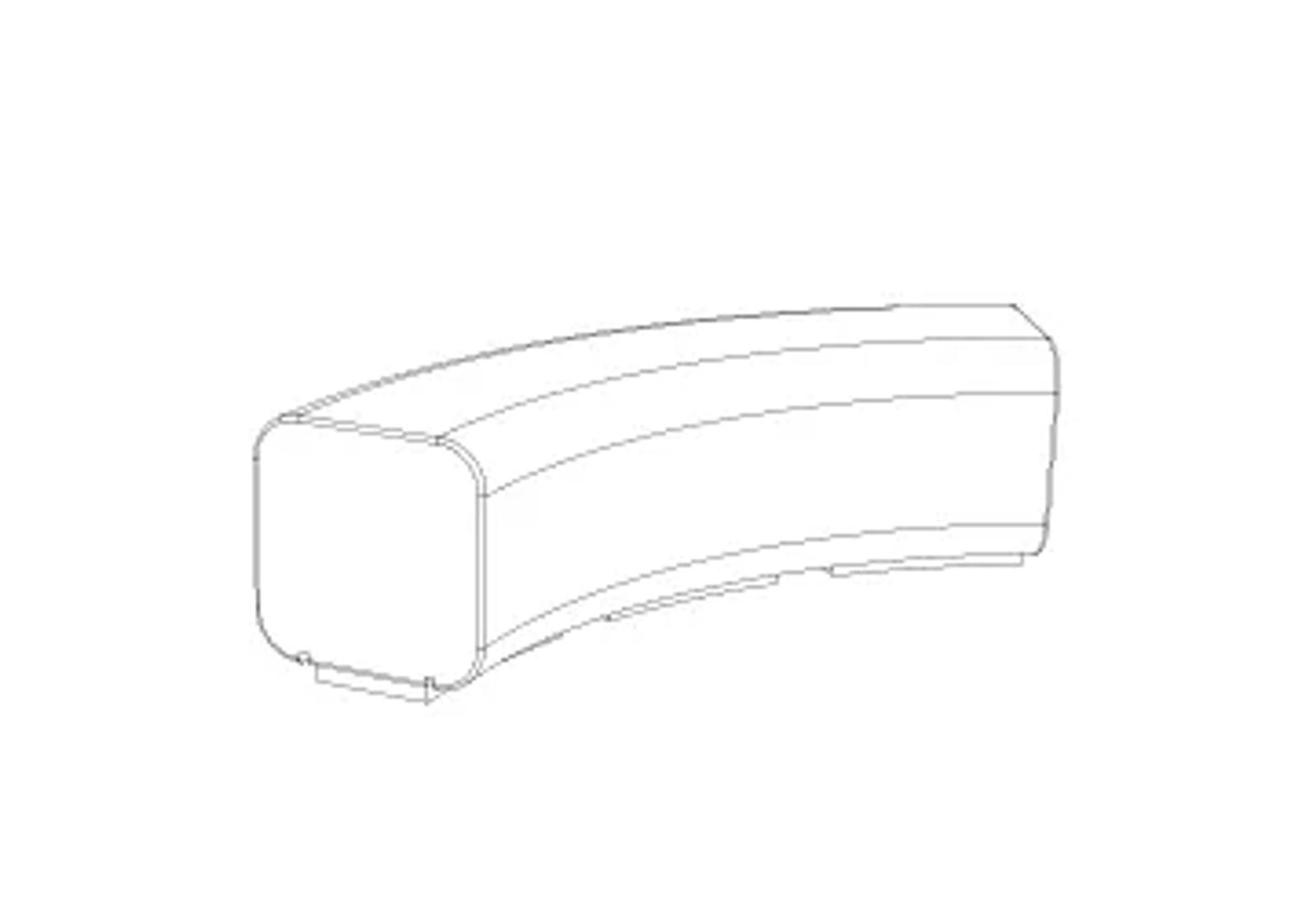

| serp r150 | 199 x 70 x 54 cm | 1094 kg |

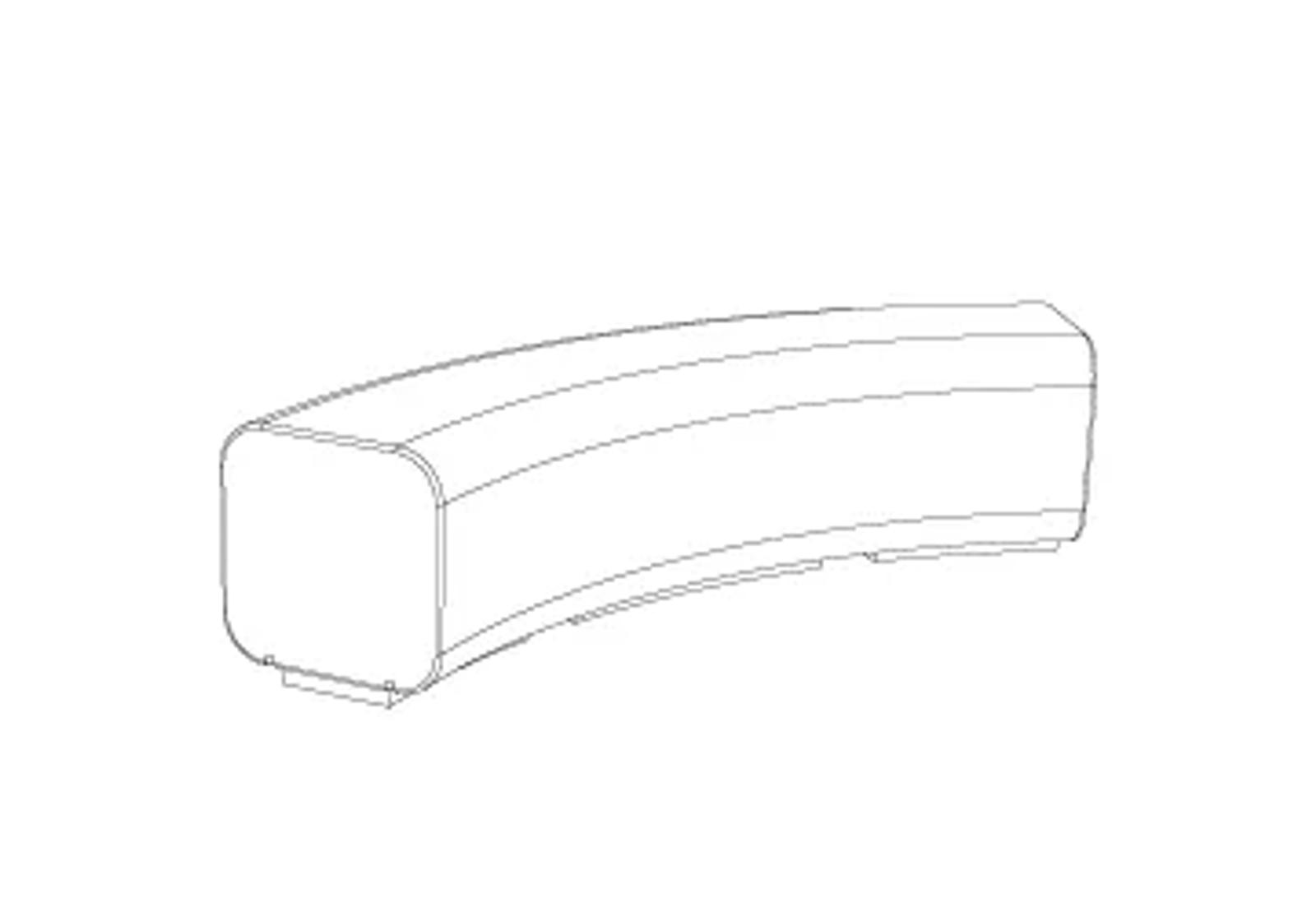

| serp r185 | 223 x 72 x 54 cm | 1244 kg |

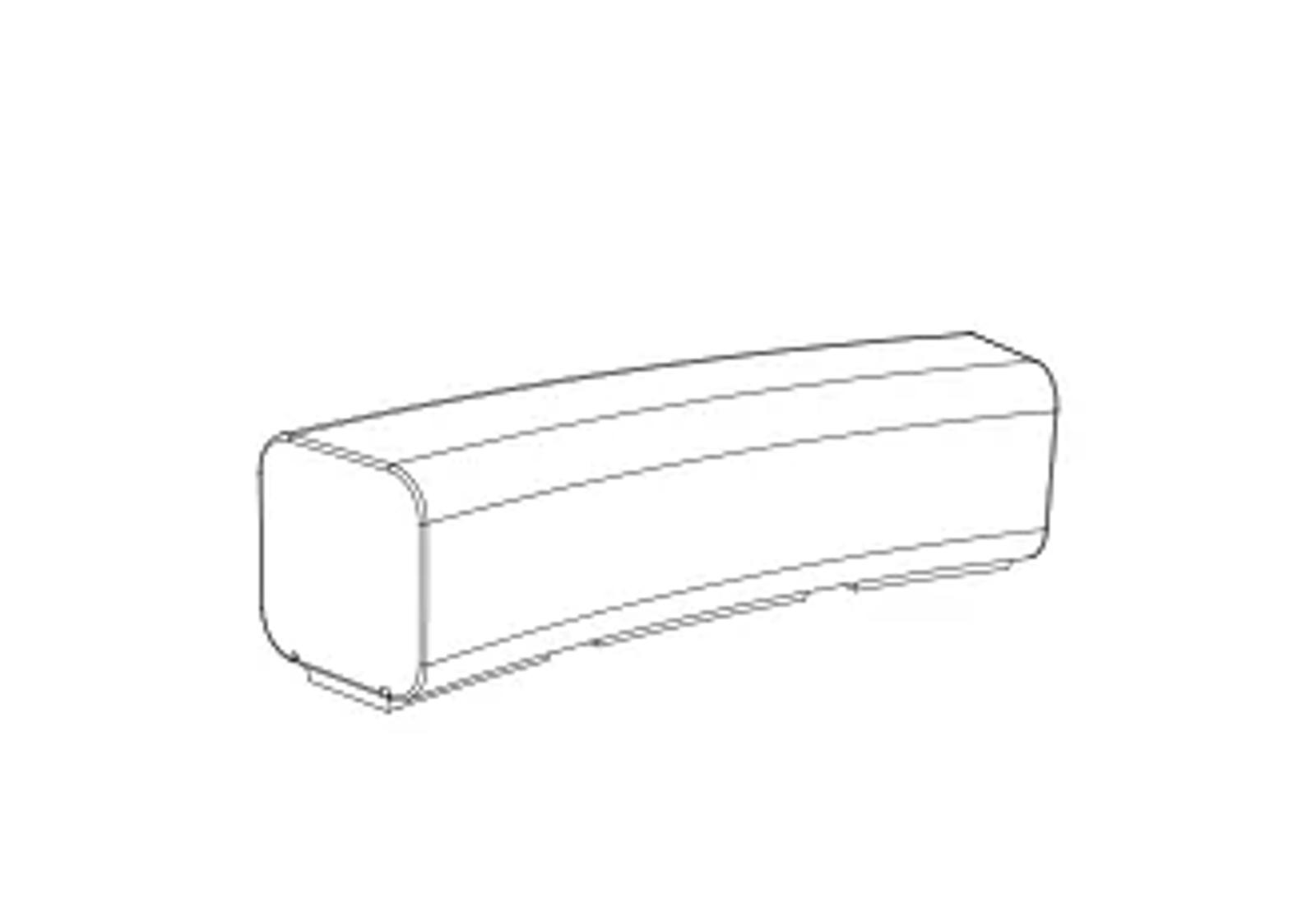

| serp R400 | 200 x 60 x 54 cm | 1140 kg |

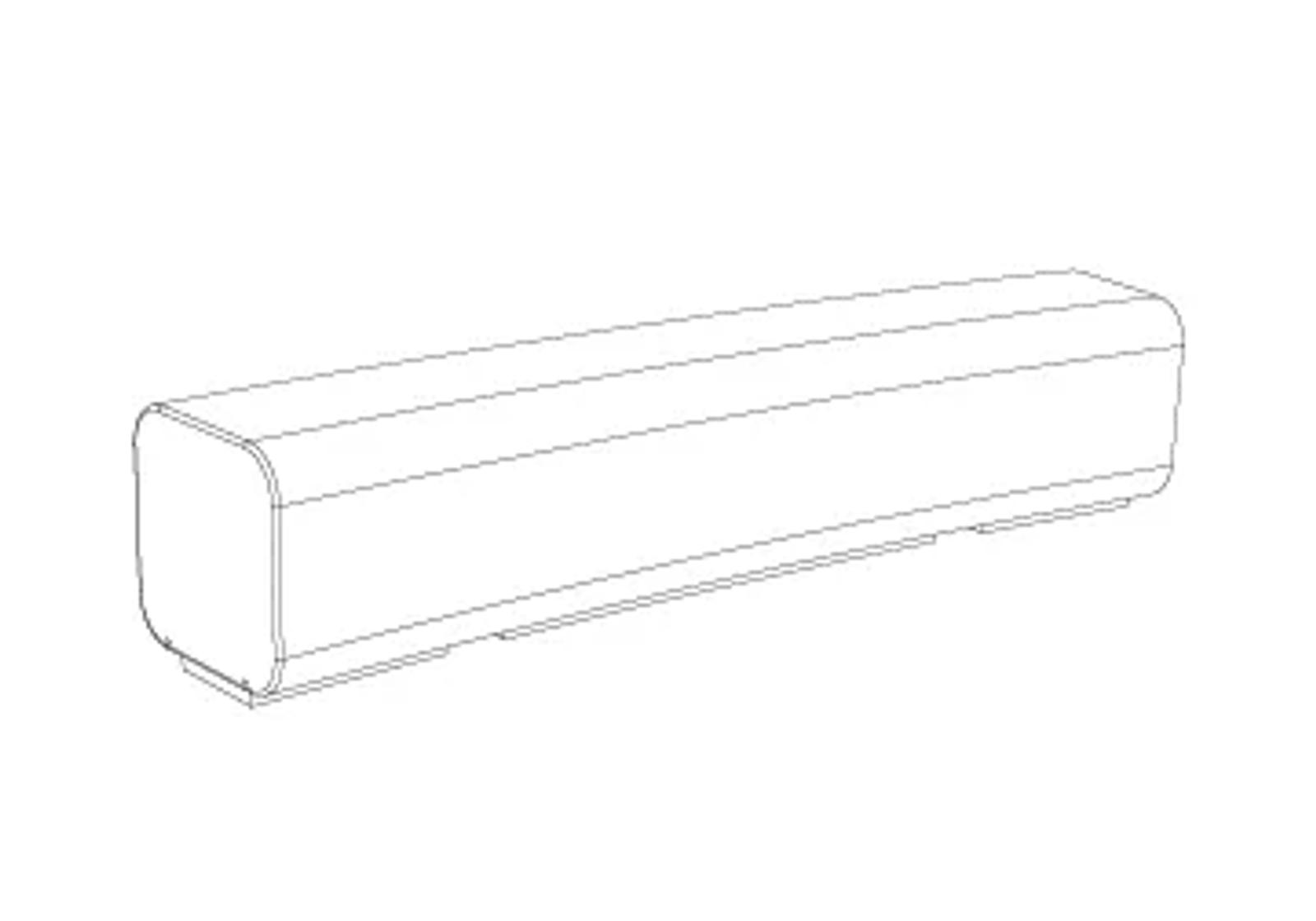

| serp r1185 | 253 x 56 x 54 cm | 1486 kg |

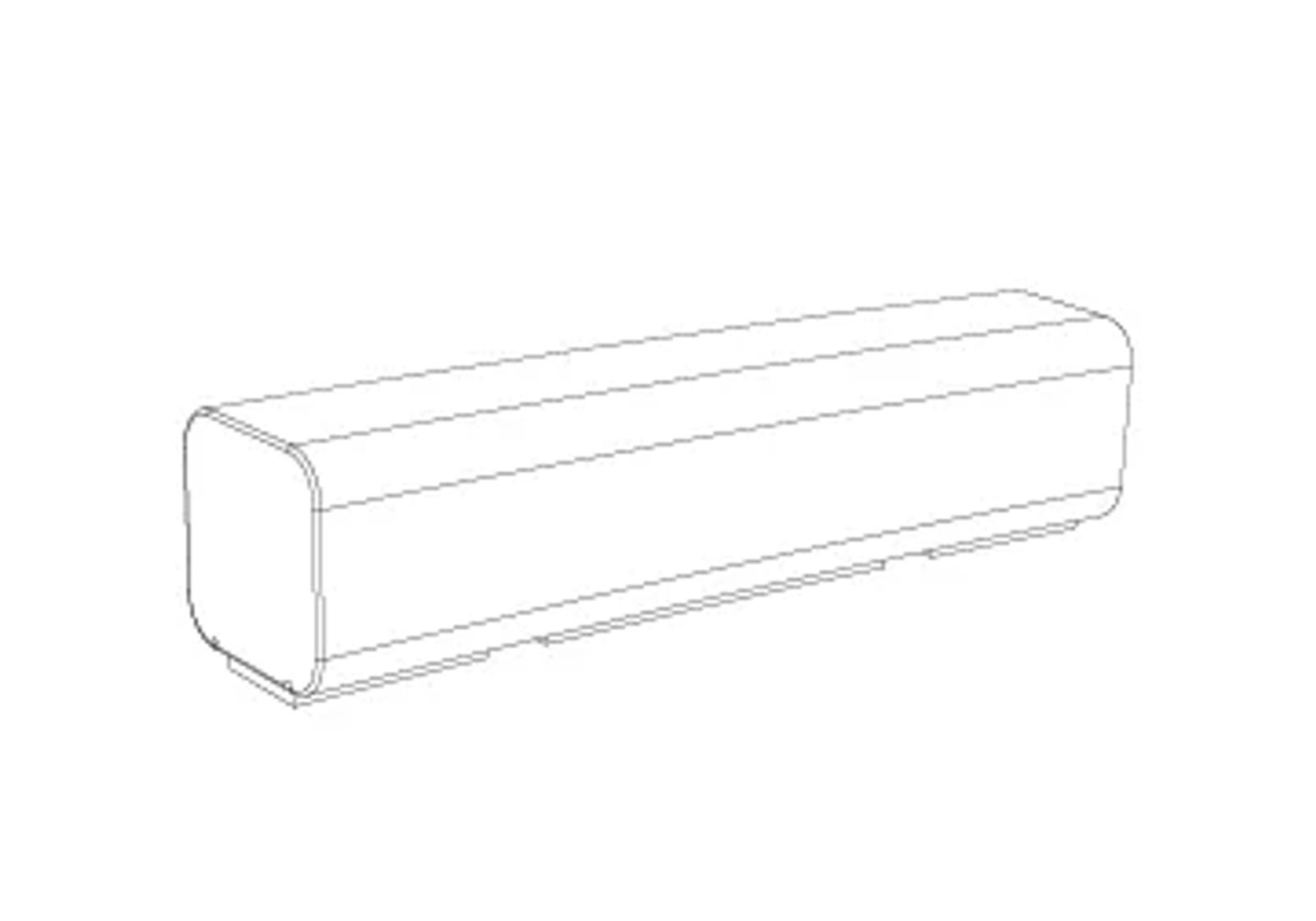

| serp r1915 | 224 x 54 x 54 cm | 1327 kg |

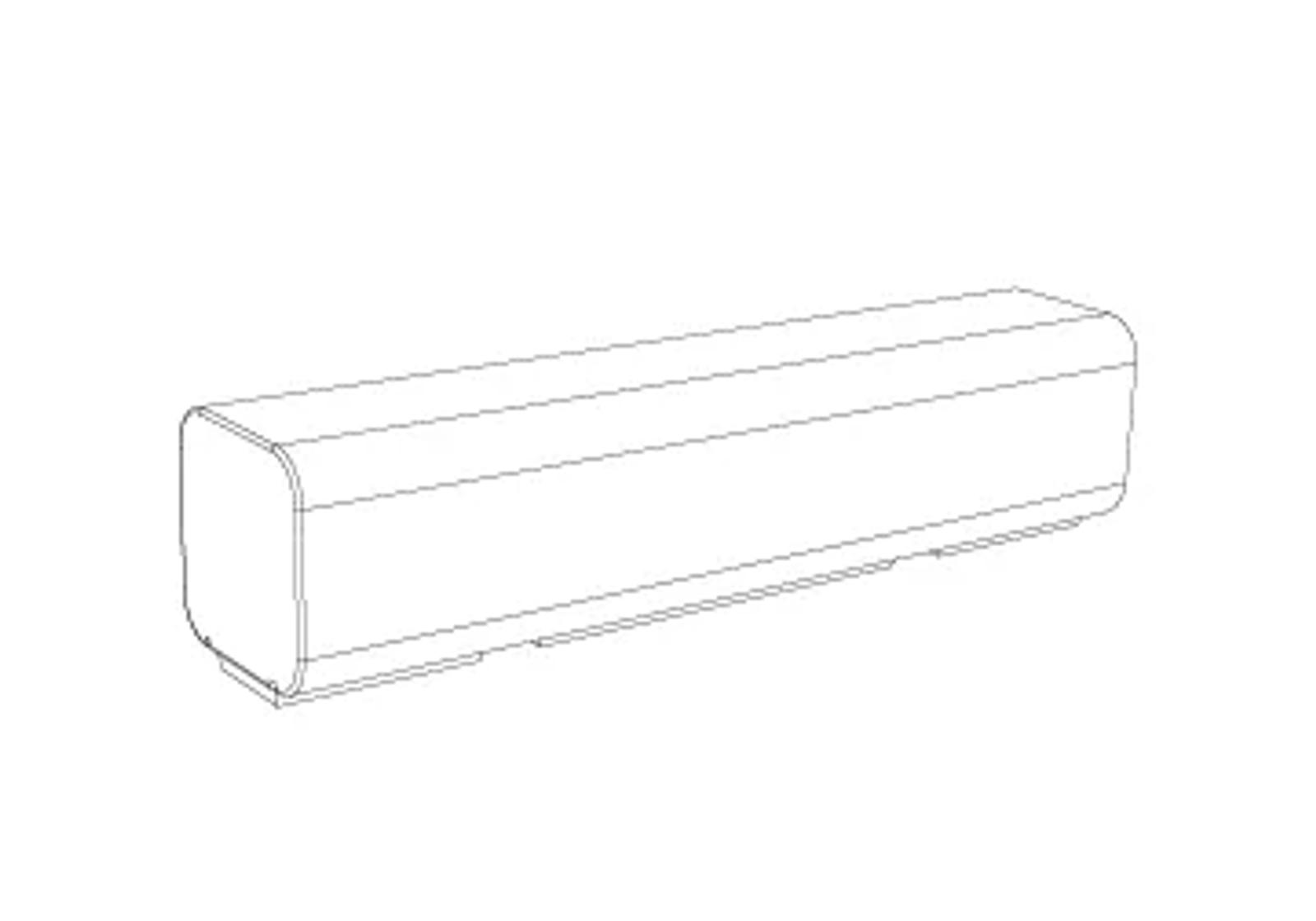

| serp recta | 225 x 50 x 54 cm | 1345 kg |

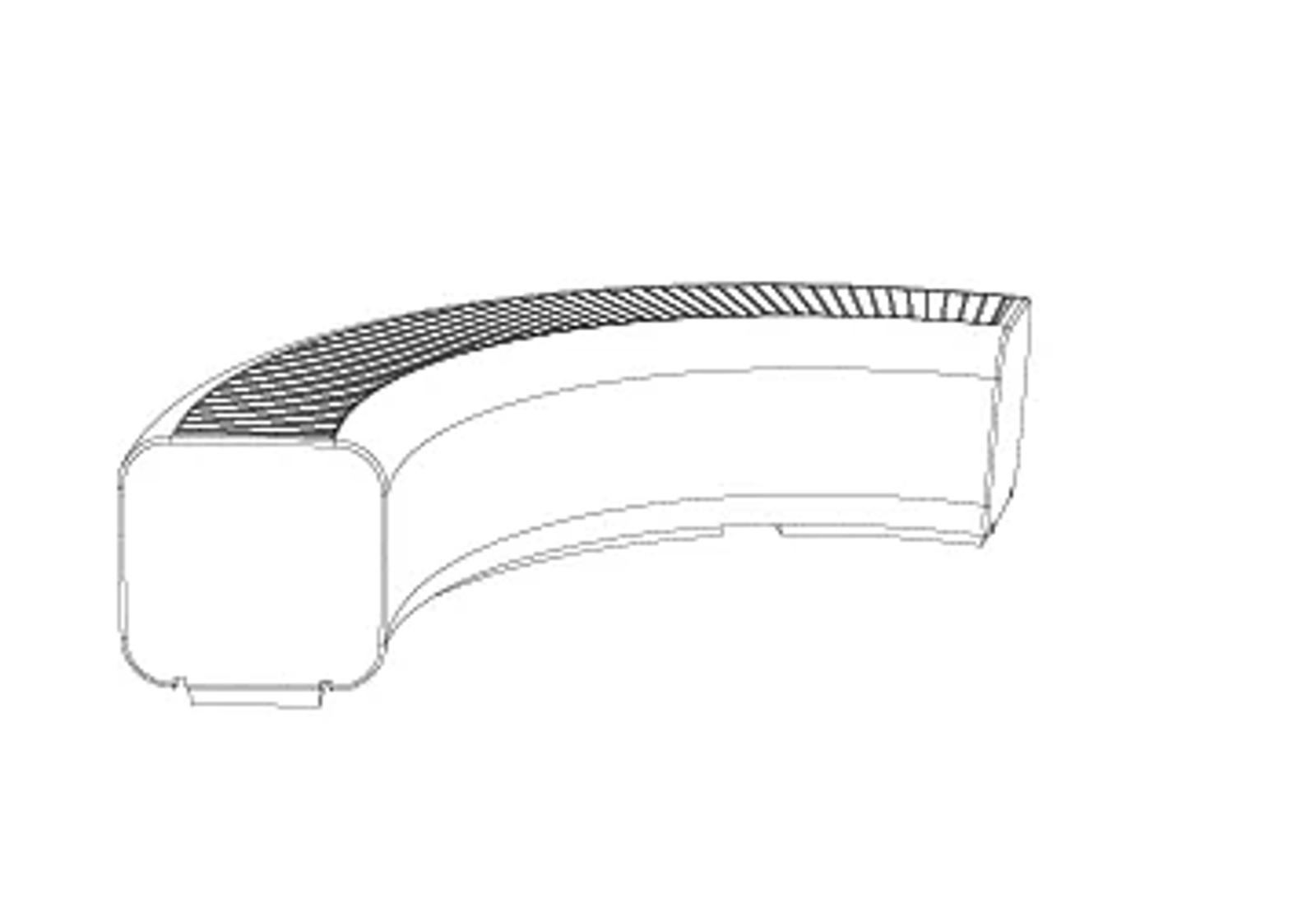

| serp comfort r100 | 243 x 92 x 54 cm | 1430 kg |

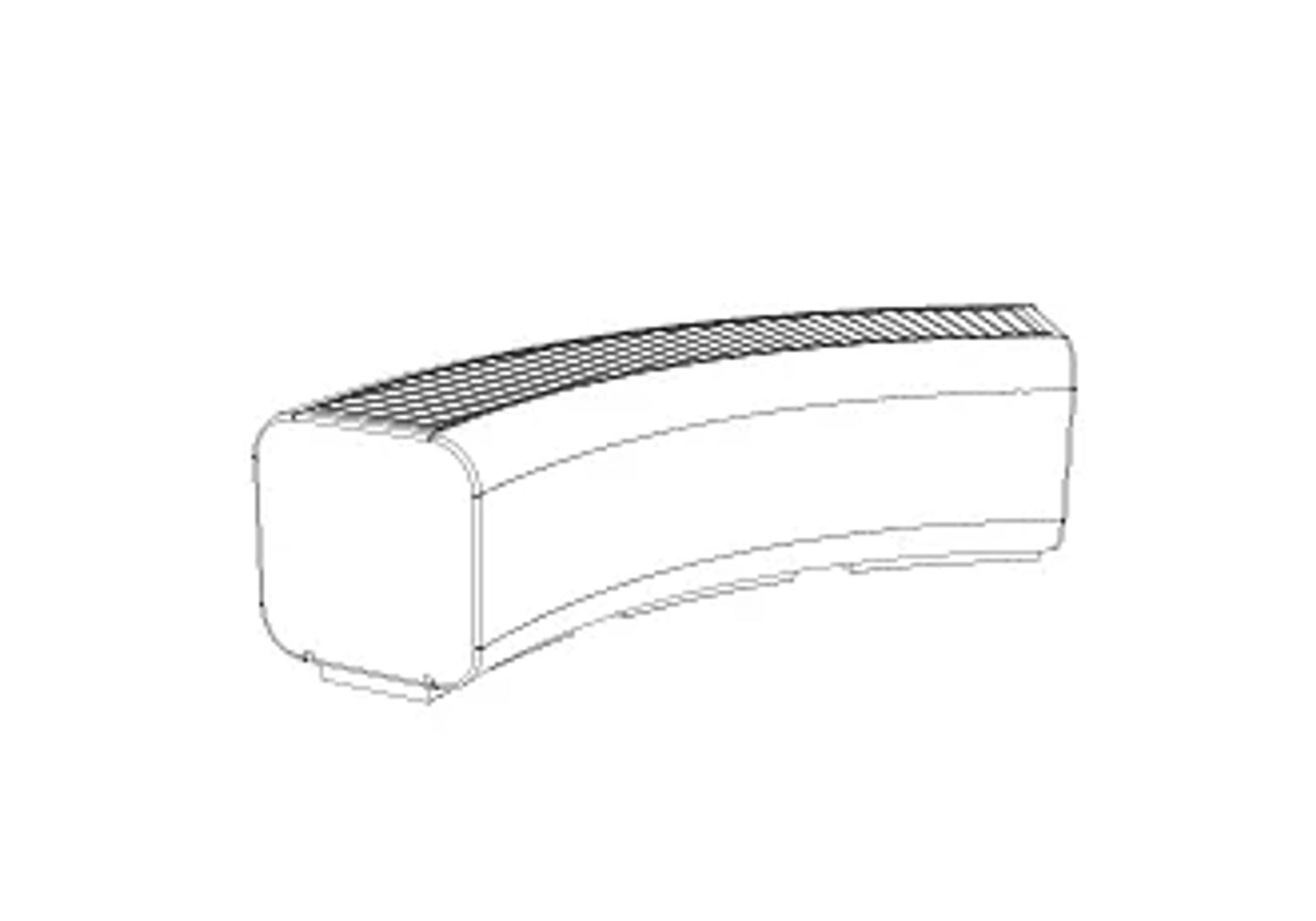

| serp comfort r150 | 199 x 70 x 54 cm | 1094 kg |

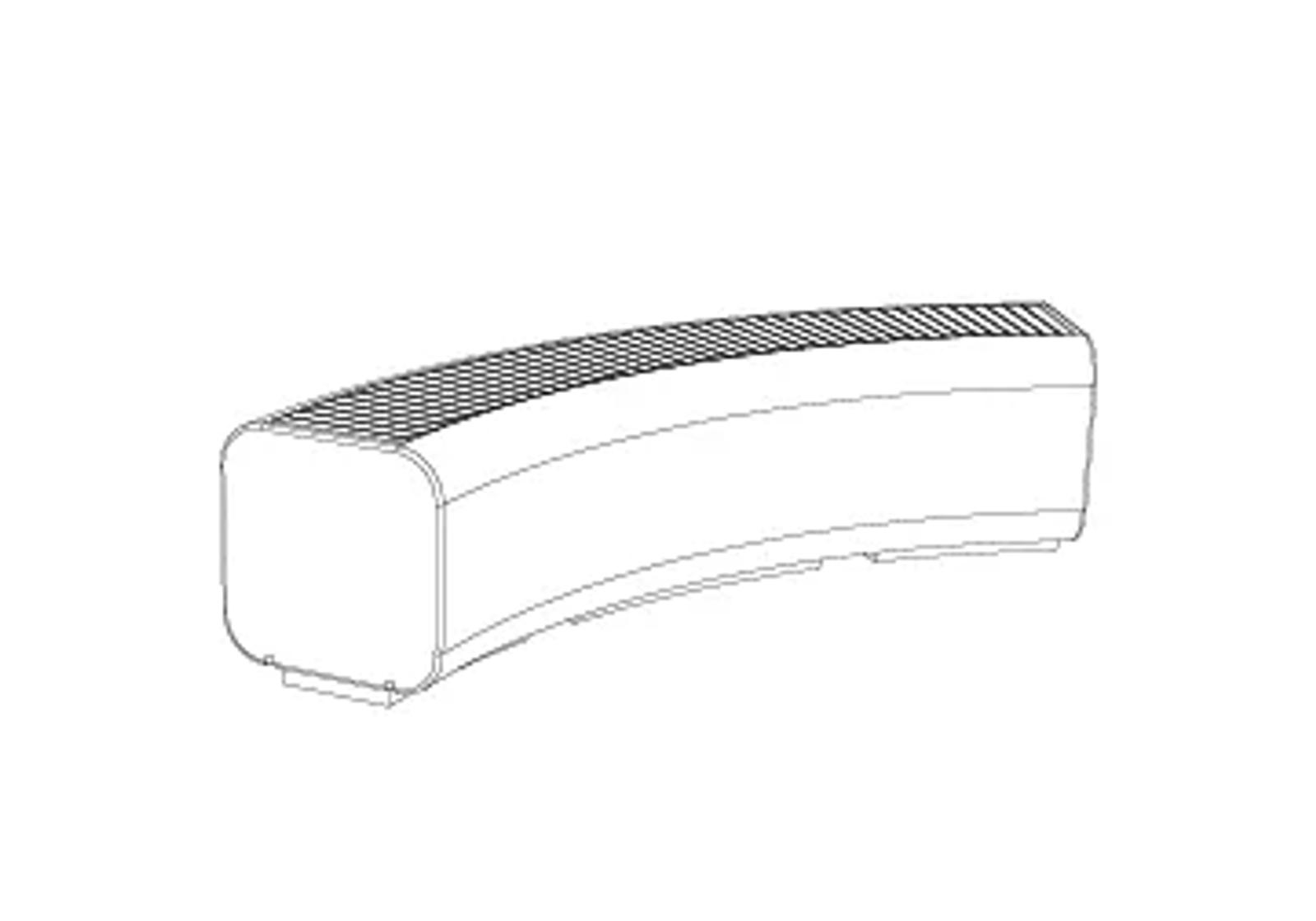

| serp comfort r185 | 223 x 72 x 54 cm | 1244 kg |

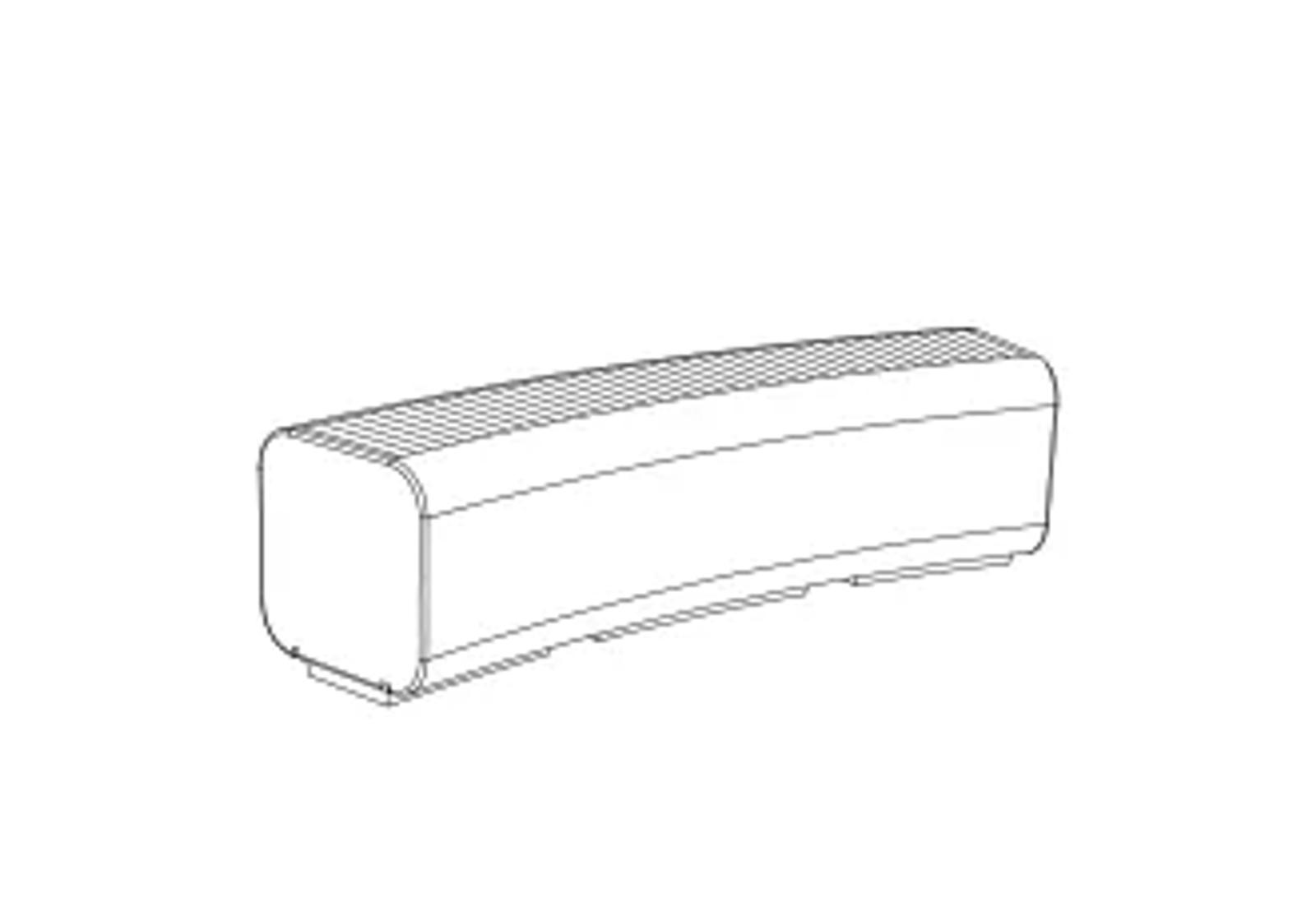

| serp comfort R400 | 200 x 60 x 54 cm | 1140 kg |

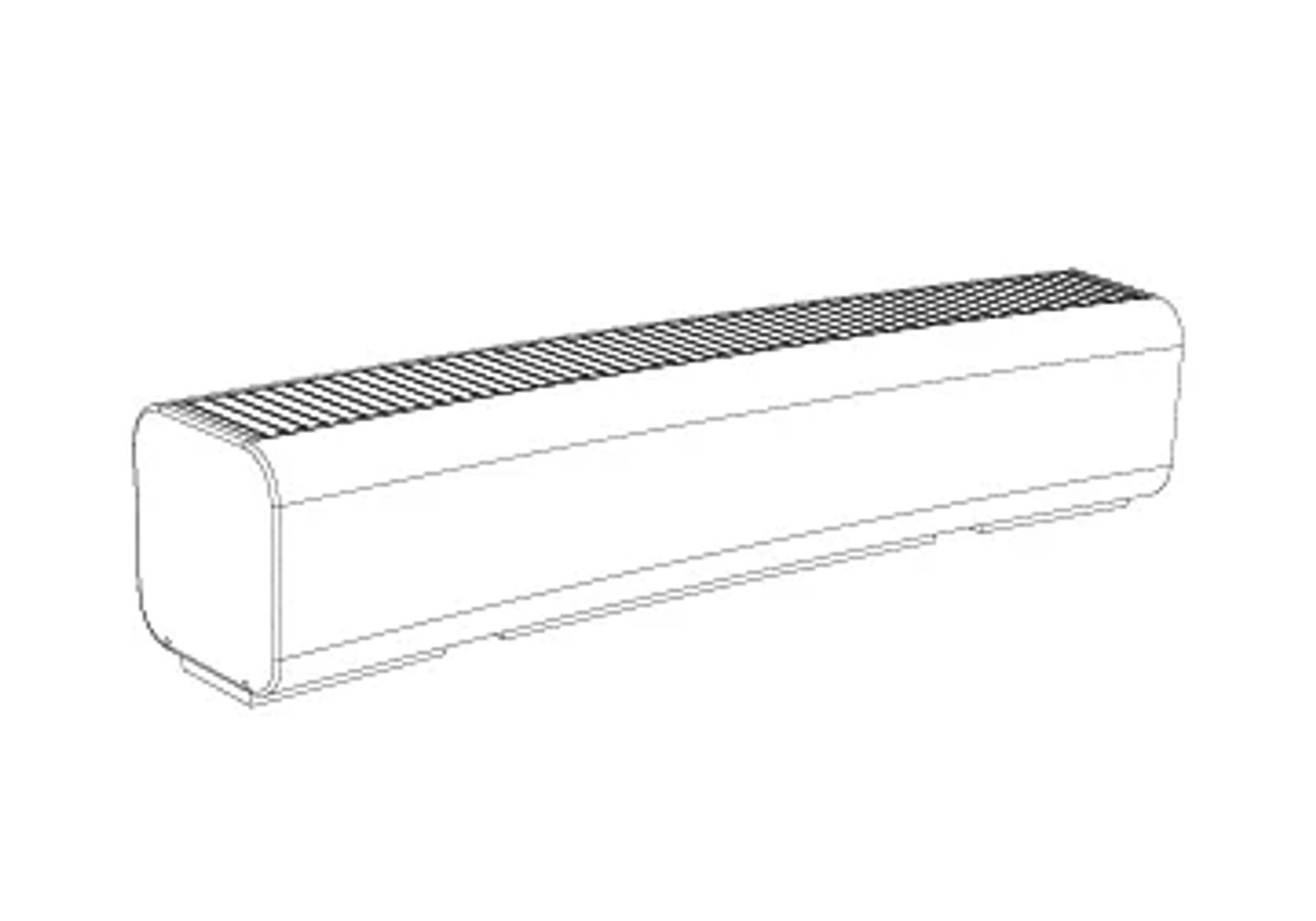

| serp comfort r1185 | 253 x 56 x 54 cm | 1486 kg |

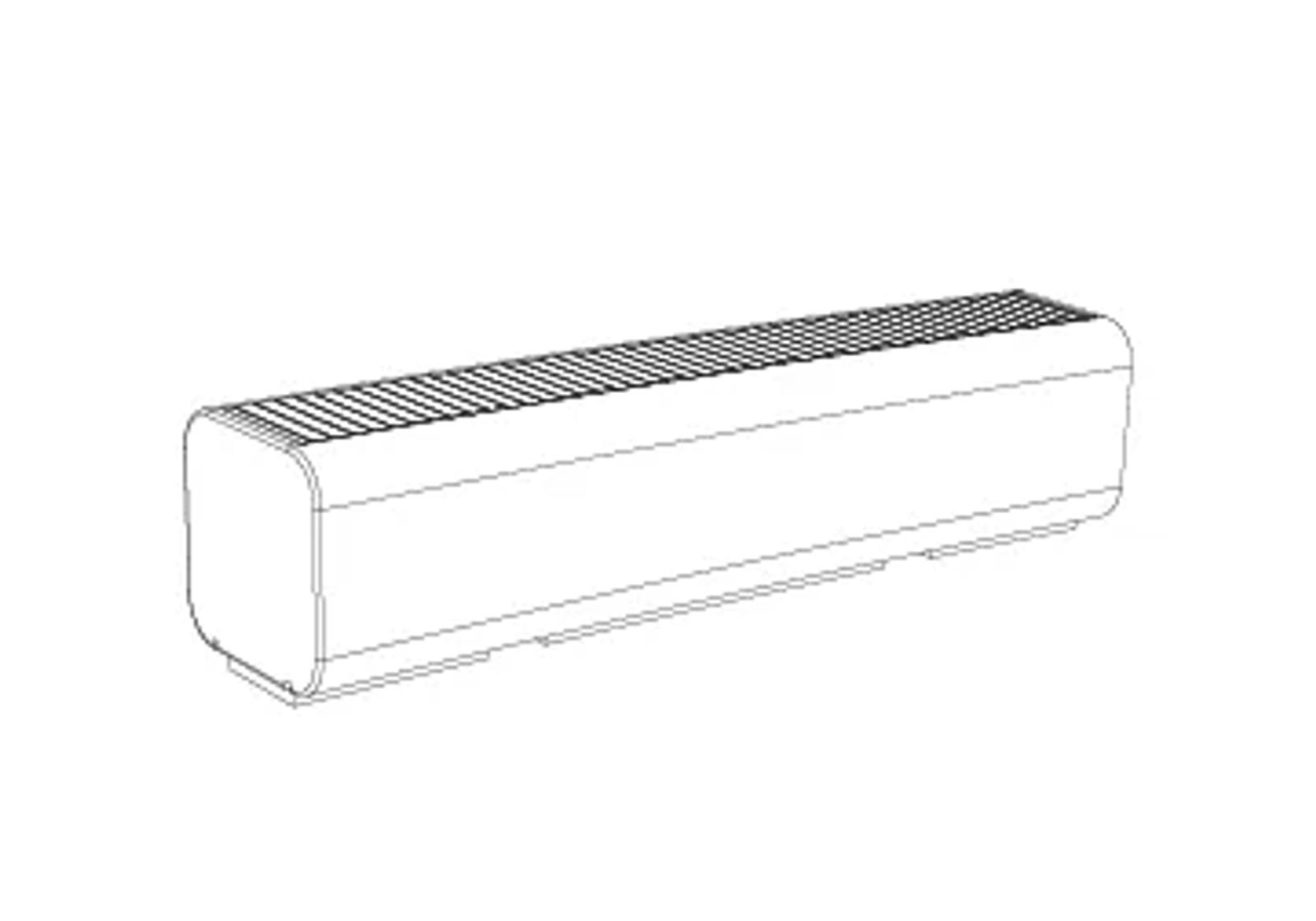

| serp comfort r1915 | 224 x 53 x 54 cm | 1327 kg |

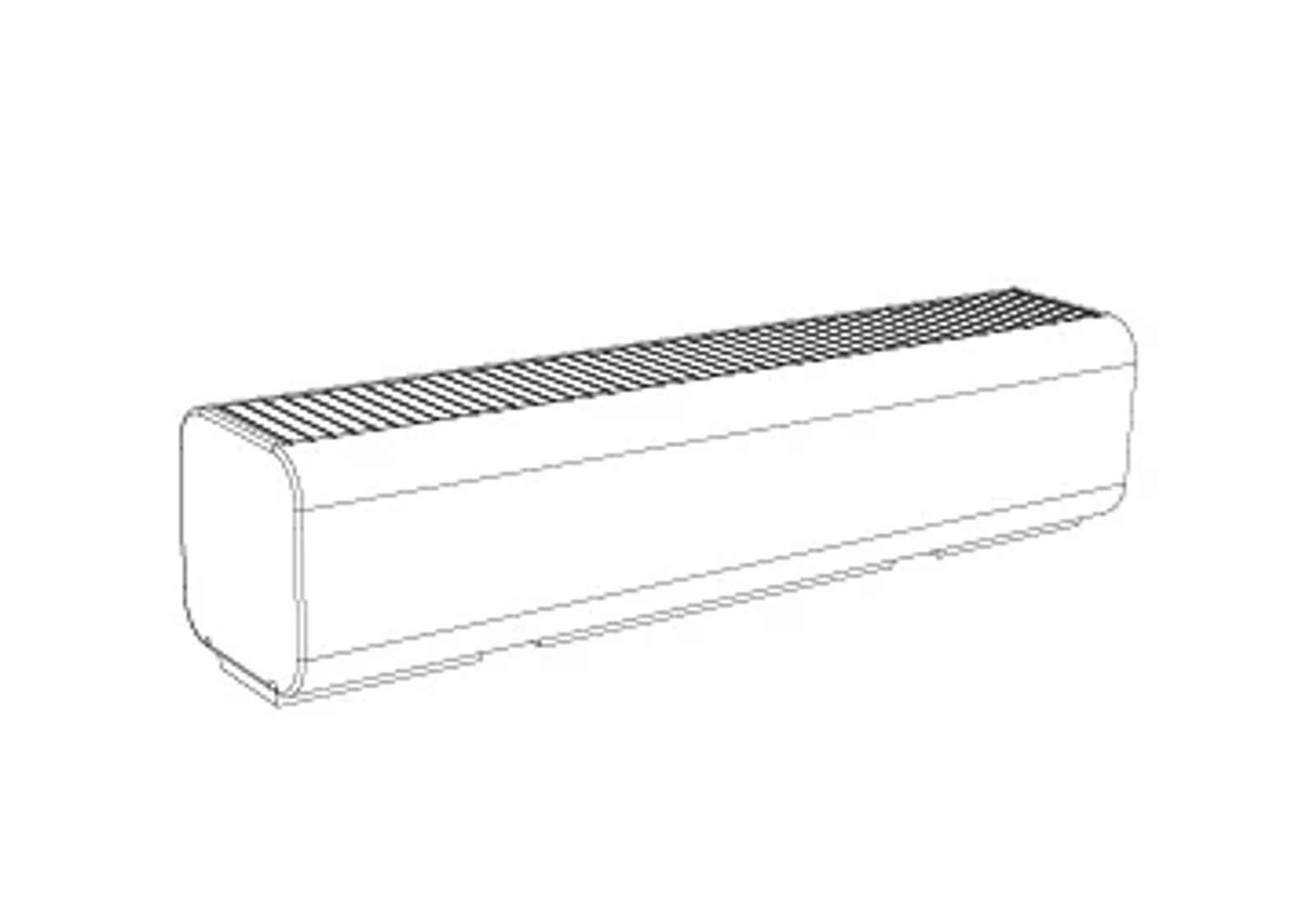

| serp comfort recta | 225 x 50 x 54 cm | 1345 kg |

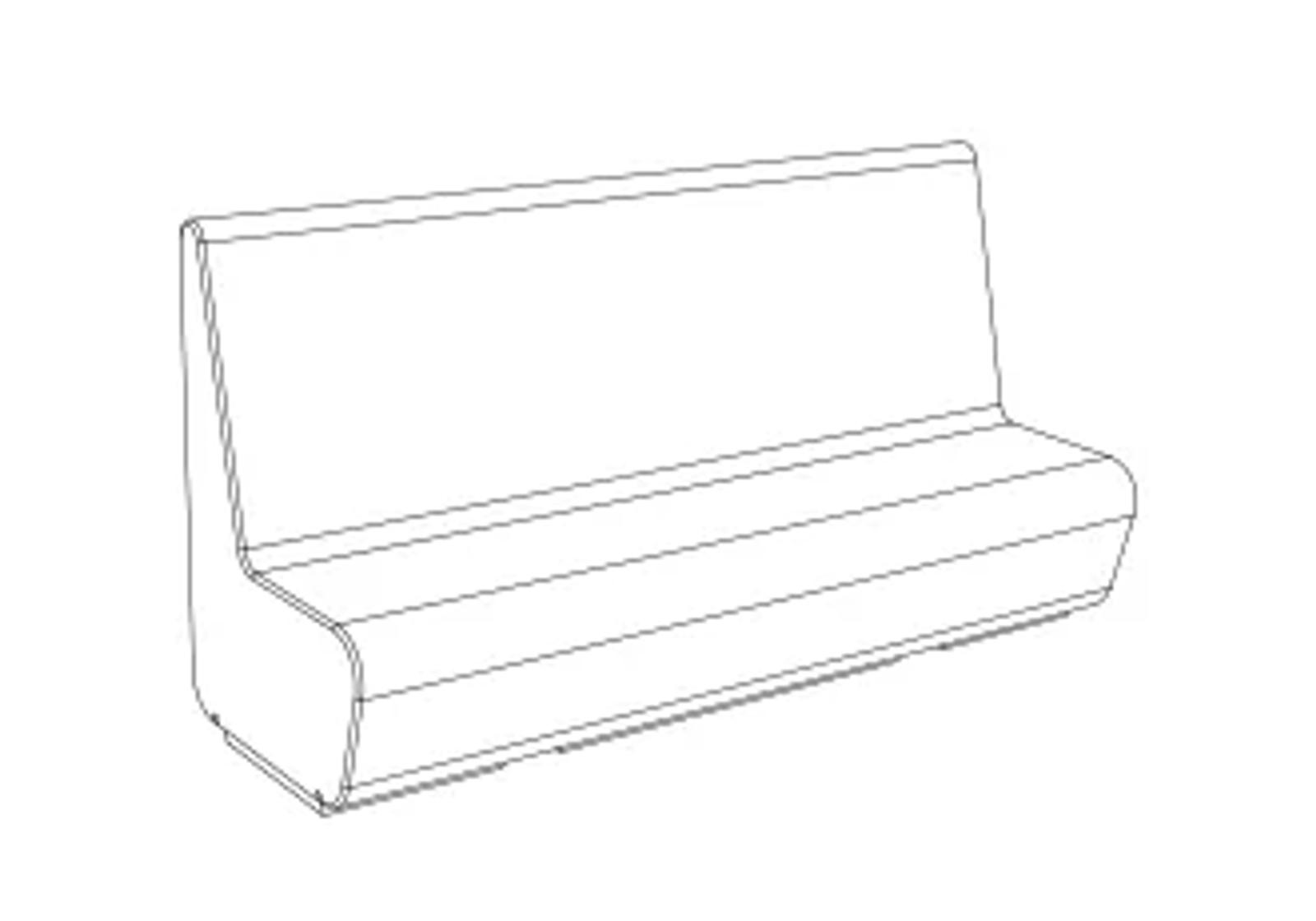

| Serp Recto con respaldo | 220 x 75 x 115 (45) cm | 2262 kg |

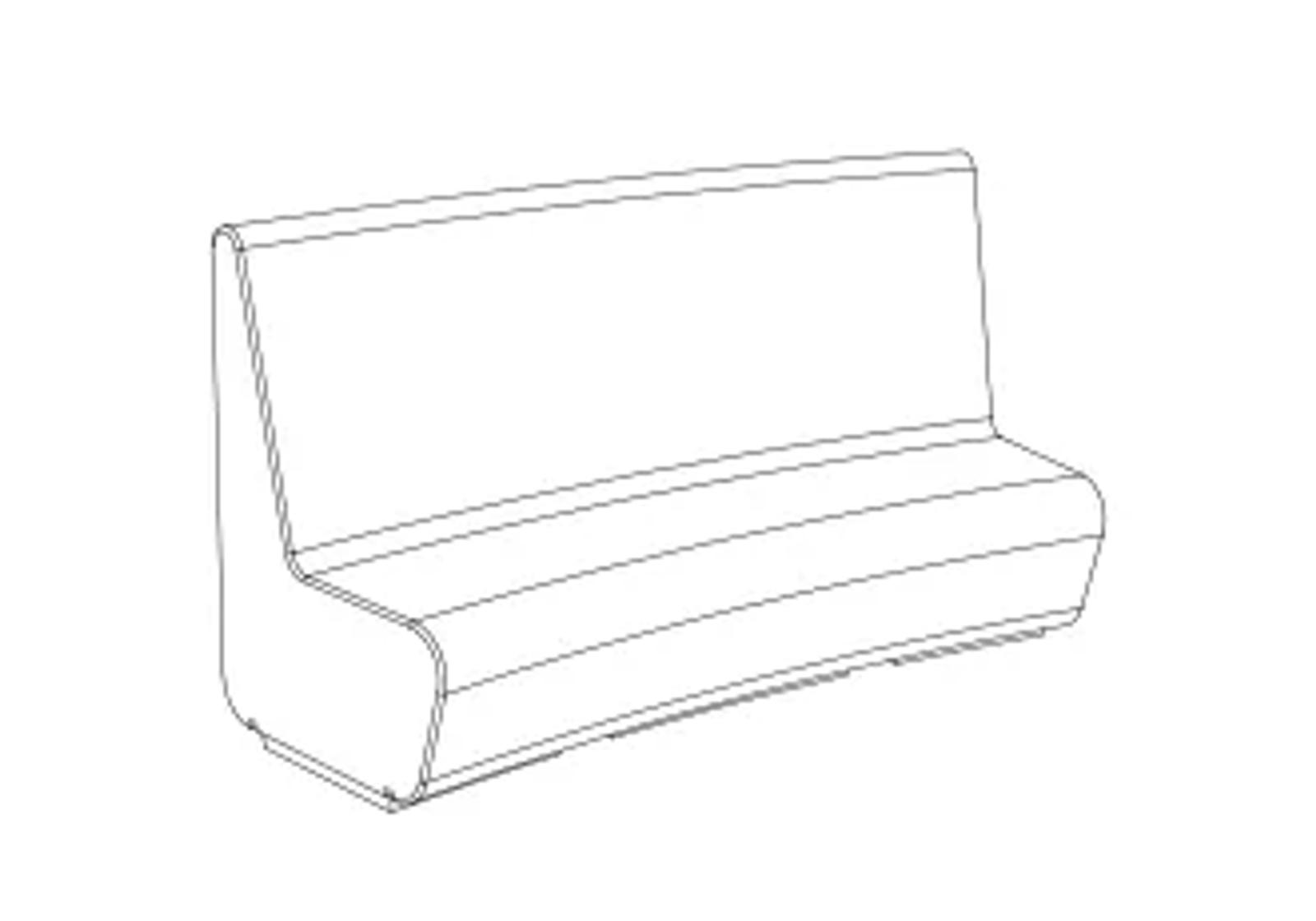

| Serp R600 con respaldo | 211 x 82 x 115 (45) cm | 2088 kg |

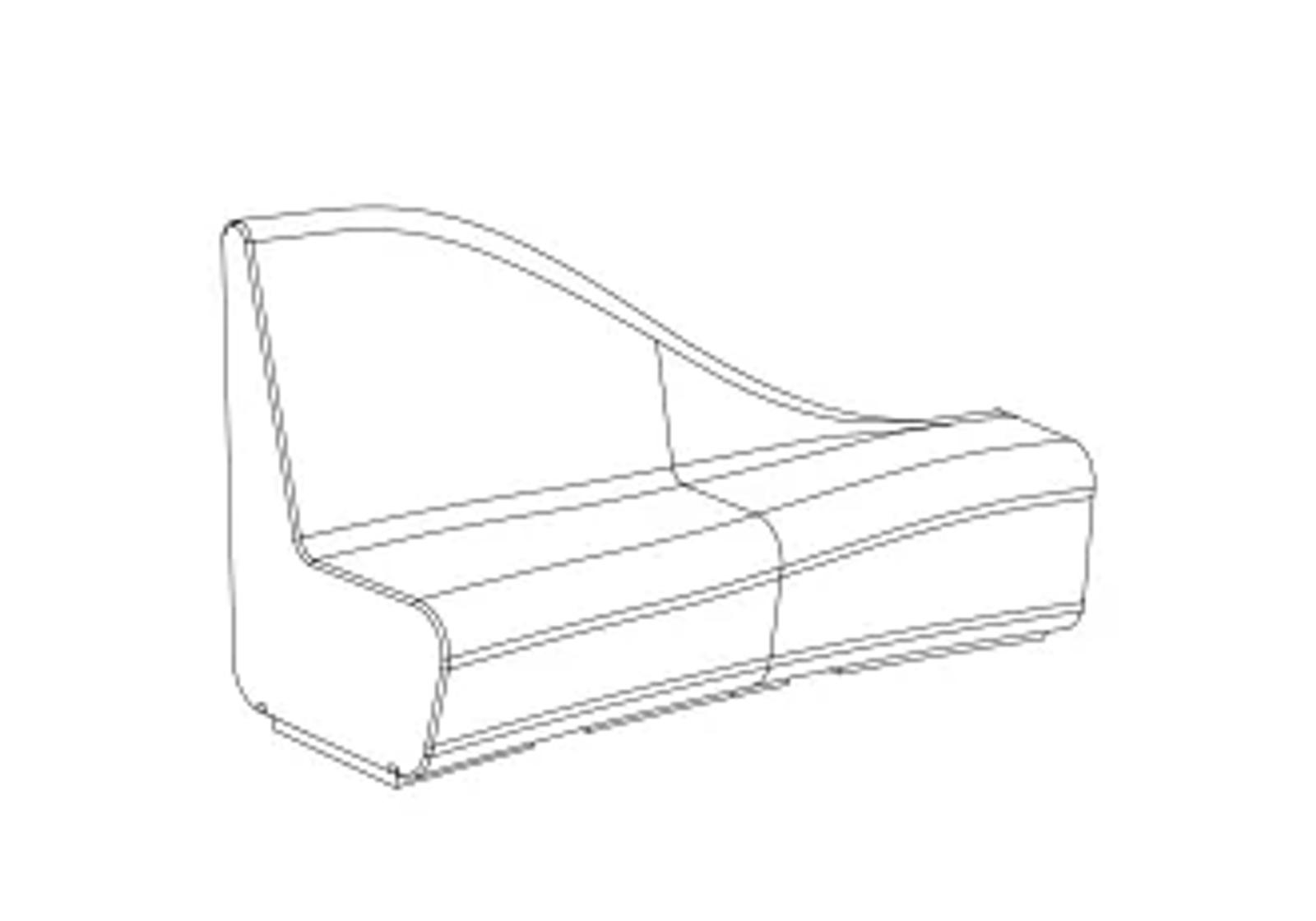

| Serp R600 con RESPALDO derecho | 207 x 78 x 115 cm | 1580 kg |

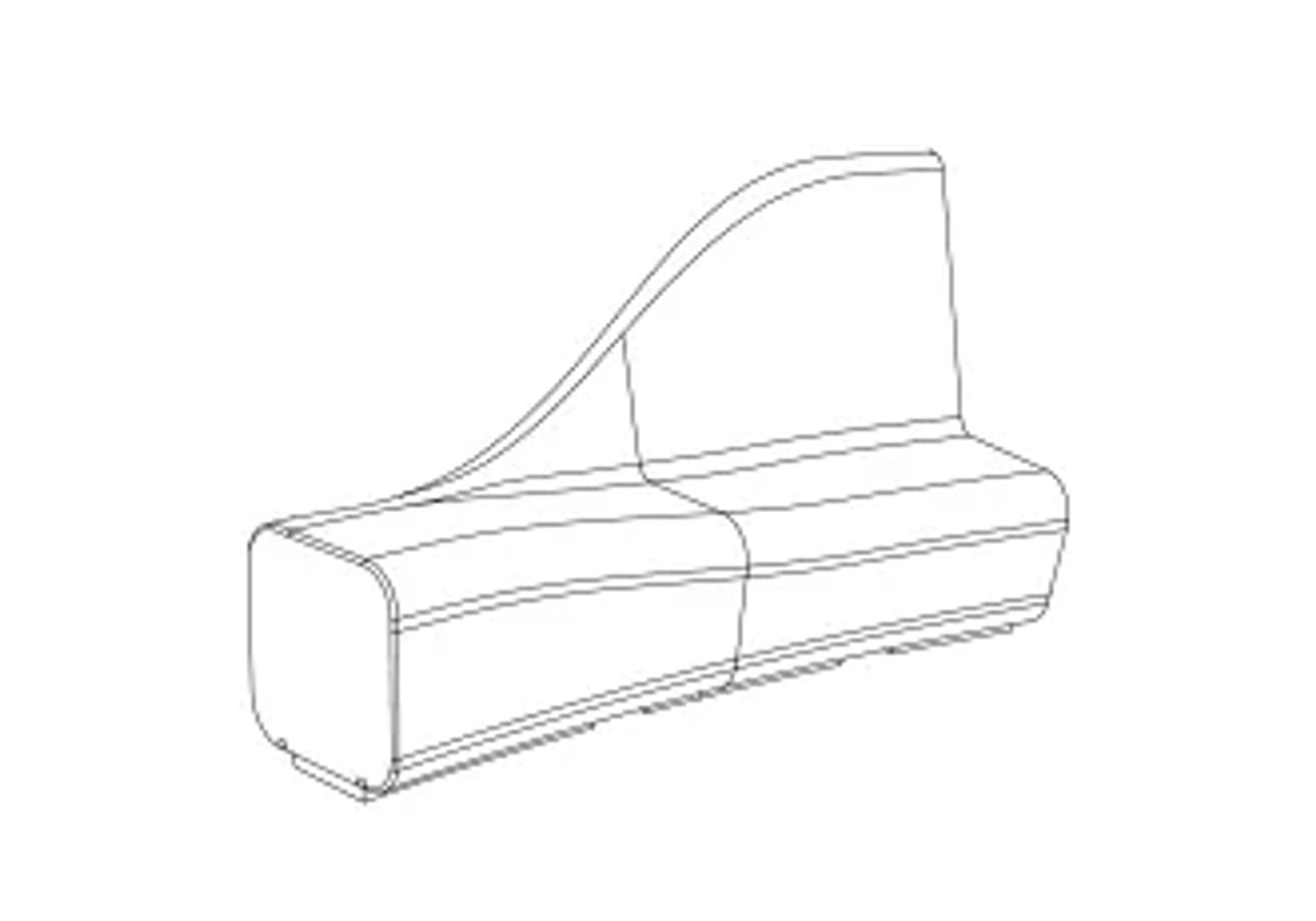

| Serp R600 con RESPALDO IZQUIERDO | 207 x 78 x 115 cm | 1580 kg |
